Understanding Your Car's Brake Calipers

What Exactly is a Brake Caliper?

A brake caliper is a fundamental component of your vehicle's disc braking system. Its primary function is to slow down or completely stop your car by applying pressure to the brake pads, which then clamp down onto the spinning brake disc (also known as a rotor). Think of it as the 'hand' that squeezes the 'wheel' to bring your vehicle to a halt. Without functioning brake calipers, your car would be unable to stop safely and effectively, especially at higher speeds or during emergency braking situations. In the UK, most modern vehicles, from everyday hatchbacks to performance cars, are equipped with disc brakes on at least the front wheels, and often on all four, making the caliper an indispensable part of road safety.

The term 'caliper' is widely accepted in automotive contexts, though you might occasionally see 'calliper' used. Regardless of the spelling, its role remains critical.

How Do Brake Calipers Perform Their Crucial Task?

The operation of a brake caliper is a marvel of hydraulic engineering, converting the simple act of pressing your brake pedal into powerful stopping force. Here's a breakdown of the process:

1. Brake Pedal Application: When you depress the brake pedal, this action activates the master cylinder. The master cylinder then pressurises the brake fluid within the hydraulic lines.
2. Hydraulic Pressure Transmission: This pressurised brake fluid is channelled through the brake lines directly to the brake caliper.
3. Piston Engagement: Housed within the caliper are one or more pistons. The incoming hydraulic pressure forces these pistons outwards. The harder you press the pedal, the greater the pressure, and the further the pistons extend.
4. Brake Pad Clamping: As the pistons move, they push the brake pads, which are positioned on either side of the brake disc. These pads are pressed firmly against the spinning rotor.
5. Friction and Deceleration: The intense friction generated between the brake pads and the rotating disc is what slows the wheel's rotation, thereby slowing and stopping your vehicle.

There are two primary designs that influence how this clamping action occurs: In fixed calipers, pistons are present on both sides of the disc, pushing the pads directly onto the rotor without the caliper itself moving. In floating (or sliding) calipers, pistons are typically on one side, and when they push the inner pad, a sliding mechanism within the caliper pulls the outer pad into contact with the disc, ensuring even pressure.

Exploring the Different Types of Brake Calipers

Brake calipers are not a one-size-fits-all component; they are designed with specific vehicle types and performance requirements in mind. The two main categories are:

1. Fixed Brake Calipers

Often found on high-performance and luxury vehicles, fixed calipers are engineered for superior stopping power and responsiveness. Their design features pistons on both sides of the brake disc. This arrangement allows for a more balanced and powerful clamping force, as the caliper body itself remains stationary. Instead of sliding, the pistons on each side push the brake pads directly onto the rotor. Many high-performance fixed calipers boast multiple pistons per side, further enhancing braking force and heat dissipation. This symmetric pressure application reduces the likelihood of caliper flex or brake fade, making them a favoured choice for sports cars. Brands like Brembo are renowned for their high-quality fixed caliper systems, often recognisable by their vibrant colours, such as red calipers.

2. Floating Brake Calipers (Sliding Calipers)

This is the most common type of caliper seen on the majority of vehicles across the UK. Floating calipers have pistons on only one side of the brake disc, usually one or two pistons. When the brake pedal is applied, the piston(s) push the inner brake pad against the disc. The caliper then uses a guide pin or sliding mechanism to move along the disc, pulling the outer brake pad into contact. This sliding action ensures that both sides of the disc are effectively clamped. Floating calipers are generally simpler, lighter, and more cost-effective to produce, making them ideal for standard road use and easier maintenance. While they might not match the extreme performance of fixed calipers, they provide more than adequate stopping power for everyday driving.

Distinguishing Front and Rear Calipers

While both serve the same fundamental purpose, there are differences:

• Front Brake Calipers: These typically handle a larger proportion of the braking force and are often larger and more robust to cope with this demand.
• Rear Brake Calipers: Generally smaller and sometimes simpler in design, rear calipers are still vital for balanced braking. In many vehicles, the rear caliper also incorporates the mechanism for the parking brake (handbrake).

Other Notable Types:

• Motorcycle Calipers: These are more compact but are designed with high precision for the unique demands of two-wheeled vehicles.
• Performance Calipers (e.g., Brembo): As mentioned, these are often fixed-caliper designs focused on maximum performance, heat management, and aesthetic appeal.

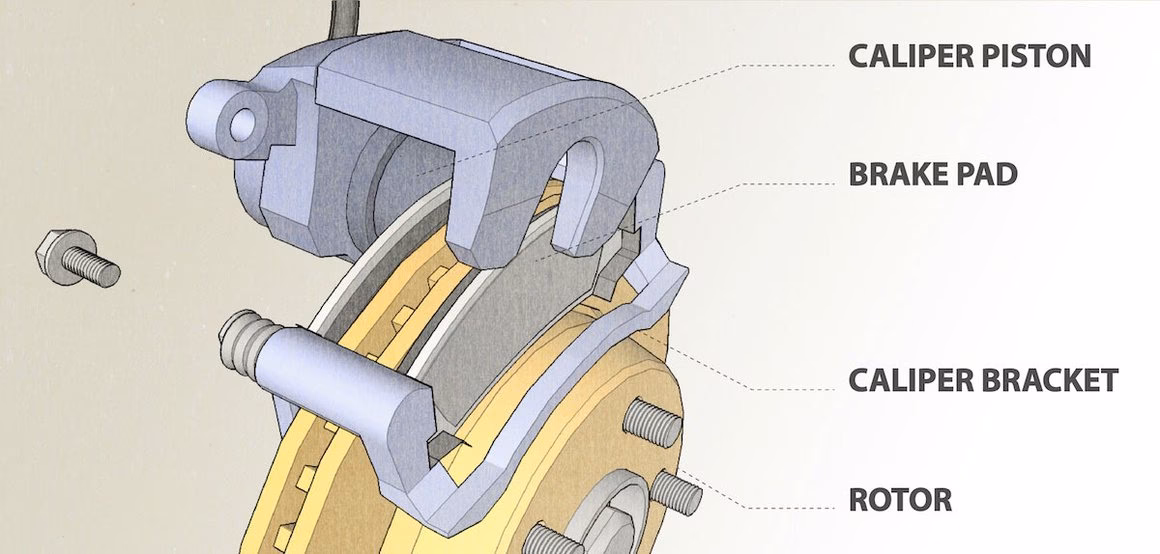

Key Components Within a Brake Caliper

A brake caliper is more than just a housing; it contains several crucial parts that work in harmony:

• Pistons: These are the hydraulic actuators that move outwards to press the brake pads against the rotor.
• Caliper Bracket (or Carrier): This is a strong metal frame, securely bolted to the vehicle's steering knuckle, which holds the caliper assembly in place.
• Slide Pins (for floating calipers): These allow the caliper to slide smoothly, ensuring even pressure is applied to both brake pads.
• Seals and Dust Boots: These protect the internal components, particularly the pistons, from dirt, debris, and moisture, and help maintain hydraulic pressure.
• Bleeder Screws: Used during brake fluid changes or bleeding to remove air from the hydraulic system.
• Anti-Rattle Clips/Springs: These help to keep the brake pads snug and minimise noise during braking.

Understanding these components is key to identifying potential issues, such as seized slide pins or leaking seals, which can precede more significant brake system failures.

The Symbiotic Relationship: Brake Pads and Calipers

Brake pads are the friction material that directly contacts the brake disc. The caliper's job is to force these pads into that contact. As the pads wear down over time, they need replacement. However, if a caliper isn't functioning correctly – perhaps it's sticking or not applying even pressure – it can lead to premature or uneven wear of the brake pads. It's generally good practice to inspect and often replace brake pads and calipers together, especially if the caliper shows signs of wear or malfunction, to ensure optimal braking performance and longevity of the new components.

Warning Signs of Caliper Problems

Pay attention to how your car brakes. Several symptoms can indicate a failing brake caliper:

1. Vehicle Pulling to One Side: If your car consistently pulls to the left or right when you brake, it's a strong indicator that a caliper on one side is not applying equal pressure, possibly due to a stuck piston or a problem with the slide pins.
2. Uneven or Rapid Brake Pad Wear: Brake pads should wear down relatively evenly. If you notice one pad is significantly more worn than the opposite pad, or if pads on one axle wear much faster than the other, a caliper issue is likely. A seized caliper can cause constant friction, leading to rapid wear and overheating.
3. Brake Fluid Leaks: Leaks around the caliper, often visible as fluid on the inner side of the wheel or a low brake fluid warning light on the dashboard, usually point to a damaged caliper seal or piston. This is a critical safety issue.
4. Excessive Brake Dust: While some brake dust is normal, an unusual or excessive amount, particularly if it seems to be constantly accumulating on one wheel, can signal a caliper that isn't releasing properly. This constant drag can also affect fuel efficiency.
5. Squealing or Grinding Noises: While worn brake pads are a common cause of squealing, a caliper that doesn't retract fully can keep the pads in light contact with the rotor, causing persistent noise and accelerating wear. Grinding noises often indicate metal-on-metal contact, which is a serious concern.
6. Clunking Sounds: A 'clunk' when applying the brakes might suggest loose caliper mounting bolts or a damaged caliper bracket, which could compromise the caliper's stability and braking effectiveness.
7. Illuminated Brake Warning Light: Modern vehicles have sensors that can detect issues within the braking system. If the brake warning light illuminates, especially in conjunction with any of the above symptoms, it warrants immediate professional inspection.

Why Do Brake Calipers Stick?

A sticking caliper is a common failure mode, and several factors can contribute:

• Corrosion on Slide Pins: In floating calipers, the slide pins allow the caliper to move. Rust and dirt accumulation on these pins can prevent smooth movement, causing the caliper to seize.
• Contaminated or Old Brake Fluid: Brake fluid can absorb moisture over time, leading to internal corrosion within the caliper, particularly affecting the piston and its bore.
• Worn Seals: Damaged or degraded seals can allow moisture and debris to enter the caliper, leading to corrosion and sticking.
• Overheating: Repeated hard braking can generate extreme heat, which can degrade caliper seals and lubricants, leading to sticking.
• Lack of Maintenance: Neglecting regular brake inspections and fluid changes can allow small issues like minor corrosion to develop into significant problems.

Connecting Calipers to the Wider Braking System

The brake caliper is an integral part of a hydraulic system. It connects via brake lines carrying pressurised brake fluid from the master cylinder. The caliper itself is mounted to the wheel hub, working in conjunction with the brake pads, brake disc, and brake fluid to create the necessary friction for stopping. The integrity of all these components and the fluid is essential for safe and effective braking.

The Cost of Caliper Replacement in the UK

Replacing a brake caliper in the UK involves costs for both the part and labour. Prices can fluctuate based on the vehicle's make and model, the type of caliper, and the garage's location and rates. As a general guide:

Labour charges typically range from £50 to £150 per axle, depending on the complexity and the time required. For high-performance or imported vehicles, these costs can be higher. While some enthusiasts may consider DIY replacement, it's crucial to remember that the braking system is a critical safety feature. Professional installation is highly recommended to ensure correct function and roadworthiness.

How Often Should Brake Calipers Be Replaced?

Brake calipers are designed for durability, but they are subject to wear and tear. While there's no strict mileage or time limit, a general recommendation for replacement is around 10 years or 100,000 miles, whichever comes first. However, driving conditions, environmental factors (like road salt in winter), and maintenance history significantly influence their lifespan. In the UK, calipers are inspected during the annual MOT test. Any signs of sticking, leaking, or significant corrosion will be flagged, prompting necessary repairs or replacement to maintain road legality and safety.

Addressing a Stuck Brake Caliper

A stuck caliper is a common issue that compromises braking and can lead to rapid wear. If a caliper is suspected of being stuck, it's best to consult a qualified mechanic. The repair process typically involves safely lifting the vehicle, removing the wheel, and inspecting the caliper's pistons and slide pins for signs of corrosion or seizing. Often, cleaning and lubricating these components can resolve the issue. If the caliper is significantly corroded or the piston is seized within its bore, replacement is usually the necessary course of action.

Are Brake Calipers Covered by Extended Warranties?

The coverage of brake calipers under extended warranties in the UK varies significantly depending on the policy. Most warranties distinguish between 'wear-and-tear' items (like brake pads and discs, which are typically excluded) and mechanical failures. Brake calipers, if they fail due to a manufacturing defect or mechanical breakdown, are often covered. For instance, policies like Warranty Direct's Gold Cover specifically include brake calipers in their approved component list, providing protection against costs arising from seized or leaking calipers. It's essential to check the specific terms and conditions of any warranty to understand what is covered.

Frequently Asked Questions About Brake Calipers

Conclusion

Brake calipers are unsung heroes of your vehicle's safety system. They are responsible for converting hydraulic pressure into the mechanical force needed to stop your car. Over time, due to constant exposure to heat, road debris, and moisture, they can develop issues like sticking, leaking, or seizing. Regular inspections, prompt attention to warning signs, and timely maintenance or replacement are crucial to ensure your braking system remains effective and safe. Considering an extended warranty, such as Warranty Direct's Gold Cover, can provide additional peace of mind by protecting against the unexpected costs associated with critical component failures like brake calipers.
