Audi DL382: A Deep Dive into its Wet Clutch

Understanding the Audi DL382 Transmission

The Audi DL382 is a sophisticated 7-speed robotic transmission that has been a key component in many of Audi's front-wheel drive and all-wheel drive models since its introduction in 2015. Often found in vehicles designated with codes like 0CK (front-wheel drive), 0CL (all-wheel drive), and 0CJ (Ultra Quattro), it's a testament to Audi's engineering prowess. For those with more powerful engines, a reinforced version, the DL382+, identified by the index 0HL, was developed to handle torque outputs of up to 500 Nm. This transmission is part of the broader DSG-7 family, which includes other notable gearboxes such as the DQ200, DQ381, and DL501, each with its own unique characteristics and applications.

Does the Audi DL382 Have a Wet Clutch?

Yes, the Audi DL382 transmission is equipped with a pair of wet clutches. This is a crucial detail that distinguishes it from transmissions that use dry clutches. Wet clutch systems, where the clutch plates are immersed in oil, generally offer better heat dissipation and smoother engagement, contributing to a more refined driving experience and potentially longer clutch life under demanding conditions. This design choice is typical for many performance-oriented or higher-torque applications within the DSG family.

Key Specifications of the DL382

To fully appreciate the DL382, let's delve into its technical specifications:

Gear Ratios: A Closer Look

Understanding the gear ratios provides insight into how the transmission balances performance and efficiency. Here are the gear ratios for a typical Audi DL382, as seen in an Audi A4 2017 with a 2.0 TSI engine:

Vehicles Equipped with the DL382

The versatility of the DL382 is evident in the range of Audi models it powers. Here are some of the popular vehicles that come equipped with this transmission:

• Audi A4 B9 (8W) - Since 2015
• Audi A5 2 (F5) - Since 2016
• Audi A6 C8 (4K) - Since 2018
• Audi A7 C8 (4K) - Since 2018
• Audi Q5 2 (FY) - Since 2017

Additionally, the Volkswagen Phideon 1 (3E), starting from 2016, also features this transmission, highlighting its integration across different brands within the Volkswagen Group.

Potential Disadvantages and Common Issues

While the DL382 is a capable transmission, like any complex mechanical system, it can develop issues over time. Owners may encounter certain drawbacks:

• Mechatronic Unit Failures: The mechatronic unit, which controls the gear changes and clutch actuation, is a common point of failure in many DSG transmissions. Symptoms can include jerky shifting, delayed engagement, or complete loss of drive.
• Clutch Wear: Although it's a wet clutch system, prolonged aggressive driving or inadequate maintenance can lead to premature clutch wear. This might manifest as slipping, shuddering during engagement, or a burning smell.
• Mechatronic Seal Leaks: Leaks from the mechatronic unit's seals can lead to a loss of hydraulic pressure, affecting the transmission's performance and potentially causing damage if not addressed promptly.
• Software Glitches: As with many modern electronically controlled systems, software issues or the need for software updates can sometimes cause unexpected behaviour.
• Initial Hesitation: Some drivers report a slight hesitation or jerkiness when the transmission is cold or during low-speed maneuvering, which can be characteristic of dual-clutch transmissions.

Maintenance: Keeping Your DL382 Healthy

Proper maintenance is paramount to ensuring the longevity and optimal performance of your Audi DL382. Adhering to the recommended service intervals is crucial:

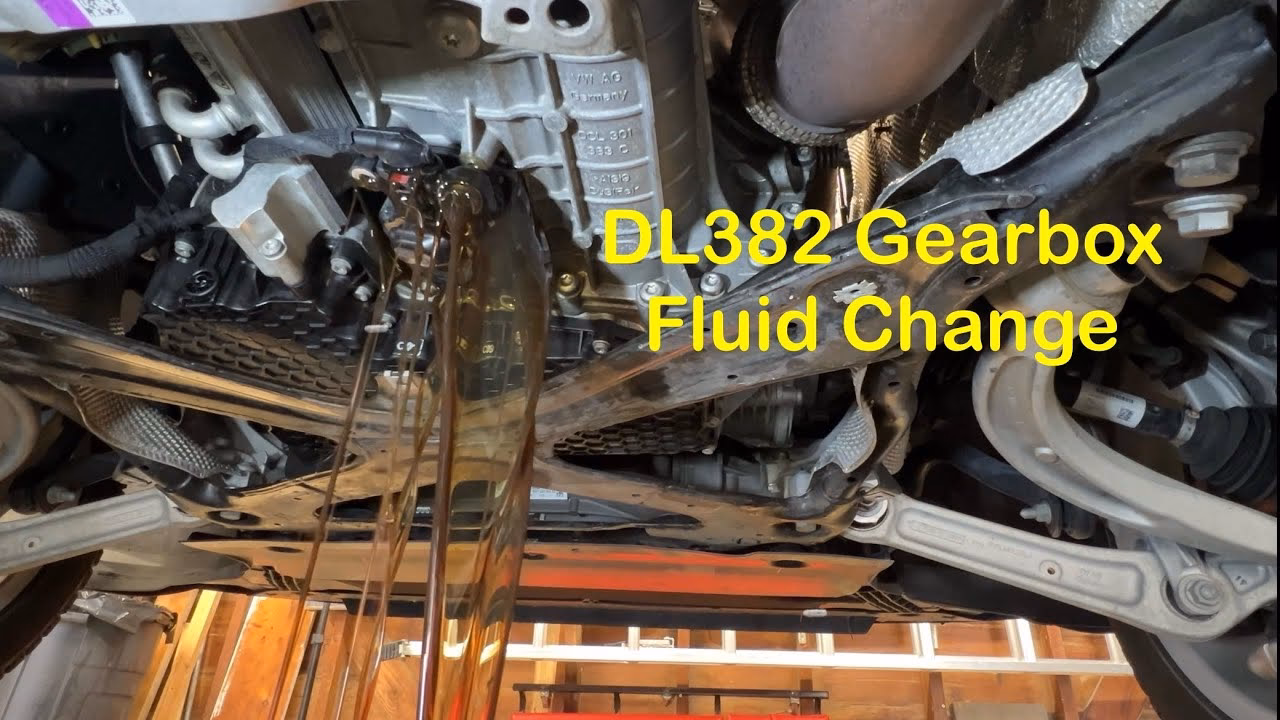

• Oil Changes: Audi recommends changing the transmission fluid every 60,000 km. It's essential to use the specific fluids recommended by Audi (G055 529 A2 + G055 549 A2) as they are formulated to meet the precise requirements of the wet clutch system and hydraulic controls.
• Filter Replacement: Along with the oil change, the transmission filter should also be replaced at the same 60,000 km interval. The filter removes contaminants from the transmission fluid, ensuring its cleanliness and the proper functioning of internal components.
• Regular Inspections: Keep an eye out for any unusual noises, vibrations, or warning lights on your dashboard. Addressing minor issues promptly can prevent them from escalating into major, costly repairs.
• Driving Style: While the DL382 is designed for performance, avoiding excessively aggressive driving for prolonged periods, especially when the transmission is cold, can contribute to its longevity.

Frequently Asked Questions (FAQs)

Q1: What type of clutch does the Audi DL382 use?

The Audi DL382 exclusively uses a dual wet clutch system.

Q2: How often should the transmission fluid be changed in a DL382?

The recommended interval for changing the transmission fluid and filter in the DL382 is every 60,000 kilometers.

Q3: Can I use a generic transmission fluid in my DL382?

It is strongly advised to use only the Audi-specified fluids (G055 529 A2 + G055 549 A2). Using incorrect fluids can lead to improper lubrication, overheating, and potential damage to the transmission's internal components, particularly the wet clutch pack.

Q4: What are the signs of a failing DL382 transmission?

Signs of a failing DL382 can include rough or jerky gear changes, slipping gears, delayed engagement, a burning smell, or transmission warning lights illuminating on the dashboard.

Q5: Is the DL382 a reliable transmission?

When properly maintained and not subjected to extreme abuse, the DL382 is generally considered a reliable transmission. However, like many advanced dual-clutch transmissions, it can be susceptible to issues with the mechatronic unit and clutch packs if maintenance is neglected or if driven aggressively without proper care.

Conclusion

The Audi DL382 transmission, with its wet clutch design, offers a blend of performance and efficiency that has made it a popular choice for many Audi models. Understanding its specifications, maintenance requirements, and potential issues is key to ensuring a smooth and reliable driving experience. Regular servicing, using the correct fluids, and being mindful of driving habits will go a long way in preserving the life of this advanced piece of automotive engineering.
