Spot welding has become an indispensable technique for automotive enthusiasts and professionals alike, offering a quick and efficient way to join thin metal sheets or attach battery tabs. However, for those venturing into DIY spot welder construction, particularly using common components like microwave oven transformers (MOTs), a critical question often arises: can a spot welder arc over? The straightforward answer is yes, and understanding why this happens, along with the associated risks, is paramount for both safety and effective operation. This article delves into the potential hazards of rudimentary spot welder designs and explores how thoughtful engineering can mitigate these risks, leading to a much safer and more precise welding experience.
The Unseen Dangers of Simplistic Spot Welders
Many homemade spot welders rely on a very basic principle: modifying a microwave oven transformer and using a momentary switch on its primary side to control the welding pulse. While undeniably simple to construct, this design, despite its popularity, harbours several inherent safety issues. The primary concern often relates to the placement of the momentary switch. If it's within easy reach of the operator, and especially if insulation is inadequate, the risk of electric shock from the mains voltage is significantly elevated. This is a critical oversight that can lead to serious injury.
Beyond the immediate shock hazard, the electrical characteristics of the transformer itself introduce another layer of risk. The current flowing through the primary winding can often exceed the current rating of the typical momentary switch used. This overload can cause the switch to fail prematurely, potentially leading to a continuous connection or, even worse, a catastrophic short circuit. However, the most insidious danger, and the direct answer to our initial question, lies in the inductive nature of the transformer's winding. When an inductive load like a transformer's primary winding is rapidly switched off, it generates a high-voltage spike (back EMF). This spike can cause the switch to arc over, creating a visible spark or plasma discharge across the switch contacts. Such arcing not only damages the switch but also poses a significant risk to the operator due to potential electrical burns or even fire, especially if flammable materials are nearby. It's a clear indication of uncontrolled energy release, and a sign that the design needs serious reconsideration.
Beyond the Spark: The Need for Precision
Another significant drawback of these rudimentary spot welders is the lack of precise control over the welding duration. The welding time is entirely dependent on how long the operator holds down the momentary switch. While this might suffice for some general metal welding tasks, it becomes a critical limitation when working with sensitive components like battery terminals. Excessive welding time can cause the battery terminal to heat up significantly, which can drastically shorten the life of the battery. Modern battery packs require consistent, short, and precisely timed welding pulses to ensure optimal performance and longevity. Without this control, the benefits of spot welding for battery tab attachment are severely undermined, potentially leading to damaged cells and wasted effort.
Engineering a Safer and Smarter Solution
Addressing the aforementioned safety and control issues requires a more sophisticated approach than a simple momentary switch. A well-engineered spot welder incorporates components designed to handle high currents safely and to provide accurate timing. The core of such an improved design often involves replacing the direct momentary switch with a robust electronic switching component and introducing a dedicated timing circuit.
The Power Control: TRIACs and Isolation
To safely switch the primary of the transformer, a high-current solid-state device like a TRIAC (Triode for Alternating Current) is an excellent choice. For instance, a BTA-41 TRIAC is rated to handle 40 Amperes of current, which is more than adequate for the typically pulsed demands of a spot welder. Unlike mechanical switches, TRIACs are designed to handle inductive loads more gracefully, significantly reducing the risk of arcing at the switching point. To suppress transient voltage spikes that can still occur with inductive loads, a snubber network (typically a resistor and capacitor in series) is often incorporated in parallel with the TRIAC. This network absorbs and dissipates the energy from voltage spikes, further protecting the TRIAC and enhancing overall safety.
Crucially, to isolate the low-voltage control circuitry from the dangerous mains voltage, an optocoupled TRIAC driver (such as the MOC3061) is employed. An optocoupler uses light to transmit a signal across an electrical barrier, meaning there is no direct electrical connection between the control circuit and the mains. This galvanic isolation is a fundamental safety feature, ensuring that even if there's a fault in the high-voltage side, the operator interacting with the low-voltage trigger switches remains protected from electric shock. It's a critical upgrade that transforms a potentially hazardous tool into a much safer one.
Precision Timing for Perfect Welds
To gain precise control over the welding duration, a timer integrated circuit, like the ubiquitous 555 timer, can be configured in a single-shot (monostable) mode. In this setup, the 555 timer generates a single output pulse of a predetermined duration when triggered. The pulse width, and thus the welding time, can be accurately adjusted by varying the values of specific resistors and capacitors within the timer's circuit. For example, a range of approximately 0.1 seconds to 0.6 seconds might be achievable, providing the flexibility needed for different welding tasks.
The triggering mechanism for the timer also benefits from careful design. Instead of directly connecting a switch to the timer's trigger pin, an RC (Resistor-Capacitor) circuit can be used. This ensures that even if the operator holds the trigger switch down for an extended period, the actual trigger pulse sent to the 555 timer is very narrow, guaranteeing the minimum pulse width is always achieved. This level of precise control is invaluable, especially when welding delicate battery tabs where even a fraction of a second too long can cause irreversible damage to the battery.
The Heart of the Welder: Transformer and Tips
The fundamental power source for many DIY spot welders remains the modified microwave oven transformer (MOT). The original high-voltage secondary winding is carefully removed, often by cutting it out, and replaced with a new, low-turn, heavy-gauge secondary winding. For example, winding three turns of 4 AWG wire can produce an open-circuit voltage of roughly 3V AC. This low voltage, combined with the very thick wire, allows for extremely high currents at the welding tips when shorted. A shorting current of close to 1kA (1000 Amperes) is not uncommon for such setups. While the transformer itself might only be rated for, say, 1.3kW, operating it in a pulse mode means that it can safely dissipate significantly more power (e.g., over 3kW) during the brief welding intervals without overheating, as the average power dissipation remains within limits.
Specialised Tips for Diverse Tasks

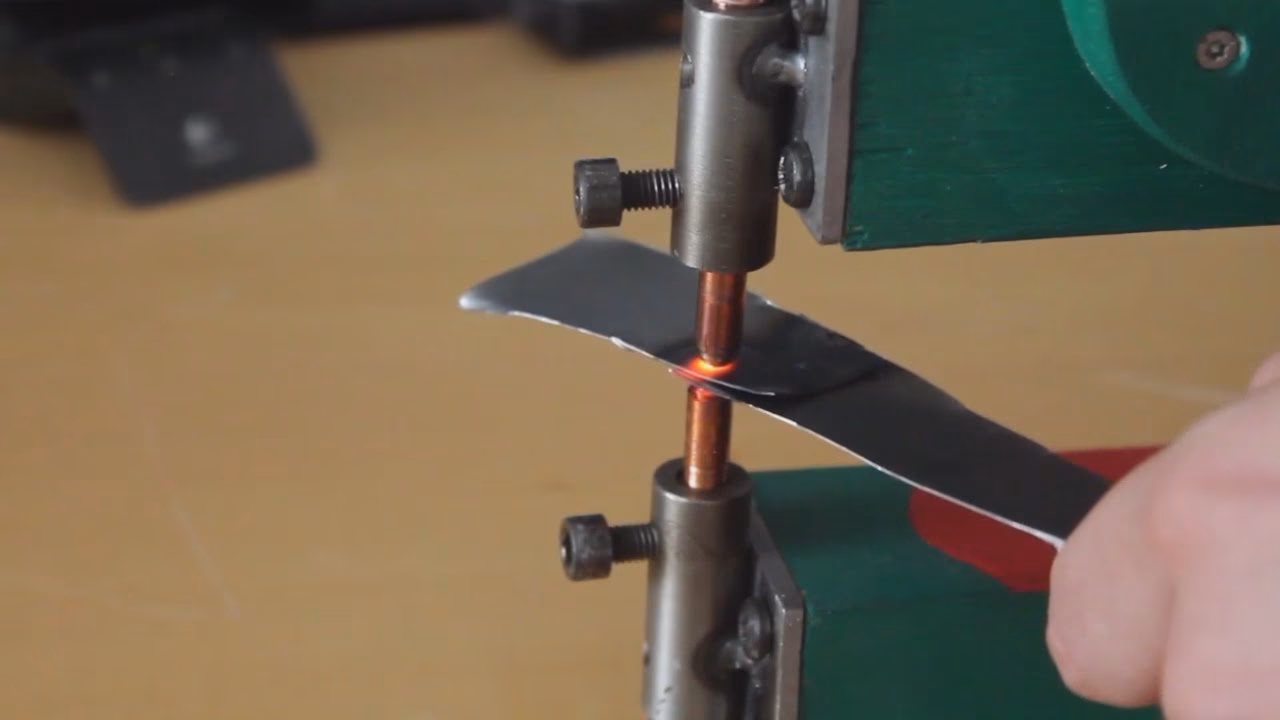

A versatile spot welder benefits from having different types of welding tips tailored to specific applications. For general metal sheet welding, main welding tips are typically configured opposing each other. These are robust, often secured onto heavy-duty terminal lugs with M5 screws, and operated via a lever mechanism (such as a salvaged server mounting rail) to apply sufficient pressure. These tips are designed to handle the high currents and pressures needed for robust joins.
For welding battery tabs, however, a different tip configuration is required. Battery tab welding typically involves thin nickel strips, which require very short welding times (e.g., 0.1 seconds) and lower current (e.g., 200 Amperes) compared to welding thicker materials. For this reason, battery tab welding tips are usually adjacent to each other, allowing both current paths to be directed through the small area of the tab and battery terminal. The wires and tips for this application are significantly thinner than the main welding tips to concentrate the current and heat more effectively in a smaller area. Both sets of welding tips can be connected to the secondary of the transformer, with a simple switching mechanism (e.g., separate momentary switches) allowing the operator to select the appropriate tips for the task at hand. A practical design might even include a holder to store the battery tab welding portion on the main lever when it's not in use, ensuring convenience and organisation.
Safety First: Key Design Considerations
The safety enhancements in a well-designed spot welder extend beyond just the primary switching circuit. Even components like the TRIAC, while robust, should be mounted on a small heatsink. Although the welder operates periodically rather than continuously, ensuring adequate heat dissipation for all power components is crucial for longevity and preventing thermal runaway. The entire circuit board should be neatly laid out, with proper insulation and enclosure, to minimise any risk of accidental contact with live components. Furthermore, the use of two distinct momentary switches for different sets of welding tips adds another layer of operational safety, preventing accidental activation of the wrong tips.
Comparative Analysis: Simple vs. Advanced Spot Welders
To further illustrate the benefits of an advanced spot welder design, consider the following comparison:
| Feature | Simple DIY Spot Welder (Momentary Switch) | Advanced DIY Spot Welder (TRIAC & 555 Timer) |
|---|---|---|
| Primary Switching | Mechanical momentary switch | TRIAC (e.g., BTA-41) |
| Risk of Arcing | High (due to inductive load on switch) | Very Low (TRIAC handles inductive loads, snubber network) |
| Electric Shock Risk | High (switch near operator, poor isolation) | Low (optocoupler provides galvanic isolation) |
| Current Handling | Switch often over-currented, prone to failure | TRIAC rated for high current (e.g., 40A), robust |
| Welding Duration Control | Manual, imprecise (operator dependent) | Precise (e.g., 0.1s to 0.6s via 555 timer) |
| Battery Welding Suitability | Poor (risk of battery damage due to overheating) | Excellent (precise pulse prevents overheating) |
| Component Longevity | Low (switch failure common) | High (components protected, operated within limits) |
| Overall Safety | Poor | Excellent |
Frequently Asked Questions (FAQs)
Q: What causes a spot welder to arc over?
A: Arcing in a spot welder typically occurs at the primary side switch when it attempts to interrupt the current flow to the transformer's primary winding. The transformer is an inductive load, meaning it stores energy in its magnetic field. When the current is suddenly cut off, this stored energy is released as a high-voltage spike (back EMF), which can momentarily ionise the air between the switch contacts, creating an arc. This is especially prevalent with simple mechanical switches not designed for inductive loads.
Q: Is arcing dangerous on a spot welder?
A: Yes, arcing is very dangerous. It can damage the switch, potentially leading to its failure or a permanent short circuit. More critically, it poses a significant risk to the operator, including electrical burns from the arc itself, a fire hazard if flammable materials are nearby, and an increased risk of electric shock due to uncontrolled electrical discharge.
Q: How can I make my DIY spot welder safer?
A: To make your DIY spot welder safer, incorporate a TRIAC for primary side switching, an optocoupler for galvanic isolation between control and mains voltage, and a snubber network to suppress voltage spikes. Additionally, enclose all high-voltage components, use robust wiring, and ensure proper grounding.
Q: Why is precise welding time control important for batteries?
A: For batteries, precise welding time control is crucial because excessive heat can damage the internal chemistry of the battery cell, leading to reduced capacity, increased internal resistance, and a shortened lifespan. A precisely timed, short pulse ensures enough heat for a strong weld without overheating the battery.
Q: Can I use a standard light switch for a spot welder?
A: Absolutely not. Standard light switches are designed for resistive loads and are typically rated for much lower currents than what a spot welder's primary winding draws. More importantly, they are not designed to handle the inductive kickback from a transformer, which will almost certainly cause arcing, rapid degradation, and dangerous failure.
Q: What is the purpose of an optocoupler in a spot welder?
A: An optocoupler provides electrical isolation between the low-voltage control circuitry (where the operator's hands are) and the high-voltage mains side of the transformer. It uses light to transmit the control signal, meaning there is no direct electrical connection, thus protecting the operator from potentially lethal electric shock.
Conclusion
While the allure of a simple, homemade spot welder is strong, the potential for dangerous arcing and other electrical hazards cannot be overlooked. Understanding that a spot welder can indeed arc over, and the reasons behind it, is the first step towards building a safer and more effective tool. By upgrading from a basic momentary switch to a robust TRIAC-based system with opto-isolation and precise 555-timer control, hobbyists and professionals can transform a potentially risky endeavour into a controlled, accurate, and most importantly, safe welding process. Prioritising safety in design not only protects the operator but also ensures the longevity and quality of the welds, particularly when working with sensitive components like battery cells. Always remember: in the workshop, safety is not an option; it's a fundamental requirement.
