DIY Windscreen Crack Repair: Your Ultimate Guide

That dreaded 'ping' sound, followed by the appearance of a small crack or chip on your windscreen, is a common annoyance for many motorists. Beyond being an unsightly blemish, a damaged windscreen can compromise your vehicle's structural integrity and obscure your vision, posing a significant safety risk. While the thought of a costly professional repair or full windscreen replacement might fill you with dread, the good news is that for minor damage, a do-it-yourself (DIY) repair kit can be a remarkably effective, affordable, and convenient solution. This detailed guide will walk you through everything you need to know about fixing a cracked windscreen at home, ensuring you have the confidence to tackle these repairs yourself and get back on the road safely.

Understanding Windscreen Damage: What Can You Fix?

Before you even think about reaching for a repair kit, it’s crucial to accurately assess the type and severity of the damage. Not all windscreen cracks are created equal, and understanding their characteristics will help you determine if a DIY approach is viable or if you need to seek professional assistance. Here are the most common types of windscreen damage you might encounter:

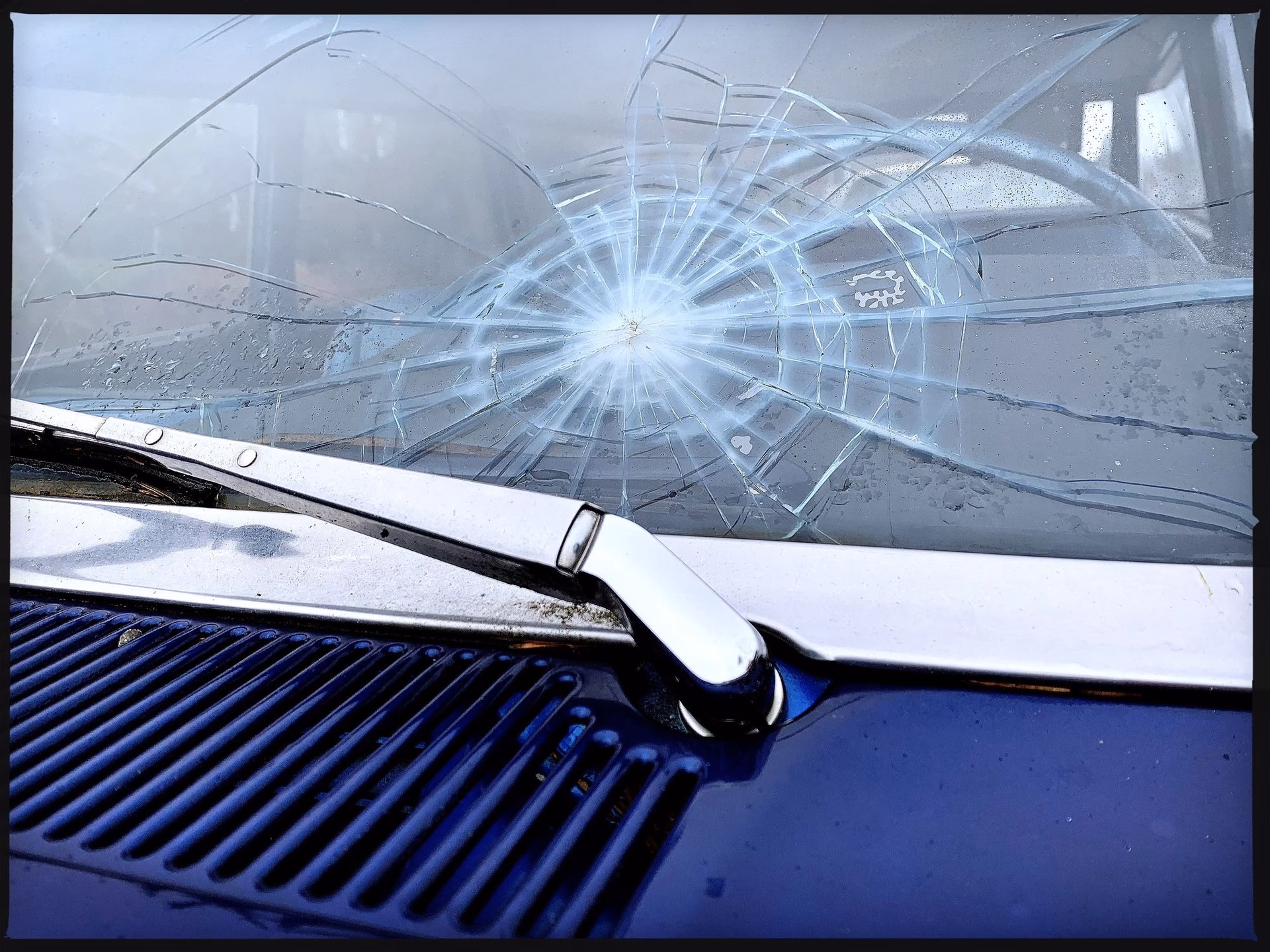

• Star Cracks: These are characterised by a central impact point with several short cracks radiating outwards, resembling a star. They are typically caused by small, sharp objects hitting the glass. DIY kits are often quite effective for star cracks, provided they are not excessively large.
• Bullseye Cracks: As the name suggests, these are circular chips with a central impact point, often resembling a target or bullseye. They result from blunt objects striking the glass. Bullseye cracks are generally good candidates for DIY repair, especially if their diameter is small.
• Combination Chips: These are a mix of star and bullseye damage, presenting both a central impact point and radiating cracks. Their repairability depends on the overall size and complexity.
• Stress Cracks: Unlike impact cracks, stress cracks are long, often meandering fissures that appear without a direct impact. They typically occur due to extreme temperature fluctuations, manufacturing defects, or pre-existing structural weaknesses in the glass. DIY kits are generally not suitable for stress cracks, as they indicate a deeper structural issue that requires professional assessment.
• Edge Cracks: These are cracks that start at or run to the edge of the windscreen. Even if seemingly small, edge cracks can quickly spread due to the tension in the glass and often compromise the windscreen's structural integrity. They are usually best left to professionals.

The golden rule for DIY repair is size. Most DIY kits are designed for chips no larger than a quarter coin (approximately 25mm in diameter) and cracks no longer than 6 inches (about 15cm). Any damage exceeding these dimensions, or any crack that obstructs the driver's direct line of sight, should always be handled by a qualified professional for safety reasons.

When to Embrace DIY vs. Seek Professional Help

Deciding whether to tackle a windscreen repair yourself or call in the experts is a critical choice that impacts both your safety and your wallet. While DIY kits offer significant cost savings and convenience, knowing their limitations is paramount.

DIY is a Good Idea When:

• The damage is a small chip (bullseye, star, or combination) no larger than a quarter coin.
• The crack is short, typically less than 6 inches in length.
• The damage is not in the driver's primary line of sight (the area directly in front of the steering wheel).
• The crack or chip has not penetrated both layers of the laminated glass.
• The damage is relatively new, meaning dirt and moisture haven't had much time to settle into the crack.

When to Call a Professional:

• Large Cracks: Any crack longer than 6 inches significantly compromises the windscreen's structural integrity and requires professional attention or a full replacement.
• Obstructed View: If the damage is in the driver's direct line of sight, even a small repair might leave a slight imperfection that could be distracting or affect visibility. Professional replacement is usually recommended.
• Deep or Complex Damage: If the chip is very deep, or if there are multiple cracks radiating from a single point, a DIY kit might not be able to fully penetrate and fill the damage.
• Edge Cracks: As mentioned, cracks near the edge of the windscreen are under high stress and prone to spreading rapidly.
• Contaminated Damage: If dirt, debris, or cleaning solutions have been allowed to sit in the crack for an extended period, the repair resin may not adhere properly.
• Stress Cracks: These are almost always a sign of a deeper problem and require professional assessment.

Gathering Your DIY Repair Arsenal

A typical DIY windscreen repair kit, readily available from automotive shops and online retailers for under £15, contains the essential components for a successful repair. Before you begin, ensure you have all the necessary items on hand:

• Resin Injector/Applicator: This device creates a vacuum to draw air out of the crack and then applies pressure to force the resin deep into the damaged area.
• Windscreen Repair Resin: A clear, specialised liquid polymer designed to fill and bond the glass. It hardens when exposed to UV light.
• Curing Film/Strips: Small, clear plastic strips that cover the applied resin, helping to cure it evenly and protect it from dust.
• Razor Blade: Used to carefully scrape away excess cured resin from the windscreen surface.
• Cleaning Cloth: For preparing the area before repair and for the final clean-up.
• Glass Cleaner: To ensure the windscreen is spotless before applying the resin.
• Optional but Recommended: Safety gloves, safety glasses, masking tape (to protect surrounding paint), and a stable work surface if possible.

Step-by-Step Guide to a Flawless Windscreen Repair

With your materials ready and a clear understanding of the damage, you can now proceed with the repair. Always follow the specific instructions provided with your DIY kit, as there can be slight variations, but the general process remains consistent:

1. Clean the Area Thoroughly

This is arguably the most critical step. Any dirt, dust, or moisture trapped within the crack will prevent the resin from bonding properly and result in a visible, failed repair. Use a high-quality glass cleaner and a clean, lint-free cloth to meticulously clean the entire area surrounding the crack. For stubborn dirt within the crack itself, some kits provide a small pick or allow for gentle use of a pin to dislodge debris. Ensure the area is completely dry before proceeding. Parking your vehicle in a shaded area is ideal to prevent the resin from curing prematurely due to sunlight.

2. Position the Resin Injector/Applicator

Carefully assemble the resin injector according to your kit's instructions. This usually involves attaching a pedestal or adhesive disc over the centre of the crack. The goal is to create a sealed chamber directly over the damage. Ensure the injector is firmly pressed onto the windscreen and perfectly centred over the impact point. This precise positioning is crucial for effective resin penetration.

3. Inject the Resin with Precision

Once the injector is securely in place, slowly dispense the resin into the applicator chamber. Most kits involve screwing a syringe or plunger into the injector. The key here is to apply steady, consistent pressure to force the resin into every tiny crevice of the crack. You might need to repeatedly push and release the plunger to create a vacuum effect, drawing air out of the crack and allowing the resin to flow in. Watch closely to ensure the resin fills the entire damaged area, pushing out any trapped air bubbles. Take your time with this step; it determines the success of the repair.

4. Cure the Resin Under UV Light

After the resin has fully permeated the crack, remove the injector system. Immediately place a curing film or strip directly over the filled crack. This film flattens the resin and protects it from contaminants while it cures. Now, expose the area to ultraviolet (UV) light. Most kits recommend using direct sunlight for 10-15 minutes, or longer on cloudy days. If your kit includes a dedicated UV lamp, follow its specific curing times. The UV light causes the liquid resin to harden and solidify, bonding the damaged glass together.

5. Remove Excess Resin

Once the resin has completely cured and feels hard to the touch, carefully peel off the curing film. You will likely find a small amount of excess, hardened resin on the surface of the windscreen. Using the provided razor blade, hold it at a shallow angle (almost flat against the glass) and gently scrape away the excess resin. Work slowly and methodically, taking care not to scratch the surrounding glass. The goal is to make the repaired area as flush as possible with the rest of the windscreen.

6. Final Clean-Up and Inspection

After scraping, wipe the area with a clean, damp cloth to remove any residue. Inspect the repair closely from both inside and outside the vehicle. While the crack may not disappear entirely, it should be significantly less visible, and the surface should feel smooth. The goal is to restore structural integrity and minimise visibility, not to make the damage vanish without a trace. If you notice any small gaps or uncured spots, a second, smaller application of resin and re-curing might be attempted, but this is rare if the initial steps are followed correctly.

Pro Tips for a Flawless Finish

• Act Fast: The sooner you repair the crack after it occurs, the better. This prevents dirt, moisture, and cleaning solutions from contaminating the damage, which can hinder the resin's adhesion.
• Work in the Shade: Avoid direct sunlight during the application process. UV light cures the resin, so applying it in direct sun can cause it to harden before it has fully penetrated the crack. Move your vehicle to a garage or a shaded spot.
• Optimal Temperature: Perform the repair when the outdoor temperature is moderate, ideally between 10°C and 25°C. Extreme cold can make the glass brittle, while extreme heat can cause the resin to cure too quickly.
• Cleanliness is Key: We can't stress this enough. A truly clean crack is essential for a strong, invisible repair. Use compressed air if you have it to blow out any microscopic dust particles.
• Patience is a Virtue: Don't rush the injection process. Allow the resin ample time to seep into every tiny fissure.

DIY vs. Professional Windscreen Repair: A Comparison

To help you weigh your options, here's a comparative table outlining the key differences between DIY and professional windscreen repair services:

Common Pitfalls to Avoid During DIY Repair

Even with the best intentions, DIY repairs can go wrong. Being aware of common mistakes can help you achieve a better outcome:

• Improper Cleaning: As highlighted, dirt and moisture are the enemies of a good repair. Don't skip or rush this step.
• Working in Direct Sunlight: This can prematurely cure the resin, preventing it from fully penetrating the crack.
• Not Applying Enough Resin: If the crack isn't completely filled, air bubbles will remain, and the repair won't be as strong or invisible.
• Insufficient Curing Time: Rushing the curing process can leave the resin soft and prone to breaking down. Always follow the kit's recommended curing time.
• Repairing Unsuitable Damage: Attempting to fix a large crack, a deep chip, or an edge crack with a DIY kit is a recipe for failure and can compromise safety.
• Not Scraping Excess Resin Properly: Leaving too much excess resin can create a bumpy surface, while scraping too aggressively can scratch the glass.

Frequently Asked Questions (FAQs)

Q: Can all windscreen cracks be fixed with a DIY kit?

A: No. DIY kits are best suited for small chips (up to the size of a quarter coin) and short cracks (up to 6 inches). Larger cracks, those in the driver's direct line of sight, or cracks near the edge of the windscreen usually require professional attention or a full replacement.

Q: How long does a DIY windscreen repair last?

A: If performed correctly, a DIY repair is designed to be permanent. The resin bonds with the glass, preventing the crack from spreading and restoring the structural integrity of the affected area.

Q: Will the crack disappear completely after a DIY repair?

A: While a DIY repair significantly reduces the visibility of the crack, it's unlikely to make it disappear entirely. You may still see a faint outline or a slight imperfection, but it should be much less noticeable and the surface will be smooth.

Q: Is it safe to drive with a repaired crack?

A: Yes, if the repair was done correctly and the crack was within the suitable size limits for DIY repair, it is safe to drive. The repair restores the structural integrity of the glass and prevents the crack from spreading, enhancing your safety.

Q: What if my DIY repair fails or looks bad?

A: If the repair doesn't look right or the crack starts to spread again, it's best to consult a professional. Sometimes a second, careful application might help if the initial one was incomplete, but for significant issues, professional assessment is crucial.

Q: Does my car insurance cover DIY windscreen repair kits?

A: Generally, no. Insurance policies typically cover professional windscreen repairs or replacements, often with a small excess. DIY kits are a low-cost alternative that you purchase out-of-pocket.

Q: How soon after the damage occurs should I attempt a DIY repair?

A: As soon as possible. The longer you wait, the more likely dirt, debris, and moisture will accumulate in the crack, making the repair less effective and less invisible.

Conclusion

Dealing with a cracked windscreen can be a hassle, but for minor damage, a DIY repair kit offers a practical, cost-effective, and surprisingly straightforward solution. By carefully assessing the damage, gathering the right materials, and meticulously following the step-by-step instructions, you can effectively restore the integrity of your windscreen and improve your driving safety. Remember, while DIY is excellent for small chips and cracks, always prioritise safety. If the damage is extensive, in your line of sight, or if you're ever in doubt, don't hesitate to seek the expertise of a professional windscreen repair specialist. Keeping your windscreen in top condition is not just about aesthetics; it's a vital component of your vehicle's safety system, protecting you and your passengers on every journey.
