Mastering Car Alignment: Laser vs. String

Achieving a winning setup in motorsport, particularly in Circle Track racing, hinges on a meticulous approach to chassis tuning and alignment. While factors like moment centre design, balanced setups, and weight distribution are paramount, a fundamental yet often overlooked element is proper wheel alignment. Even the most perfectly engineered suspension can be rendered ineffective by misaligned wheels. This guide delves into the critical aspects of whole-car alignment, contrasting the traditional string method with the more modern and accurate laser alignment systems, to ensure your vehicle tracks true and performs at its peak.

Why Proper Alignment is Crucial

The impact of poor alignment on a vehicle's performance cannot be overstated. Misaligned wheels can lead to several detrimental effects:

• Increased Drag: Incorrect toe settings at the front or rear act much like a continuous brake application, creating significant drag that slows the car down and wastes energy.
• Handling Instability: The direction in which the rear axle is pointed relative to the chassis profoundly affects a car's behaviour in turns. A rear axle misaligned to the right can cause looseness on corner entry, persisting through the corner and negatively impacting exit speed. Conversely, misalignment to the left can result in tightness, particularly in the middle and exit of a corner.
• Compromised Tracking: For optimal performance, the contact patches of the front and rear tyres must track in a straight line relative to each other. Misalignment here means the wheels are not following the intended path of the car.
• Suboptimal Steering: Ackermann, the tendency for front wheels to turn at slightly different angles when cornering, needs to be precisely set. Too much or too little Ackermann can hinder a car's ability to navigate turns efficiently.

Traditional String Alignment vs. Laser Alignment

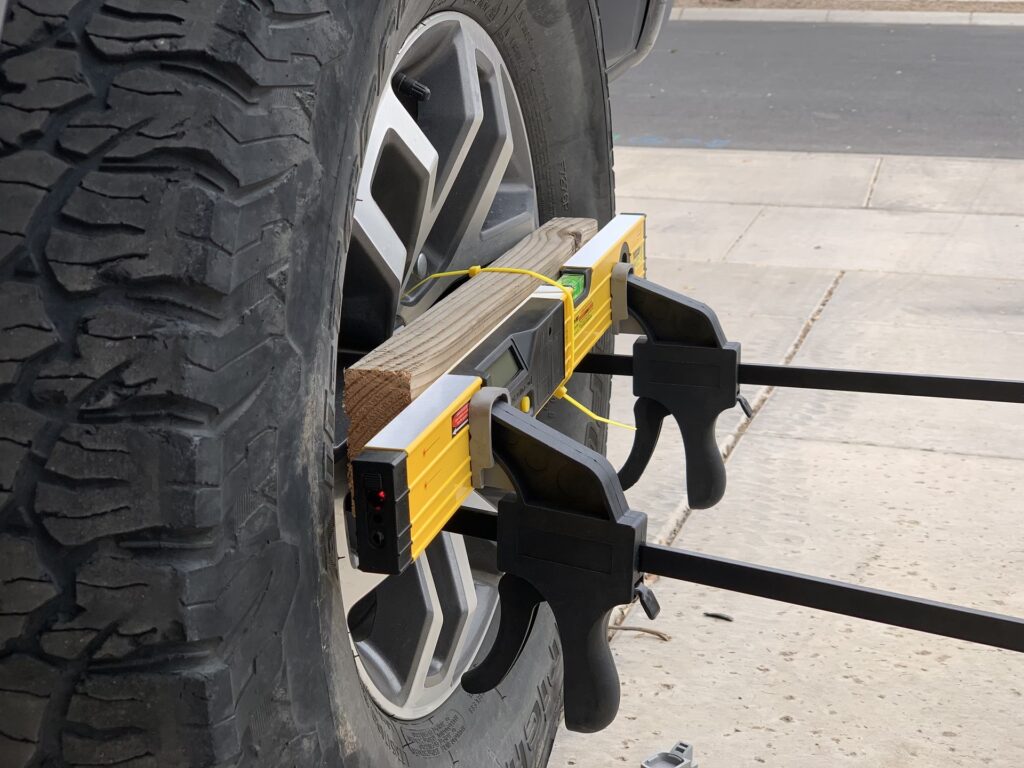

Historically, the go-to method for aligning race cars was the string method. This involves using nylon string and precise measurements to ensure wheels are tracking correctly. While still a viable and budget-friendly option, it can be time-consuming and prone to inaccuracies if not executed with extreme care.

Laser alignment systems offer a more efficient and accurate alternative. These systems typically involve units that attach to the wheel hubs and project a laser beam onto targets placed at the front and rear of the vehicle. The key to accuracy with laser systems lies in the ability to verify the tool's calibration, ensuring the laser beam is truly perpendicular to its mounting point. This verification, often done by rotating the laser and checking for consistent beam placement on a target, should be performed before each use.

Key Alignment Parameters:

Step-by-Step Alignment Process

Step 1: Checking for Wheel Runout

Before any alignment measurements can be taken, it's crucial to account for wheel runout – the slight wobble of a tyre as it rotates. This is done by marking the highest point of the runout at hub height. A jack stand can be used to hold a tape measure steady while the wheel is rotated, allowing you to identify and mark this high spot. The wheel is then rotated so the mark is at the top, ensuring measurements are taken from a consistent point.

Step 2: Setting Rear-End Toe (Laser Method)

With the vehicle securely supported and the laser system attached to the rear hubs, ensure the hubs are clean and free of any imperfections that could affect laser placement. Set up targets at equal distances forward and rearward of the rear hubs. By centering the laser beam on these targets and measuring the distances between the front and rear targets on each side, you can determine if the rear axle is toed correctly. If the distances differ, the rear axle needs adjustment until both measurements are equal, indicating it's perpendicular to the intended chassis centerline.

Step 3: Centering the Front Steering Rack and Initial Front Alignment

The steering rack needs to be centered by turning the steering wheel from lock to lock and then returning it halfway. This finds the mid-point of the steering travel. With the front lasers attached and leveled, reposition targets at an equal distance from the front hubs. The rear lasers are then used to align the front targets. By rotating the right-front laser and observing its position relative to the targets, you can adjust the right-side tie rod to make the right-front wheel parallel to the rear axle. This ensures the front-right tyre is tracking straight.

Step 4: Aligning Right-Side Tyre Contact Patches

With the right-front wheel now pointing straight, level the right-front laser and shine its point on the floor. Then, rotate the rear-right laser so its beam is adjacent to the front laser point on the floor. This comparison shows the side-to-side alignment of the tyre contact patches. Adjusting the Panhard bar or J-bar laterally aligns these contact patches so they appear as a single point. It's essential to recheck the rear axle's perpendicularity to the chassis centerline after each lateral adjustment, as this process may require several iterations to achieve perfect alignment.

Step 5: Setting Front Static Toe

This step involves setting the desired static toe for the front wheels. Using the laser system, align the left-front laser with targets placed at a specific distance (e.g., 14 feet) in front of the hub. Measure the distance between the front and rear targets. The difference in these measurements indicates the amount of toe. To accurately determine the toe at the tyre contact patch, a calculation involving the distance between targets and the tyre diameter is necessary. Adjust the left-side tie rod to achieve the desired static toe, typically a small amount like 1/8 inch.

Step 6: Measuring Ackermann

Measuring Ackermann is best achieved with a laser system due to the precision required. With both front lasers pointing forward and targets aligned, turn the steering wheel to simulate cornering. The rear targets are repositioned in front of the front hubs, and the laser beams align their centerlines. By measuring the distance between the target centerlines on each side and performing a calculation involving the distance and tyre diameter, the added toe due to Ackermann can be determined. For most oval tracks, this value should be very small, fractions of an inch, to ensure optimal cornering.

Frequently Asked Questions

Q1: How often should I check my car's alignment?

It's recommended to check alignment frequently, especially after any contact with walls or incidents, and as part of regular maintenance to ensure consistent performance.

Q2: Can I use the string method for all alignment aspects?

The string method is viable for basic toe and tracking but is less accurate for measuring Ackermann compared to laser systems.

Q3: What are the signs of poor wheel alignment?

Symptoms include uneven tyre wear, the car pulling to one side, steering wheel not centered when driving straight, and general handling instability.

Q4: How much toe should I set?

The ideal toe setting varies depending on the type of racing and track conditions. Consult your specific racing class rules or experienced chassis tuners for recommended settings.

Investing time in precise alignment, whether using the traditional string method or a modern laser system, is a small effort with significant rewards. It ensures your vehicle handles predictably, maximizes tyre life, and ultimately contributes to a faster, more competitive machine. With proper alignment, you can then focus on refining other critical aspects of your chassis setup with confidence.
