Distributor Fuel Pumps: Unravelling the System

The heart of any internal combustion engine relies on a precisely timed and measured supply of fuel. In many vehicles, particularly older diesels and some petrol engines, this critical task is handled by a distributor-pump fuel injection system. These sophisticated mechanisms ensure that the right amount of fuel is delivered at the right moment and pressure, directly into the engine's combustion chambers. Understanding how these pumps work, from the initial fuel draw to the high-pressure injection, is key to appreciating their role in vehicle performance and maintenance.

The Critical Low-Pressure Stage

Before fuel can be injected at high pressure, it must first be drawn from the tank and prepared. This initial journey constitutes what is known as the low-pressure stage of a distributor-pump fuel-injection installation. It's a vital preparatory phase that ensures a consistent and clean supply of fuel reaches the main injection pump.

The components of this stage work in a coordinated sequence:

• Fuel Tank: This is the primary reservoir for the fuel.
• Fuel Lines: A network of pipes transports fuel from the tank to the various components of the system.
• Fuel Filter: Positioned strategically in the fuel line, the fuel filter is an indispensable component. Its primary role is to meticulously remove impurities, contaminants, and water from the fuel before it reaches the sensitive injection pump. This protection is paramount, as even microscopic particles can cause significant wear and damage to the high-precision components within the injection pump. Regular replacement of the fuel filter is one of the most straightforward yet effective maintenance tasks to ensure the longevity and efficiency of the entire fuel system.
• Vane-Type Fuel-Supply Pump: Typically integrated within the main injection pump assembly, or sometimes as a separate unit, this positive displacement pump is responsible for drawing fuel from the fuel tank through the lines and filter. It creates the necessary suction and initial pressure to move the fuel through the low-pressure circuit.
• Pressure-Control Valve: This valve regulates the pressure within the low-pressure circuit. It ensures that the fuel supply pump maintains a consistent and appropriate pressure, preventing over-pressurisation and ensuring a steady flow to the high-pressure section.
• Overflow Restriction: This component helps to maintain a slight back pressure in the low-pressure circuit and often facilitates the return of excess fuel to the tank, contributing to fuel circulation and cooling.

In essence, the low-pressure stage is all about preparing the fuel: drawing it, cleaning it, and delivering it at a regulated pressure to the doorstep of the high-pressure injection system. Without a properly functioning low-pressure stage, the intricate high-pressure injection process cannot operate effectively.

Understanding the Distributor-Type Fuel Injection Pump

A distributor-type fuel injection pump is a sophisticated mechanical and, in modern iterations, electronic device designed to deliver precise quantities of high-pressure fuel sequentially to each engine cylinder's injector. Unlike common rail systems where all injectors draw from a constantly pressurised rail, a distributor pump generates and distributes individual high-pressure charges.

Conventional Designs and Their Challenges

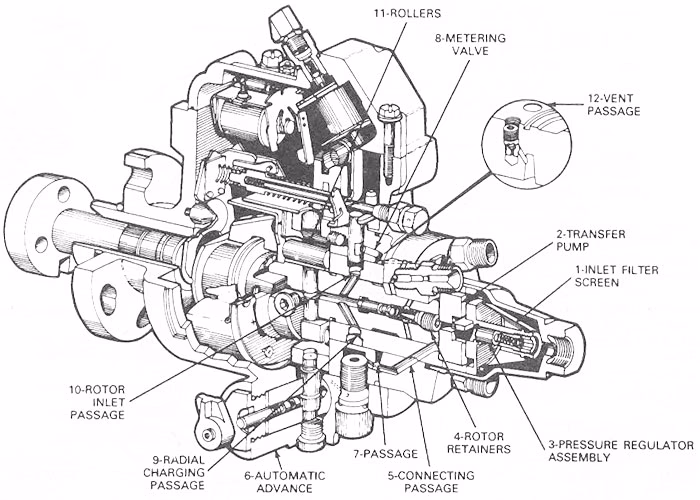

Historically, many distributor-type fuel injection pumps employed a rotary distributor. This design typically featured a pump body with a pumping chamber, multiple plungers that reciprocated (moved back and forth) to create intake and pumping strokes, and a cam system to drive these plungers. The crucial element was a rotary distributor, comprising a distributor head with multiple outlets (one for each fuel injector) and a rotor that rotated to sequentially connect the high-pressure fuel charges from the pumping chamber to these outlets.

While effective for their time, these conventional rotary distributor pumps faced several inherent disadvantages:

• Manufacturing Costs: The need for an extremely precise rotational fit between the relatively rotating surfaces of the distributor head and rotor (often with diametral clearances as tight as 80-100 millionths of an inch) significantly increased manufacturing complexity and cost. This precision was vital to ensure adequate sealing and lubrication.
• Heat Generation: During operation, especially at high speeds, the thin layer of fuel acting as lubricant between these tightly fitted rotating surfaces generated a substantial amount of heat.
• Lubrication Difficulties: Achieving adequate lubrication became challenging at high speeds and with low-viscosity fuels like petrol or methanol, which offer less inherent lubricity than diesel.
• Thermal Expansion Issues: The temperature of the distributor head and rotor had to be maintained at approximately the same level across the pump's operating range. Rapid temperature increases, such as during cold starting or rapid acceleration, could lead to unequal thermal expansion, resulting in inadequate lubrication and potentially even rotor seizure.
• Pressure Limitations: Achieving very high charge delivery pressures (e.g., 12,000 psi and higher) was difficult due to the thermal, rotational, and structural limitations of the conventional rotary distributor design.

Furthermore, some conventional designs employed a rotating pump body where plungers reciprocated radially. This added complexities such as centrifugal force acting on the plungers and significant valving and sealing problems associated with supplying or spilling fuel from a rotating component.

The Evolution: Addressing the Disadvantages

Innovations in distributor pump design have aimed to overcome these inherent challenges. A key development has been the shift towards designs that avoid the problematic rotary distributor and rotating pump body. These advanced pumps often feature a non-rotating pumping chamber body, leading to significant improvements.

Consider an exemplary modern distributor pump designed for a multi-cylinder engine. It typically incorporates a fixed pump body housing a pumping chamber with multiple radial bores, each containing a plunger. These plungers are precisely lapped or honed to have a very tight fit within their bores. A pump drive shaft, driven by the engine, rotates a cam ring with internal lobes. As the cam ring rotates, its lobes engage rollers connected to the plungers, periodically forcing them inwards.

Crucially, in such a design, one of the plungers may be specifically designed to act as a distributor valve. As the cam rotates, it sequentially positions this 'distributor valve' plunger to open and close corresponding distributor ports, thereby connecting the high-pressure pumping chamber to the correct fuel injector at the precise moment. This eliminates the need for a separate, rotating distributor rotor, directly addressing several of the disadvantages of older designs.

Key Components and Their Advanced Roles

Modern distributor pumps integrate several sophisticated components to achieve their precise operation:

1. The Vane-Type Fuel Supply Pump: As part of the low-pressure stage, this pump continuously draws fuel and delivers it to the main injection pump's internal galleries. Its consistent output is critical for the subsequent high-pressure generation.

2. The Pressure Regulator / Relief Valve: This component is more than just a simple valve; it often acts as an accumulator. It maintains a speed-correlated fuel pressure in an internal chamber, ensuring that there's always sufficient fuel pressure for the high-pressure chamber, even during rapid intake strokes. It also plays a role in spilling excess fuel and diverting hot spilled fuel away from being immediately re-supplied, improving efficiency and cooling.

3. The Electromagnetic Control Valve: This is arguably the most significant advancement, providing electronic control over the fuel injection process. Often a bidirectional flow, poppet-type valve, it precisely regulates both the intake charge of fuel and the termination of the injection event. Here's how it generally works in a 'fill-spill' mode:

• Intake Phase: The control valve is open. Fuel is supplied under pressure to the pumping chamber, forcing the plungers outwards. The amount of fuel drawn in depends on how long the valve remains open.
• Pumping Phase: The control valve is timely closed by energising a solenoid. The active pumping plungers are then actuated inwards by the cam, generating high-pressure charges of fuel for injection. Modern designs can achieve pressures of 14,000 psi and higher.
• Spill Phase (Injection Termination): Before the end of the pumping stroke, the solenoid is de-energised, causing the control valve to open. This 'spills' fuel from the pumping chamber, causing a rapid drop in pressure and precisely terminating the fuel injection event.

This electronic control allows for highly precise regulation of both the fuel injection timing and the size (quantity) of the injected charge, adapting dynamically to engine demands.

4. Plungers and Cam System: The plungers, often arranged radially in a fixed pump body, are actuated by a rotating cam ring. The cam profile dictates the plunger movement. The innovative aspect is how one or more plungers can double as spool valves, selectively opening and closing distributor ports to direct the high-pressure fuel to the correct injector in sequence. This intricate dance of mechanical movement and precise timing is fundamental to the pump's operation.

The benefits of these advanced designs are significant:

• Capability of delivering fuel at much higher pressures.
• Improved compatibility and performance with low-viscosity fuels like petrol and methanol.
• More economical to manufacture due to simplified rotating elements and reduced need for ultra-precise fit in high-stress areas.
• Enhanced performance across the full range of pump operation, with precise control over injection timing and quantity.
• Modular design, allowing for adaptation to engines with varying cylinder counts (from two to eight cylinders or more) with minimal specific part changes.

Comparative Overview: Conventional vs. Modern Distributor Pumps

To highlight the advancements, consider this comparison:

Frequently Asked Questions (FAQs)

Q: Why is the fuel filter so important in a distributor pump system?
A: The fuel filter is paramount because the internal components of a distributor pump, particularly the plungers and control valves, are manufactured to extremely tight tolerances. Even microscopic particles can cause abrasive wear, leading to reduced efficiency, leaks, and eventual pump failure. A clean fuel supply extends the life of the pump and injectors.

Q: What happens if the pressure-control valve in the low-pressure stage fails?
A: If the pressure-control valve malfunctions, it can lead to either insufficient or excessive fuel pressure in the low-pressure circuit. Insufficient pressure can starve the high-pressure pump, leading to misfires or power loss. Excessive pressure can put undue strain on components and potentially lead to fuel leakage or damage to seals.

Q: How does an electromagnetic control valve improve a distributor pump's performance?
A: An electromagnetic control valve provides highly precise, rapid, and electronically controlled regulation of fuel flow. This allows for accurate control over the quantity of fuel injected and the exact timing of the injection event, leading to improved fuel economy, reduced emissions, and better engine responsiveness across various operating conditions.

Q: Can these pumps handle different types of fuel, like petrol and diesel?
A: Yes, distributor pumps are designed for both petrol and diesel applications. However, specific design considerations are made for each fuel type. For instance, diesel fuel's higher lubricity assists in lubricating pump components, whereas lower viscosity fuels like petrol or methanol require designs that minimise reliance on the fuel for lubrication, often by using alternative materials or tighter clearances in critical areas.

Q: What are the main signs of a failing distributor fuel injection pump?
A: Common symptoms include difficulty starting, rough idling, reduced engine power, increased fuel consumption, black smoke from the exhaust (in diesel engines), engine misfires, or unusual noises coming from the pump area. Early diagnosis and repair are crucial to prevent further engine damage.

Conclusion

The distributor-pump fuel injection system, particularly in its evolved forms, remains a testament to automotive engineering precision. From the meticulously managed low-pressure fuel delivery to the complex dance of plungers and cams creating the high-pressure injection, every component plays a vital role. Understanding these systems not only demystifies how our engines are fuelled but also highlights the importance of regular maintenance, ensuring these intricate components continue to deliver optimal performance for the road ahead.
