Welcome to the Brit Part Workshop, where we delve into practical solutions for common automotive challenges. Today, we're focusing on a significant improvement for ZF 6-speed gearboxes, a development spearheaded by Britpart's commitment to research and development. Our own fleet of vehicles allows us to rigorously test parts, ensuring they meet stringent quality standards before they reach you. This isn't just about replacing parts; it's about enhancing the longevity and maintainability of your vehicle.

The OEM Plastic Sump: An Engineering Conundrum

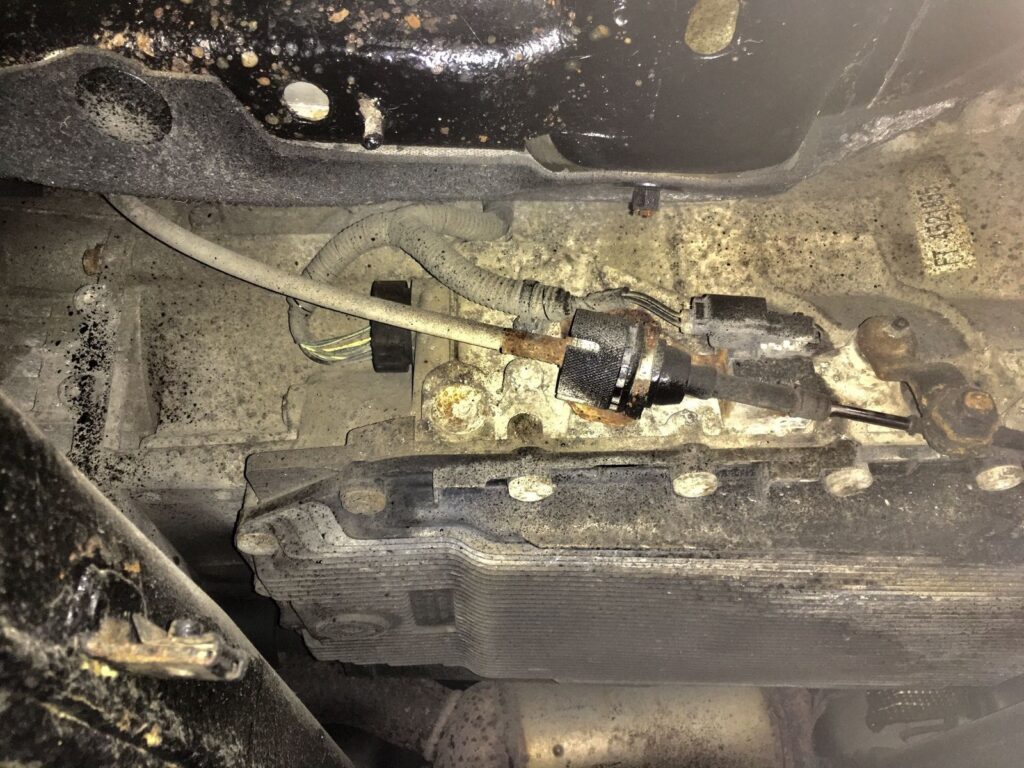

Many modern vehicles, particularly those with ZF 6-speed gearboxes, are equipped with a plastic sump pan that has an integrated filter. While this design might seem efficient from a manufacturing perspective, it presents a considerable challenge for routine maintenance. The primary issue lies with filter replacement. To access and remove the integrated filter, the gearbox cross-member and, in many cases, the engine mounting on one side, must be unbolted. The engine and gearbox then need to be jacked up by approximately two inches to allow the plastic sump to clear the chassis. This process, as explained by Paul Myers, Britpart MD, can take a staggering two to three hours. It's a painstaking job, often considered too complex for the average DIY mechanic.

The Britpart Solution: Metal Sump and Separate Filter

Britpart has engineered a direct replacement solution that revolutionises this process. Their kit features a durable metal sump pan and a separate, easily accessible filter. The beauty of this design is its simplicity. The new filter simply pushes into the gearbox valve body, and the metal sump pan is then fitted over it. Crucially, there is no interference with the gearbox cross-member, eliminating the need for engine lifting or extensive disassembly. This transformation drastically reduces the filter replacement time from hours to a mere 20 minutes. This isn't just a time-saver; it's a significant reduction in labour costs and a more accessible maintenance task.

Automatic Transmission Fluid (ATF): The Lifeblood of Your Gearbox

Beyond the physical sump, the correct fluid is paramount for the health of your automatic gearbox. Paul Myers highlights the evolution of ATF. Up until the advent of 6-speed gearboxes, a standard fluid was often used across various models. However, with the introduction of 6-speed and 8-speed gearboxes, fluid specifications have become more nuanced. It is absolutely critical to use the correct ATF for your specific gearbox model. Using the wrong fluid can lead to poor performance, increased wear, and potentially catastrophic failure. Britpart offers comprehensive kits that include the correct quantity of the specified ATF, along with the filter and all necessary fixings, taking the guesswork out of fluid selection.

Sealed for Life? Think Again.

Land Rover, like many manufacturers, often specifies that these gearboxes are 'sealed for life'. However, Britpart, along with many experienced mechanics, views this as open to interpretation. Gearbox manufacturers themselves, such as ZF, typically recommend a service interval for their gearboxes. Britpart advocates for servicing these gearboxes at approximately 60,000 miles. Regular fluid and filter changes are a proactive measure that can significantly extend the life of the gearbox and prevent costly repairs down the line.

Recognising Gearbox Issues: Signs to Watch For

How can you tell if your automatic gearbox might be developing a problem? Paul Myers outlines several key indicators:

• Slowing gear changes: A noticeable delay or sluggishness when the gearbox shifts between gears.
• Slipping: A sensation of the engine revving without a corresponding increase in road speed, particularly during acceleration.
• Juddering: Vibrations or a shuddering sensation, especially at lower speeds or during initial acceleration.

Addressing these symptoms early, often through a fluid and filter change, can prevent more serious damage.

The Workshop Demonstration: A Step-by-Step Guide

To illustrate the ease of the Britpart conversion, the team heads to the workshop. A Discovery 4, fitted with the original OEM plastic sump, is raised on the ramp. The process begins with removing the under trays. The drain bung on the plastic sump is released to drain as much of the old ATF as possible. A long bolt securing the transfer box to the gearbox cross-member is then removed, and a jack is used to slightly lift the assembly, providing crucial access to the T40 screws holding the sump in place. These screws can be difficult to reach, often requiring extensions and various tools for removal.

Once the sump is loosened, the integrated plastic tube, which feeds into the gearbox, becomes visible. This tube prevents the sump from being dropped completely. A hacksaw blade is used to carefully cut through this tube, allowing the plastic sump to be manoeuvred and eventually removed from between the chassis members. The entire process of removing the old sump is shown to be intricate and time-consuming.

Thread Chasing: A Vital Pre-Assembly Step

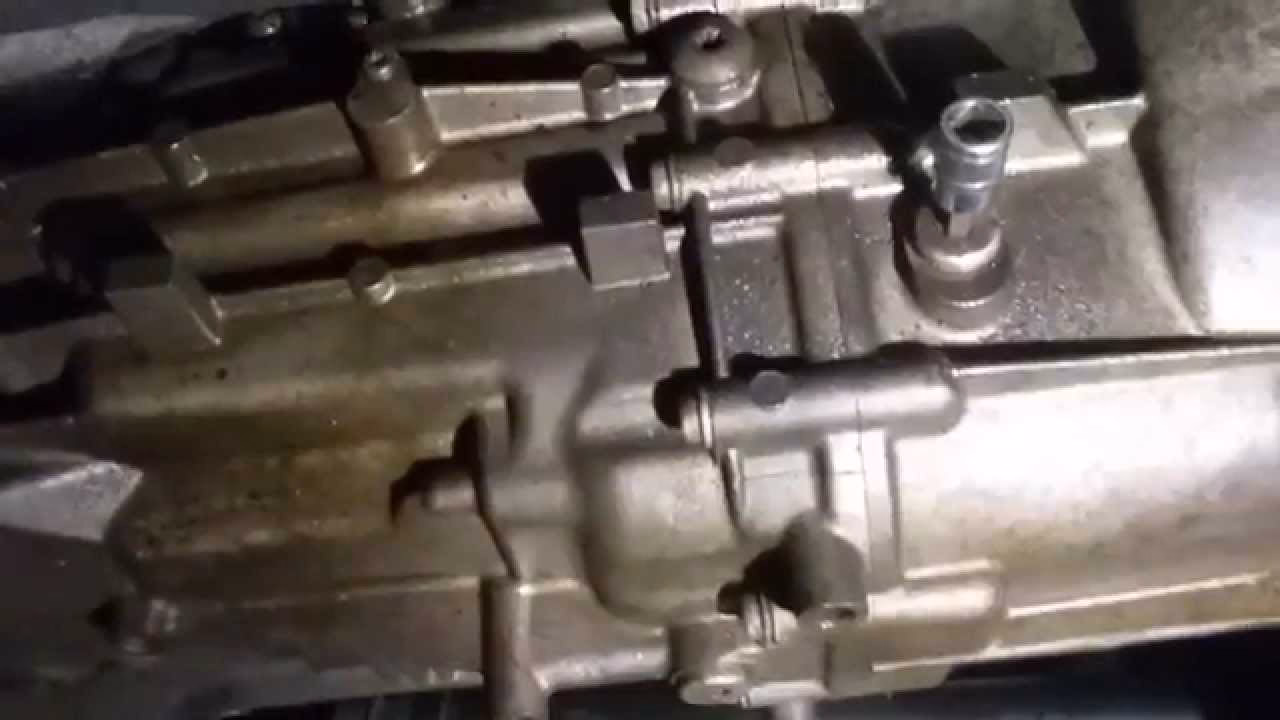

With the old sump removed, the gearbox casing is exposed. It's crucial at this stage to clean the threaded holes where the new sump bolts will be fitted. Fuzz explains the importance of 'thread chasing'. This involves using a tap of the correct size to clean out any debris, corrosion, or old thread sealant from the holes. This ensures that new bolts can be fitted smoothly and, critically, that the torque settings applied are accurate. Any resistance in the threads due to dirt or damage can lead to over-tightening and inaccurate torque readings, potentially compromising the seal.

To prevent debris from entering the gearbox during thread chasing, two methods are demonstrated: creating a template of the internal opening and taping it over, or smearing grease around the thread area. The grease traps any swarf (metal shavings) produced by the tap. The tap is then inserted and turned, with a 'forward-and-back' motion to clear debris from the tap's flutes. After chasing, the threads are cleaned, and a new bolt is tested to ensure it runs in smoothly by hand. This meticulous preparation is vital for a reliable seal.

Fitting the Britpart Sump and Filter

With the gearbox housing cleaned and threads prepared, the new filter is pushed into its designated spot in the valve body. The Britpart metal sump pan is then positioned over the filter and aligned with the bolt holes. The T40 torque screws are started and gradually tightened in a star pattern to ensure even pressure. Once all screws are in place, they are torqued to the manufacturer's specifications. The importance of a good seal cannot be overstated.

Refilling and Bleeding the Gearbox

The final stage involves refilling the gearbox with the correct specification ATF. Due to the oil pump's efficiency, it can draw fluid from the filler hole faster than it can be poured in. The recommended procedure is to top up the fluid, run the engine for a few seconds to circulate the oil, and then top up again. This process is repeated until a steady stream of fluid emerges from the filler hole, indicating the correct level has been achieved. Finally, the under trays are refitted, and the workspace is cleaned. The job is then complete.

FAQ: Your Questions Answered

Q1: Can I use the Britpart sump kit on an 8-speed ZF gearbox?
This specific kit is designed for ZF 6-speed gearboxes. Always check the Britpart catalogue for the correct application for 8-speed gearboxes.

Q2: How do I get oil out of a torque converter?
When replacing the sump and filter using the Britpart method, some of the old ATF is drained from the torque converter. For a more complete drain of the torque converter, specialist equipment or specific procedures may be required, often involving pumping the fluid out.

Q3: Is the Britpart metal sump better than the original plastic one?
Yes, the metal sump offers greater durability and, most significantly, vastly simplifies the process of changing the gearbox filter, saving considerable time and effort.

Q4: How often should I change my gearbox oil and filter?
While some manufacturers claim 'sealed for life', it is generally recommended to service automatic gearboxes, including fluid and filter changes, at intervals such as 60,000 miles, or as specified by the gearbox manufacturer.

Q5: What are the signs of a failing automatic gearbox?
Look out for delayed or harsh gear changes, slipping during acceleration, or juddering, especially at low speeds. Early detection and servicing can often prevent major issues.

For more expert advice and practical guides on maintaining your Land Rover, explore the rest of the Brit Part Workshop video series.
