Understanding Brake Disc Shims

What are Halfords Disc Brake Shims?

When delving into the intricacies of your vehicle's braking system, you might come across various components that, while small, play a crucial role in ensuring smooth and effective operation. Among these are brake disc shims. While the provided information focuses heavily on finance options for purchasing car parts and services, the mention of such components hints at their importance in automotive maintenance. This article aims to clarify what brake disc shims are, their function, and why they are essential for a well-performing braking system.

The Core Function of Brake Disc Shims

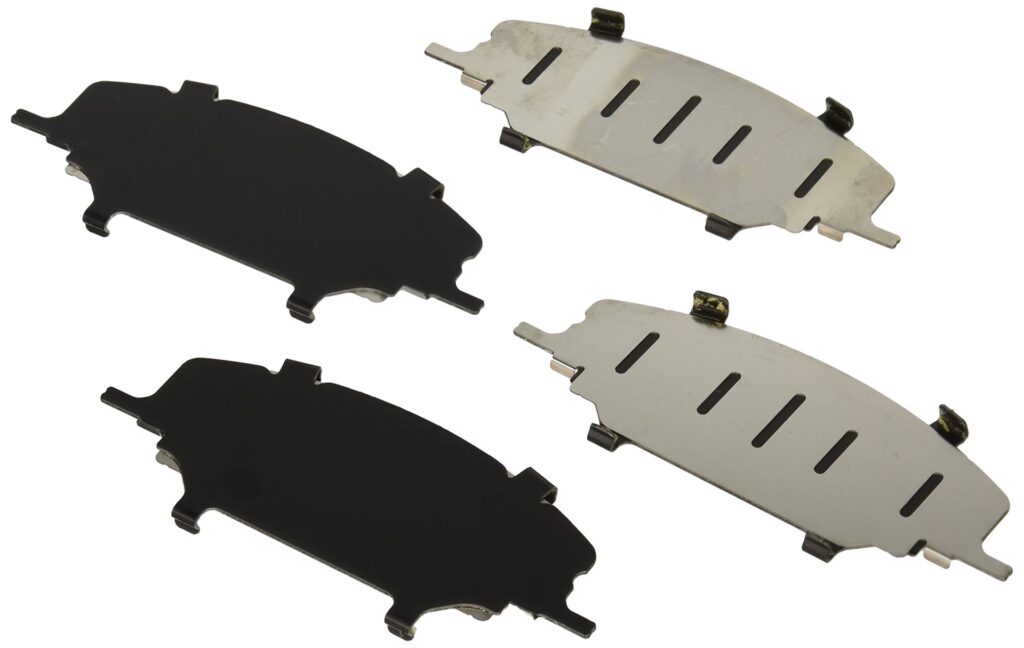

Brake disc shims, often referred to as anti-squeal shims or vibration dampers, are typically thin pieces of metal or composite material that are fitted between the brake pad and the caliper piston or backing plate. Their primary purpose is to dampen vibrations that occur during the braking process. When the brake pads clamp down on the brake discs, a certain amount of high-frequency vibration is generated. If left unchecked, these vibrations can manifest as noise, most commonly a high-pitched squeal.

These shims act as a buffer, absorbing and dissipating these vibrations before they can be transmitted through the braking system and into the cabin, thus reducing or eliminating that annoying brake squeal. Think of them as tiny shock absorbers for your brakes.

Why Are Brake Disc Shims Important?

While the most noticeable benefit of brake disc shims is the reduction of noise, their importance extends beyond just a quieter ride:

• Noise Reduction: This is the most common reason for their use. Unwanted brake noise can be a significant nuisance and can sometimes be mistaken for a sign of worn-out brakes, even if the pads have plenty of life left.
• Improved Braking Feel: By reducing vibrations, shims can contribute to a smoother and more refined braking feel, enhancing the overall driving experience.
• Pad and Caliper Longevity: In some cases, excessive vibration can contribute to premature wear of the brake pads or even damage to the caliper components. Shims can help mitigate this by absorbing some of the stress.

Types of Brake Disc Shims

Brake disc shims come in various forms, each designed to offer specific benefits:

When Should You Consider Replacing Brake Disc Shims?

Brake disc shims are generally designed to last the lifespan of the brake pads. However, there are situations where they might need attention:

• When Replacing Brake Pads: It is highly recommended to replace brake disc shims whenever you replace your brake pads. Shims can become compressed, brittle, or lose their effectiveness over time. Replacing them with new ones ensures optimal performance and noise reduction.
• If Brake Noise Persists: If you're experiencing persistent brake squeal or noise, even after replacing brake pads, the shims might be the culprit. Inspecting and replacing them could resolve the issue.
• If Damaged: Inspect the shims for any signs of damage, such as cracks, warping, or signs of excessive wear. If any damage is present, they should be replaced immediately.

How to Fit Brake Disc Shims

Fitting brake disc shims is typically part of the brake pad replacement process. The exact procedure can vary slightly depending on the vehicle's make and model, but the general steps involve:

1. Safely Raise and Support the Vehicle: Use a jack and axle stands to safely lift and support the vehicle.
2. Remove the Wheel: Unscrew the wheel nuts and remove the wheel to gain access to the brake caliper.
3. Remove the Caliper: This usually involves removing a couple of bolts that hold the caliper to the mounting bracket. You may need to retract the piston slightly to free the old brake pads.
4. Remove Old Brake Pads and Shims: Carefully slide out the old brake pads. The shims will either be attached to the back of the pads or will be separate pieces that need to be removed from the caliper piston or pad ears.
5. Clean the Caliper and Pad Carriers: Ensure the areas where the new pads and shims will sit are clean and free of rust and debris.
6. Fit New Shims: Apply a thin layer of brake lubricant (specifically designed for this purpose and safe for rubber components) to the edges of the shims and the contact points on the caliper. Fit the new shims to the back of the new brake pads, ensuring they are seated correctly.
7. Install New Brake Pads: Insert the new brake pads with their shims into the caliper.
8. Reassemble the Caliper: Re-bolt the caliper back onto the mounting bracket.
9. Pump the Brake Pedal: Before driving, pump the brake pedal several times until it feels firm. This seats the pads and pistons correctly.
10. Re-fit the Wheel: Replace the wheel and tighten the wheel nuts to the manufacturer's specified torque.
11. Repeat for Other Wheels: Carry out the same procedure on the other side of the same axle.

Important Note: It is crucial to use the correct type of lubricant and to apply it only to the specified contact points. Over-lubrication or using the wrong type of lubricant can lead to brake fade or damage.

Common Questions About Brake Disc Shims

Q1: Do all brake pads come with shims?

Not all aftermarket brake pads come with shims. Some OE (Original Equipment) pads will have them integrated or attached. It's essential to check the product description and, if possible, refer to your vehicle's service manual to confirm if shims are required and if they are included.

Q2: Can I drive without brake disc shims?

While your brakes will still function without shims, you may experience increased noise (squealing or rattling) and potentially a less refined braking feel. If your vehicle was originally equipped with shims, it's generally advisable to replace them when changing brake pads.

Q3: How do I know if my brake shims are worn out?

Worn-out shims typically manifest as persistent brake noise, particularly squealing. Visually, they might appear compressed, cracked, or their coating may be degraded. It's best to inspect them when the brake pads are being replaced.

Q4: Can I reuse old brake disc shims?

It is generally not recommended to reuse old brake disc shims. Over time, they can lose their ability to effectively dampen vibrations. Replacing them with new ones along with new brake pads is a cost-effective way to ensure optimal brake performance and quiet operation.

Q5: Are shims the same as brake pad hardware kits?

No, they are different. Brake pad hardware kits typically include new anti-rattle clips, caliper pins, and sometimes dust boots. Shims are separate components designed specifically to dampen vibrations between the pad and the caliper.

Conclusion

Brake disc shims are small but vital components in your vehicle's braking system. Their primary role in noise reduction and contributing to a smoother braking experience makes them an important consideration during routine brake maintenance. While the provided context was about financing options for parts, understanding the function of each part, like brake disc shims, empowers you to make informed decisions about your vehicle's upkeep. Always ensure you use the correct parts and follow proper installation procedures for safe and effective braking.
