The Essential Guide to Replacing Your Brake Pads
Your car's braking system is arguably its most critical safety feature. At the heart of this system are the brake pads, the components that create the friction necessary to slow and stop your vehicle. Over time, these pads wear down, and replacing them is a fundamental aspect of car maintenance. This guide will walk you through the process, from understanding different pad types to the step-by-step procedure, ensuring you can tackle this vital job with confidence.
Understanding Brake Pad Types
Before you begin, it's helpful to know the different types of brake pads available, each offering a unique balance of performance, longevity, and cost:
| Type | Description | Pros | Cons |
|---|---|---|---|
| Organic | These are the oldest type, often made from a blend of fibres like rubber, glass, or Kevlar, bonded together with resins. They were historically made with asbestos, but this is now banned in most regions. | Quieter operation, less rotor wear, generally cheaper. | Shorter lifespan, can produce more dust, less effective in high-performance situations. |
| Semi-Metallic | A popular choice for many modern vehicles, these pads are made from a mix of metal fibres (like steel, copper, or iron) and fillers. | Good all-around performance, durable, effective in a wide temperature range. | Can be noisier than organic pads, can produce more brake dust, may cause slightly more rotor wear. |
| Metallic | These pads contain a very high percentage of metallic content, often used in racing or heavy-duty applications. | Excellent heat dissipation, high-performance braking, very durable. | Can be very noisy, produce significant dust, aggressive on rotors, typically more expensive. |
| Ceramic | Composed of ceramic fibres, non-ferrous metals, and bonding agents, these are the most technologically advanced. | Very quiet, produce very little dust, excellent stopping power, long lifespan, gentle on rotors. | Can be more expensive, may have slightly less initial bite in very cold temperatures compared to semi-metallics. |
When replacing your pads, consider upgrading to a higher-quality compound than your factory originals, especially if you're performing the work yourself and saving on labour costs. For instance, opting for ceramic pads can offer a significant improvement in quietness and cleanliness.
Gathering Your Tools and Materials
Before you start, ensure you have everything you need. This will make the process smoother and prevent frustrating pauses:
- New Brake Pads: Ensure they are the correct type and fit for your vehicle's make, model, and year.
- Brake Disc Lube: A high-temperature synthetic grease is essential for lubricating contact points.
- New Retainer Pin Spring Clips: It's often recommended to replace these small, crucial components as they can become brittle and break.
- Floor Jack or Hydraulic Jack: For safely lifting your vehicle.
- Lug Nut Wrench: To remove your road wheels.
- Assorted Screwdrivers and Pliers: Including needle-nose pliers and a flat-head screwdriver.
- C-Clamp or Piston Compressor Tool: To retract the brake caliper piston.
- Small Hammer and Drift Punch (Optional): For gently tapping out retaining pins.
- Wheel Chocks: For added safety.
- Safety Glasses and Gloves: To protect yourself.
Step-by-Step Brake Pad Replacement
Step 1: Prepare the Vehicle for Safety
Safety is paramount when working on your vehicle. Begin by ensuring the car is on a level surface. Engage the parking brake firmly and place the vehicle in gear (or 'Park' for automatic transmissions). To prevent the car from rolling, place wheel chocks behind the wheels that will remain on the ground. For an extra layer of safety, if your car falls off the jack, place the removed road wheel underneath the chassis. This acts as a safety buffer.
Step 2: Raise the Vehicle and Remove the Road Wheel
Using your jack, lift the vehicle at the designated jacking point until the wheel you're working on is completely off the ground. Remove the lug nuts with your lug nut wrench, then carefully pull off the road wheel. If you're working on the front brakes, you might find it easier to turn the steering wheel to gain better access to the brake caliper.
Step 3: Locate and Remove Retaining Clips
With the wheel removed, you'll see the brake caliper covering the brake disc (rotor). At the rear of the caliper, you will find two small, often intricate spring clips. These are known as retaining clips or anti-rattle clips. They secure the retaining pins, which in turn hold the brake pads in place within the caliper. Using needle-nose pliers and a flat-head screwdriver, carefully pry and twist these clips to remove them. Be gentle, as they can be brittle. If they break, you'll need to replace them.
Step 4: Gently Back Off the Brake Pads
Before removing the pads entirely, it's often necessary to slightly compress the caliper piston. This creates the necessary clearance for the new, thicker pads. You can attempt to do this by carefully prying with a screwdriver between the old brake pad and the disc, or preferably, between the back of the pad and the caliper piston itself. The goal is to push the piston back into the caliper just enough to loosen the pads.
Step 5: Remove the Retaining Pins
Now, you need to remove the retaining pins that actually hold the brake pads within the caliper assembly. These are typically metal pins that slide through the caliper and the brake pads. You might be able to grasp the head of the pin with pliers and twist or pull it out. If they are stuck, you can use a small hammer and a drift punch to gently tap them out from the back. Again, be careful not to damage the caliper.
Step 6: Remove the Old Brake Pads
Once the retaining pins are out, you should be able to withdraw the old brake pads from the back of the caliper, one at a time. They might be a snug fit, so a gentle wiggle or a bit of persuasion with your screwdriver might be needed.
Step 7: Inspect and Compare New Brake Pads
Take your new brake pads out of their packaging and compare them carefully with the old ones. Check their shape, size, and the location of any mounting holes or tabs. It's crucial that they are an exact match. If they don't look identical, you have the wrong pads, and you'll need to return to the store. Ensure you have a way to get around until you have the correct parts!
Step 8: Compress the Caliper Piston
Since your new brake pads are thicker than the worn ones, you'll need to retract the caliper piston further into the caliper to accommodate them. The most recommended method is to use a C-clamp. Position the clamp so that the stationary end rests against the back of the caliper and the screw end presses directly against the piston. Slowly tighten the clamp, pushing the piston back into the caliper body. Alternatively, a dedicated brake piston compressor tool can be used. Be very careful not to scratch, mar, or bend the brake disc, and ensure you are applying pressure directly and evenly to the piston to avoid damaging it.
Step 9: Test Fit the New Pads
With the piston retracted, test fit your new brake pads into the caliper to ensure they slide in smoothly. If they still don't fit, you may need to retract the piston a little further. This step confirms that you've created enough space for the new pads.

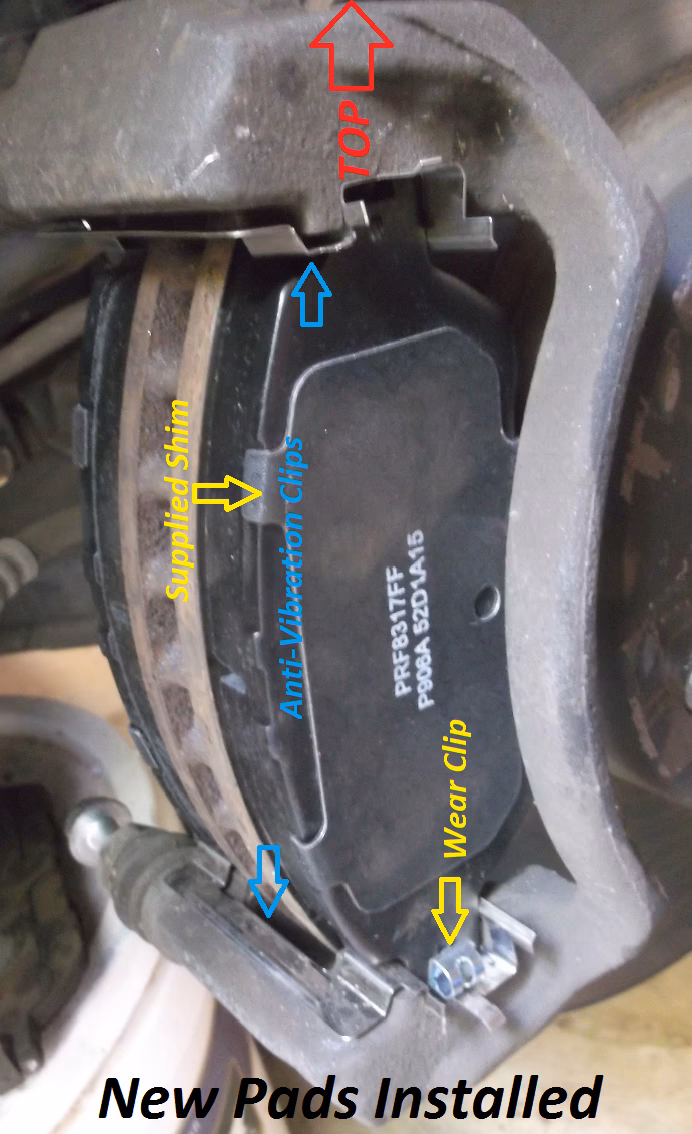

Step 10: Replace Pad Shims
Many brake pad kits come with new pad shims. These are thin metal plates that attach to the back of the brake pads and help reduce noise and vibration. If your old pads had shims, carefully remove them and install the new ones onto the corresponding new pads. It's vital to lubricate the surfaces of these shims where they will contact the caliper or piston with your high-temperature synthetic disc brake grease.
Step 11: Prepare the New Brake Pads
This is a crucial step for ensuring longevity and quiet operation. If your new pads came with adhesive backing pads, attach them to the back of the new pads as per the manufacturer's instructions. Next, apply a thin layer of disc brake grease to the areas on the back of the pads that will contact the caliper piston and the caliper bracket. Equally important is to grease the edges of the brake pads where they will slide within the pad shims. A common mistake is getting grease on the friction material of the pad – NEVER get grease on the braking surface of the pad, as this will severely compromise your braking ability.
Step 12: Install the New Brake Pads
With the preparation complete, carefully slide the new, greased brake pads into their positions within the caliper. Ensure they are seated correctly and are snug.
Step 13: Install the Retaining Pins
Apply a thin layer of disc brake lube to the retaining pins and also to the holes in the caliper where they will be inserted. Then, slide the pins back through the caliper and the holes in the new brake pads, securing them in place.
Step 14: Reinstall the Retaining Spring Clips
This is often the trickiest part. You may need to temporarily withdraw the top retaining pin slightly to thread the new retaining spring clips into place. The clips are designed to hold the pins securely and prevent them from rattling or falling out. Carefully manoeuvre the clips, ensuring they are properly engaged with the pins and seated correctly. This step is vital for the overall integrity of the brake pad installation.
Post-Installation and Bedding-In
Once the new pads are installed, reattach the road wheel, tighten the lug nuts to the manufacturer's recommended torque, and lower the vehicle. Before driving, it is absolutely essential to pump the brake pedal several times. This action pushes the caliper piston back out and seats the new pads against the brake disc. You'll feel the pedal firm up. If you don't do this, you will have no brakes on your first application!
Bedding-in your new brake pads is crucial for optimal performance and longevity. This process helps to transfer a thin, even layer of pad material onto the rotor surface. Most manufacturers recommend a procedure involving a series of moderate stops from around 30-50 mph, followed by a period of cooling without coming to a complete stop. Consult your new brake pad manufacturer's instructions for their specific bedding-in procedure, as it can vary.
Frequently Asked Questions
Q: How often should I replace my brake pads?
A: This depends on your driving habits, the type of pads you use, and the conditions you drive in. A general guideline is to inspect them every 6 months or 10,000 miles, and replacement is typically needed between 20,000 and 70,000 miles.
Q: What is a brake pad clip?
A: A brake pad clip, often a spring clip, is a small metal component that holds the retaining pins in place. These pins, in turn, secure the brake pads within the caliper. They also often act as anti-rattle clips.
Q: Can I just replace the brake pads without replacing the rotors?
A: Yes, you can, provided the rotors are still in good condition – not excessively worn, warped, or grooved. However, it's good practice to inspect your rotors when changing pads. If they show signs of wear or damage, it's best to replace or resurface them at the same time for optimal braking performance.
Q: Why are my new brakes making noise?
A: Some noise is normal during the bedding-in process. However, persistent squealing or grinding could indicate improper installation, incorrect pad type, or an issue with the rotors or other brake components. Ensure all contact points are lubricated correctly and that the pads are seated properly.
By following these steps and understanding the nuances of brake pad replacement, you can ensure your vehicle's braking system remains in top condition, providing you with the safety and confidence you need on the road.
