Kart Alignment: A Comprehensive Guide

Mastering Kart Alignment: Unlock Your Kart's Potential

For any aspiring or seasoned kart racer, understanding and correctly setting up your kart's alignment is paramount. It's not just about pointing the wheels in the right direction; it's a sophisticated dance of adjustments that directly impacts cornering, acceleration, tyre wear, and overall lap times. This guide will delve deep into the intricacies of kart alignment, demystifying each component and explaining how subtle changes can lead to significant performance gains. Whether you're racing on dirt or tarmac, a well-aligned kart is your ticket to the top step of the podium.

Front End Adjustments: The Key to Cornering

The front end of your kart is where the magic of turning happens. Getting these settings right is crucial for predictable and effective corner entry and mid-corner stability. Let's break down the key elements:

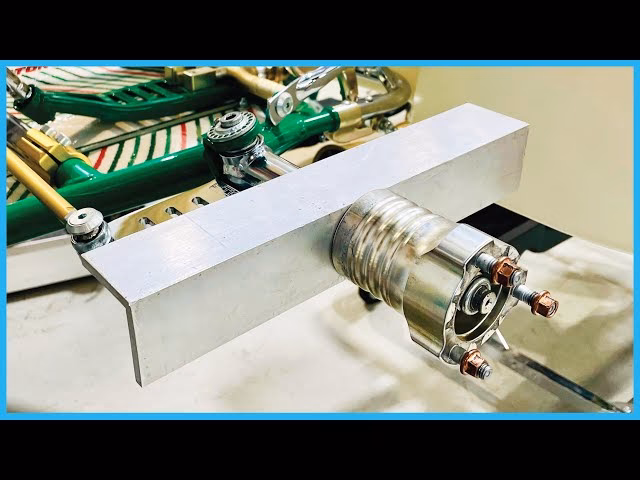

Wheel Alignment (Toe-Out)

Wheel alignment, often referred to as 'toe', dictates how the front wheels are angled relative to each other when viewed from above. For most karts, a small amount of toe-out is beneficial. This means the front of the wheels are angled slightly outwards. A typical setting is between 0mm and 2mm of toe-out.

Why toe-out? Toe-out helps the kart turn into corners more readily. As the kart turns, the outer wheel travels a longer distance than the inner wheel. With toe-out, the inner wheel will naturally turn at a slightly sharper angle, effectively 'pulling' the front of the kart into the turn. When making these adjustments, ensure the steering shaft arm is perfectly central. An off-centre steering arm will lead to uneven steering feel and can cause the kart to pull to one side.

Front Track Width

The front track width is the distance between the centre of the left front wheel and the centre of the right front wheel. A standard setup often involves 35mm of spacing inside each rim. Adjusting the front track width has a direct impact on how the kart behaves in corners:

• Narrower Front Track: Moving the front wheels inwards (reducing track width) generally makes the kart easier to turn into a corner. However, this can come at the cost of reduced drive out of the corner, as the kart may not 'load' the rear tyres as effectively on exit.
• Wider Front Track: Widening the front track can offer more stability on corner entry but might make the initial turn-in slightly slower.

Significant changes are rarely needed. Adjusting the front track by 5mm at a time is usually sufficient to feel a difference. A common adjustment is to move the outside front wheel inwards by 5mm to assist with turn-in.

Ackerman Steering Geometry

Ackerman, or more accurately, 'Ackerman effect', refers to the difference in the steering angle between the inner and outer front wheels during a turn. Most karts allow for adjustments to the Ackerman geometry via the steering shaft and stub axles. The standard setup often uses specific holes on the steering column and stub axles.

How Ackerman Affects Handling:

• Standard Setup (e.g., back holes on stub, centre hole on column): This provides a balanced Ackerman effect.
• Increased Ackerman (e.g., outer holes on steering column): This causes the inner front wheel to turn at a significantly faster rate than the outer wheel. This 'drags' the front of the kart more aggressively into the corner, improving turn-in response, especially for drivers who tend to drive straight lines with minimal opposite lock.
• Adjustments on Stub Axle: These primarily alter the rate at which the wheels turn relative to each other, fine-tuning the Ackerman effect.

Experimenting with Ackerman settings can drastically change the kart's steering characteristics. A more aggressive Ackerman setup can be very effective on tight, twisty circuits, while a milder setup might be preferred for sweeping corners or when a more stable front end is desired.

Caster and Camber

These terms, borrowed from automotive suspension, also play a role in karting, though often with simpler adjustments.

• Camber: This is the angle of the wheel relative to the vertical plane when viewed from the front. In karting, camber is typically set at 0mm (or 0 degrees). Some advanced setups might introduce a small amount of negative camber for specific track conditions, but for most, a neutral camber is the standard.
• Caster: This refers to the angle of the steering axis when viewed from the side. Increasing caster in the front end can improve forward drive, particularly when the kart is on opposite lock (e.g., drifting through a corner). It tends to make the steering feel heavier and the front end more reactive. Conversely, reducing caster will slow the front end's reaction, making it more predictable, but may reduce rear-end drive.

General Guidance for Caster: More caster is generally favoured on loose or low-grip surfaces to help the kart 'bite' and maintain stability. Less caster is often preferred on high-grip tracks where a more direct and less sensitive steering response is desired.

Rear End Adjustments: Traction and Stability

While the front end dictates turning, the rear end is responsible for putting the power down and maintaining stability. The rear axle and its associated components are crucial for grip and drive.

Rear Track Width

The rear track width is the distance between the centre of the left rear wheel and the centre of the right rear wheel. The standard measurement is often around 165mm, measured from the bearing hanger face to the hub face where the wheel attaches.

Adjusting the rear track width is one of the most effective ways to alter your kart's handling:

• Narrower Rear Track: Moving the rear hubs inwards (reducing track width) generally increases the grip at the rear. This is because it allows the rear axle to flex more, 'biting' into the track surface better. Lighter drivers might find success with narrower rear tracks, sometimes down to 155mm.
• Wider Rear Track: A wider rear track can offer more stability, especially on entry into corners. However, there's a point where making the rear track too wide can actually reduce grip. If the rear hubs are too close to the chassis, the axle can become too stiff, preventing it from flexing and working effectively. In such cases, widening the rear track slightly can generate more grip.

Similar to the front, make adjustments in 5mm increments to gauge the impact on handling.

Rear Hubs

Karts are typically supplied with 65mm rear hubs. These are suitable for a wide range of drivers and track conditions. If you find the rear of the kart is too 'loose' or twitchy, you can use wider, 90mm rear hubs. Using wider hubs effectively stiffens the rear axle, which can provide more stability and reduce oversteer.

Stagger

Stagger is created by fitting tyres of different circumferences to the rear wheels. This is achieved by using tyres of the same size but mounting them on different sized rims, or by using tyres with inherently different diameters. The tyre with the larger circumference is fitted to the outside rear wheel.

How Stagger Works: The larger tyre on the outside will rotate at a slightly slower rate than the inner tyre. This difference in rotation effectively steers the kart, helping it rotate through the corner and improving mid-corner speed. It's a subtle but powerful tuning tool.

Tyre Pressures

Tyre pressures are a fundamental yet often overlooked aspect of kart setup. They directly influence the tyre's contact patch with the track and its overall stiffness.

Standard Pressures:

• Front: 9psi
• Rear: 8psi

Adjusting for Grip:

• Low Grip Tracks: On surfaces with less traction, lower tyre pressures are generally required. This allows the tyre to flex more and create a larger contact patch, maximising grip. You might see pressures ranging from 11-8psi in the front and 6-10psi in the rear.
• High Grip Tracks: On grippier surfaces, slightly higher pressures can be used to prevent the tyres from overheating and degrading too quickly.

A general rule of thumb is to run slightly higher tyre pressures in the front than in the rear. This helps to keep the front tyres 'alive' and responsive.

Seat Position: The Driver's Influence

The driver's position within the kart has a significant impact on weight distribution and, consequently, handling. While often left untouched for minor height differences, significant adjustments can be made:

Standard Seat Position Guidelines:

• Front of seat to inside front chassis rail: 630mm
• Top of seat to top of axle: 300mm
• Seat level with the bottom of the chassis

Adjustments for Driver Height:

• Shorter Drivers: Lifting the seat slightly (no higher than the top of the chassis) can improve weight transfer and side-bite.
• Taller Drivers: Dropping the seat slightly (e.g., 10mm below the chassis) can lower the kart's centre of gravity, potentially reducing side-bite and improving stability.

Engine Considerations (e.g., 125cc Karts): For karts with heavier engines and radiators (like 125cc), moving the seat further forward can help balance the weight distribution.

Frequently Asked Questions (FAQ)

Conclusion

Achieving the perfect kart alignment is an iterative process of understanding the fundamental principles and then fine-tuning based on track conditions and driver feedback. Each adjustment, from the smallest toe-out setting to the position of the seat, plays a crucial role in the kart's overall performance. By mastering these adjustments, you'll be well on your way to shaving valuable seconds off your lap times and enjoying a more responsive, predictable, and ultimately faster kart.
