Unravelling Dirt Bike Fuel Injection for 4-Strokes

For any enthusiast of two-wheeled off-road adventures, understanding the heart of your machine is paramount. When it comes to modern four-stroke dirt bikes, the fuel injection system plays a pivotal role in delivering power, efficiency, and reliability. Gone are the days when carburettors were the sole method of fuel delivery; today's advanced systems offer a sophisticated approach to getting the right air-fuel mix into your engine's combustion chamber.

Understanding the Four-Stroke Engine Fundamentals

Before delving into the specifics of fuel injection, it's crucial to grasp the basic operation of a four-stroke engine. Unlike its two-stroke counterpart, a four-stroke engine is inherently more complex, featuring a greater number of moving parts – often 30-50% more – and typically weighing more. However, these modern powerplants have seen significant advancements, becoming lighter and more efficient than ever before.

A four-stroke engine operates on a principle of four distinct piston movements, or 'strokes', to complete a single power cycle. These strokes are:

1. Intake Stroke: The piston travels downwards, and the intake valve(s) open. This allows a carefully measured air-fuel mixture to be drawn into the combustion chamber.
2. Compression Stroke: As the piston moves upwards, both the intake and exhaust valves close, trapping and compressing the air-fuel mixture. This compression significantly increases the mixture's combustibility.
3. Combustion (Power) Stroke: At the very top of the compression stroke (Top Dead Centre or TDC), the spark plug ignites the highly compressed air-fuel mixture. The resulting explosion forces the piston powerfully downwards.
4. Exhaust Stroke: As the piston reaches the bottom of its travel (Bottom Dead Centre or BDC), the exhaust valve(s) open. The piston then travels upwards again, pushing the spent exhaust gases out of the cylinder and through the exhaust system.

Once the exhaust stroke is complete, the exhaust valve closes, the intake valve reopens, and the cycle begins anew. This intricate ballet of components ensures that the engine is constantly converting fuel into kinetic energy, propelling your dirt bike forward.

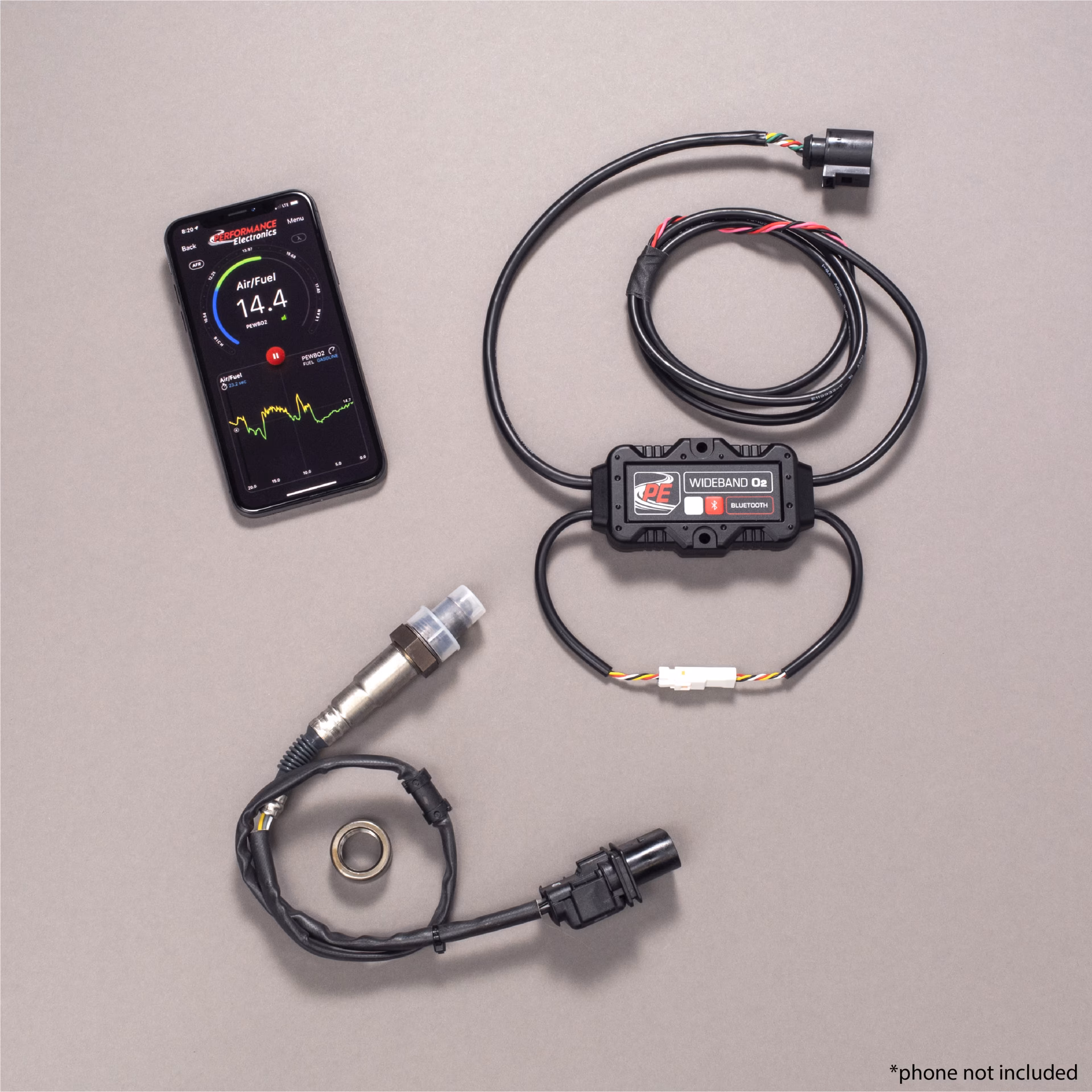

The Pivotal Role of the Fuel Injector

In the context of this four-stroke cycle, the fuel injector is the unsung hero responsible for precisely delivering fuel. Unlike older carburettor systems that relied on a venture effect to mix air and fuel, a fuel injector electronically sprays a fine mist of fuel directly into the intake manifold, where it then mixes with air drawn in through the air filter. This method offers significantly greater control and precision over the air-fuel ratio, leading to a host of benefits.

The fuel injector itself is an electronically controlled valve. It receives signals from the engine's Electronic Control Unit (ECU) – essentially the brain of the engine – which dictates when and for how long the injector should open. This allows for dynamic adjustments based on various factors such as engine speed, throttle position, air temperature, and atmospheric pressure, ensuring optimal performance across a wide range of riding conditions.

Fuel Injection vs. Carburettors: A Comparative Look

For decades, carburettors were the standard for mixing air and fuel in motorcycles. However, fuel injection has progressively taken over due to its inherent advantages. Let's compare the two systems:

Table: Carburettor vs. Fuel Injection (EFI) in Dirt Bikes

The Advantages of Fuel Injection in Modern Dirt Bikes

The shift towards fuel injection in dirt bikes, particularly in four-stroke models, is driven by a multitude of benefits:

• Optimised Fuel Efficiency: By precisely controlling the amount of fuel delivered, fuel injection systems minimise waste. This means you get more miles out of a tank, which is always a bonus whether you're racing or just out for a long trail ride.
• Reduced Emissions: The precise metering of fuel ensures a more complete combustion, leading to fewer harmful emissions. This makes fuel-injected bikes more environmentally friendly and compliant with modern regulations.
• Improved Power Delivery: EFI systems offer a broader and smoother power band. This translates to better throttle response across the RPM range, making the bike easier to control and more predictable in various terrains. You'll often find a more consistent feel from idle to wide-open throttle.
• Altitude Compensation: Carburettors often require re-jetting when significant changes in altitude occur. Fuel injection systems, with their array of sensors and intelligent ECU, automatically adjust the air-fuel mixture to compensate for changes in atmospheric pressure, ensuring optimal performance whether you're at sea level or high in the mountains.
• Easier Starting: Cold starts can be a chore with carburetted bikes. Fuel-injected bikes, however, typically start much more easily and consistently, often with just the press of a button.

The Evolution of Fuel Injection in Dirt Bikes

While fuel injection systems appeared on street bikes as early as 1980, their adoption in the dirt bike world took a little longer. It wasn't until 2002 that fuel injection first made its debut on a production dirt bike. This marked a significant turning point, and in the years that followed, the technology steadily gained traction.

Initially, two-stroke engines held a strong preference due to their lighter weight and simpler design. However, as four-stroke technology advanced, becoming more powerful and efficient, the bias shifted. Today, most new dirt bike models, especially four-strokes, come equipped with fuel injection systems, abandoning carburettors in favour of this superior technology. Honda, for example, was an early adopter with models like the CRF 250 R featuring a fully programmed fuel injection system.

Key Components of a Fuel-Injected Four-Stroke Engine

Beyond the fuel injector itself, several other components work in harmony to make the system function:

• Intake Manifold: This is where the air-fuel mix is delivered before entering the combustion chamber. The fuel injector sprays fuel directly into this manifold.
• Intake Valves: These open at the precise moment to allow the air-fuel mixture into the combustion chamber.
• Exhaust Valves: These open to release the burnt gases after combustion.
• Camshaft: Responsible for the precise timing of the opening and closing of both the intake and exhaust valves.
• Crankshaft: Connected to the pistons via the piston rods, the crankshaft converts the linear motion of the pistons into rotational motion, ultimately driving the rear wheel.
• Electronic Control Unit (ECU): The 'brain' that processes data from various sensors (e.g., throttle position, engine temperature, ambient air pressure) and calculates the optimal fuel delivery and ignition timing.
• Fuel Pump: Delivers fuel from the tank to the fuel injector at the required pressure.
• Sensors: A network of sensors provides real-time data to the ECU, enabling dynamic adjustments to the fuel and ignition maps.

Maintenance Considerations for Fuel-Injected Bikes

While fuel injection systems are generally less maintenance-intensive in terms of regular tuning compared to carburettors, there are still crucial aspects to consider:

• Air Filter: A clean air filter is vital. It ensures that only clean air enters the intake manifold for mixing with fuel. A clogged filter can restrict airflow, leading to a rich mixture and reduced performance. Regular cleaning or replacement is a must.
• Fuel Quality: Using high-quality, clean fuel is essential to prevent clogging of the fine orifices in the fuel injector. Contaminants can quickly degrade performance or lead to costly repairs.
• Fuel System Cleaners: Periodic use of a reputable fuel system cleaner can help keep injectors free from deposits and ensure optimal spray patterns.
• Oil Levels: For four-stroke engines, maintaining correct engine oil levels in the crankcase is absolutely critical. Unlike two-strokes where lubrication comes from oil mixed with fuel, four-strokes rely on a dedicated oil supply. Ignoring low oil pressure warnings (often indicated by a light on modern bikes) can lead to catastrophic engine seizure. Trust me, I've learned this the hard way!

Frequently Asked Questions About Dirt Bike Fuel Injection

Q: Which dirt bikes commonly feature fuel injection systems?
A: Many modern four-stroke dirt bikes now come with fuel injection. Notable examples include the Honda CRF 250 R (one of the first), Suzuki RM-Z250, Kawasaki KX 250F, Husqvarna TC 250, and the Yamaha YZR500FI.

Q: When did fuel injection first appear on dirt bikes?
A: Fuel injection first appeared on a production dirt bike in 2002. However, the technology for street bikes dates back to 1980.

Q: Is EFI (Electronic Fuel Injection) better than a carburettor?
A: For most riders and applications, EFI offers significant advantages. It provides a broader power band, superior cylinder-to-cylinder fuel distribution, better fuel efficiency, lower emissions, and automatic adjustments for varying conditions. While carburettors can sometimes make more peak power in highly specific, tuned racing engines (like Pro Stock), EFI generally provides a more usable and consistent power delivery for dirt biking.

Q: Are all new dirt bikes now fuel injected?
A: The vast majority of new four-stroke dirt bike models being released to the market have embraced fuel injection technology, moving away from carburettors due to the numerous advantages EFI offers.

Q: What's the main power difference between a 2-stroke and a 4-stroke dirt bike?
A: A two-stroke engine can produce up to twice the power of a four-stroke engine of the same cylinder capacity because it fires once every revolution, whereas a four-stroke fires once every other revolution. For example, a 125cc two-stroke might feel similar in power to a 250cc four-stroke. Two-strokes are generally known for their 'poky' acceleration and lighter feel, while four-strokes offer more consistent, broader power and are typically more durable and fuel-efficient.

Conclusion

The journey from carburettors to sophisticated fuel injection systems marks a significant evolution in dirt bike engineering. Fuel injection has not only enhanced the performance, fuel efficiency, and environmental credentials of four-stroke dirt bikes but has also made them more user-friendly and adaptable to diverse riding conditions. Understanding how this vital system works empowers you to better appreciate your machine and ensure it remains in peak condition for countless thrilling adventures on the dirt.
