High-Pressure Fuel Pump Failure Symptoms

The high-pressure fuel pump (HPFP) is a vital component in modern vehicles, particularly those with direct injection systems. Its primary role is to deliver fuel to the engine's combustion chamber at precisely controlled, high pressures, ensuring optimal performance, efficiency, and emissions control. When this critical component begins to malfunction, the consequences can be significant, manifesting in a range of noticeable symptoms that alert drivers to a potential problem. Ignoring these signs can lead to more severe damage and costly repairs down the line. This article will delve into the common symptoms of a failing high-pressure fuel pump, explore the underlying causes, and offer guidance on diagnosis and potential solutions.

Understanding the Role of the High-Pressure Fuel Pump

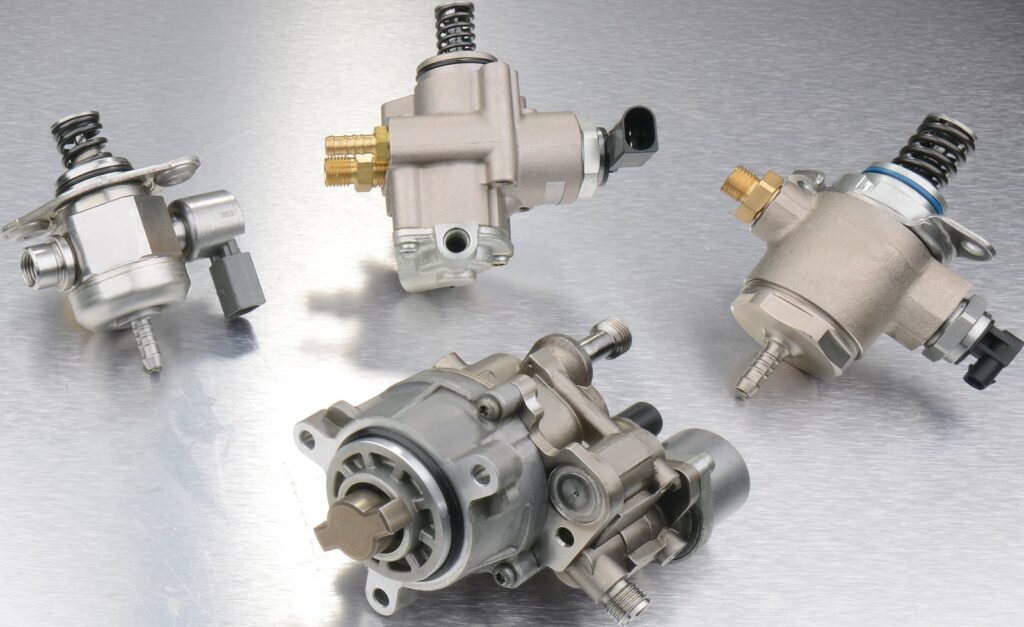

In direct injection engines, the HPFP is responsible for raising the fuel pressure to levels far exceeding those in traditional port injection systems, often reaching up to 2,500 psi or more. This high pressure is essential for atomising the fuel effectively as it's injected directly into the cylinder, leading to more complete combustion. The pump is typically driven by the camshaft and its output can be varied to meet the engine's specific demands.

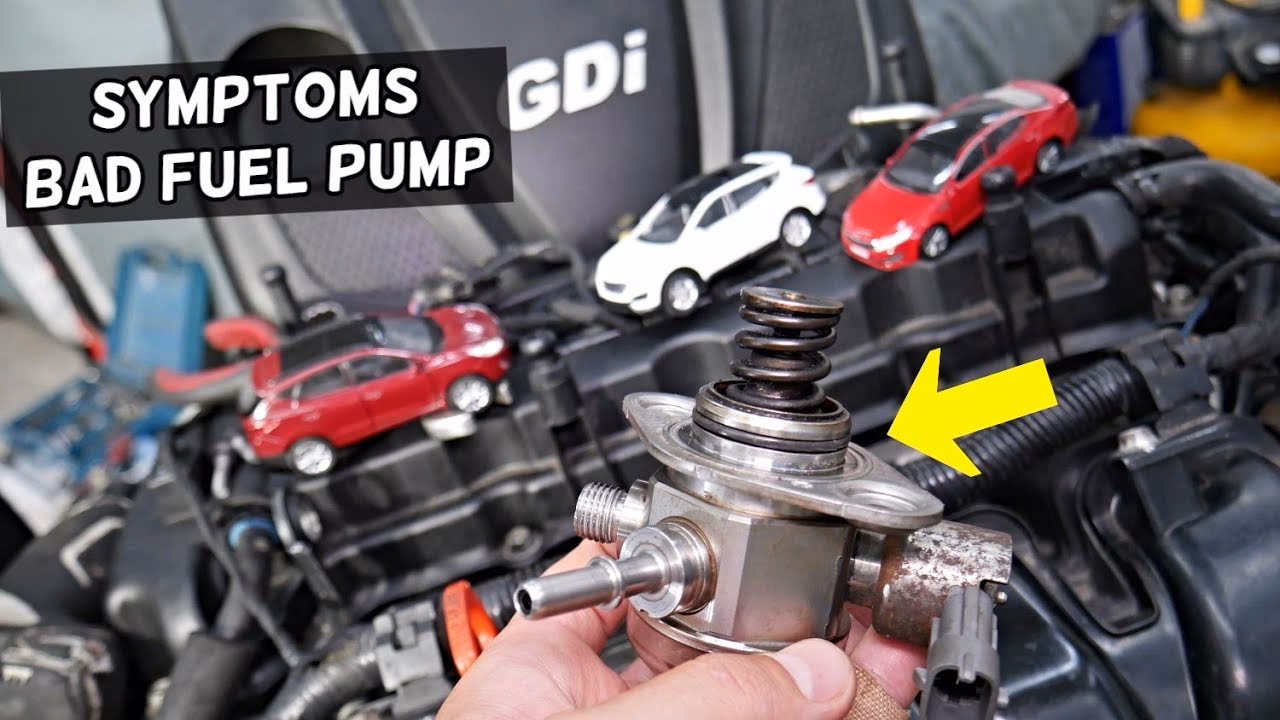

Key Symptoms of a Failing High-Pressure Fuel Pump

Recognising the signs of an HPFP issue early is crucial for preventing further damage and ensuring your vehicle's reliability. Here are the most significant indicators to watch out for:

1. Loss of Engine Power and Poor Acceleration

One of the most common symptoms of a failing HPFP is a noticeable reduction in engine power, particularly under load. If your vehicle struggles to accelerate, especially when climbing hills, towing, or carrying heavy loads, it could indicate that the pump isn't supplying enough fuel at the required pressure. This can feel like the engine is labouring and unable to respond effectively to throttle inputs. The engine might also hesitate or stumble when you try to accelerate, as it's not receiving a consistent or sufficient fuel supply.

2. Difficulty Starting or Engine Cranking Without Starting

A completely failed HPFP will prevent the engine from starting at all, even though the starter motor may crank the engine. This is because the engine simply isn't receiving any fuel. If the pump is failing intermittently, you might experience prolonged cranking before the engine eventually starts, or it may start but then immediately stall. This issue can be more pronounced in colder weather, as engines often require a slightly richer fuel mixture to start when cold.

3. Engine Sputtering and Hesitation

An engine that sputters or hesitates, especially at higher speeds or during acceleration, is a strong indicator of fuel delivery problems. This is often caused by the HPFP failing to maintain consistent fuel pressure, leading to intermittent misfires. You might experience brief moments of jerky acceleration or a stuttering sensation as the engine struggles to get the fuel it needs for smooth operation.

4. Sudden Surges or Unexpected Acceleration

Paradoxically, a failing HPFP can also cause sudden, unexpected surges in acceleration. This occurs when the pump delivers an inconsistent or excessive amount of fuel, disrupting the precise timing and combustion process. The engine might rev higher than expected, or the vehicle could lurch forward without the driver pressing the accelerator pedal any harder. These surges can be disconcerting and potentially dangerous.

5. Jolting or Shaking During Acceleration

If your car begins to wobble or shake as you accelerate, it's another potential sign of an HPFP issue. This symptom is often a result of an imbalance in fuel pressure, leading to uneven combustion and a rough running engine. While it might only occur sporadically, it's a clear indicator that something is amiss with the fuel delivery system.

6. Smell of Fuel in the Exhaust or Cabin

A strong smell of petrol or diesel, particularly noticeable in the exhaust fumes or even inside the cabin, can indicate an overly rich fuel mixture. This can be caused by a leaky HPFP or faulty injectors, leading to too much fuel entering the combustion chamber. In some cases, this can also be accompanied by black smoke from the exhaust, a sign of incomplete combustion.

7. Check Engine Light (CEL) Illumination

Modern vehicles are equipped with sophisticated diagnostic systems that monitor fuel pressure and other engine parameters. If the HPFP is not operating within its specified range, the engine control unit (ECU) will detect an anomaly and illuminate the Check Engine Light. Diagnostic trouble codes (DTCs) such as P0087 (Fuel Rail/System Pressure Too Low) or P0093 (Fuel System Leak Detected - Pressure Drop) are commonly associated with HPFP failures.

8. Burned or Fouled Spark Plugs

An excessively rich fuel mixture, often a result of HPFP issues, can lead to spark plugs becoming fouled with carbon deposits. This prevents them from creating a strong spark, leading to misfires and further performance degradation. In some cases, the spark plugs might appear wet with fuel, indicating an issue with fuel delivery or ignition.

9. Wet Spark Plugs

If upon inspection, your spark plugs are found to be wet with fuel, it signifies that fuel is entering the combustion chamber but not igniting properly. This can be due to insufficient spark, or in this context, an over-rich fuel mixture caused by a faulty HPFP or other fuel system components.

10. Unusual Noises from the Fuel Pump Area

While not always present, a failing HPFP can sometimes emit unusual noises, such as whining, rattling, or grinding. These sounds often indicate internal wear or damage to the pump's components. If you hear these noises emanating from the vicinity of the fuel pump, it warrants immediate investigation.

What Causes High-Pressure Fuel Pump Failure?

Several factors can contribute to the premature failure of an HPFP:

• Fuel Contamination: Dirt, debris, water, and other contaminants in the fuel can clog the intricate internal components of the HPFP, leading to reduced fuel flow and pressure. Water can also cause corrosion and rust within the pump.
• Worn Components: The high-pressure and high-stress environment in which the HPFP operates means its internal parts, such as plungers, seals, and drive gears, are subject to significant wear and tear over time.
• Low-Quality Fuel: Using substandard fuel, particularly diesel fuel with poor lubricity, can increase friction and wear on the HPFP, accelerating its deterioration.
• Lack of Maintenance: Neglecting routine maintenance, such as regular fuel filter changes and inspections of fuel lines, can allow contaminants to reach the HPFP and cause damage.
• Incorrect Oil Type: For diesel engines, using engine oil that doesn't meet the manufacturer's specifications can affect the lubrication and cooling of the HPFP, leading to premature wear.
• Failed Solenoid or Sensors: Issues with the solenoid that controls fuel pressure and volume, or with pressure and temperature sensors, can lead to incorrect fuel delivery or false diagnostic readings.

How to Diagnose a Bad High-Pressure Fuel Pump

Diagnosing HPFP failure typically involves a systematic approach:

Troubleshooting and Potential Fixes

If you suspect an HPFP issue, here are some initial troubleshooting steps:

1. Check Fuel Level: Ensure there is sufficient fuel in the tank.
2. Replace Fuel Filter: A clogged fuel filter can restrict fuel flow to the HPFP. Replacing it, especially if it's old, is a good first step.
3. Inspect Fuel Pressure Regulator: Ensure the regulator is functioning correctly.
4. Check Engine Oil Level: Insufficient oil can sometimes affect the operation of certain fuel pumps.
5. Electrical Checks: If you don't hear the fuel pump prime when the ignition is turned on, check the electrical circuit, fuses, and relays, or test with a diagnostic machine.

For more complex issues, it is highly recommended to consult a qualified mechanic. Attempting to replace the HPFP yourself without the necessary expertise and tools can lead to further damage.

Durability and Replacement Costs

A healthy high-pressure fuel pump is designed to last for a considerable mileage, often around 100,000 miles or more. However, this can vary significantly depending on driving conditions, fuel quality, and maintenance practices.

The cost of replacing an HPFP can vary widely depending on the vehicle's make and model, as well as the labour rates in your area. DIY replacement might cost between £75 to £250 for the part itself. If you opt for professional replacement, expect the total cost, including labour, to be in the region of £400 to £600. The replacement process typically takes between one to six hours.

Conclusion

The high-pressure fuel pump is an indispensable component for the efficient operation of many modern engines. By understanding the common symptoms of its failure—from power loss and starting difficulties to unusual noises and warning lights—you can take proactive steps to diagnose and address potential issues. Regular maintenance, using quality fuel, and paying attention to your vehicle's performance can help prolong the life of your HPFP and prevent costly repairs. When in doubt, always seek the expertise of a certified automotive professional.

Frequently Asked Questions (FAQs)

What happens if the high-pressure fuel pump fails completely?

If the HPFP fails completely, the engine will not receive any fuel, and the vehicle will not start or run. It's akin to the circulatory system in the human body stopping; the engine cannot function without fuel.

Can a bad fuel filter cause HPFP failure?

Yes, a severely clogged fuel filter can restrict fuel flow to the HPFP, causing it to work harder and potentially overheat or fail prematurely due to lack of lubrication or pressure. It can also allow contaminants that would have been trapped by the filter to reach the pump.

How can I test my high-pressure fuel pump?

Testing typically involves using a fuel pressure gauge to measure the output pressure of the HPFP. You'll need to compare the readings against the manufacturer's specifications. Additionally, diagnostic scan tools can read trouble codes related to fuel pressure that may indicate a pump issue.

Is it safe to drive with a failing high-pressure fuel pump?

It is generally not advisable to drive a vehicle with a failing HPFP. The inconsistent fuel delivery can lead to engine stalling, poor performance, and potentially cause further damage to the fuel system or engine components. It's best to have the issue diagnosed and repaired as soon as possible.
