Understanding Direct Injection Fuel Systems
Modern vehicles rely on sophisticated fuel delivery systems to ensure optimal engine performance and efficiency. Among these, the direct injection (DI) fuel system stands out as a significant advancement over older methods. Unlike traditional port injection systems where fuel is sprayed into the intake manifold, direct injection systems deliver fuel directly into the engine's combustion chamber. This precise delivery method offers several advantages, including improved fuel economy, increased power output, and reduced emissions. Both diesel and gasoline engines can utilise direct injection technology, each with its own specific requirements and components.
The Core Components of a Direct Injection System

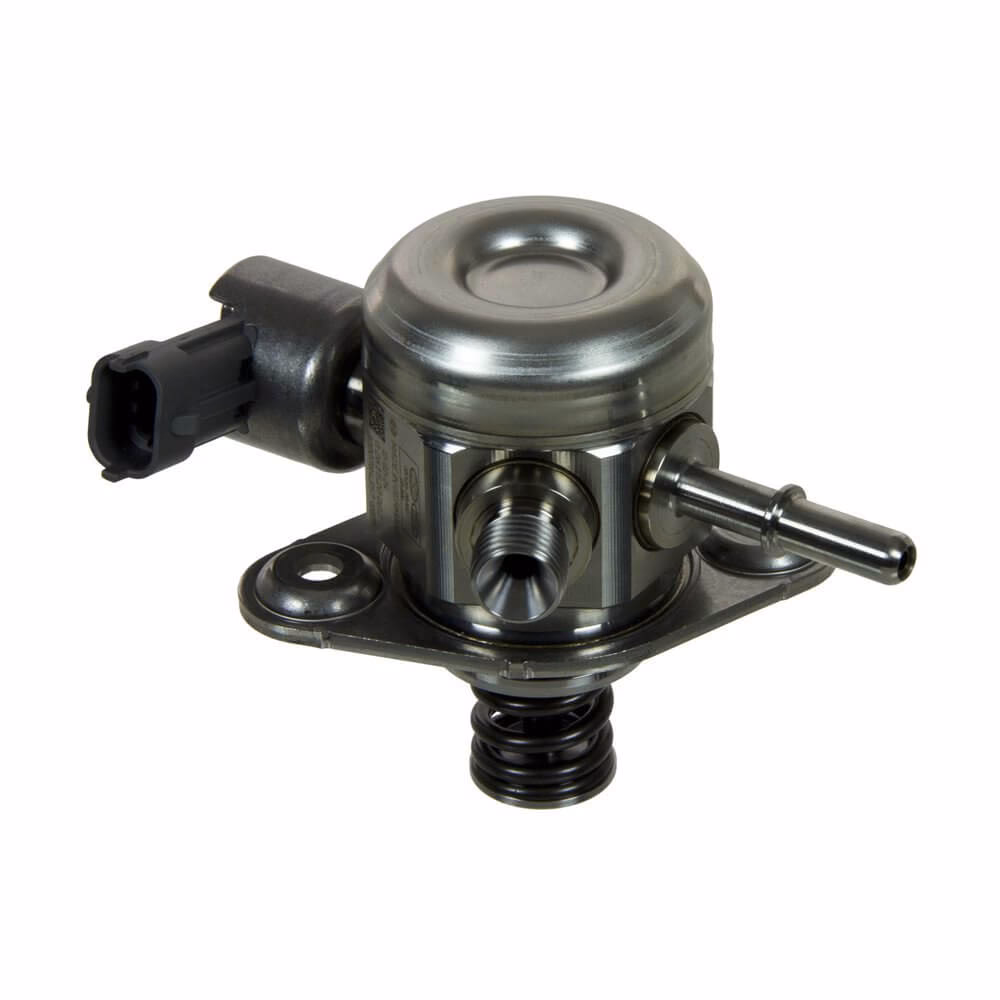

A direct injection fuel system is a complex network of components working in harmony to deliver fuel precisely where and when it's needed. The system comprises a primary fuel pump, usually located within the fuel tank, which draws fuel and supplies it to a secondary, high-pressure pump. This high-pressure pump, often mounted directly to the engine and driven by it, is a critical differentiator for DI systems. It significantly increases the fuel pressure, enabling the fine atomisation of fuel required for direct injection into the combustion chamber. This high-pressure fuel then travels through fuel lines to the fuel rail, a manifold that distributes the pressurised fuel to the individual fuel injectors. The injectors themselves are sophisticated electronically controlled valves that open and close rapidly, spraying a precise amount of fuel directly into the cylinder. The engine's control unit (ECU) manages the timing and duration of the injection events based on various sensor inputs, optimising combustion for different driving conditions.
How Direct Injection Differs from Other Systems
The primary distinction between direct injection and other fuel delivery systems, such as port fuel injection (PFI) or throttle body injection (TBI), lies in the point of fuel delivery. In PFI systems, fuel is injected into the intake manifold runners, upstream of the intake valves. This allows the fuel to mix with air before entering the combustion chamber. TBI systems, an older technology, inject fuel through a throttle body assembly, similar to a carburettor, but with electronic control. Direct injection, however, bypasses the intake manifold entirely, spraying fuel directly into the cylinder. This direct delivery offers several benefits:
| Feature | Direct Injection (DI) | Port Fuel Injection (PFI) | Throttle Body Injection (TBI) |
|---|---|---|---|
| Fuel Delivery Point | Combustion Chamber | Intake Manifold | Throttle Body |
| Fuel Pressure | Very High (e.g., 1000-3000+ psi for gasoline) | Moderate (e.g., 40-60 psi) | Low (e.g., 10-15 psi) |
| Atomisation | Fine Mist | Good | Fair |
| Efficiency | Excellent | Good | Fair |
| Power Output | Higher potential | Good | Moderate |
| Emissions | Lower (with proper control) | Good | Fair |
What Can Go Wrong with a Fuel Pump?
Like any mechanical component, fuel pumps are subject to wear and tear over time. As a car ages, the internal parts of the fuel pump can degrade, leading to a gradual loss of pressure. This reduced pressure can manifest in several drivability issues. Initially, you might experience hard starting, where the engine cranks for longer than usual before firing up. You might also notice hesitation when accelerating, or a general feeling of low engine power, as the engine isn't receiving the optimal fuel mixture. If the internal components of the pump fail completely, the engine will no longer receive fuel, resulting in the engine refusing to start at all. Other potential issues include clogged fuel filters, faulty fuel pressure regulators, or electrical problems with the fuel pump relay or fuse, all of which can mimic symptoms of a failing pump.
Testing Your Fuel Pump: A Practical Guide
While specialised tools are often required for precise diagnostics, understanding the basic principles of fuel pump testing can empower car owners. Many auto parts stores offer to lend out fuel pump testing kits for free, making this a feasible DIY task for those with some mechanical inclination. If you suspect your fuel pump is weakening, a professional diagnostic can cost between £70 and £120 (approximately $90-$150 USD), but a DIY test can save you money.
Pre-Test Preparations
Before commencing any test, ensure your vehicle is parked on a flat surface with the emergency brake engaged. The engine should be off, and it is crucial to eliminate any potential ignition sources such as smoking or open flames due to the flammable nature of fuel. This guide focuses on testing in-tank fuel pumps.
Connecting the Pressure Gauge
Some vehicles are equipped with a convenient pressure port directly on the fuel rail, allowing for straightforward gauge connection. For others, you may need to use an adapter from your test kit. This adapter can typically be fitted at the fuel filter or the fuel feed line leading to the engine's fuel rail. Carefully remove the pressure port cap, if present, and select the appropriate adapter from your fuel pressure test kit. Most gauges feature quick-disconnect couplers that accommodate various manufacturer-specific fittings. Ensure the connection is secure, as a loose fitting can lead to inaccurate readings or a false negative.
Important Note: When attaching the pressure gauge with the engine off, a small amount of residual fuel may be present. Have a shop towel or rag ready to catch any drips and prevent spillage.
Initial Pressure Check (Priming)
With the pressure gauge connected, turn the ignition key to the 'ON' position without starting the engine. The gauge should register a pressure reading almost immediately. For Direct Port Injection (DPI) systems, this initial pressure should typically be between 45 and 58 psi. Throttle Body Injection (TBI) systems, on the other hand, usually operate at a lower pressure, generally between 13 and 17 psi. If you observe no pressure, re-check your hose and adapter connections to rule out a faulty connection. Cycle the ignition key again to allow the system to prime. If pressure is still absent, the issue could lie with the fuel pump itself, the fuel pump relay, or a blown fuse.
Engine Running Pressure Test
Now, start the engine to test the pump's performance under operating conditions. Once the engine is running, you should observe a slight drop in fuel pressure, typically around 5 psi from the initial priming pressure in DPI systems. Next, quickly snap the throttle open and then release it. The fuel system pressure should momentarily increase by approximately 5 psi. This response indicates that both the fuel pump and the pressure regulator are functioning correctly. If the fuel pressure does not react as expected, inspect the vacuum feed line to the fuel pressure regulator. If this line is intact and free of leaks, the fuel pressure regulator itself may have failed.
Load Testing the Fuel Pump
The final and crucial step is the load test, which assesses how the fuel pump performs under the demands of actual driving. There are two common methods for conducting a load test:
- Engine Load via Transmission: For vehicles with an automatic transmission, engage the 'Park' or 'Neutral' gear, firmly apply the brakes, and then gently apply a small amount of throttle. This loads the engine and, consequently, the fuel pump without the vehicle moving significantly.
- Road Test: Alternatively, you can perform a road test. Close the bonnet to the first safety catch and drive the vehicle at moderate speeds (avoiding high RPMs). Route the fuel pressure gauge hose safely out from under the bonnet, securing it with masking tape so the driver can monitor the gauge's reading.
During the load test, the fuel pressure should remain consistent and stable. If the fuel pressure drops under load or while idling, it could indicate a clogged fuel filter (if equipped) or a failing fuel pump that requires replacement.
Post-Test Procedures
Once you have completed the tests, carefully remove the fuel pressure gauge. Reinstall any protective caps or reattach the fuel line adapter. Clean up any spilled fuel with your shop towel. If you have identified a faulty component, you will need to arrange for its replacement.
Frequently Asked Questions
- Q: Can I drive my car with a weak fuel pump?
A: While you might be able to drive for a short period, a weak fuel pump can lead to poor performance, stalling, and potential damage to other engine components. It's advisable to get it checked and repaired as soon as possible. - Q: How often should a fuel pump be replaced?
A: Fuel pumps are generally designed to last the lifetime of the vehicle. However, factors like fuel quality, driving habits, and the presence of contaminants in the fuel can affect their longevity. There isn't a fixed replacement interval. - Q: What is the difference between a fuel pump and a fuel injector?
A: The fuel pump is responsible for drawing fuel from the tank and delivering it under pressure to the fuel rail. Fuel injectors are electronically controlled valves that spray the fuel into the engine's combustion chamber or intake manifold. - Q: My car is hesitating under acceleration, could it be the fuel pump?
A: Yes, hesitation under acceleration is a common symptom of a weakening fuel pump or a clogged fuel filter, as the engine is not receiving enough fuel to meet the increased demand.
We hope this guide has provided valuable insights into direct injection fuel systems and fuel pump testing. For more detailed information and visual demonstrations, consider subscribing to our YouTube channel where we regularly upload comprehensive car repair guides and videos. Regular maintenance and timely diagnostics can save you money and keep your vehicle running smoothly.
