Choosing the Right Fuel Pressure Test Kit

Understanding your vehicle's fuel system is paramount for effective diagnosis and maintenance. A common culprit behind various engine woes, from misfires and poor acceleration to difficult starting, can often be traced back to incorrect fuel pressure. But how do you accurately measure this critical parameter? The answer lies in a reliable fuel pressure test kit. While the market offers a bewildering array of options, knowing what to look for can save you time, money, and frustration. This guide will walk you through the essentials, helping you select the ideal kit for your diagnostic needs.

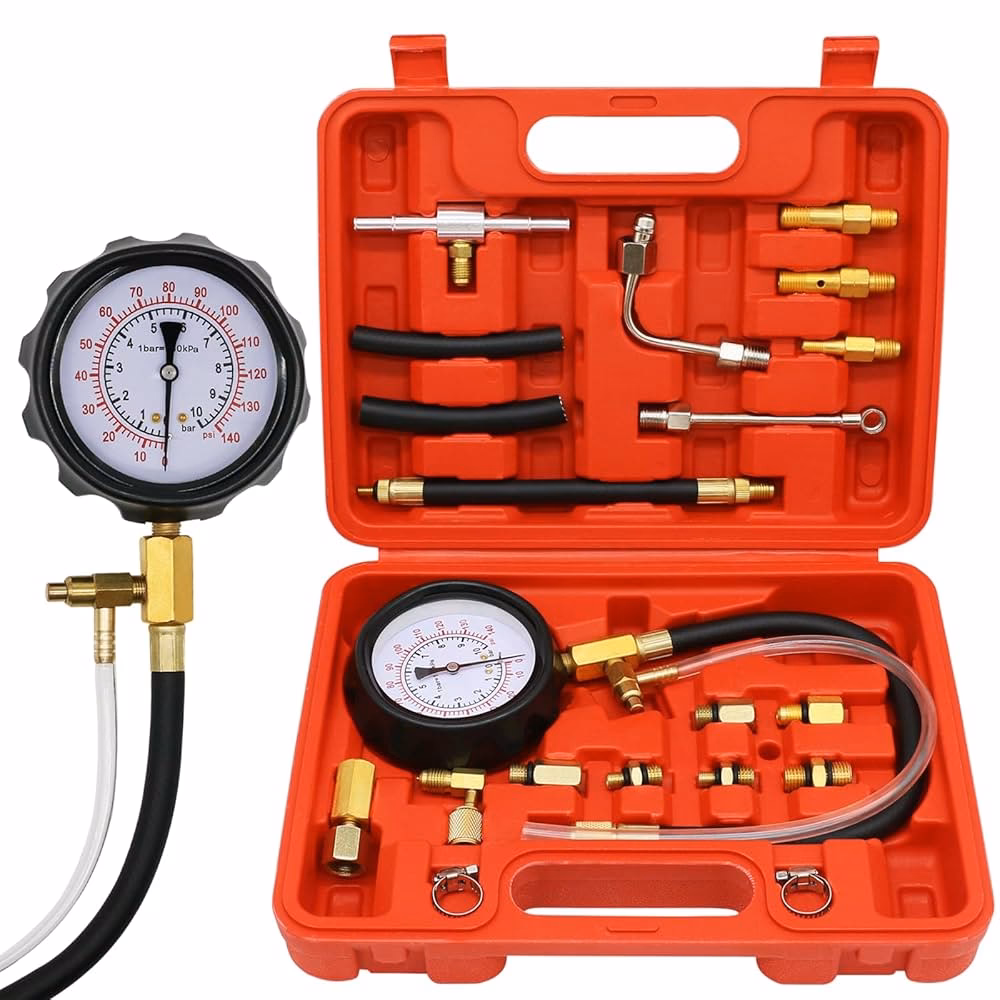

A fuel pressure test kit is a specialised diagnostic tool designed to measure the pressure within your vehicle's fuel system. This measurement is crucial because the engine's performance is highly dependent on a consistent and correct fuel supply. Too little pressure, and the engine starves for fuel; too much, and it can run overly rich, both leading to performance issues and potential damage. The kit typically consists of a pressure gauge, various hoses, and an assortment of adapters to connect to different vehicle fuel lines or test ports. Its primary function is to provide a precise reading that can then be compared against the manufacturer's specifications for your particular make and model, allowing you to pinpoint issues with components like the fuel pump, fuel filter, pressure regulator, or even leaky injectors.

Types of Fuel Pressure Test Kits

Not all fuel systems are created equal, and neither are the test kits designed for them. Understanding the different types is the first step in making an informed purchase:

• Standard Fuel Pressure Kits: These are the most common kits and are suitable for a vast majority of older vehicles and modern vehicles with port fuel injection (PFI) systems. They typically measure pressures ranging from 0 to around 100-120 PSI (Pounds per Square Inch). These systems usually operate at pressures between 30-80 PSI, so a standard kit covers this range comfortably.
• High-Pressure / Direct Injection (DI) Fuel Pressure Kits: As vehicles evolve, so do their fuel systems. Direct Injection (DI) engines, common in many modern cars, operate at significantly higher fuel pressures. While traditional port injection sprays fuel into the intake manifold, DI systems inject fuel directly into the combustion chamber. This requires immense pressure, which can exceed 2,000 PSI, sometimes reaching as high as 2,300 PSI, as seen in some systems. A standard kit simply won't suffice for these applications. High-pressure kits feature gauges designed to withstand and accurately read these extreme pressures, often going up to 3,000 PSI or more. They also require more robust hoses and fittings to handle the immense forces involved.
• Digital vs. Analogue Gauges: Analogue gauges are traditional, needle-based displays that are generally reliable and don't require batteries. Digital gauges offer a precise numerical readout, often with backlighting for easier reading in low light, and some may include additional features like data hold or peak pressure readings. However, they do require battery power.
• Universal vs. Vehicle-Specific Kits: Universal kits come with a wide array of adapters, aiming to fit a broad range of vehicle makes and models. This makes them versatile for multi-vehicle workshops or DIYers with a diverse fleet. Vehicle-specific kits, on the other hand, are tailored for particular vehicle brands or models, often providing a perfect fit and potentially more accurate readings for that specific application, albeit with less versatility.

Key Features to Look For in a Quality Kit

When selecting a fuel pressure test kit, certain features can significantly impact its performance, durability, and ease of use:

• Accuracy: This is perhaps the most critical feature. An inaccurate gauge is worse than no gauge at all, as it can lead to misdiagnosis. Look for kits from reputable manufacturers known for their precision. The gauge should be calibrated and clearly marked.
• Pressure Range: Ensure the kit's pressure range matches the type of vehicle you intend to test. A standard kit is useless for a direct injection engine, and a high-pressure kit might not offer the fine resolution needed for very low-pressure systems (though they usually cover a wide range).
• Adapter Compatibility: For universal kits, a comprehensive set of adapters is essential. Look for quick-connect fittings, various hose barb sizes, and threaded adapters that cover common fuel line connections. Ensure they are made from durable, fuel-resistant materials.
• Hose Quality and Length: The hoses should be robust, flexible, and specifically designed to withstand prolonged exposure to fuel and high pressures. Good quality hoses prevent leaks and ensure longevity. Sufficient hose length allows for easier gauge placement in view during testing.
• Bleed-Off Valve: A bleed-off valve is a crucial safety feature. It allows you to safely depressurise the fuel system before disconnecting the gauge, preventing fuel spray and potential fire hazards.
• Durable Construction: The gauge housing, hoses, and fittings should be made from high-quality, corrosion-resistant materials. A rubber boot around the gauge can offer additional protection against drops and impacts.
• Storage Case: A sturdy carrying case helps keep all components organised, protected, and easily transportable, preventing lost adapters and damage.

How to Use a Fuel Pressure Test Kit (General Steps)

While specific procedures may vary by vehicle, the general steps for conducting a fuel pressure test are as follows:

1. Safety First: Always wear appropriate Personal Protective Equipment (PPE), including safety glasses and gloves. Ensure adequate ventilation, as you will be dealing with flammable fuel. Have a fire extinguisher nearby.
2. Locate the Test Port: Most modern vehicles have a Schrader valve test port on the fuel rail, similar to a tyre valve. Older vehicles or some specific models may require inline adapters to be inserted into the fuel line.
3. Depressurise the System: Before connecting the gauge, it's vital to relieve residual fuel pressure. This often involves pulling the fuel pump fuse/relay and cranking the engine a few times until it stalls. Consult your vehicle's service manual for the exact procedure.
4. Connect the Gauge: Securely attach the appropriate adapter and gauge to the test port or inline. Ensure all connections are tight to prevent leaks.
5. Prime the Fuel System: Reinstall the fuel pump fuse/relay. Turn the ignition key to the 'ON' position (without starting the engine) for a few seconds, then turn it off. Repeat this a few times to prime the fuel pump and build initial pressure.
6. Read the Pressure: Start the engine and let it idle. Observe the pressure reading on the gauge. Compare this reading to your vehicle's manufacturer specifications (found in a service manual). Note readings at idle, under acceleration, and during deceleration. Some tests may require blocking the fuel return line or disconnecting the vacuum line from the fuel pressure regulator.
7. Interpret the Readings:
• Low Pressure: Could indicate a weak fuel pump, clogged fuel filter, restricted fuel line, faulty fuel pressure regulator, or leaking fuel injectors.
• High Pressure: Often points to a faulty fuel pressure regulator (stuck closed) or a restricted fuel return line.
• Fluctuating Pressure: Might suggest an intermittent fuel pump issue, a partially clogged filter, or an electrical problem affecting the pump.
8. Depressurise and Disconnect: Once testing is complete, use the kit's bleed-off valve to safely release the pressure. Then, carefully disconnect the gauge, ensuring no fuel spills.
9. Clean Up: Clean any spilled fuel and properly store your kit.

When to Consider a High-Pressure (DI) Kit

As mentioned, direct injection (DI) systems operate at pressures far exceeding those of conventional port injection. If you own or regularly work on modern vehicles equipped with DI engines, a dedicated high-pressure test kit is indispensable. Trying to use a standard kit on a DI system is not only futile (as the gauge won't read high enough) but potentially dangerous due to the extreme pressures involved. While a high-pressure fuel pressure gauge will accurately measure the fuel rail pressure, it's worth noting that a comprehensive diagnosis of DI systems often requires more than just a pressure reading. Modern DI systems are highly complex, with sophisticated electronic controls. As such, a scan tool capable of reading specific direct fuel injection parameters and performing bidirectional tests becomes the go-to tool for a complete diagnostic picture. This allows you to monitor injector pulse width, fuel pressure sensor readings, and command various components for testing, providing insights beyond what a physical gauge can offer alone.

Maintenance and Storage of Your Kit

To ensure the longevity and accuracy of your fuel pressure test kit, proper maintenance and storage are vital. After each use, wipe down the components, especially any parts that came into contact with fuel, to prevent corrosion. Ensure hoses are free of kinks or damage. Store the kit in its original case, keeping all adapters and components organised and protected from dust, dirt, and extreme temperatures. This simple practice will ensure your kit is ready and reliable for years to come.

Comparative Table: Standard vs. High-Pressure Kits

Frequently Asked Questions (FAQs)

Can I use a standard fuel pressure test kit on a direct injection engine?

No, absolutely not. Direct injection engines operate at pressures far exceeding the maximum range of a standard kit (up to 2,300 PSI compared to 120 PSI for standard systems). Using an incorrect gauge could damage the tool and, more importantly, poses a significant safety risk due to potential rupture or fuel spray.

How often should I check my fuel pressure?

Fuel pressure isn't a routine maintenance check. You should check it when you suspect a fuel system issue, such as an engine misfire, rough idle, poor acceleration, hard starting, or a diagnostic trouble code (DTC) related to fuel system performance.

What is considered normal fuel pressure for a car?

Normal fuel pressure varies significantly between vehicles and fuel system types. For most port fuel injection systems, it typically ranges from 30 to 80 PSI. For direct injection systems, pressures can range from hundreds to over two thousand PSI, depending on engine load. Always consult your vehicle's service manual for the exact specifications for your specific make and model.

Is fuel pressure testing dangerous?

It can be if not performed correctly. You are dealing with flammable fuel under pressure. Always wear safety glasses, work in a well-ventilated area, have a fire extinguisher nearby, and follow the manufacturer's instructions for your test kit and vehicle's service manual for depressurising the system.

Do I need a specific fuel pressure test kit for my car?

A universal kit with a wide range of adapters will often work for many vehicles. However, for direct injection systems, a dedicated high-pressure kit is mandatory. Sometimes, a vehicle-specific adapter might be needed for certain unique fuel line connections, even with a universal kit.

What's the difference between fuel pressure and fuel volume?

Fuel pressure is the force at which fuel is delivered to the engine, measured in PSI. Fuel volume (or flow rate) is the amount of fuel delivered over a period, typically measured in gallons or litres per minute. Both are crucial for proper engine operation. A fuel pump might produce adequate pressure but insufficient volume due to a worn pump or clogged filter, leading to issues under load.
