Diesel Direct Injection: Unpacking the Basics

When we talk about the evolution of diesel engines, one fundamental technology stands out as a true workhorse: Diesel Direct Injection, often simply referred to as DI. This system represents a foundational chapter in automotive engineering, powering countless vehicles for decades before more advanced systems emerged. Understanding DI is crucial for anyone interested in the mechanics of older diesel vehicles or the historical progression of engine design. It's a testament to simplicity and robust engineering, a system that directly injects fuel into the heart of the combustion process.

At its core, a simple DI diesel engine operates on a principle known as 'Compression Ignition.' Unlike petrol engines that use spark plugs to ignite a fuel-air mixture, diesel engines rely solely on the immense heat generated by compressing air. Inside the combustion chamber, above the piston, air is compressed to such an extent that its temperature soars, often exceeding 400°C. It is into this superheated air that the diesel fuel is directly injected. Upon contact with the scorching air, the fuel spontaneously ignites, driving the piston downwards and generating power. This direct injection method, placing the fuel precisely where combustion needs to occur, was revolutionary for its time, offering a straightforward and effective way to harness the power of diesel fuel.

Understanding Diesel Direct Injection (DI)

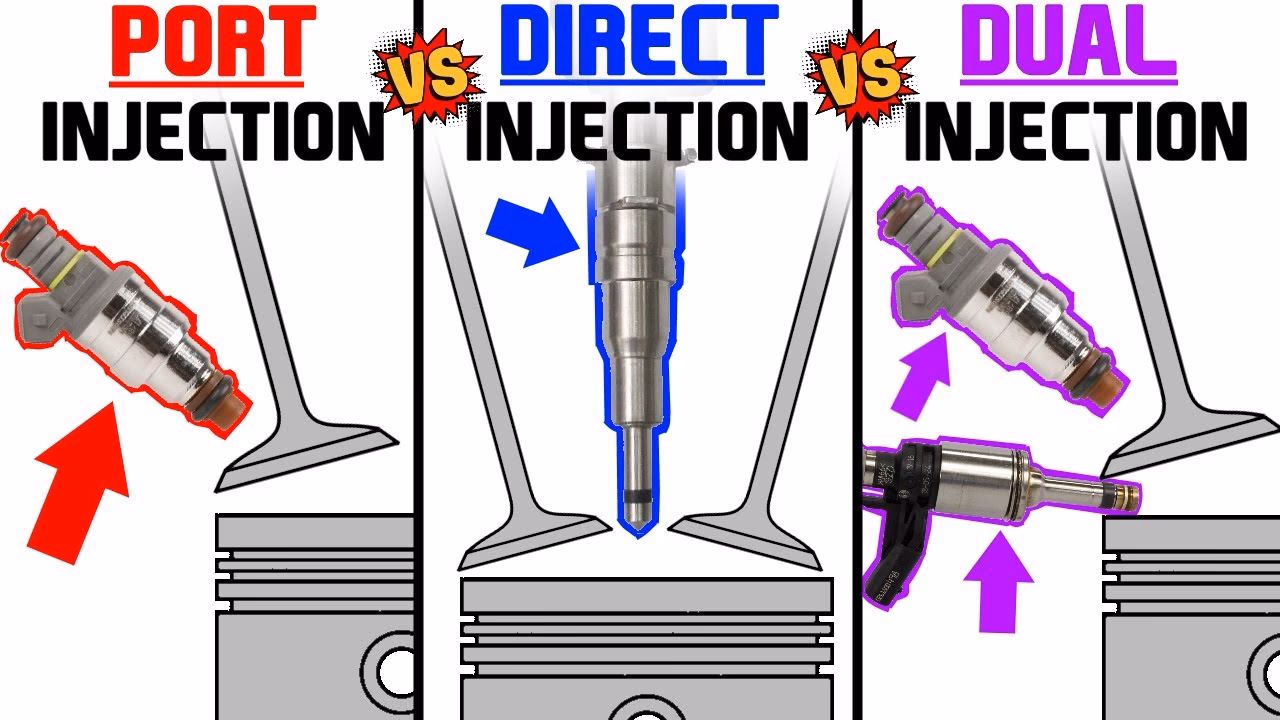

The Diesel Direct Injection system, in its most basic form, represents a straightforward and mechanically robust approach to fuel delivery in internal combustion engines. Its primary characteristic is the direct injection of fuel into the main combustion chamber, which is located directly above the piston. This design contrasts sharply with earlier indirect injection (IDI) systems, where fuel was first injected into a pre-chamber or swirl chamber before entering the main cylinder. The direct nature of DI eliminated the heat losses associated with pre-chambers, leading to improved thermal efficiency and fuel economy, which were significant advantages at the time.

Historically, DI technology was the standard for diesel engines, particularly in heavy-duty applications, utility vehicles, and agricultural machinery. Its simplicity of operation and robust construction made it incredibly reliable, capable of enduring harsh operating conditions with minimal fuss. While modern engines have moved towards more sophisticated electronic control, the principles established by DI laid the groundwork for all subsequent diesel fuel injection systems. It taught engineers the importance of precise fuel metering and timing, even if the methods for achieving this were mechanical rather than electronic. This era of diesel engines prioritised durability and straightforward maintenance, characteristics that many operators still value today.

The Core Components of a DI Fuel System

The conventional Diesel Direct Injection system, while seemingly simple in concept, relies on a meticulously engineered set of components working in harmony to deliver fuel precisely when and where it's needed. Each part plays a critical role in the journey of diesel from the fuel tank to the combustion chamber, ensuring optimal engine performance and efficiency for its time. Understanding these components is key to appreciating the ingenuity of early diesel technology.

The Fuel Injection Pump (FIP)

The Fuel Injection Pump (FIP) is arguably the heart of the DI system, a masterpiece of mechanical precision. Its sole, yet complex, function is to supply an accurately measured amount of fuel to each cylinder at precisely timed intervals, synchronised with the piston's position and the engine's operational cycle. The FIP doesn't just deliver fuel; it compresses it to extremely high pressures – essential for atomising the fuel upon injection – and meters the exact quantity required based on the engine's load and speed demands. This pressurised, metered diesel is then dispatched to individual injectors via separate, high-pressure fuel lines.

Technically, DI engines predominantly utilised two distinct types of FIPs, each with its own design philosophy:

• In-line Pump (Plunger Type): This type features a separate pumping element (plunger and barrel) for each cylinder. The plungers are actuated by a camshaft within the FIP, similar to how engine valves are operated. As the camshaft rotates, each plunger moves up and down, compressing and delivering fuel to its respective injector. The amount of fuel delivered is controlled by rotating the plungers, which have helical grooves that uncover spill ports at varying points in their stroke. Lubrication for the precision-machined internal parts of an in-line injection pump is typically provided by engine oil, fed into the pump from the engine's oil system via a dedicated oil port. This ensures continuous lubrication for components operating under high stress and precision.
• Rotary Pump (Distributor Type): In contrast, a rotary pump uses a single pumping and distribution plunger to serve all cylinders. This plunger rotates and reciprocates, drawing fuel in and then distributing it to the correct high-pressure line leading to each injector in sequence. Rotary pumps are generally more compact and lighter than in-line pumps, making them suitable for smaller engine bays. Fuel metering is achieved through various mechanisms, often involving a metering valve or sleeve. A key advantage of the rotary fuel pump design is its self-lubricating nature; it uses the diesel fuel itself to lubricate its internal components. This simplifies the system by eliminating the need for a separate oil feed.

Both types of FIPs incorporate a Governor, a crucial mechanical device that regulates the engine's idling speed and also limits its maximum speed. The governor achieves this by precisely controlling the amount of fuel delivered by the FIP, ensuring stable operation and preventing over-revving. The internal components of both in-line and rotary FIPs are machined with exceptionally narrow tolerances to achieve the high degree of precision required for accurate fuel delivery and atomisation. This precision is vital for efficient combustion and managing engine performance.

Injectors

The injectors in a DI system are essentially precision nozzles designed to spray the highly pressurised diesel fuel into the combustion chamber in a finely atomised mist. This fine spray is critical for rapid and complete mixing with the superheated air, leading to efficient combustion. Each injector is a spring-loaded valve that opens only when the fuel pressure from the FIP overcomes the spring's tension, allowing fuel to be injected. The design of the nozzle (e.g., the number and size of holes) is carefully tailored to the specific engine's combustion chamber shape and characteristics to optimise fuel distribution.

High-Pressure Lines

These are robust, seamless steel pipes that connect the Fuel Injection Pump to each individual injector. Given the extremely high pressures at which diesel is delivered (often hundreds of bars), these lines must be incredibly strong and precisely manufactured to withstand the forces without rupturing or deforming. They ensure that the pressurised fuel reaches the injectors with minimal loss of pressure or integrity, maintaining the precise timing and quantity dictated by the FIP.

Fuel Feed Pump & Fuel Filter

Before the fuel even reaches the FIP, it undergoes initial processing. The Fuel Feed Pump (sometimes integrated with the FIP or a separate unit) draws diesel from the fuel tank and delivers it at a lower, consistent pressure to the FIP. This ensures a steady supply of fuel to the high-pressure pump. Before reaching the FIP, the fuel passes through a Fuel Filter. This critical component removes impurities, dirt, and water from the diesel. Given the extremely tight tolerances within the FIP and injectors, even microscopic contaminants can cause significant wear and damage. A clean fuel supply is paramount for the longevity and reliable operation of the entire fuel injection system.

Advantages of Conventional DI Technology

Despite being an older technology, conventional Diesel Direct Injection offered several compelling advantages that contributed to its widespread adoption and longevity in various applications:

• Higher Low-End Torque: DI engines were renowned for their impressive torque output at lower engine speeds. This characteristic made them exceptionally well-suited for heavy-duty applications, such as trucks, buses, and utility vehicles, where pulling power from a standstill or at low RPMs is crucial. The direct injection into the main chamber, coupled with robust mechanical components, allowed for efficient combustion even when the engine was not revving high, delivering immediate and substantial pulling force. This torque advantage was a key selling point.
• Sturdiness and Robustness: DI systems, particularly their mechanical FIPs and injectors, were built to last. They featured fewer complex electronic components compared to modern systems, relying instead on precision-machined mechanical parts. This inherent mechanical simplicity translated into exceptional durability and resilience against harsh operating conditions, including varying fuel quality and extreme temperatures. They were designed as workhorses, capable of taking a beating and continuing to perform.
• Lower Maintenance (Relative to Modern Systems): While no engine is maintenance-free, the mechanical nature of DI systems often meant that when issues did arise, they were typically simpler to diagnose and repair compared to the intricate electronic systems of today. There were fewer sensors, ECUs, and high-pressure common rails to contend with. Routine maintenance often involved checking and calibrating the FIP and injectors, tasks that were well understood by mechanics of the era. This made them more manageable for fleet operators and individual owners in terms of upkeep.
• Longer Engine Life: The robust construction and straightforward operating principles of DI engines often contributed to a longer overall service life for the engine block and major components. The direct injection process, while contributing to noise, also meant less heat stress on pre-chambers, which could be a point of failure in IDI engines. With proper maintenance, many DI engines could accumulate hundreds of thousands of miles, proving their long-term reliability.

Disadvantages of Conventional DI Technology

While DI engines offered significant benefits, they also came with several inherent drawbacks that ultimately led to their gradual replacement by more advanced technologies:

• Higher NVH (Noise, Vibrations & Harshness) Levels: One of the most noticeable downsides of DI engines was their characteristic "diesel knock." The rapid and direct combustion of fuel in the main chamber, while efficient, often resulted in higher levels of noise and vibration compared to petrol engines or even modern common-rail diesels. This made for a less refined driving experience, particularly noticeable in passenger vehicles. The NVH levels were a constant challenge for engineers trying to improve cabin comfort.
• Sluggish in Operation: Compared to modern engines, DI engines could feel somewhat sluggish, especially in terms of throttle response and acceleration. The mechanical nature of the FIP meant that fuel delivery adjustments were not as instantaneous or precise as those controlled by electronic systems. This could lead to a noticeable delay between pressing the accelerator and the engine responding, making them less agile in stop-and-go traffic or when quick bursts of speed were needed.
• Lower Engine Speeds & BHP: DI engines typically operated at lower maximum engine speeds (RPMs) and produced less Brake Horsepower (BHP) for a given displacement compared to their modern counterparts. The combustion process, while powerful, was not as finely controlled or as rapid as common-rail systems, limiting the engine's ability to rev high and generate peak power. This restricted their performance envelope, making them less suitable for applications demanding high power-to-weight ratios or rapid acceleration.
• Heavier Engine Components: To cope with the high combustion pressures and the forces generated, many components of DI engines, particularly the block, crankshaft, and connecting rods, were often built to be exceptionally sturdy and, consequently, heavier. While contributing to durability, this added weight could impact overall vehicle performance, fuel economy, and handling, especially in smaller vehicles where weight optimisation is critical.

DI vs. Common Rail Direct Injection (CRDi)

The evolution from conventional Diesel Direct Injection (DI) to Common Rail Direct Injection (CRDi) marks a significant leap in diesel engine technology, primarily driven by the increasing demand for cleaner emissions, improved fuel efficiency, and greater refinement. While DI was revolutionary in its time, its mechanical limitations became apparent as environmental regulations tightened and consumer expectations for vehicle performance and comfort rose.

The fundamental difference lies in how the fuel is pressurised and delivered to the injectors. In a DI system, the Fuel Injection Pump (FIP) performs both the pressurisation and the metering/timing for each cylinder individually. This means that the pressure can fluctuate with engine speed and load, and injection events are largely fixed mechanically. CRDi, on the other hand, employs a high-pressure pump that continuously pressurises fuel into a single, common rail (hence the name) which acts as an accumulator. From this common rail, electronically controlled injectors (solenoid or piezoelectric) draw fuel and inject it directly into the cylinders. This separation of pressure generation from injection timing allows for far greater flexibility and precision.

The advent of CRDi allowed for 'pilot' or 'pre-injections' – small amounts of fuel injected before the main charge – which softened the combustion event, drastically reducing the characteristic diesel knock and improving refinement. Furthermore, the ability to control multiple injection events per cycle, combined with extremely high and constant fuel pressures, led to far better fuel atomisation, more complete combustion, and significant reductions in harmful emissions like particulate matter and nitrogen oxides. This made CRDi the technology of choice for meeting increasingly stringent global emission standards, effectively marking the decline of conventional DI in new passenger vehicle designs.

The Legacy of DI Engines

While modern vehicles have largely transitioned to advanced common-rail systems, the legacy of Diesel Direct Injection engines is undeniable. In countries like India, earlier generation multi-utility vehicles such as the Mahindra Armada, Toyota Qualis, and Tata Spacio extensively utilised this type of engine. These vehicles were prized for their ruggedness, reliability, and ability to handle challenging terrains and heavy loads – characteristics directly attributable to the robust nature of their DI powerplants. They were the backbone of commercial and rural transport for many years, proving the inherent strengths of the DI design.

However, as global automotive trends shifted towards greater refinement, stricter emission controls, and improved passenger comfort, the inherent limitations of conventional DI became more apparent. The push for cleaner air, driven by regulations like Euro emissions standards, necessitated technologies that could offer finer control over the combustion process. This is where Common Rail Direct Injection (CRDi) stepped in, offering solutions to the NVH, emissions, and performance drawbacks of DI. Consequently, newer generation vehicles across the globe, including those in India, began to switch to CRDi, leaving DI to primarily serve the heavy-duty and stationary engine markets where its simplicity and robustness still hold significant value.

Frequently Asked Questions About Diesel Direct Injection

What is the primary difference between DI and older diesel engines?

The primary difference is that DI engines inject fuel directly into the main combustion chamber above the piston, whereas older Indirect Injection (IDI) engines injected fuel into a pre-chamber or swirl chamber first. This direct injection leads to better thermal efficiency and fuel economy by reducing heat losses.

Why are DI diesel engines also called 'Compression Ignition' engines?

DI diesel engines are called 'Compression Ignition' engines because they do not use a spark plug for ignition. Instead, the air within the combustion chamber is compressed to such a high degree that its temperature rises significantly (above 400°C). When diesel fuel is injected into this superheated air, it spontaneously ignites due to the high temperature and pressure, hence 'compression ignition'.

What are the main components of a DI fuel system?

The main components include the Fuel Injection Pump (FIP), which pressurises and meters the fuel; the Injectors, which spray the fuel into the cylinder; High-Pressure Lines, which connect the FIP to the injectors; a Fuel Feed Pump, which supplies fuel to the FIP; and a Fuel Filter, which cleans the fuel.

What are the advantages of conventional DI technology?

Key advantages include higher low-end torque, making them excellent for heavy-duty work; their robust and sturdy construction leading to high durability; relatively lower maintenance requirements compared to modern systems; and a reputation for longer engine life due to their robust design.

What are the disadvantages of DI diesel engines?

The main disadvantages are higher NVH (Noise, Vibrations & Harshness) levels, often referred to as 'diesel knock'; a somewhat sluggish throttle response; lower maximum engine speeds and Brake Horsepower (BHP) compared to modern engines; and heavier engine components due to the need for robust construction to withstand high combustion pressures.

Why did vehicles transition from DI to CRDi?

The transition occurred primarily due to stricter emission control regulations and the demand for greater engine refinement and performance. CRDi offered more precise electronic control over injection timing and pressure, allowing for multiple injection events, reduced emissions, improved fuel economy, and significantly lower NVH levels, which DI's mechanical system could not match.

In conclusion, while Diesel Direct Injection technology may seem like a relic in the age of sophisticated electronic engine management, its contribution to automotive history is profound. It laid the groundwork for all subsequent diesel engine developments, proving the viability and power of compression ignition. Its enduring simplicity and remarkable reliability ensured that millions of vehicles, particularly those built for hard work, continued to operate effectively for decades. Even today, in various heavy-duty and industrial applications, the principles of DI continue to be applied, a testament to a fundamental and robust engineering solution that effectively harnessed the power of diesel fuel for the world.
