Fuel Injector Testing & Recalibration Explained

The Vital Role of Fuel Injectors in Modern Engines

Modern vehicles rely on a sophisticated interplay of components to deliver optimal performance, fuel efficiency, and reduced emissions. At the heart of this system are the fuel injectors, precision-engineered devices responsible for atomising fuel and delivering it to the combustion chamber at precisely the right moment. The question of whether these crucial parts can be tested and recalibrated is a common one among vehicle owners and mechanics alike. This article delves into the intricacies of fuel injector testing, common issues, the potential for recalibration, and the consequences of their failure.

Can OE Fuel Injectors Be Tested & Recalibrated?

The short answer is yes, Original Equipment (OE) fuel injectors can indeed be tested and, in many cases, recalibrated. However, the feasibility and effectiveness of recalibration depend heavily on the type of injector and the nature of the fault.

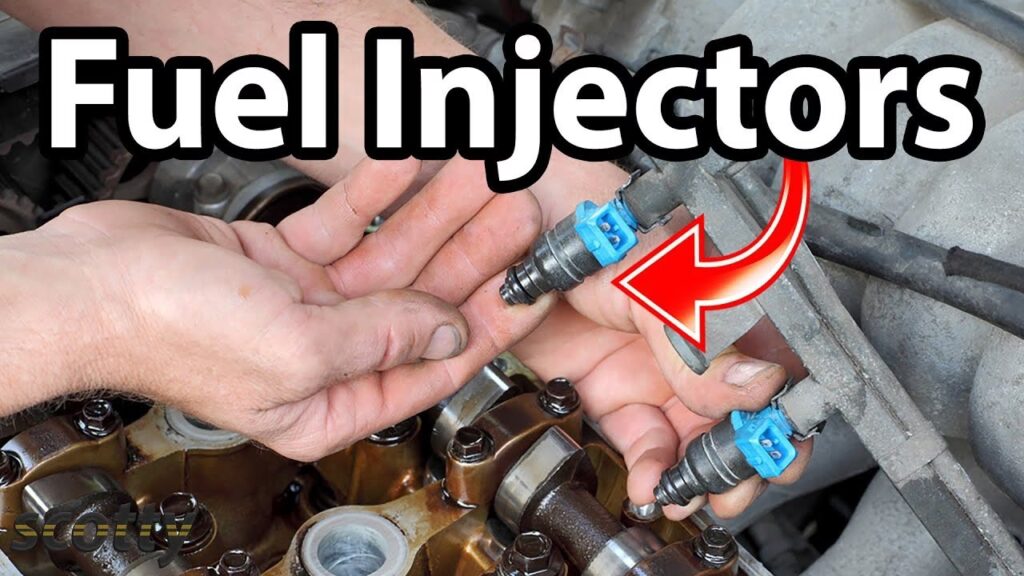

Understanding Injector Types

Fuel injectors have evolved significantly over the years. Once purely mechanical, they are now largely electronically controlled solenoid valves, functioning as precision instruments. We can broadly categorise them into a few main types:

• Mechanical Injectors: Found in older diesel engines, these rely on mechanical actuation.
• Electronic Injectors (Port Fuel Injection - PFI): These are typically located in the intake manifold, spraying fuel into the intake port. They operate at lower pressures (3-6 bar).
• Direct Injection (DI) Injectors: These are mounted directly into the combustion chamber, spraying fuel under much higher pressures (up to 350 bar in petrol engines, and up to 2500 bar in modern common rail diesel engines).
• Electronically Controlled Injectors: The vast majority of modern injectors fall into this category, featuring sophisticated electronic controls that allow for precise fuel delivery based on data from various engine sensors.

The Testing Process

Testing fuel injectors is crucial for diagnosing engine performance issues. A common method involves using a specialised fuel injector test rig. The VPUD fuel injector test rig series, for instance, is designed to ensure optimal fuel injector performance and prevent issues like unnecessary fuel consumption and particle emissions. Leading engine designers such as MAN Diesel, Wärtsilä, Rolls Royce, and Caterpillar MAK approve and recommend such equipment.

These test rigs, like those in the VPUD series, are compatible with a wide range of fuel injectors and safety valves from numerous engine models. They often feature unique solutions developed in cooperation with engine designers, such as:

• IOP SafeTest technology: Specifically for MAN Diesel 2-stroke slide-valve fuel injectors.
• Scalable pump technology: For Wärtsilä 2-stroke fuel injectors.
• Air-powered test rigs: For 4-stroke engine injectors, allowing for rapid and highly accurate adjustment of opening pressure.
• Activators: For electronically controlled injectors and pilot valves.
• Adapters: For injectors with integrated fuel pumps.
• Systems for testing combined gas-diesel injectors.

What are the Benchmarks for Injector Testing?

During testing, several parameters are assessed to determine if injectors are within tolerance:

• Fuel Rate: The volume of fuel delivered over a specific period.
• Spray Pattern: The atomisation and dispersal of the fuel mist.
• Opening Pressure: The pressure at which the injector begins to open (more relevant for mechanical injectors).
• Leakage: Whether the injector leaks fuel when it should be closed.

A key aspect of testing is to determine if all fuel injectors are within tolerance. If the results for all injectors are similar and fall within an acceptable range, and if tests like the Fuel Rate Leakage Test and the Pump Performance Test indicate no issues, it's likely that the fuel injection system is not the root cause of a particular Diagnostic Trouble Code (DTC) or symptom.

Recalibration Possibilities

Recalibration typically involves adjusting the injector's performance characteristics to meet manufacturer specifications. For electronically controlled injectors, this often means reprogramming or recalibrating the control module to account for slight variations in injector performance. In some instances, specific components within the injector might be cleaned or adjusted. However, severe wear or damage may necessitate replacement rather than recalibration.

Reasons for Injector Defects

The precision of modern fuel injection systems makes them susceptible to even minor defects. Common causes of injector failure include:

• Clogged Nozzles: Poorly filtered fuel can lead to blockages in the ultra-fine bores of the injection valves, causing permanent failures.
• Coking: The build-up of carbon deposits on the injector nozzle is a frequent issue, leading to deteriorated spray patterns and eventual failure.
• Electrical Faults: Short circuits in the solenoids or brittle cable connections to the control unit can disrupt injector operation.
• Wear and Tear: Worn sealing rings can cause fuel leaks, leading to fuel loss and inefficient operation.
• Physical Damage: Direct injection injectors, operating under extreme conditions within the combustion chamber, are prone to damage from high pressures and temperatures.

Symptoms of Faulty Diesel Injectors

A malfunctioning injector can manifest in various ways, often indicating a disrupted fuel supply. These symptoms can range from subtle to severe:

• Reduced Engine Performance: A noticeable loss of power.
• Increased Fuel Consumption: The engine works harder to deliver the required power.
• Rough Idling: The engine may run unevenly when at idle.
• Starting Difficulties: The engine may be harder to start, especially when cold.
• Poor Fuel Economy: An increase in the amount of fuel used per mile.
• Engine Knocking: Uncontrolled combustion can cause knocking sounds.
• Black Smoke: In diesel engines, incomplete combustion can lead to excessive black smoke from the exhaust.
• Check Engine Light: The engine control unit may detect a fault and illuminate the warning light.
• Misfires: The engine may run unevenly due to incomplete combustion in one or more cylinders.

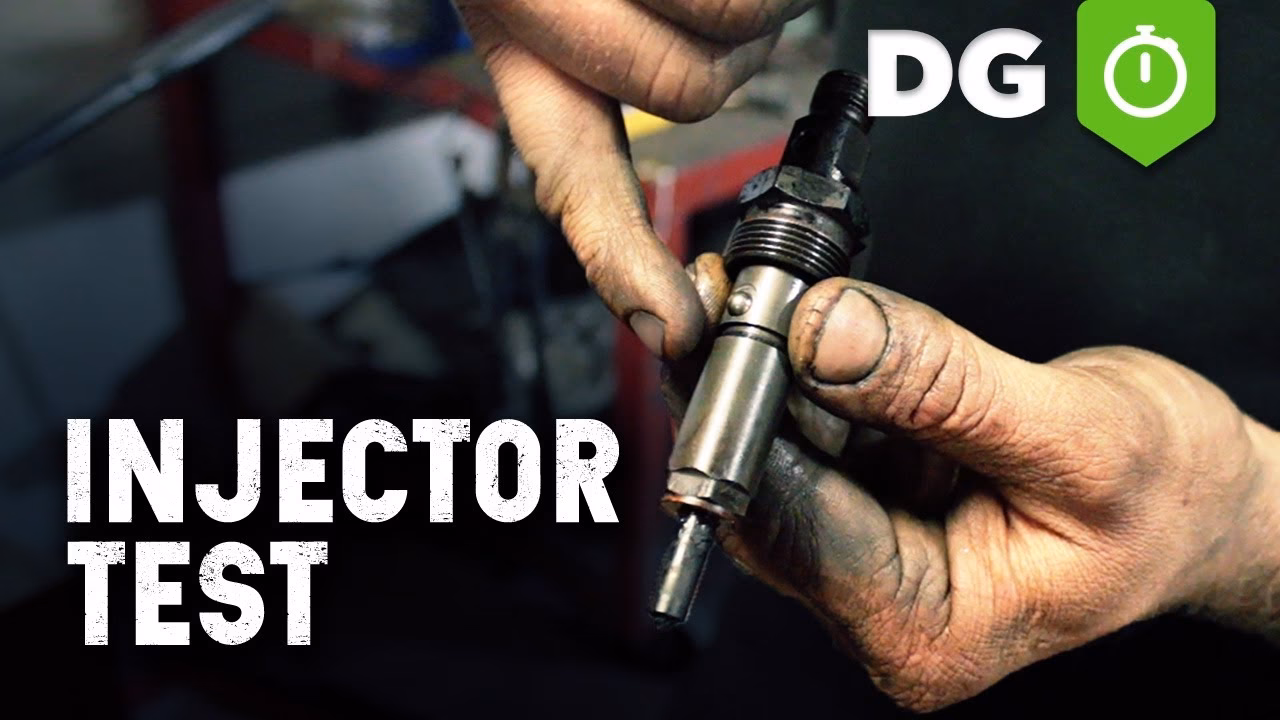

Can a Misdirected Fuel Jet Cause a Piston Seizure?

Yes, a misdirected fuel jet can absolutely cause a piston seizure. This is a severe consequence of a faulty direct injection injector. Instead of atomising fuel into a fine mist for efficient combustion, a defective injector might spray a concentrated jet of fuel directly onto the piston crown. This jet can:

• Cause Localised Overheating: The concentrated fuel can burn intensely on the piston, leading to extreme localised temperatures.
• Wash Away Lubrication: The strong fuel spray can strip away the lubricating oil film from the cylinder wall. Without this protective oil layer, metal-on-metal contact occurs between the piston and the cylinder wall.
• Lead to Seizure: The resulting friction and heat can cause the piston to expand and seize within the cylinder, leading to catastrophic engine failure.

This highlights the critical importance of addressing injector issues promptly. Even a minor alteration in the atomisation of fuel can have detrimental effects on engine consumption and performance, and in the case of direct injection, can lead to severe internal engine damage.

Consequences of Defective Injection Nozzles

Beyond the risk of piston seizure, defective injectors can cause other serious issues:

• Damage to Catalytic Converters and Diesel Particulate Filters (DPFs): Unburnt fuel entering these components can lead to overheating and damage, resulting in costly repairs.
• Increased Emissions: Faulty injectors contribute to higher levels of harmful pollutants in the exhaust gases.
• Reduced Engine Lifespan: Persistent issues with the fuel system can accelerate wear on other engine components.

Costs for New Injection Nozzles

The cost of replacing fuel injectors varies significantly depending on the type of vehicle and the specific injector:

• Intake Manifold Injectors: These are generally more affordable, often available for less than £40 per injector.
• Direct Injection & Common Rail Diesel Injectors: These are considerably more expensive due to their complexity and the high pressures they operate under. Costs can easily exceed £200 per injector, and if multiple injectors require replacement, the total bill can be substantial.

It's important to factor in the labour costs for removal and installation, which can be particularly time-consuming and expensive for modern direct injection and diesel engines. In some cases, replacing just two injectors, including labour, can easily amount to over £1000 at a professional workshop.

Conclusion

OE fuel injectors are sophisticated components that play a critical role in engine operation. While they can be tested and, in some circumstances, recalibrated, their precision means they are also susceptible to defects. Understanding the symptoms of faulty injectors and the potential consequences, such as piston seizure, is vital for maintaining your vehicle's health and performance. Prompt diagnosis and repair by a qualified mechanic are essential to prevent more severe and costly engine damage.

Frequently Asked Questions

Q1: Can I clean my fuel injectors myself?

A1: While fuel injector cleaner additives can sometimes help with minor coking or deposit issues, they are generally not a substitute for professional testing and cleaning or replacement. For significant problems, professional servicing is recommended.

Q2: How often should fuel injectors be serviced?

A2: There isn't a fixed service interval. It's best to have them inspected if you notice any symptoms of poor performance, increased fuel consumption, or rough running. Regular fuel filter changes can also help prolong injector life.

Q3: What is the difference between port injection and direct injection?

A3: Port injection sprays fuel into the intake manifold, while direct injection sprays fuel directly into the combustion chamber. Direct injection systems operate at much higher pressures and offer greater control over combustion, but the injectors are subjected to harsher conditions.

Q4: If one injector fails, do I need to replace all of them?

A4: Not necessarily. While it's good practice to check all injectors for proper function, replacement is usually only required for the faulty unit(s). However, if the engine has high mileage and injectors are showing signs of wear, replacing them as a set might be considered for even performance.

Q5: What does 'within tolerance' mean for fuel injectors?

A5: It means that the injector's performance metrics (like fuel rate, spray pattern, and response time) fall within the manufacturer's specified acceptable range. If all injectors are within tolerance and perform similarly, it suggests the fuel system is functioning correctly.
