Diesel Fuel System Components Explained

Diesel engines are renowned for their robustness, fuel efficiency, and torque, making them a popular choice for everything from heavy-duty trucks to passenger cars. At the heart of every diesel engine's performance lies its intricate fuel system. This system is responsible for storing, filtering, pressurising, and precisely injecting diesel fuel into the combustion chamber. A well-functioning diesel fuel system is crucial for optimal engine power, fuel economy, and minimising harmful emissions. Understanding the individual components and how they work together is fundamental for any owner or mechanic aiming to maintain these powerful engines.

Understanding Diesel Fuel Systems

A diesel fuel system is a complex network designed to deliver diesel fuel from the storage tank to the engine's combustion chambers. Unlike petrol engines that rely on spark plugs for ignition, diesel engines use the heat generated by compressing air to ignite the fuel. This process demands a fuel system capable of delivering fuel at very high pressures and with exceptional precision. The system must ensure the fuel is atomised into a fine mist, allowing it to mix effectively with the compressed hot air for efficient and complete combustion. Any deviation in pressure, timing, or fuel quality can lead to significant performance issues, increased wear, and higher emissions.

Key Components of a Diesel Fuel System

The diesel fuel system comprises several interconnected parts, each playing a vital role in the overall process:

1. Fuel Tank

The fuel tank is the primary storage vessel for diesel fuel. Modern tanks are typically made from steel or plastic and are designed to be robust and resistant to corrosion. They often include features like baffles to reduce fuel sloshing, a sending unit to measure the fuel level, and a filler neck for refuelling. The tank's design also considers ventilation to prevent pressure build-up and the potential for vapour loss.

2. Fuel Pump

The fuel pump is responsible for drawing fuel from the tank and delivering it to the rest of the system. There are typically two types of fuel pumps used in diesel systems:

• Low-Pressure Lift Pump: Often located in or near the fuel tank, this pump moves fuel from the tank to the high-pressure injection pump or common rail. It operates at relatively low pressures.
• High-Pressure Injection Pump: This is the workhorse of the diesel fuel system, responsible for pressurising the fuel to the extremely high levels required for injection. In older mechanical systems, this pump was directly driven by the engine. In modern Common Rail systems, a high-pressure pump (often a rotary or plunger type) supplies fuel to a common rail.

3. Fuel Filter

Diesel fuel can contain impurities such as dirt, water, and other contaminants. The fuel filter is a critical component designed to remove these particles before they can reach the sensitive components of the injection system, particularly the injectors. Most diesel vehicles have at least one, and often multiple, fuel filters. A water separator is often integrated into the primary filter to remove any water that may be present, preventing corrosion and damage to the injection pump and injectors. Regular replacement of fuel filters is one of the most important maintenance tasks to ensure the longevity of the fuel system.

4. Fuel Lines

These are the conduits that carry fuel between the various components. They include low-pressure lines from the tank to the lift pump and injection pump, and high-pressure lines from the injection pump/common rail to the injectors. The material and construction of these lines vary depending on the pressure they are designed to withstand. High-pressure lines are typically made of reinforced steel or specialized polymers.

5. Fuel Injectors

Fuel injectors are the final stage of the fuel delivery process, responsible for atomising the pressurised fuel and injecting it directly into the combustion chamber. Modern diesel injectors are highly sophisticated, electronically controlled devices that can open and close thousands of times per minute. They are designed to spray a precise amount of fuel in a specific pattern to ensure efficient mixing with air and optimal combustion. The accuracy and timing of these injections are critical for engine performance, fuel economy, and emissions control. The precision of fuel injection is a hallmark of modern diesel technology.

6. Fuel Rail (Common Rail Systems)

In Common Rail Direct Injection (CRDI) systems, a fuel rail acts as a high-pressure accumulator, storing pressurised fuel from the high-pressure pump. This stored fuel is then available to all injectors, allowing for near-instantaneous and precisely timed injections. The pressure within the rail is regulated by a pressure control valve, managed by the engine control unit (ECU).

7. Engine Control Unit (ECU)

While not a 'fuel' component in the traditional sense, the ECU is integral to modern diesel fuel systems. It receives data from various sensors (engine speed, load, temperature, etc.) and uses this information to precisely control the operation of the fuel injectors and, in some cases, the injection pump. This electronic control allows for sophisticated fuel management, optimising performance, efficiency, and emissions across all operating conditions.

Types of Diesel Fuel Systems

Diesel fuel systems have evolved significantly over the years. The primary distinction lies in how fuel pressure is generated and how fuel is delivered to the injectors:

1. Conventional Mechanical Injection Systems

These systems, common in older diesel engines, use a distributor or inline injection pump driven directly by the engine's crankshaft. Each cylinder has a dedicated plunger within the pump that pressurises fuel and delivers it through a high-pressure line to a mechanical injector. The timing and amount of fuel are controlled mechanically by engine speed and load. While robust, these systems offer less precision than modern electronic systems.

2. Unit Injector Systems (UIS)

In a UIS, the fuel pump and injector are combined into a single unit for each cylinder. This unit is typically actuated by the camshaft. This design offers improved fuel delivery precision compared to older mechanical systems as the pump is located directly at the injector, minimising line losses. However, they generally operate at lower pressures than common rail systems.

3. Common Rail Direct Injection (CRDI) Systems

This is the most prevalent system in modern diesel vehicles. It features a high-pressure fuel pump that supplies fuel to a common rail, a pressurised reservoir. Electronically controlled injectors then draw fuel from this rail and inject it directly into the combustion chamber at extremely high pressures (often exceeding 2000 bar or 29,000 psi). This allows for multiple injections per combustion cycle, leading to significantly improved efficiency, performance, and reduced emissions. The high pressure is key to the effectiveness of CRDI.

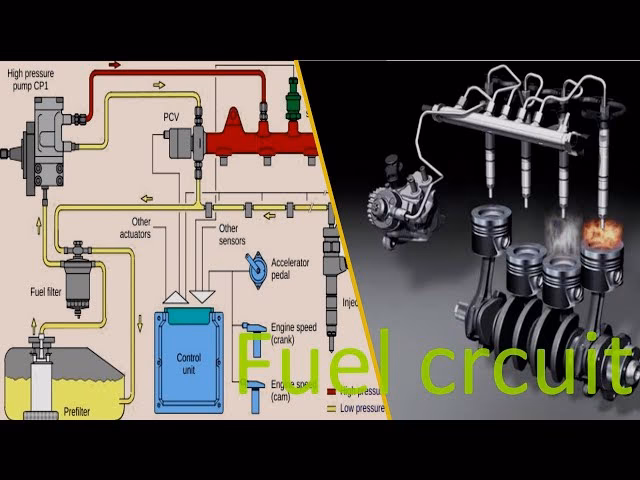

How Diesel Fuel Systems Work: A Step-by-Step Process

Let's trace the journey of diesel fuel through a typical modern Common Rail system:

1. Fuel Storage: Diesel fuel is stored in the fuel tank.
2. Low-Pressure Transfer: A lift pump draws fuel from the tank and sends it through the primary fuel filter (often including a water separator) towards the high-pressure pump.
3. High-Pressure Generation: The high-pressure fuel pump (driven by the engine) pressurises the fuel to very high levels.
4. Rail Accumulation: The pressurised fuel is stored in the common rail, which acts as a buffer, maintaining consistent high pressure.
5. Injection Control: The ECU monitors engine conditions and signals the injectors when to open and close.
6. Fuel Injection: The injectors spray a precisely metered, atomised mist of fuel into the combustion chamber at the optimal moment.
7. Return Flow: A small amount of fuel typically bypasses the injectors and returns to the tank or fuel filter housing. This 'return fuel' is often used for lubricating and cooling the high-pressure pump and injectors.

Importance of Maintenance

Regular and proper maintenance is paramount for the health and longevity of any diesel fuel system. Neglecting maintenance can lead to costly repairs and significantly reduced engine performance. Key maintenance tasks include:

Using high-quality diesel fuel and avoiding running the tank extremely low can also contribute to the system's well-being. Fuel quality is a critical factor in preventing many common issues.

Common Issues and Troubleshooting

Despite their robustness, diesel fuel systems can develop problems. Here are some common issues:

1. Fuel Contamination

Causes: Dirt ingress during refuelling, water condensation in the tank, microbial growth (diesel bug), old or poor-quality fuel.

Symptoms: Hesitation, loss of power, rough running, engine stalling, injector damage, fuel filter blockage.

Solution: Regular filter changes, draining water separators, using fuel additives, sourcing fuel from reputable stations, or a professional fuel system clean.

2. Clogged Fuel Injectors

Causes: Fuel contamination (carbon deposits, debris), wear and tear.

Symptoms: Rough idling, reduced engine power, increased fuel consumption, black smoke from the exhaust, engine misfires.

Solution: Using injector cleaner additives, professional injector cleaning service, or injector replacement.

3. Fuel Pump Failure

Causes: Wear and tear, running the engine on contaminated fuel, lack of lubrication (if fuel quality is poor), electrical faults.

Symptoms: Difficulty starting, engine stalling, significant loss of power, no fuel delivery.

Solution: Replacement of the fuel pump. This can be a costly repair, highlighting the importance of preventative maintenance.

4. Air in the Fuel System

Causes: Running the tank dry, leaky fuel lines or filter seals, improper filter replacement.

Symptoms: Engine will not start, rough running, stalling, loss of power.

Solution: Bleeding the fuel system to remove air. This process varies by vehicle but typically involves loosening injector lines or using a manual priming pump.

Advances in Diesel Fuel System Technology

The evolution of diesel technology has been driven by the need for greater efficiency, reduced emissions, and improved performance. Key advancements include:

• Piezoelectric Injectors: These injectors use piezoelectric crystals to control fuel injection with extreme speed and precision, enabling up to eight injections per combustion cycle.
• Variable Geometry Turbochargers (VGT): While not strictly part of the fuel system, VGTs work in conjunction with it to optimise air intake, which is crucial for efficient diesel combustion.
• Exhaust Gas Recirculation (EGR) and Diesel Particulate Filters (DPF): These systems manage exhaust gases to reduce emissions, working alongside a precisely controlled fuel system.
• Advanced ECUs: Sophisticated engine control units continuously monitor and adjust fuel delivery parameters in real-time, optimising for a multitude of conditions.

Environmental Considerations

Diesel engines have historically faced scrutiny regarding their emissions, particularly nitrogen oxides (NOx) and particulate matter (PM). Modern diesel fuel systems, coupled with advanced after-treatment systems like Diesel Particulate Filters (DPF) and Selective Catalytic Reduction (SCR) systems, have dramatically reduced these harmful emissions. The use of Ultra-Low Sulfur Diesel (ULSD) fuel is also essential for the proper functioning of these emission control devices and the overall health of the fuel system. The ongoing development aims for even cleaner and more sustainable diesel power.

Frequently Asked Questions

Q1: How often should I change my diesel fuel filter?

A1: It's best to follow your vehicle manufacturer's recommended service interval, typically ranging from 15,000 to 30,000 miles, or sooner if you suspect fuel contamination or experience performance issues.

Q2: Can I use petrol in my diesel car?

A2: Absolutely not. Petrol has a much lower flashpoint and is not designed for diesel engines. Putting petrol in a diesel tank can cause severe damage to the fuel pump and injectors, leading to very expensive repairs.

Q3: What are the signs of a failing diesel fuel pump?

A3: Common signs include difficulty starting, loss of engine power, engine stalling, and unusual noises coming from the fuel pump area.

Q4: Is it worth using diesel injector cleaner?

A4: Yes, regular use of a quality diesel injector cleaner can help maintain injector cleanliness, improve fuel atomisation, and prevent deposits, potentially saving you from more costly repairs down the line.

In conclusion, the diesel fuel system is a marvel of engineering, essential for the power and efficiency of diesel engines. From the robust fuel tank to the highly precise injectors, each component works in harmony. Understanding these parts, their functions, and the importance of regular maintenance is key to ensuring your diesel vehicle performs optimally and reliably for years to come.
