Understanding Bosch Diesel Drive Systems

In the realm of modern diesel engine technology, Bosch stands as a titan, renowned for its innovative and reliable drive systems. Among their most impactful contributions is the Bosch Common Rail system, a sophisticated fuel injection technology that has revolutionised diesel performance, efficiency, and emissions control. This article delves into the intricacies of these systems, demystifying their operation and highlighting the key components that make them so effective.

The Core of Common Rail: High-Pressure Fuel Delivery

At its heart, the Bosch Common Rail system is an advanced fuel injection system designed to deliver precise amounts of fuel at exceptionally high pressures. Unlike older diesel systems where the injection pressure was generated by the engine's speed and load, the Common Rail system stores pressurised fuel in a central pipe, known as the 'rail'. This rail acts as a high-pressure accumulator, ensuring that fuel is always available at the required pressure for injection. This decoupling of pressure generation from engine speed is a fundamental advantage, allowing for more consistent and accurate fuel delivery across the entire operating range of the engine.

How the Bosch Common Rail System Operates

The operation of a Bosch Common Rail system is a marvel of precision engineering. Here’s a breakdown of the key stages:

1. High-Pressure Pump: The Pressure Generator

The system begins with a high-pressure fuel pump. This pump is driven by the engine and its primary role is to draw fuel from the tank and pressurise it to extremely high levels, often exceeding 2000 bar (approximately 30,000 psi). This pressurised fuel is then fed into the common rail.

2. The Common Rail: The High-Pressure Reservoir

The common rail itself is a robust, high-strength steel pipe. It serves as a reservoir for the pressurised fuel, maintaining a consistent pressure regardless of the injection event. Integrated sensors monitor the pressure within the rail, sending this information back to the Engine Control Unit (ECU).

3. Fuel Injectors: The Precision Delivery Devices

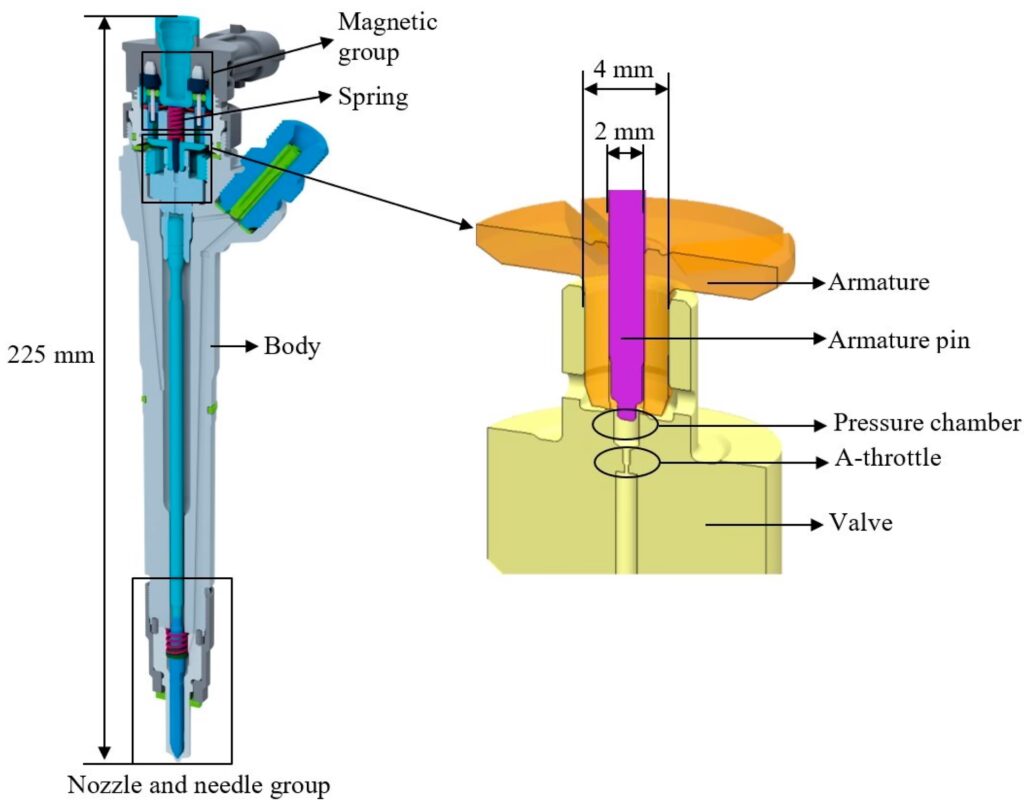

This is where the magic truly happens. The Bosch Common Rail system uses highly sophisticated fuel injectors. Each injector is a complex mechatronic device, typically comprising three main functional blocks:

• Injector Nozzle: This is the tip of the injector that protrudes into the combustion chamber. It has multiple precisely drilled holes through which the fuel is sprayed into the cylinder. The design of these holes is critical for atomising the fuel into a fine mist, ensuring efficient combustion.
• Hydraulic Servo System: This internal mechanism within the injector controls the opening and closing of the nozzle. It operates under high hydraulic pressure from the common rail, enabling rapid and precise control of fuel delivery.
• Solenoid Valve: This is an electrically operated valve that acts as the brain of the injector. It is controlled by the ECU and dictates when the injector opens and closes, and for how long. The solenoid valve regulates the flow of fuel to the hydraulic servo system, thereby controlling the injection timing and the quantity of fuel injected.

The Role of the Engine Control Unit (ECU)

The ECU, often referred to as the engine's computer, plays a pivotal role in orchestrating the entire Common Rail system. It receives data from various sensors throughout the engine, including the rail pressure sensor, crankshaft position sensor, camshaft position sensor, and mass air flow sensor. Based on this information, the ECU calculates the optimal amount of fuel to inject and the precise moment for injection. It then sends electrical signals to the solenoid valves on each injector, commanding them to open and close accordingly.

Optimising Performance and Efficiency

The Bosch Common Rail system offers several significant advantages over older diesel injection technologies:

• Precise Fuel Control: The ability to control injection pressure independently of engine speed, combined with the precise actuation of injectors by the ECU, allows for multiple injection events per combustion cycle. This can include pilot injections (to reduce noise and emissions), main injections, and post-injections (to aid in exhaust gas aftertreatment).
• Improved Fuel Economy: By optimising the combustion process through precise fuel delivery, Common Rail systems significantly improve fuel efficiency, leading to lower running costs and reduced environmental impact.
• Reduced Emissions: The precise control over the injection process allows for cleaner combustion, significantly reducing harmful emissions such as particulate matter (soot) and nitrogen oxides (NOx).
• Enhanced Power and Torque: The efficient delivery of fuel at high pressures enables engines to produce more power and torque, providing a more responsive and enjoyable driving experience.
• Quieter Operation: The ability to perform pilot injections before the main injection event helps to smooth out the combustion process, leading to a noticeable reduction in the characteristic diesel 'knock' and a quieter engine operation.

Key Components and Their Functions: A Closer Look

Let's revisit the components with a bit more detail, referencing the provided information:

Important Considerations for Maintenance

Due to the extreme pressures and the precision required, maintenance of Bosch Common Rail systems demands meticulous attention to detail. The note regarding the non-reusability of combustion chamber sealing rings is critical. Reusing these seals can lead to combustion leaks, reduced performance, and potential engine damage. Always refer to the manufacturer's current service literature for the exact procedure for installing sealing rings and plastic rings to ensure the system's longevity and optimal performance.

Frequently Asked Questions

Q1: What is the main advantage of a Bosch Common Rail system over older diesel injection systems?
The primary advantage is the ability to control fuel injection pressure independently of engine speed, allowing for significantly more precise control over the timing and quantity of fuel injected, leading to better performance, fuel economy, and lower emissions.

Q2: Can I reuse the seals on a Bosch Common Rail injector?
No, specifically the combustion chamber sealing rings must never be reused. They are designed for single use to ensure a perfect seal. Reusing them can compromise the system's integrity.

Q3: How does the ECU control the fuel injection?
The ECU receives data from various engine sensors and then sends electrical signals to the solenoid valve on each injector. These signals tell the solenoid valve when to open and close, which in turn controls the flow of fuel to the hydraulic servo system within the injector, determining the start and duration of fuel injection.

Q4: What are the benefits of multiple injections in a Common Rail system?
Multiple injections, such as pilot, main, and post-injections, allow for finer control over the combustion process. Pilot injections can reduce noise and NOx emissions, while post-injections can help regenerate diesel particulate filters (DPFs) or further reduce emissions.

Conclusion

Bosch diesel drive systems, particularly the Common Rail technology, represent a significant advancement in diesel engine engineering. By providing precise control over fuel delivery, these systems deliver a potent combination of power, efficiency, and environmental responsibility. Understanding the function of each component, from the high-pressure pump to the sophisticated injectors and the watchful eye of the ECU, is key to appreciating the engineering prowess behind modern diesel vehicles. Proper maintenance, adhering strictly to service guidelines, is essential to harness the full potential and longevity of these advanced systems.
