Diesel Injector Puller: Essential Tool

The Importance of a Diesel Injector Puller

Diesel engines are renowned for their robustness and fuel efficiency, making them a popular choice for a wide range of vehicles, from everyday cars to heavy-duty trucks. However, like any complex mechanical system, diesel engines require regular maintenance and occasional repairs to perform at their best. One of the most critical components within a diesel engine's fuel system is the injector. Diesel injectors are responsible for atomising fuel and delivering it into the combustion chamber at precisely the right moment and pressure. When these injectors falter or require replacement, a specialised tool known as a diesel injector puller becomes indispensable. Without the correct equipment, attempting to remove stubborn or seized injectors can lead to significant damage to the cylinder head and surrounding components, resulting in costly repairs. This article will delve into why a diesel injector puller is an essential piece of kit for any mechanic, professional or DIY enthusiast, working with diesel engines.

What is a Diesel Injector Puller?

A diesel injector puller is a specialised tool designed to safely and efficiently remove diesel injectors from an engine. Diesel injectors are often subjected to extreme temperatures and pressures, and over time, they can become seized or "stuck" within their housings in the cylinder head due to carbon build-up, corrosion, or heat expansion. Standard tools, or brute force, are not suitable for this task as they can easily damage the injector itself, the delicate seating area within the cylinder head, or even the engine block. Injector pullers are engineered to apply controlled force directly to the injector, providing a secure grip and enabling a gradual, safe extraction. They come in various forms, including slide hammers, grip-type pullers, and specific adapter kits, each designed to tackle different types of injector installations and levels of difficulty.

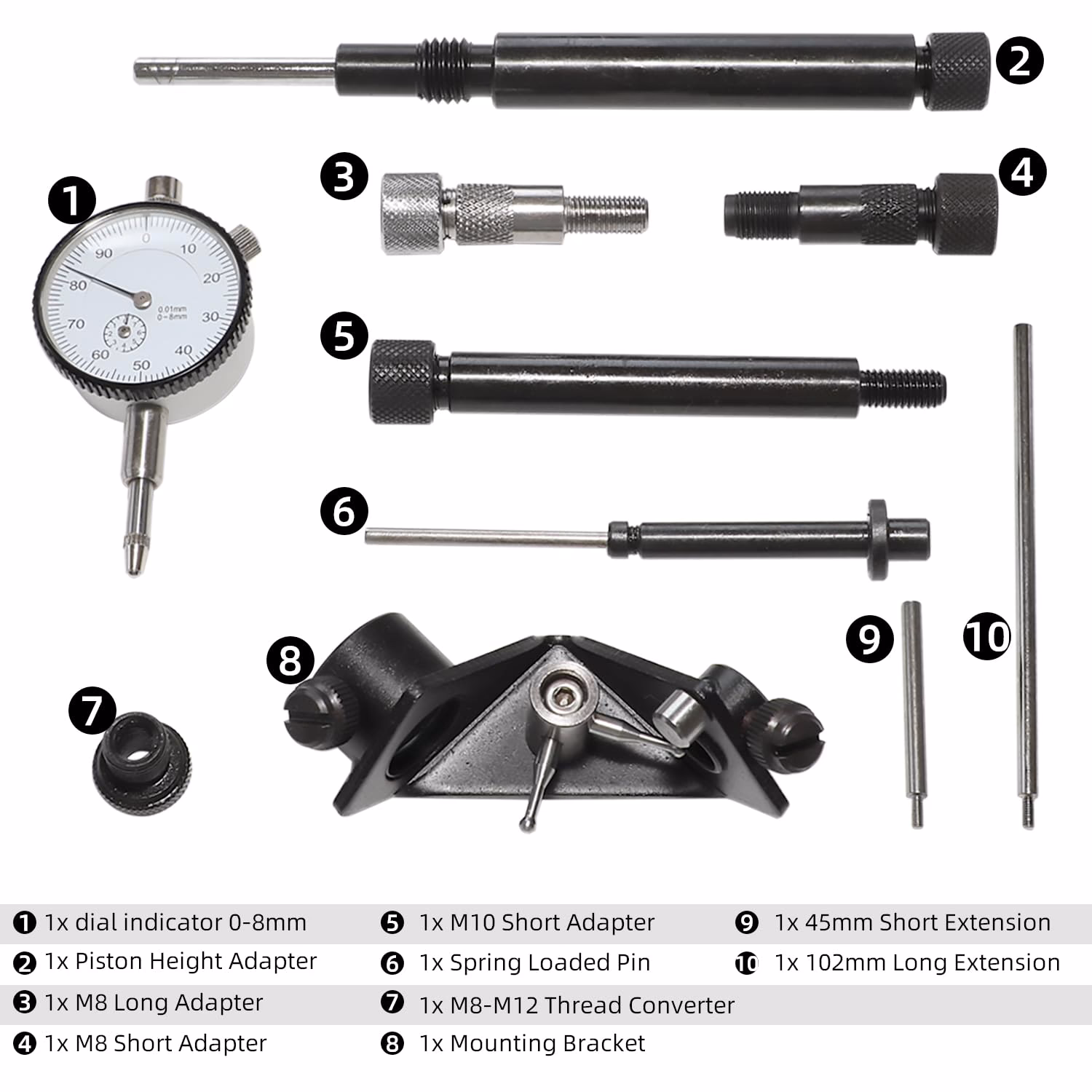

Why You Need One: The Challenges of Injector Removal

The primary reason for needing a diesel injector puller stems from the inherent difficulty in removing modern diesel injectors. Several factors contribute to this:

• Carbon Buildup: The combustion process in diesel engines, while efficient, can lead to the accumulation of carbon deposits around the injector tip and nozzle. Over time, this carbon can solidify, effectively "gluing" the injector into its seat.
• Corrosion: Exposure to moisture, fuel additives, and the harsh operating environment can cause corrosion between the injector body and the cylinder head. This rust can create a strong bond, making removal extremely difficult.
• Heat Expansion: Diesel engines operate at high temperatures. Repeated heating and cooling cycles can cause the metal components, including the injector and the cylinder head, to expand and contract at different rates. This can lead to a tight fit and a tendency for injectors to seize.
• High-Pressure Seals: Modern common rail diesel systems operate at incredibly high pressures. The seals used to maintain these pressures can also contribute to the injector becoming firmly seated.

Attempting to remove a seized injector without the proper tools can lead to catastrophic consequences. You might:

• Damage the Injector: Breaking the injector during removal can leave parts lodged in the cylinder head, making subsequent removal even more problematic and potentially requiring costly machining.
• Damage the Cylinder Head: Excessive force or using inappropriate leverage can crack or deform the cylinder head. The injector seats are precision-machined surfaces; damaging them will necessitate expensive repairs, often involving specialist machining or even cylinder head replacement.
• Damage the Engine Block: In extreme cases, forceful and incorrect removal techniques could even compromise the integrity of the engine block.

Types of Diesel Injector Pullers

The market offers a variety of diesel injector pullers, each suited for different scenarios. Understanding these types can help you choose the right tool for the job:

1. Slide Hammer Injector Pullers

These are perhaps the most common type. They consist of a weighted sliding hammer that moves along a shaft. An adapter or grip is attached to the end of the shaft, which securely attaches to the injector. By repeatedly sliding the hammer up and down the shaft, a series of sharp impacts are delivered, gradually working the injector loose. The force can be controlled by the user's technique.

2. Grip-Type Injector Pullers

These pullers often use adjustable jaws or clamps that firmly grip the body of the injector. Once a secure grip is established, a leverage mechanism, often a lever arm or a connection point for a slide hammer, is used to pull the injector straight out. These are good for injectors where access might be slightly more restricted, and they offer a very direct pulling force.

3. Universal Injector Puller Kits

These comprehensive kits typically include a variety of adapters, legs, and pulling mechanisms to accommodate different injector designs and mounting configurations found across various diesel engine manufacturers. They often include specialized collets or cups that fit over or around the injector body, providing a secure attachment point. These kits are ideal for workshops or individuals who work on a wide range of diesel vehicles.

4. Specific Manufacturer/Model Pullers

For certain high-volume diesel engines or specific injector types (e.g., some Bosch, Delphi, or Denso common rail injectors), manufacturers may offer or recommend highly specific puller tools designed to interface perfectly with their injector designs, minimising the risk of damage.

Beyond the Puller: Other Essential Diesel Injection Tools

While the injector puller is paramount for removal, a complete diesel maintenance and repair toolkit includes other vital components:

Compression Test Adaptors

Before delving into injector removal, it's prudent to assess the overall health of the engine's compression. Compression test adaptors allow you to connect a compression gauge to the glow plug or injector ports. Accurate compression readings are fundamental for diagnosing underlying engine performance issues that might be mistaken for injector problems. Low compression can indicate worn piston rings, valves, or head gasket issues, which need to be addressed before or alongside injector work.

Injector Removal Sets

These sets often go hand-in-hand with pullers and can include a range of sockets, extensions, and specialised tools for disconnecting fuel lines, electrical connectors, and retaining clamps that secure the injector in place. Having a comprehensive set ensures you have the right tool for every step of the removal process.

Injector Seat Cutters

Once an injector is removed, the injector seat in the cylinder head must be thoroughly cleaned and inspected. Carbon deposits and corrosion can create an uneven surface, which will prevent a new injector from sealing correctly, leading to leaks and poor performance. Injector seat cutters are precision tools designed to carefully re-surface the injector seat, ensuring a perfect seal for the new injector. This is a crucial step often overlooked by those attempting DIY repairs without the proper knowledge.

Priming & Bleeding Kits

After injectors have been replaced or the fuel system has been disturbed, it's essential to prime the system and remove any air that may have entered. Air in the fuel lines can cause the engine to run roughly, misfire, or not start at all. Priming and bleeding kits, often consisting of hand pumps and specialised fittings, allow you to safely refill the fuel system and expel air, ensuring smooth fuel delivery and optimal engine operation.

When to Use a Diesel Injector Puller

The decision to use a diesel injector puller should be made when:

• Routine Maintenance: While not a routine maintenance item for all vehicles, some service schedules might involve injector servicing or testing.
• Performance Issues: If the engine is experiencing rough idling, loss of power, excessive smoke, or poor fuel economy, injector diagnosis and potential removal may be necessary.
• Diagnostic Codes: Modern vehicles often store diagnostic trouble codes (DTCs) related to injector performance, misfires, or fuel delivery. These codes can point towards the need for injector inspection or replacement.
• Injector Replacement: If an injector is confirmed to be faulty and requires replacement, a puller is almost certainly needed for its removal.

Tips for Safe and Effective Injector Removal

Using a diesel injector puller correctly is vital to avoid damage:

1. Safety First: Always wear appropriate personal protective equipment (PPE), including safety glasses and gloves. Diesel fuel is under high pressure and can be injected into the skin, causing serious injury.
2. Cleanliness: Thoroughly clean the area around the injector before attempting removal. This prevents dirt and debris from entering the cylinder or fuel system.
3. Disconnect Battery: Always disconnect the vehicle's battery before starting work on the fuel system.
4. Remove Obstructions: Ensure all fuel lines, electrical connectors, retaining clamps, and any other components attached to the injector are removed first.
5. Choose the Right Puller: Select the puller type and adapter that best fits the specific injector and its mounting.
6. Apply Force Gradually: When using a slide hammer, use controlled, steady strokes. For grip-type pullers, apply leverage smoothly and evenly. Avoid sudden, jerky movements.
7. Lubricate (If Advised): Some manufacturers may recommend specific penetrating oils or lubricants to aid in the removal of seized injectors. Always follow manufacturer guidelines.
8. Inspect the Seat: After removal, meticulously clean and inspect the injector seat for any damage or debris. Use injector seat cutters if necessary.

Common Questions (FAQ)

Q1: Can I use a regular wrench or pliers to remove a diesel injector?

A1: Absolutely not. Regular tools lack the specialised grip and leverage required and are highly likely to cause severe damage to the injector and cylinder head.

Q2: How much force is typically needed to remove a seized injector?

A2: The force required can vary significantly. A good quality injector puller is designed to apply sufficient, controlled force. If you're encountering extreme resistance that feels like it might break something, it might be beneficial to let a penetrating oil work longer or consult a professional.

Q3: Is injector removal always necessary when diagnosing fuel system problems?

A3: Not always. Diagnostic tools, fuel pressure tests, and compression tests can often identify issues without physical removal. However, if an injector is suspected to be faulty, clogged, or leaking, removal becomes necessary for inspection and replacement.

Q4: How do I know if my diesel injectors need replacing?

A4: Symptoms include rough idling, loss of engine power, increased smoke from the exhaust (black or white), poor fuel economy, engine misfires, and diagnostic trouble codes related to the fuel injection system.

Q5: Are injector seat cutters dangerous to use?

A5: When used correctly and with the appropriate tools, injector seat cutters are safe and effective. However, they require precision and care to avoid damaging the cylinder head. If you are not confident, it's best left to a professional.

Conclusion

Maintaining the health and performance of a diesel engine is paramount for its longevity and efficiency. The diesel injector, a small but vital component, can present a significant challenge when it needs to be removed. Investing in a quality diesel injector puller is not merely a convenience; it is a necessity to prevent costly damage to critical engine parts. Coupled with other essential diesel injection tools such as compression test adaptors, injector removal sets, seat cutters, and priming kits, you equip yourself to handle common diesel engine maintenance and repair tasks with confidence and precision. Whether you are a seasoned mechanic or a dedicated enthusiast, ensuring you have the right tools, like a reliable diesel injector puller, will save you time, money, and considerable frustration in the long run, keeping your diesel engine running smoothly for years to come.
