Diesel Test Benches: Precision for Modern Engines

In the intricate world of modern automotive engineering, diesel engines stand out for their power, efficiency, and robust nature. However, their sophisticated fuel injection systems demand an equally sophisticated approach to maintenance and diagnostics. This is where the diesel injector and pump test bench becomes an indispensable piece of equipment for any professional workshop. Far beyond simple troubleshooting, these advanced systems are the bedrock of precise diagnostics, ensuring that a vehicle's vital components operate at peak performance and comply with ever-evolving environmental directives.

As technology advances, so too do the demands placed on diesel engines, with new limits and regulations constantly emerging. This necessitates an incredibly accurate method for testing common rail injectors and pumps, as well as conventional in-line and distributor pumps. Without the meticulous insight provided by a dedicated test bench, achieving optimal engine efficiency, reducing emissions, and preventing costly failures would be a significant challenge. These benches are not just tools; they are the heart of a modern diesel workshop's diagnostic capability.

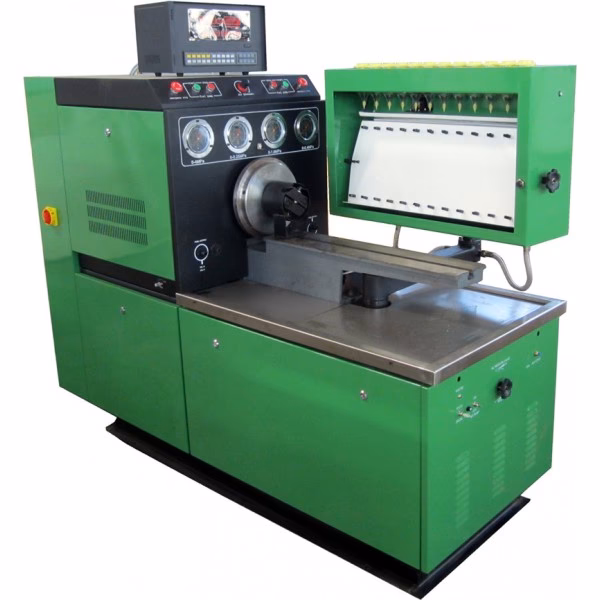

What Exactly is a Diesel Injector and Pump Test Bench?

At its core, a diesel injector and pump test bench is a highly specialised piece of equipment designed to rigorously evaluate the performance of a diesel engine's fuel injection system components. This includes the fuel injectors themselves, which atomise fuel into the combustion chambers, and the fuel pumps, which deliver fuel at precise pressures. Unlike a basic fuel injection pump tester, which might only check simple pressure, a comprehensive test bench performs a multitude of tests, mimicking real-world engine conditions to assess spray patterns, fuel delivery volumes, injection timing, and the electronic integrity of components.

Leading manufacturers like Bosch, with their DCI and EPS test benches, exemplify the cutting-edge technology in this field. These systems are engineered to meet the demanding requirements of today's automotive workshops, providing a detailed analysis that simple hand tools cannot. Thanks to features like online updates, these test benches ensure that diagnostics are always carried out in accordance with the very latest test specifications and manufacturer guidelines, a crucial factor given the rapid evolution of diesel technology.

Why Are Test Benches Indispensable in Today's Workshops?

The importance of a high-quality test bench cannot be overstated, particularly with the increasing complexity of modern diesel engines and the stringent emissions standards they must meet. Here's why they are absolutely essential:

• Precision Diagnostics: Modern common rail systems operate at extremely high pressures (up to 2000 BAR or more) and require microscopic precision in fuel delivery. A test bench can detect even the slightest deviation from optimal performance, which a mechanic might miss otherwise. This level of precision is vital.
• Compliance with Regulations: Ever-changing directives and new limits on emissions mean that vehicles must perform within very narrow parameters. Testing with a certified bench ensures that injectors and pumps are performing optimally, helping vehicles pass emissions tests and remain compliant.
• Preventive Maintenance & Cost Savings: Identifying issues early can prevent more significant, costly damage down the line. A worn injector or a faulty pump can lead to poor fuel economy, reduced power, and even engine damage. Regular testing saves money in the long run.
• Efficiency and Reliability: Properly functioning fuel injection components ensure maximum engine efficiency, leading to better fuel economy and consistent power output. A test bench verifies this reliability.
• Versatility: Modern test benches are designed to handle a wide array of injector and pump types, making them a versatile investment for workshops dealing with diverse vehicle fleets.

Understanding the Types of Diesel Injectors and Pumps Tested

A truly comprehensive diesel test bench is equipped to handle a broad spectrum of fuel injection components. For instance, a model like the DD 800 CR highlights this versatility, capable of testing everything from common rail systems to traditional pumps:

• Common Rail Diesel (CRDI) Injectors: These are prevalent in modern diesel engines. The test bench can handle both solenoid and Piezo technology injectors from various manufacturers like Bosch, Delphi, Denso, and Siemens. Piezo injectors, in particular, offer extremely rapid and precise fuel delivery.
• Common Rail Pumps and Fuel Rails: These are integral to the CRDI system, maintaining high fuel pressure. The test bench can evaluate their ability to build and hold pressure, and the functionality of components like pressure sensors and fuel rail pressure control valves (DRVs).
• Electronic Diesel Control (EDC) / Electronic VE Pumps: Such as the Bosch VP Series (VP 36, VP 37). These electronic pumps are managed by the engine's ECU and require specialised electronic simulators for accurate testing, which a modern bench provides (e.g., EDC 7000 Simulator).
• Bosch Distributor V.E. Pumps and other Rotary Pumps: Older but still common, these pumps distribute fuel sequentially to each cylinder.
• Inline Pumps: Including 'P' type pumps, these are robust mechanical pumps found in many heavy-duty and older diesel applications.
• Lucas / Delphi Rotary Pumps: Including 'DPC' types, another common rotary pump found in various diesel vehicles.

The ability to test such a wide variety of components makes a modern test bench a truly multipurpose tool, saving time and ensuring comprehensive diagnostic capabilities.

Key Features of Advanced Diesel Test Benches

A detailed look at a high-specification model like the DD 800 CR reveals the sophistication inherent in these systems:

• Cylinder Capacity: Capable of testing pumps ranging from 2-cylinder units up to 8-cylinder configurations.
• Drive System: Utilises advanced AC Frequency / Electronic drives (e.g., Schneider Electric) for precise control over RPM.
• Main Motor: Powerful motors (e.g., 7.5 HP and 5 HP ABB motors) to simulate diverse operational conditions.
• Variable RPM: Offers a wide range of variable RPM (e.g., 0 – 5000 RPM) to accurately test components across their full operational spectrum.
• Pressure Gauges: Equipped with both digital and analog pressure gauges for accurate and redundant pressure readings.
• Fuel Supply Motor: A dedicated motor (e.g., 1 HP) ensures consistent fuel supply during testing.
• Common Rail Test Kit (CRTK): Integral for CR testing, including a Bosch CP1 common rail pump, a fuel rail with sensors, and an electronic simulator (e.g., CRT 5000) for driving CR injectors, pumps, and rails. This kit includes all necessary high-pressure pipes, return adaptors, and electrical couplers for various injector and pump makes.
• EDC Simulator: A dedicated simulator (e.g., EDC 7000) for driving and testing electronic diesel control pumps like the Bosch VP series.
• Regulatable Pressure: The system can regulate pressure from 0 – 2000 BAR, allowing for comprehensive testing under various pressure scenarios, crucial for common rail systems.
• Safety Features: Given the extremely high pressures involved in common rail testing, advanced benches feature robust safety measures, such as unbreakable transparent acrylic shielding around the testing area, which can be opened or closed as needed for operator protection.
• Accessories: Supplied with a range of standard accessories and the option for special accessories to expand testing capabilities further.

Distinguishing a Full Test Bench from a Simple Fuel Injection Pump Tester

While both tools relate to fuel system diagnostics, their capabilities differ significantly:

A fuel injection pump tester is typically a more basic, often handheld or portable, tool. Its primary function is to quickly test the fuel pump pressure on most injector systems. It usually comes with flex hoses, fittings, and instructions for quick reference. It's excellent for a preliminary check to determine if there's a fundamental pressure issue but offers limited diagnostic depth.

A diesel injector and pump test bench, on the other hand, is a sophisticated, often stationary, machine. It doesn't just check pressure; it simulates an engine's operation to comprehensively test components under various loads and speeds. It measures precise fuel delivery volumes, spray patterns, electronic signals, and can even recalibrate components. It's a tool for in-depth diagnosis, repair, and reconditioning.

Comparative Overview: Basic Tester vs. Advanced Test Bench

To further illustrate the differences, consider the following comparison:

The Importance of Adaptable and Future-Proof Solutions

As diesel technology continues to evolve, the ability of a test bench to adapt to new requirements is paramount. Companies with decades of experience in engineering diesel test solutions, like those behind platforms such as the HA4500, understand this need. These robust base platforms allow for a wide range of tailored hardware and software applications to be built upon them. This adaptability means workshops can invest in a system that can be updated and customised to diagnose even highly elusive failure modes or evaluate specific test parameters that emerge with new engine designs. This ensures the longevity and continued utility of the equipment.

Frequently Asked Questions About Diesel Test Benches

Q: Why can't I just use a simple pressure gauge for modern diesel engines?

A: Modern common rail diesel engines operate at extremely high pressures (up to 2000 BAR) and rely on precise electronic control of injection timing and fuel volume. A simple pressure gauge can only tell you if there's pressure, but it cannot evaluate the complex electronic signals, the exact quantity of fuel injected, the spray pattern, or the response time of components. A dedicated test bench simulates real engine conditions, allowing for comprehensive assessment of these critical parameters, which is essential for accurate diagnosis and repair.

Q: How often should diesel injectors and pumps be tested?

A: There isn't a fixed schedule, as it depends on vehicle usage, fuel quality, and manufacturer recommendations. However, testing should be considered whenever there are symptoms of fuel system issues, such as reduced power, increased fuel consumption, rough idling, excessive smoke, or difficulty starting. For commercial fleets or high-mileage vehicles, periodic preventative checks can also be beneficial to catch potential problems before they lead to significant breakdowns.

Q: What is the difference between solenoid and Piezo injectors?

A: Both solenoid and Piezo injectors are types of common rail injectors, but they use different mechanisms to open and close the nozzle. Solenoid injectors use an electromagnetic coil to operate a valve, which is a tried and tested technology. Piezo injectors, on the other hand, utilise the piezoelectric effect, where certain materials change shape when an electric current is applied. Piezo injectors are generally faster, allowing for more precise and multiple injection events per combustion cycle, which improves fuel economy and reduces emissions. Most advanced test benches can test both technologies.

Q: What does 'Common Rail' technology mean?

A: Common Rail (CR) is a modern fuel injection system for diesel engines. Unlike older systems where each injector has its own dedicated pump, CR systems use a single, high-pressure pump to deliver fuel to a common rail (a high-pressure accumulator). From this rail, fuel is distributed to the individual injectors, which are electronically controlled. This allows for extremely precise control over injection pressure, timing, and the number of injection events per cycle, leading to better combustion, lower emissions, and improved engine performance.

Q: Why are online updates important for a test bench?

A: The automotive industry is constantly evolving, with new engine designs, fuel injection technologies, and diagnostic procedures emerging regularly. Online updates ensure that your test bench's software, test plans, and specifications are always current. This means you can accurately diagnose and repair the latest vehicles, ensuring your workshop remains competitive and compliant with new standards. Without updates, a test bench can quickly become obsolete for newer vehicle models.

Conclusion

The diesel injector and pump test bench is no longer just a luxury; it is a fundamental requirement for any workshop committed to providing high-quality, reliable service for diesel vehicles. Its ability to deliver accurate, detailed diagnostics, handle a diverse range of components, and adapt to evolving technologies makes it an invaluable asset. By investing in and properly utilising these advanced systems, workshops can ensure optimal engine performance, meet stringent environmental regulations, and provide their customers with the confidence that their diesel vehicles are in the most capable hands. The future of diesel maintenance relies on the technology and efficiency these benches provide.
