Diesel Injectors: Costs, Care & Replacement Guide

Diesel engines are the workhorses of the automotive world, renowned for their power, efficiency, and longevity. However, even these robust powerplants have their vulnerabilities, and one critical component that can lead to significant headaches – and costs – is the fuel injector. These precision parts are responsible for delivering fuel into the combustion chamber under immense pressure, and when they falter, your engine’s performance, fuel economy, and reliability can all suffer dramatically. Understanding the common issues, replacement costs, and maintenance best practices for diesel fuel injectors is crucial for any diesel vehicle owner.

Modern diesel engines operate with incredibly high fuel pressure, often exceeding 20,000 PSI. While this ensures efficient fuel atomisation and combustion, it also means that even the tiniest contaminants can cause significant damage to the intricate components within the injectors. Although sophisticated two-stage fuel filters are now standard to mitigate this risk, injectors can still fail over time. So, what exactly does it cost to replace them, how often do they need attention, and what are the tell-tale signs that something’s amiss?

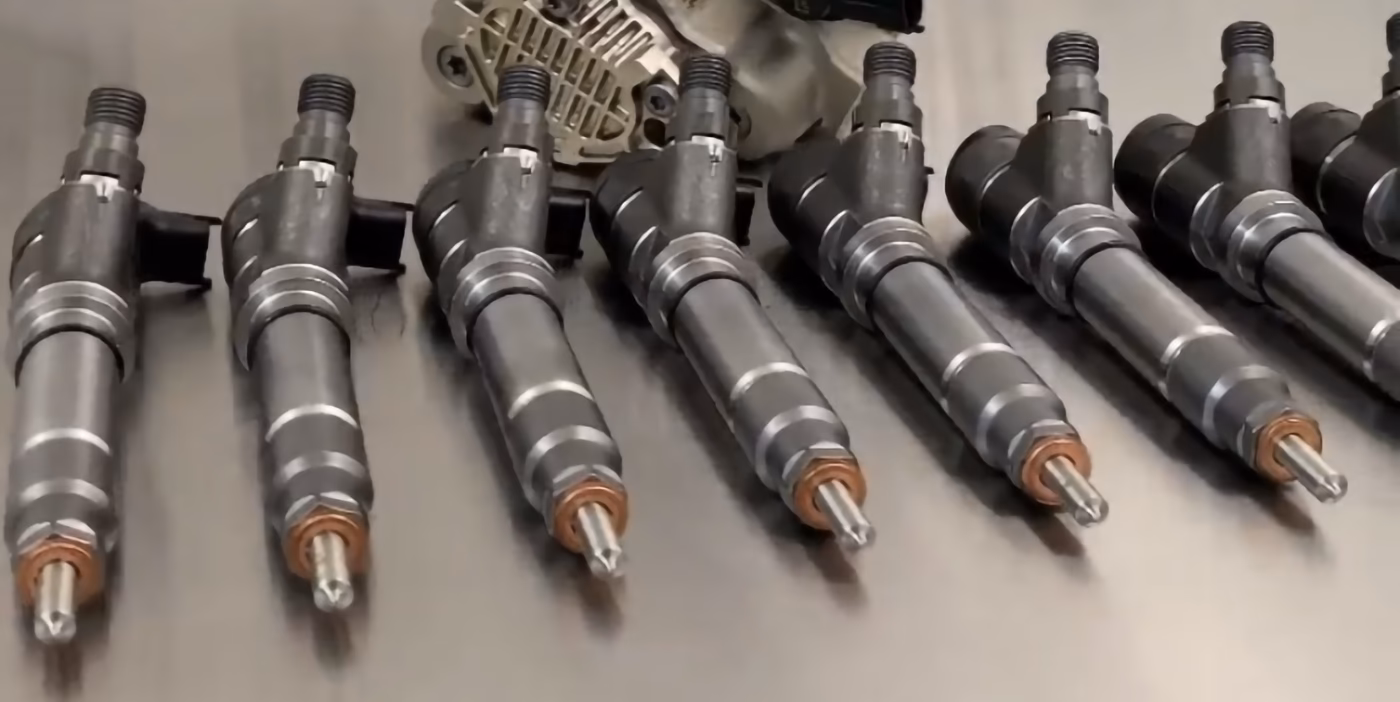

The Cost of Replacing Diesel Fuel Injectors

When a diesel fuel injector goes bad, the primary concern for many vehicle owners is the potential repair bill. Based on a survey conducted across various workshops in the USA, the average cost to replace a single diesel engine fuel injector is approximately $198. This price can typically range anywhere from $155 to $240 per injector. It’s important to note that these figures are based on US data and serve as a general guide; actual costs in the UK may vary due to different labour rates, part availability, and local market conditions.

Several factors can influence the final cost. Part availability plays a significant role, as does your geographical location. Labour rates, in particular, show considerable variation. For instance, the survey highlighted hourly rates ranging from $115 in Florida to $145 in Maryland. In the UK, mechanic labour rates can also differ significantly between regions and garages. Additionally, the time of year can sometimes impact costs, with parts and labour often being slightly higher during winter months dueking to increased demand or operational costs.

Cost Breakdown Influencers

How Often Do Diesel Fuel Injectors Need Replacing?

As a general guideline, diesel fuel injectors typically require replacement between 150,000 to 250,000 miles. However, this is not a hard and fast rule; the lifespan of your injectors can be significantly influenced by how diligently you maintain your engine. For optimal performance and to preempt major issues, it’s highly recommended to have your injectors inspected by a qualified professional every 50,000 miles.

Factors Affecting Injector Lifespan

The longevity of your diesel fuel injectors is directly tied to your maintenance habits. Neglecting these can drastically shorten their operational life, leading to premature failure and costly repairs. Key factors include:

• Regular oil changes: Fresh, clean engine oil is vital for components that are lubricated by it, including some injector designs.
• Periodic injector cleaner use: High-quality fuel additives designed to clean injectors can prevent deposits from building up and causing blockages or sticky operation.
• Installing clean fuel: Contaminated fuel is a primary enemy of fuel injectors. Always ensure you are using fuel from reputable sources.
• Replacing BOTH primary and secondary filters on schedule: Fuel filters are your first line of defence against particulates. Neglecting their replacement allows contaminants to reach the injectors, causing wear and damage.

Recognising the Signs of Bad Diesel Fuel Injectors

Your vehicle often provides clear warnings when its fuel injectors are not performing optimally. Recognising these symptoms early can prevent further damage and more expensive repairs. According to the survey, these are the most common complaints leading to injector replacement:

1. Check Engine Light (MIL Light)

The illuminated Check Engine Light (or Malfunction Indicator Lamp - MIL) is by far the most common reason for a visit to the garage. Modern vehicles are equipped with sophisticated diagnostic systems that can detect even subtle issues with fuel delivery. If this light comes on, it’s a clear indication that something is amiss, and it should not be ignored. Ignoring it can lead to more significant issues down the line.

2. Hunting and Low Power

You might notice your engine “hunting” for fuel, where the RPMs fluctuate up and down as the engine struggles to maintain consistent fuel delivery. Another common symptom is a noticeable loss of power, particularly when accelerating or under load, such as climbing a hill. A faulty injector can’t deliver the precise amount of fuel needed for optimal combustion, leading to reduced engine output.

3. Rough Running and Idle

When fuel isn't delivered to the combustion chamber at the correct time or in the right quantity, the engine will run rough. This can manifest as a shaky or vibrating idle, misfires, or a general lack of smoothness in the engine's operation. That distinctive diesel roar can sound off, indicating an underlying problem.

4. Cranking Issues

If fuel isn't being delivered properly, it can impede the engine from starting quickly, or in severe cases, prevent it from starting altogether. While cranking issues can have many causes, a failing injector should be considered, especially if accompanied by other symptoms. It’s always best to get a proper diagnosis using manufacturer-specific diagnostic software rather than jumping to conclusions.

5. Poor Fuel Mileage

One of the most noticeable signs of a problematic injector is a drop in fuel economy. Since injectors are responsible for precisely delivering fuel for combustion, a faulty or sticking injector can lead to either too much or too little fuel being injected, resulting in inefficient burning and increased fuel consumption. If you regularly monitor your fuel economy, you might pick up on an injector issue quickly.

6. Rich Fuel Smell and White Smoke

A very typical sign of a stuck-open injector is a strong, rich fuel smell emanating from the engine bay or exhaust. This indicates that fuel is being continuously poured into the cylinder, leading to incomplete combustion. This symptom is often accompanied by the emission of white smoke from the exhaust, especially during cold starts or under acceleration.

Remanufactured, Refurbished, or New Injectors: Which to Choose?

When it comes to replacing injectors, you'll encounter various options: new, remanufactured, or refurbished. Each comes with its own cost implications and benefits.

• New Injectors: These are brand new parts, offering the highest assurance of quality and longevity. They are typically the most expensive option.
• Remanufactured Injectors: These are injectors that have been completely disassembled, cleaned, inspected, and had any worn or damaged components replaced with new parts. They are then reassembled and tested to meet original equipment specifications. They often offer a good balance of cost and reliability.
• Refurbished Injectors: Similar to remanufactured, but the process might be less extensive, focusing on repairing and re-calibrating existing components rather than full replacement of all worn parts.

Many experienced mechanics prefer to have the original injectors professionally refurbished or remanufactured, believing there's value in retaining the "team" of parts that came with the engine, provided they can be brought back to spec. However, this isn't always possible if there's significant damage or if they fail critical pressure and operational tests. In such cases, a quality remanufactured unit from a reputable company is often the recommended path, offering a cost-effective yet reliable solution.

Should I Replace Just the Bad Injector, or All of Them?

This is a frequently asked question, and unfortunately, the answer often depends on your budget. While replacing only the faulty injector might seem like the cheapest immediate solution, it's generally advisable to replace all injectors when one fails. Why? Because injectors are typically manufactured at the same time and subjected to similar wear and tear. If one has failed, it's highly likely that the other seven (or however many your engine has) are not far behind. Replacing them all at once can save you money, time, and hassle in the long run by avoiding repeated garage visits for subsequent failures.

Additionally, while you’re undertaking such a significant repair, it’s an excellent opportunity to inspect and potentially replace the injector wiring harness. These harnesses, which often connect to the rocker box, can become brittle and deteriorate over time due to heat and vibration, often failing around the same time as the injectors. Proactively replacing the harness can prevent future electrical issues.

Can I Replace a Diesel Injector Myself?

For the mechanically inclined with the right tools, time, and determination, replacing a diesel injector can be a viable DIY option. However, it's not a task for the faint-hearted. Diesel injection systems are complex, and certain manufacturers require specialised diagnostic software (e.g., Insite for Cummins, ET for CAT, ServiceMax for MAXforce) to accurately diagnose issues and, in some cases, to upload 'trim files' to the Engine Control Module (ECM) after replacement to ensure correct operation. Without these tools, proper diagnosis and calibration can be impossible.

One basic diagnostic method you can employ is measuring the exhaust manifold temperature at each cylinder. A cylinder with a cooler temperature than the rest often indicates a faulty injector, as the fuel isn't burning efficiently. Before attempting any replacement, thoroughly research your specific engine model and consult a workshop manual.

A General Guide to Replacing a Diesel Injector

Replacing a diesel engine injector is a complex and involved process that demands specialised tools and knowledge. The following is a general overview of the steps involved; it is highly recommended to seek the help of a professional mechanic for this task.

1. Preparing the Vehicle

Firstly, ensure the vehicle is properly secured and supported on a level surface. Disconnect the battery to prevent any electrical accidents. Gather all necessary tools, including a good set of spanners, a torque wrench, and potentially specific injector removal tools. Safety gear, such as gloves and eye protection, is also essential.

2. Removing the Old Injector

Locate the injector(s) to be replaced. They are typically held in place by a retaining clip or bolt. Carefully release the clip or loosen the bolt, then gently unscrew or pull the old injector from its bore. Be prepared for some resistance, as injectors can become seized in place over time due to carbon build-up.

3. Cleaning the Injector Bore

The injector bore is the hole in the cylinder head where the injector sits. It is crucial to clean this bore thoroughly to remove any accumulated debris, carbon deposits, or corrosion. This ensures the new injector will sit cleanly and seal properly. Special bore cleaning kits are available for this purpose.

4. Inspecting the Injector Wiring Harness

The wiring harness connected to the injectors, often running through the rocker cover, can degrade over time due to heat and vibration, leading to shorts or poor connections. While the injectors are out, inspect the harness for signs of wear, brittleness, or damage. It's often a good practice to replace it if it's old or shows any signs of deterioration.

5. Installing the New Injector

Carefully insert the new injector into the cleaned bore, ensuring it is properly aligned and seated. Apply a thin layer of appropriate anti-seize compound (if recommended by the manufacturer) to the injector body, and always use new copper washers or sealing rings. Hand-tighten the injector, then use a torque wrench to tighten it to the manufacturer's precise specifications. Over-tightening can damage the injector or cylinder head, while under-tightening can lead to leaks.

6. Connecting the Electrical Connections and Fuel Lines

Reconnect all electrical connectors to the injector, ensuring they are properly seated and click into place. Reattach the high-pressure fuel lines, tightening them to the specified torque. Double-check all connections to prevent leaks.

7. Testing the Injector

After installation, it’s essential to test the injector’s operation. This often involves reconnecting the battery, priming the fuel system (if necessary), and starting the engine. Listen for any unusual noises, check for fuel leaks, and observe the engine's idle quality. Ideally, a diagnostic tool should be used to check for fault codes and to confirm proper injector operation, especially if trim codes need to be uploaded to the ECM.

Frequently Asked Questions

Q: What causes diesel injector failure?

A: Common causes include contaminated fuel (even small particles can cause damage), wear and tear over high mileage, poor maintenance (e.g., infrequent fuel filter changes), and sometimes manufacturing defects. High operating pressures and temperatures also contribute to their eventual degradation.

Q: How often should I use an injector cleaner?

A: While opinions vary, using a high-quality diesel injector cleaner periodically (e.g., every 5,000 to 10,000 miles or with every oil change) can help prevent deposit build-up and maintain injector efficiency. Always follow the product manufacturer's instructions.

Q: Can I drive with a bad diesel injector?

A: While you might be able to drive for a short period, it is strongly advised against. A faulty injector can lead to reduced power, poor fuel economy, increased emissions, and potentially more severe engine damage over time, such as piston or cylinder wall damage due to incomplete combustion or excessive fuel wash.

Q: What's the difference between a diesel engineer and a diesel mechanic?

A: A diesel engineer typically focuses on the design, development, and advanced diagnostics of diesel engines and related systems. Their role often involves theoretical knowledge, R&D, and complex problem-solving at a higher technical level. In the UK, a diesel engineer's salary can vary, but based on US data provided, an average base salary for a Diesel Engineer is around $66,277, with total compensation averaging $66,672. A diesel mechanic, on the other hand, is hands-on, focusing on the maintenance, repair, and troubleshooting of existing diesel engines and vehicles. They perform the practical work of replacing parts, conducting services, and diagnosing faults using their practical skills. In the United Kingdom, the average salary for a Diesel Mechanic is approximately £32,191 per year. So, an engineer designs and analyses, while a mechanic repairs and maintains.

Summing Up

Diesel fuel injectors are undeniably critical components of your engine, fundamental to its performance and efficiency. Staying on top of your regular maintenance schedule – including timely oil and fuel filter changes, and using clean fuel – is the best way to extend their lifespan and save yourself from significant costs and headaches down the line. While some tasks can be tackled by a competent DIY enthusiast, the complexity of modern diesel injection systems often warrants professional attention. If you suspect an injector issue, don't delay diagnosis and repair. A little proactive maintenance goes a long way in keeping your diesel vehicle running smoothly and reliably on the road. Keep wrenching, or better yet, find a trusted mechanic to keep your powerful diesel engine in top condition!
