Engine Reconditioning: A Comprehensive Guide

When your vehicle's engine begins to show signs of wear and tear, such as a loss of power, increased fuel consumption, or unusual noises, it's natural to consider the various repair options available. One of the most effective and often overlooked solutions is engine reconditioning. This comprehensive process breathes new life into your existing engine, restoring its performance and reliability, often at a fraction of the cost of a full replacement. At Cave Hill Engine Services, with over 30 years of experience, we specialise in bringing engines back to their former glory.

What is Engine Reconditioning?

Engine reconditioning, also known as engine rebuilding or remanufacturing, is a meticulous process of dismantling an engine, inspecting its components for wear or damage, and then repairing or replacing those parts to bring the engine back to its original specifications. It's a far more in-depth procedure than a simple engine repair. The goal is to restore the engine to a condition that is as close to new as possible, ensuring optimal performance, efficiency, and longevity. This involves a thorough examination of all critical engine parts, including the cylinder block, cylinder heads, crankshaft, pistons, connecting rods, and more.

The Engine Reconditioning Process: A Step-by-Step Breakdown

The journey of engine reconditioning is a detailed one, requiring precision and expertise. Here's a typical breakdown of the stages involved:

1. Engine Removal and Disassembly: The first step is to carefully remove the engine from the vehicle. Once out, it's completely dismantled. Every nut, bolt, and component is separated. This allows for a thorough inspection of each individual part.
2. Cleaning: All components are subjected to rigorous cleaning processes. This can involve hot tanking, chemical cleaning, or vapour blasting to remove carbon deposits, oil residue, and sludge. Cleanliness is paramount to identifying any underlying issues.
3. Inspection and Measurement: This is a critical phase. Skilled technicians use precision measuring tools (like micrometers and bore gauges) to check each component against manufacturer tolerances. They look for wear, cracks, warping, or any other damage. Key areas checked include:
   • Cylinder bores for out-of-roundness or taper
   • Crankshaft journals for wear and straightness
   • Cylinder head flatness and valve seat integrity
   • Piston ring wear and piston skirt condition
   • Connecting rod big and small ends for wear
4. Machining: Based on the inspection, machining processes are carried out. This can include:

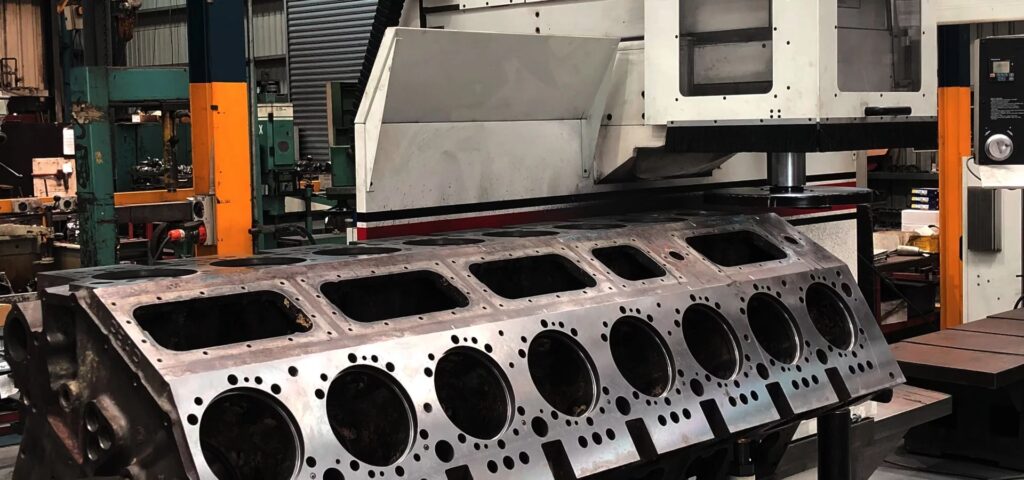

   • Boring and Honing Cylinders: If cylinder bores are worn or out-of-round, they are bored to a larger size and then honed to achieve a precise surface finish for the new piston rings.
   • Grinding and Polishing Crankshaft: Worn or damaged crankshaft journals are ground down to the next undersize and polished to a smooth finish.
   • Skimming Cylinder Heads: If the cylinder head is warped, it's skimmed to ensure a perfect seal with the engine block.
   • Valve Seat and Guide Replacement: Worn valve seats and guides are replaced to ensure proper valve sealing and operation.
   • Connecting Rod Resizing: The big ends of connecting rods are resized to ensure proper bearing fit.
5. Component Replacement: Any parts that are beyond repair or do not meet specifications are replaced with new or reconditioned components. This typically includes piston rings, bearings (main, con-rod, and cam bearings), gaskets, seals, oil pump, and potentially valves, lifters, and camshafts.

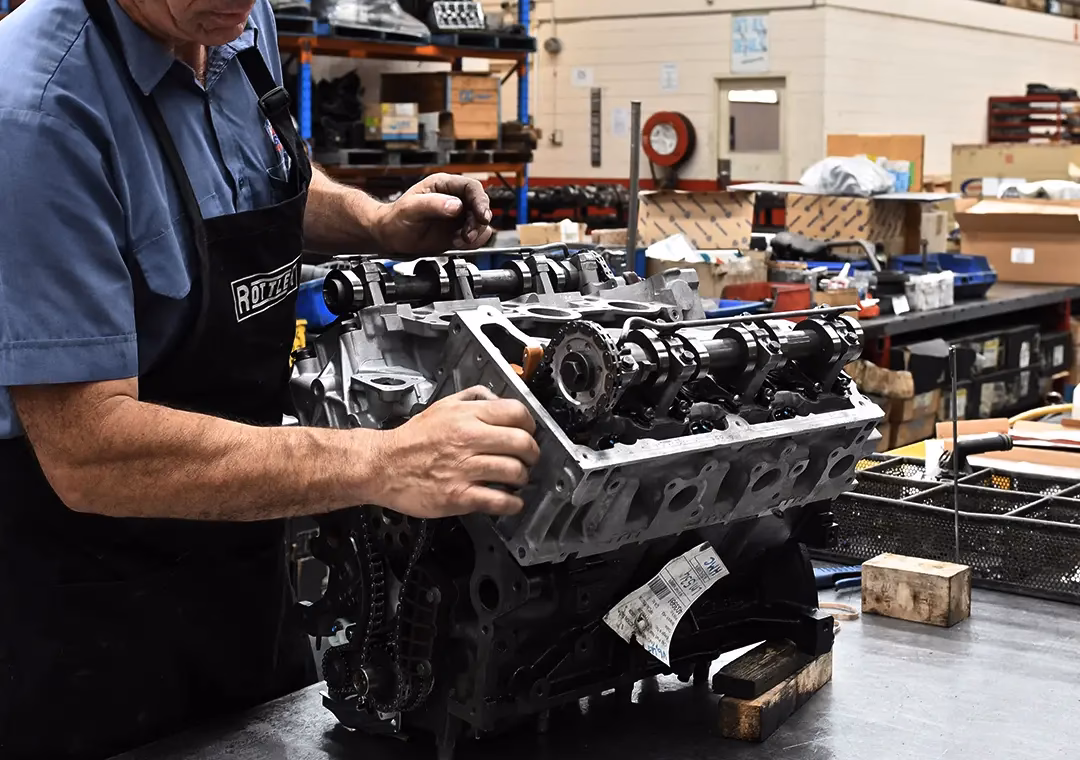

6. Engine Assembly: With all components cleaned, machined, and inspected, the engine is meticulously reassembled. This is done with extreme care, ensuring all parts are torqued to specification and clearances are correct. New gaskets and seals are used throughout.
7. Testing: Once assembled, the engine is typically run on an engine test bench. This allows technicians to check for oil pressure, leaks, and proper operation before it's refitted to the vehicle. This crucial step helps identify any potential issues before they become problematic on the road.

Why Choose Engine Reconditioning? The Benefits

Opting for engine reconditioning offers several significant advantages over purchasing a brand-new engine or settling for a used one:

Cost-Effectiveness

Reconditioning an existing engine is generally much more affordable than buying a new or even a quality used engine. You leverage the core components you already own, significantly reducing the overall expense.

Restored Performance and Efficiency

A reconditioned engine will perform like new. You'll notice improved power, smoother running, and better fuel efficiency. This is because all the critical wear components have been restored or replaced, bringing the engine back to its original design parameters.

Environmental Friendliness

Reconditioning is a more sustainable choice. By reusing the existing engine block and many of its components, you reduce the demand for new manufacturing, which in turn lowers the environmental impact associated with producing new parts.

Warranty and Peace of Mind

Reputable engine reconditioning services, like Cave Hill Engine Services, offer warranties on their work. This provides you with the confidence that the job has been done to a high standard and protects your investment.

Extending Vehicle Lifespan

By addressing engine wear, reconditioning can significantly extend the overall lifespan of your vehicle. It's often a more sensible option than scrapping a car with a worn engine but a good body and other systems.

When Should You Consider Engine Reconditioning?

Several indicators might suggest that your engine is a candidate for reconditioning:

• Excessive Smoke: Blue smoke often indicates oil burning in the combustion chamber (worn piston rings or valve seals), while white smoke can suggest coolant entering the cylinders (a blown head gasket).
• Loss of Power: A noticeable decrease in acceleration and overall engine power.
• Increased Oil Consumption: Constantly needing to top up engine oil between services.
• Knocking or Pinging Noises: Unusual sounds from the engine, particularly under load, can indicate internal wear.
• Overheating: While often caused by cooling system issues, persistent overheating can sometimes be linked to internal engine problems like a compromised head gasket.
• High Mileage: Engines with very high mileage are naturally subject to wear and tear and may benefit from a rebuild.

Cave Hill Engine Services: Your Trusted Partner

Established in 1988, Cave Hill Engine Services, under the experienced guidance of Stu, has been a cornerstone of engine reconditioning in Lilydale and across Victoria for over three decades. Our professional team possesses deep technical knowledge and is dedicated to providing exceptional service. We understand the importance of a reliable engine, and our commitment to quality is underscored by our Extend Warranty. Whether you're a retail customer or part of the trade, we offer tailored solutions for your engine, cylinder head, and general servicing needs. We pride ourselves on our reputation for excellence, built on countless stout motors rebuilt and returned to the road.

Choosing the Right Service Provider: What to Look For

When entrusting your engine to a reconditioning service, consider the following:

• Experience and Reputation: Look for a company with a proven track record and positive customer testimonials.
• Transparency: A good service provider will clearly explain the process, the necessary work, and the associated costs.
• Quality of Parts: Inquire about the quality of replacement parts used.
• Warranty: A comprehensive warranty is a strong indicator of confidence in their work.
• Specialisation: Do they specialise in your type of engine (e.g., diesel, petrol, specific makes)?

Frequently Asked Questions

Q1: How long does engine reconditioning typically take?

A1: The timeframe can vary depending on the complexity of the work and the availability of parts, but it typically ranges from one to three weeks.

Q2: Is engine reconditioning suitable for all types of engines?

A2: Yes, engine reconditioning is a viable option for most internal combustion engines, including petrol, diesel, and performance engines.

Q3: What is the difference between reconditioning and a full engine replacement?

A3: Reconditioning revitalises your existing engine by repairing or replacing worn components. A full replacement involves installing a completely new or remanufactured engine unit.

Q4: Will my reconditioned engine be as good as new?

A4: A properly reconditioned engine will perform to original factory specifications, offering reliability and efficiency comparable to a new engine.

Conclusion

Engine reconditioning is a powerful solution for restoring vitality to your vehicle's heart. It offers a cost-effective, environmentally friendly, and performance-enhancing alternative to engine replacement. With the expertise and dedication of specialists like Cave Hill Engine Services, you can be assured of a high-quality rebuild that will keep you safely on the road for many miles to come. If your engine is showing signs of distress, don't delay; explore the benefits of professional engine reconditioning today.
