Cracking the Code: Essential Diesel Engine Service

Diesel engines are the workhorses of the automotive world, renowned for their durability, fuel efficiency, and immense torque. From commercial vehicles to personal cars, their robust design underpins countless journeys across the UK. However, even the most resilient engines require meticulous care and attention to maintain their peak performance and ensure a long operational life. When it comes to comprehensive diesel engine service, there's one critical aspect that often goes unnoticed until it's too late: the detection of hidden flaws within the engine's core components – specifically, cylinder heads and engine blocks. Overlooking these seemingly minor imperfections can lead to catastrophic failures, costing owners not just time and money, but also the peace of mind that comes with a reliable vehicle. This article delves into the indispensable process of crack detection and pressure testing, explaining why these procedures are not merely optional extras but fundamental steps in any thorough diesel engine overhaul.

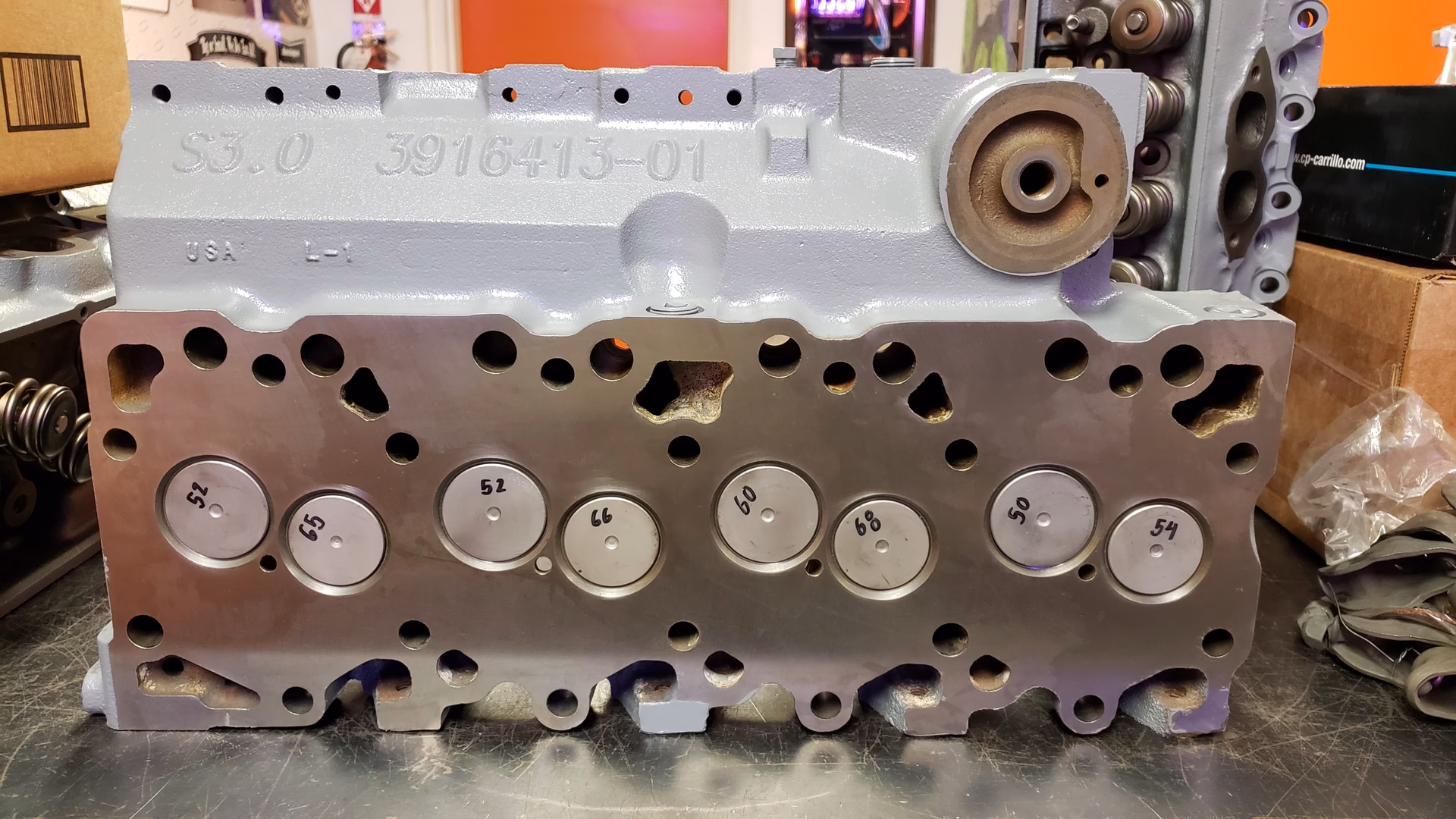

What is Diesel Engine Service?

At its heart, diesel engine service encompasses a broad range of maintenance and repair activities designed to keep your diesel engine running efficiently and reliably. This can range from routine oil changes and filter replacements to more intensive interventions like fuel system diagnostics, turbocharger inspection, and valve adjustments. However, when we talk about a truly comprehensive service, especially during an engine overhaul or rebuild, the focus shifts to the internal integrity of the engine's most vital components. It's during these deeper dives that the structural soundness of cylinder heads and engine blocks becomes paramount. Without a thorough assessment of these parts, even the most expertly assembled engine could harbour a ticking time bomb, ready to manifest as a major fault down the line.

The Hidden Threat: Cracks in Cylinder Heads and Engine Blocks

Cylinder heads and engine blocks are the foundational structures of your diesel engine. The cylinder head seals the combustion chamber and houses the valves, injectors, and camshaft, while the engine block forms the main casing, containing the cylinders, crankshaft, and pistons. These components are subjected to extreme forces: immense pressures, rapid temperature fluctuations, and constant mechanical stress. Over time, these unrelenting conditions can lead to the formation of cracks.

The insidious nature of these cracks lies in their often-invisible presence. A hairline crack, barely discernible to the naked eye, might seem insignificant. Yet, it can represent a critical weakness. While some cracks might be benign, depending on their location and depth, others can compromise the engine's ability to hold pressure, lead to coolant or oil leaks, or even cause complete structural failure. The danger is that a small, non-leaking crack today offers no guarantee for tomorrow. As miles accumulate and the engine continues its demanding work, these cracks almost invariably spread and worsen, transforming a minor flaw into a major headache.

Why Cracks Form: Understanding the Stressors

The formation and propagation of cracks in diesel engine components are not random occurrences; they are a direct consequence of the immense stresses these parts endure. Several key factors contribute to their development:

• Heat and Thermal Stress: Diesel engines operate at extremely high temperatures. Repeated heating and cooling cycles cause the metal to expand and contract, leading to thermal fatigue over time. Localised hot spots can exacerbate this, creating areas of intense stress.
• Heavy Loads and Mechanical Stress: The sheer power and torque produced by diesel engines mean components are constantly under heavy mechanical load. The forces generated during combustion, the movement of pistons, and the rotation of the crankshaft all exert significant stress on the block and head.
• Repeated Bending and Flexing: Though seemingly rigid, engine components experience subtle bending and flexing under operational loads. This continuous cyclical stress can lead to material fatigue, where the metal weakens over time.
• Pounding and Vibration: The inherent nature of internal combustion involves constant pounding and vibration. While engines are designed to dampen these, prolonged exposure contributes to general wear and tear and can initiate micro-cracks.
• Material Imperfections: Sometimes, cracks can originate from microscopic imperfections or inclusions within the metal casting itself, which then propagate under operational stress.

When metal begins to pull away from metal, it's a clear indication that a particular area is experiencing more stress than it can adequately handle, setting the stage for crack formation.

The Cost of Neglect: Why Early Detection Matters

In an era of high labour costs, the decision to skip thorough crack detection might seem like a way to save money upfront. However, this is often a false economy. Imagine investing significant time and resources into machining, reconditioning, and assembling an engine, only to discover a critical flaw in a core component after it’s been put back into service. The financial implications can be staggering.

Without proper inspection, there's no way to guarantee that critical parts like cylinder heads and blocks will withstand normal operational demands. The most frustrating scenario is when an engine is fully assembled and run up to working temperature, only for a previously undetected crack to manifest as a leak or a loss of compression. At this point, the entire engine may need to be disassembled again, incurring double the labour costs, additional parts, and significant downtime for the vehicle. This is why precision and thoroughness at the overhaul stage are not just recommended, but absolutely essential to prevent costly reworks and ensure the engine's long-term longevity.

The Essential Process: Crack Detection Methods

Identifying cracks requires specialised techniques beyond a simple visual check. While a basic visual inspection is always the first step, it’s often insufficient for detecting the microscopic or subsurface cracks that pose the greatest threat.

Magnetic Particle Inspection (MPI)

Magnetic Particle Inspection (MPI) is a highly effective non-destructive testing (NDT) method for detecting surface and near-surface cracks in ferromagnetic materials, such as cast iron engine blocks and steel cylinder heads. The process involves:

1. Magnetisation: The component is magnetised, typically by passing an electric current through it or placing it in a magnetic field.
2. Particle Application: Fine ferromagnetic particles (often iron filings, suspended in a liquid or dry powder) are applied to the surface of the component.
3. Crack Indication: If a crack is present, it creates a magnetic leakage field. The magnetic particles are attracted to this leakage field, clustering along the crack line and making it visible, often under UV light if fluorescent particles are used.

MPI is excellent for detecting even very fine cracks that might otherwise be invisible.

Dye Penetrant Inspection (DPI)

Dye Penetrant Inspection (DPI), also known as liquid penetrant inspection (LPI), is another widely used NDT method, suitable for detecting surface-breaking defects in all non-porous materials, including aluminium cylinder heads and blocks, as well as cast iron. The steps are:

1. Surface Preparation: The surface is thoroughly cleaned to remove any contaminants.
2. Penetrant Application: A liquid penetrant (often brightly coloured or fluorescent) is applied to the surface and allowed to dwell for a specific time, seeping into any surface-breaking defects.
3. Excess Penetrant Removal: The excess penetrant is carefully removed from the surface, leaving only the penetrant trapped within the cracks.
4. Developer Application: A developer is applied, which draws the penetrant out of the defects, making them visible as brightly coloured or fluorescent indications against a contrasting background.

DPI is versatile and can reveal very fine, tight cracks on the surface.

Pressure Testing: The Ultimate Integrity Check

While MPI and DPI are excellent for surface cracks, they don't assess the internal integrity or the ability of a component to hold fluids under pressure. This is where pressure testing becomes indispensable, particularly for cylinder heads and engine blocks.

Pressure testing involves sealing off all openings in the cylinder head or block (such as coolant passages, oil galleries, and combustion chambers) and then introducing air or water under pressure. The component is often submerged in a tank of heated water, allowing the metal to expand and simulate operational conditions. Any leaks, whether from a crack or a porous casting, will become evident through bubbles escaping from the submerged component or a drop in pressure on the gauge.

The true value of pressure testing lies in its ability to confirm whether the casting can indeed hold pressure, a fundamental requirement for any engine component. Without this step, even a visually perfect component might fail once subjected to the thermal and pressure stresses of an operating engine, leading to coolant loss, oil contamination, or compression issues. This provides the ultimate assurance of a component's structural integrity.

When is Crack Detection and Pressure Testing Essential?

The most critical time for thorough crack detection and pressure testing is during the overhaul or rebuild of a diesel engine. Any time a cylinder head or engine block is removed, disassembled, or intended for reuse, these inspections are non-negotiable. This includes:

• When an engine has overheated.
• After an engine has experienced a severe mechanical failure.
• During a routine engine rebuild or reconditioning.
• When sourcing used or reconditioned components.
• Prior to any significant machining work, to avoid wasting effort on a flawed part.

By performing these tests at the overhaul stage, you can identify and address potential problems before the engine is reassembled, saving immense amounts of time, effort, and money.

Benefits of Professional Crack Detection

Investing in professional crack detection and pressure testing offers numerous benefits:

• Cost Savings: Prevents costly reworks and premature engine failures, saving on labour, parts, and downtime.
• Enhanced Reliability: Ensures the engine components are structurally sound, leading to a more reliable and dependable engine.
• Increased Longevity: By addressing hidden flaws, the overall lifespan of the engine is significantly extended.
• Peace of Mind: Knowing that critical components have been thoroughly inspected provides confidence in the engine's performance.
• Safety: Reduces the risk of unexpected engine failures that could compromise vehicle safety.

Comparison Table: Common Crack Detection Methods

Frequently Asked Questions (FAQs)

Q1: Can I detect cracks myself without special equipment?

While you can perform a basic visual inspection, truly critical and often hidden cracks (especially hairline or subsurface ones) require specialised non-destructive testing (NDT) methods like Magnetic Particle Inspection (MPI) or Dye Penetrant Inspection (DPI), along with pressure testing. Relying solely on visual checks is risky.

Q2: Are all cracks a cause for concern?

Not necessarily. Some very minor, non-propagating cracks in non-stressed areas might not pose a problem. However, cracks in critical areas (e.g., combustion chambers, coolant passages, main bearing webs) or any crack that shows signs of spreading must be addressed. It's always best to consult with an experienced engine machinist or technician for assessment.

Q3: How much does crack detection and pressure testing cost?

The cost varies depending on the component (head vs. block), the size, and the specific methods used. However, it is a small investment compared to the potential costs of engine failure, re-machining, and double labour if a flawed part is used. Always get a quote from a reputable engine shop.

Q4: Can cracked components be repaired?

Yes, many cracks in cylinder heads and engine blocks can be professionally repaired through welding, stitching, or pinning techniques. The feasibility and cost-effectiveness of repair depend on the crack's location, size, and severity. Pressure testing is crucial after any repair to confirm its success.

Q5: Why is pressure testing done with heated water?

Heating the water (and thus the component) during pressure testing helps simulate the thermal expansion that occurs when the engine is operating. This can reveal cracks or porosity that might not be evident when the metal is cold and contracted, ensuring a more thorough and accurate test.

Q6: Does crack detection prevent all future engine problems?

While crack detection and pressure testing are crucial for identifying structural integrity issues in cylinder heads and blocks, they are just one part of comprehensive engine service. They don't prevent issues related to wear and tear of other components, improper assembly, or poor maintenance practices. However, they significantly reduce the risk of catastrophic failure due to casting flaws.

Conclusion

In the demanding world of diesel engines, shortcuts invariably lead to breakdowns. The meticulous process of crack detection and pressure testing for cylinder heads and engine blocks is not a luxury; it's an absolute necessity for anyone undertaking a serious engine service or overhaul. By investing in these vital inspections, you safeguard against the hidden threats that can undermine even the most robust engine. It's about more than just finding flaws; it's about ensuring the integrity of your engine's core, preserving its longevity, and ultimately, delivering the reliable performance you depend on. Don't let unseen weaknesses compromise your investment – make thorough crack detection and pressure testing a cornerstone of your diesel engine maintenance strategy.
