Testing Common Rail Diesel Injectors: A UK Guide

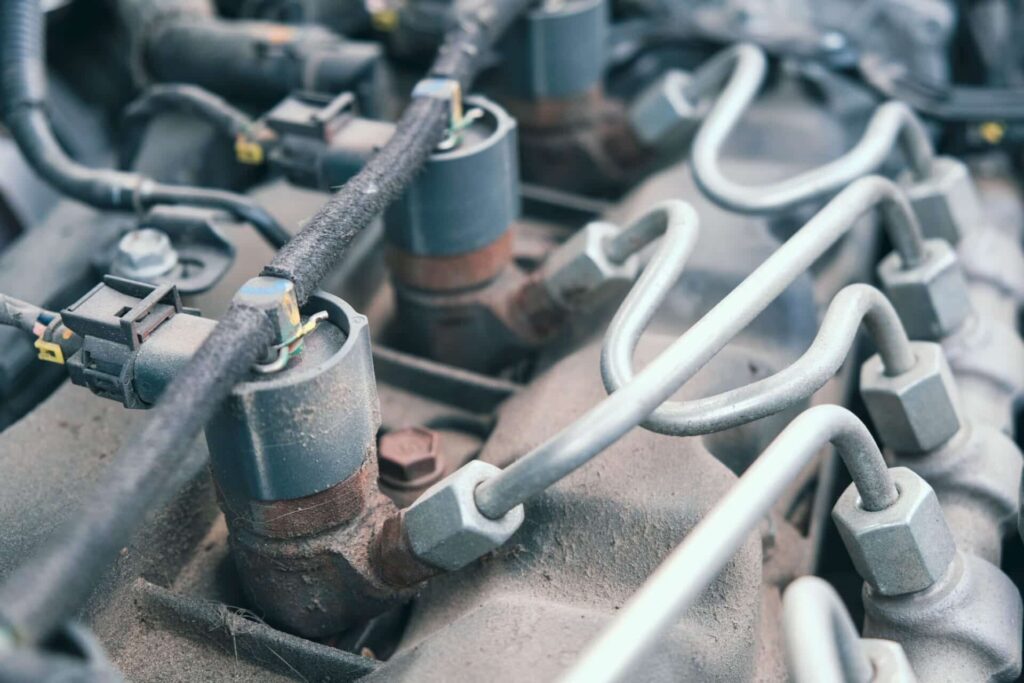

Modern common rail diesel engines, prevalent in vehicles since the early 2000s, represent a significant leap in automotive engineering. Gone are the days of simple mechanical injection; today's diesels operate with intricate computer-controlled systems, delivering fuel at astonishingly high pressures – often exceeding 10,000 psi. While these advancements bring superior fuel efficiency, lower emissions, and enhanced performance, they also introduce a level of complexity that demands specialised knowledge and equipment for effective diagnosis and repair. Understanding how to test and maintain these sophisticated systems, particularly the common rail injectors, is paramount for any vehicle owner looking to avoid costly breakdowns and ensure their diesel vehicle remains reliable on UK roads.

Many standard garages, while proficient with petrol engines and older diesels, often lack the specific expertise and diagnostic tools required to comfortably tackle the nuances of common rail technology. This is precisely where dedicated diesel specialists become indispensable. Their daily work revolves around these complex systems, from non-starting vehicles to the frustratingly intermittent problems that often plague owners. The ability to accurately diagnose problems within a short timeframe, often within an hour, stems from having the right skills, the correct tools, and, critically, access to all the relevant manufacturer data.

Why Specialist Expertise is Crucial for Common Rail Diagnostics

The intricate design of common rail diesel systems means that even seemingly minor faults can have significant repercussions. The interplay between the Engine Control Unit (ECU), a myriad of sensors (boost pressure, rail pressure, etc.), actuators, and components like EGR valves, wastegates, and turbochargers creates a highly sensitive network. Diagnosing issues within this network requires a deep understanding of its operation and the capability to interpret complex electronic signals. Unlike simpler systems, a fault in one area can manifest symptoms in another, making a systematic, expert approach essential.

Diesel specialists possess both the in-house skills and the specialist equipment to diagnose faults across all makes and models of diesel cars and light commercial vehicles, whether naturally aspirated or turbo-diesel. This capability extends to identifying and testing individual diesel components directly on the vehicle. This on-vehicle testing is a game-changer, allowing for 100% certainty in pinpointing the exact part or component causing the problem, thereby avoiding unnecessary replacements and saving vehicle owners significant sums of money.

Common Causes of Common Rail Diesel Injector Failures

Common rail diesel injectors are engineered to operate under extreme pressures with incredibly tight tolerances. This precision makes them highly susceptible to wear and tear from various environmental and operational factors:

• Particle Contamination: With internal clearances as minute as 1 micron, even the smallest foreign particles can inflict substantial damage. Ineffective fuel filtration allows these particles to erode critical components like the control valve and ball, leading to poor sealing and distorted fuel spray patterns. Over time, this compromises the quantity, timing, and distribution of the injected fuel, affecting engine performance and efficiency.
• Water Contamination: Diesel fuel is hygroscopic, meaning it readily absorbs water from the atmosphere. If fuel is not stored or handled correctly, water can enter the system. When water mixes with diesel, it can react with chemicals in the fuel, causing corrosion of metal surfaces and reducing the vital lubrication between moving parts. This significantly accelerates the wear of both the injectors and the high-pressure fuel pump.
• Deposit Build-up (Lacquering/Coking): Carbon deposits, often referred to as coking or lacquering, can form around the nozzle tip and within the injector's internal parts, particularly if fuel is left in the injector after engine shutdown. These deposits can cause the injector needle to stick, severely disrupting both the fuel quantity and the precise timing of the injection.
• Incorrect Installation: Poor installation practices are a surprisingly common cause of premature injector failure. A missing or improperly seated nozzle washer, for instance, allows combustion residue to leak past, leading to further issues. Similarly, seal rings can easily roll out of their grooves during installation. These seemingly minor errors can escalate into significant problems, including poor injector performance, starting difficulties, and reduced fuel efficiency.

Recognising the Symptoms of Faulty Common Rail Diesel Injectors

A failing common rail diesel injector can manifest a range of noticeable symptoms, impacting your vehicle's performance and reliability. Being aware of these signs can prompt early diagnosis and potentially prevent more severe damage:

The Comprehensive Diagnostic Process for Common Rail Injectors

Accurately diagnosing common rail diesel injector issues requires a systematic approach and the use of sophisticated diagnostic tools. Here's how specialists typically proceed:

1. Identify the Fault Code: The first step is to connect a high-quality diagnostic tool to the vehicle's On-Board Diagnostics (OBD) system. This interrogates the ECU for any stored fault codes related to the fuel injection system. These codes provide a crucial starting point for investigation.
2. Check the Injectors' Functionality (Back Leakage Test): If a fuel injection system fault code is present, the next step often involves checking individual injector functionality. Tools like a 'Sealed Rail Diagnostic Kit' are used to connect to each injector, collecting and measuring the back leakage flow. An excessive back leakage flow from a particular injector is a strong indicator of an internal fault, suggesting it may need replacement. This test can often be performed without removing the injectors from the engine.
3. Check the Common Rail Pump Function: The high-pressure common rail pump is vital. The Sealed Rail Kit can be fitted directly onto the high-pressure outlet pipe from the pump. By cranking the engine, the pressure generated in the system is recorded. If this measured pressure significantly deviates from the manufacturer's specified value for that vehicle application, it suggests a potential fault with the pump itself.
4. Confirm Mechanical or Electrical Pump Fault: To differentiate between a mechanical and an electrical fault within the common rail pump, a 'False Actuator Kit' is used in conjunction with the Sealed Rail Kit. If the pump generates the correct pressure when the False Actuator is in place, it indicates that the vehicle's original pump actuator may be faulty (an electrical issue). However, if the pressure remains below the required level even with the False Actuator, it points towards a mechanical fault within the common rail pump.
5. Test the Injectors' Electrical Integrity: Modern common rail injectors are electronically controlled. An 'Electronic Injector Test Kit' is employed to assess their electrical health. This kit can test for open coil circuits, internal coil short circuits, and coil insulation to the injector body. It also measures the coil's resistance and inductance, identifying any electronic failures that might be preventing the injector from operating correctly.
6. Diagnose and Resolve Early Stage Lacquering: If the preceding tests do not identify a clear fault, early-stage valve lacquering (deposit build-up) might be the culprit. A 'buzz' test, using the Electronic Injector Test Kit, checks if the injector's internal valve is moving freely. If restricted, an 'Injector Solvent Cleaning Kit' can be used to clean the lacquering from the valve, potentially restoring injector function without replacement.

On-Vehicle vs. Bench Testing: The Advantages

A key advantage offered by specialist diagnostic centres is the capability to test and prove both traditional and common rail injectors directly on the vehicle. This on-vehicle testing, especially the ability to test common rail diesel injectors without removing them from the engine, offers significant benefits. It saves valuable time for the customer and, crucially, avoids potential problems associated with seized injectors, which can be incredibly difficult and costly to remove once corroded into the cylinder head. While bench testing offers precise measurement in a controlled environment, initial on-vehicle diagnostics can often pinpoint the faulty component more efficiently.

Beyond Injectors: Comprehensive Diesel System Diagnostics

A holistic approach to diesel diagnostics is essential, as issues often interlink. Specialists also focus on:

• Fuel Pressure Problems: Utilising the very latest oscilloscopes and proven procedures, specialists can identify issues with both low-pressure (in-tank) pumps and high-pressure pumps. Accurate pressure monitoring is critical for common rail system function.
• Induction System Leaks: Modern vehicles rely on turbochargers and intercoolers for performance. Leaks in the induction system (pipework, intercoolers, vacuum pipes, and actuators) can severely impact engine power and efficiency. The latest smoke generators are used to test the entire system for leaks, a technique also applied to check for exhaust system integrity.
• DPF Filters (Diesel Particulate Filters): The DPF is a common source of problems for modern diesels. Manufacturers installed these filters to reduce soot emissions, but often failed to adequately warn owners about their operational requirements. Too much short-journey, town driving prevents the DPF from regenerating (burning off soot), leading to warning lights, reduced power (limp mode), and ultimately, blockages. Specialists are seeing a huge increase in DPF faults, often after owners have unnecessarily replaced the DPF filter at huge expense at regular garages.

There's far more to DPF systems than often understood. Simple issues like a lack of DPF additive (Eolys fluid) or even a faulty filler cap sensor can prevent the DPF system from functioning correctly. Specialists can diagnose all manner of DPF faults, perform essential resets and forced regenerations on all makes and models, and often clean blocked DPF filters on the car. In severe cases, removal for off-vehicle cleaning might be necessary. Crucially, for a range of vehicles, specialists can also top up and regenerate the DPF system with the correct fluid, and in some situations, even remove the DPF from both the vehicle and the ECU by reprogramming the ECU – a service that can save delighted owners thousands of pounds.

If a DPF warning light illuminates, prompt action is vital. Delaying diagnosis can lead to more costly problems. Getting the car to a specialist who can accurately identify and solve the problem as soon as possible is highly recommended. These specialists repair DPF-equipped vehicles daily and are adept at cleaning blocked filters and managing the associated system requirements.

Maintaining Common Rail Diesel Injectors for Longevity

Regular and proactive maintenance is paramount to ensure your common rail diesel injectors remain in optimal working order, extending their lifespan and preventing costly repairs:

• Inspect Injectors Regularly: Ideally, have your injectors inspected every 20,000 miles or as per your vehicle's service schedule. Early detection of minor issues can prevent them from escalating.
• Use Premium Quality Fuel: Always opt for premium quality diesel fuel, especially those with added detergents. These detergents help to keep engine parts clean and prevent the build-up of harmful deposits within the fuel system and on the injectors.
• Periodically Add a Fuel System Cleaner: As a supplementary measure, periodically adding a high-quality fuel system cleaner to your tank can help maintain the cleanliness of the fuel injection system, breaking down and removing minor deposits before they become problematic.
• Change Engine Oil Regularly: Ensure your engine oil is changed according to the manufacturer's specifications. Clean, fresh oil is crucial for overall engine health and efficiency, indirectly supporting the fuel system by ensuring optimal engine operation.
• Replace Air, Oil, and Fuel Filters Regularly: Contaminants are the enemy of common rail systems. Regularly replacing your air, oil, and crucially, your fuel filters, is essential to prevent harmful particles and water from entering the engine and fuel injection system. The fuel filter, in particular, is the first line of defence against particle and water contamination reaching the injectors.
• Consider Driving Style: Your driving habits can impact the wear and tear on your fuel injection system. Frequent short, start-stop journeys, especially in urban environments, can increase deposit build-up and stress on components. Occasional longer journeys at consistent speeds can help with DPF regeneration and keep the system cleaner.

Replacing a Common Rail Injector: A Brief Overview

Once a faulty injector has been positively identified, its replacement is a precise process. Specialists will first check for any residual pressure in the system using a diagnostic tool. The injector pipe is then removed, and any exposed pipes are immediately capped to prevent contamination. The back leakage line, electrical connector, and holding clamp are detached, and the faulty injector is carefully withdrawn from its seat.

A critical step is noting the new correction code of the replacement injector. The new injector is carefully slid into position, and the retaining clamp is refitted and torqued precisely to the manufacturer's specifications. The electrical connector and back leakage line are then reconnected. A new high-pressure pipe is installed and torqued correctly using proper tooling. Finally, the ECU must be reprogrammed with the new correction code of the replacement injector using a diagnostic tool. This step is vital to ensure correct fuel delivery and optimal engine performance, as each injector has unique flow characteristics that the ECU needs to compensate for.

Frequently Asked Questions About Common Rail Diesel Injectors

Navigating the world of common rail diesel can be daunting, so here are answers to some common questions:

Can I test common rail injectors myself at home?

While some basic checks like listening for injector 'clatter' or observing exhaust smoke might hint at issues, accurately testing common rail injectors requires specialised diagnostic tools, high-pressure equipment, and detailed manufacturer data. Attempting advanced diagnostics without the correct equipment can lead to misdiagnosis, further damage, and potential safety risks due to the extremely high fuel pressures involved. It's strongly recommended to consult a diesel specialist.

What is the typical lifespan of a common rail injector?

The lifespan of a common rail injector can vary significantly depending on fuel quality, maintenance regularity, driving conditions, and the vehicle's make and model. While some can last well over 100,000 miles, factors like poor fuel quality, contamination, and neglected maintenance can drastically reduce their lifespan. Regular servicing and proactive measures like using premium fuel are key to maximising their durability.

Why are common rail diesel systems so complex?

The complexity of common rail systems stems from the need to meet increasingly stringent emissions regulations while simultaneously improving fuel efficiency and engine performance. Achieving this requires precise control over fuel injection timing, quantity, and pressure, which necessitates sophisticated electronic control units, numerous sensors, and actuators operating at extremely high pressures. This allows for multiple injection events per combustion cycle, fine-tuning the combustion process.

What does 'limp mode' mean in relation to a DPF fault?

'Limp mode' is a protective feature activated by the vehicle's ECU when it detects a serious fault that could lead to engine damage. In the context of a DPF fault, if the filter becomes excessively blocked and regeneration attempts fail, the ECU will often trigger limp mode to reduce engine power, prevent further soot build-up, and protect the DPF and other engine components. It's a clear warning that immediate attention is required.

How often should I service my common rail diesel vehicle?

Always follow your vehicle manufacturer's recommended service intervals, which are typically specified in your owner's manual. These intervals are designed to ensure all critical components, including the fuel system, are regularly inspected and maintained. For common rail diesels, adherence to these schedules, particularly for fuel filter and oil changes, is even more critical due to the system's precision and sensitivity to contaminants.

In conclusion, while the advanced nature of common rail diesel systems offers numerous benefits, it also demands a specialist approach to diagnosis and repair. Entrusting your vehicle to a reputable diesel specialist with the right skills, equipment, and data can save you time, money, and ensure the long-term reliability of your vehicle. Proactive maintenance and prompt attention to any warning signs are your best defence against costly common rail injector and system problems.
