15/07/2024
When it comes to optimising your vehicle's performance, the fuel system is a critical component. At the heart of this system often lie the fuel injectors, responsible for delivering the precise amount of fuel needed for combustion. Among the leading names in high-performance fuel injectors, DeatschWerks (DW) stands out for its commitment to quality, precision, and extensive support. Whether you're upgrading an iconic Datsun or fine-tuning a modern powerhouse, understanding the DeatschWerks offering can be key to unlocking your engine's full potential.
The DeatschWerks Advantage
DeatschWerks has carved a niche for itself by focusing on delivering injectors that not only perform exceptionally but also offer a hassle-free installation and reliable data. Their philosophy centres around combining precision, drop-in fitment, dynamic data, and exceptional value to maximise your performance outcome. This approach has made them a go-to brand for enthusiasts and professional tuners alike.
A Comprehensive Range of Injectors

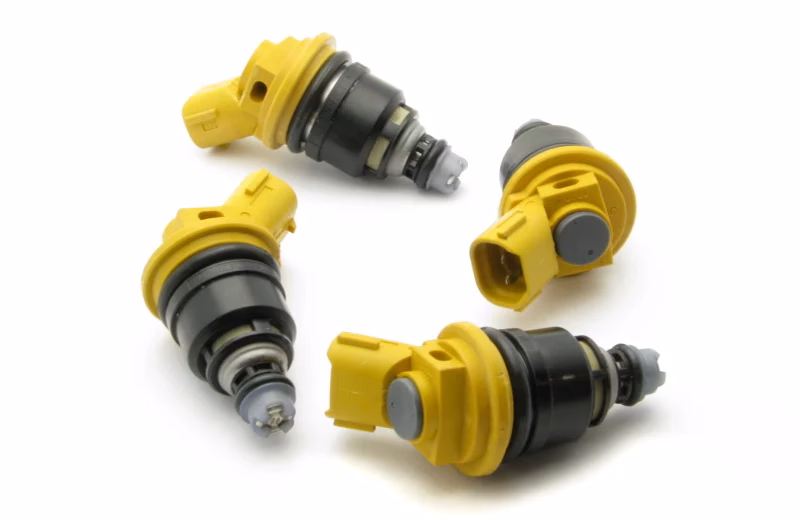

One of the first questions many enthusiasts have is about the variety of injectors available. DeatschWerks offers a comprehensive and best-supported injector line in the industry. While a specific total number can fluctuate with new product releases, they cater to a vast array of applications and performance goals. For instance, a popular offering is the DeatschWerks Set of 4 Injectors, often found in 1000cc/min (High Impedance) configurations. These are designed to meet the demands of modified engines requiring significantly more fuel than stock. The availability of different flow rates, impedance types (high and low), and injector lengths ensures that there's a DW injector suitable for a wide spectrum of engine builds, from mild street modifications to extreme racing applications.
What Exactly is a DW Injector?
A DW injector is more than just a fuel delivery device; it's a meticulously engineered component designed for optimal performance. DeatschWerks differentiates itself by collecting an impressive 450 data points on each injector part number. This deep dive into injector characteristics allows them to provide highly accurate information for tuning. Key features of DW injectors include:
- Precision Flow Matching: Each set of injectors is dynamically flow-matched to ensure consistent fuel delivery across all cylinders. This is crucial for a smooth-running engine and optimal performance.
- Drop-in Fitment: DW injectors are designed to fit seamlessly into the factory fuel rail and intake manifold, minimising the need for complex modifications. This "plug-and-play" approach saves time and reduces the risk of installation errors.
- Dynamic Data: Beyond static flow rates, DW provides dynamic data that accounts for how the injector behaves under various operating conditions. This dynamic data is invaluable for accurate ECU tuning.
- Exceptional Value: Despite their high performance and advanced features, DeatschWerks injectors are competitively priced, offering excellent value for money.
Fueling Iconic Engines: The SR20 Example
The SR20 engine, found in many legendary Nissan vehicles like the Silvia and Skyline, is a popular choice for performance enthusiasts. When undertaking significant upgrades, such as switching to a standalone ECU, a complete fuel system overhaul is often necessary. This is where DeatschWerks injectors shine. For an SR20, upgrading to higher-flow injectors like the 1000cc/min set can be a crucial step to support increased boost pressure, engine displacement, or other performance modifications. Ensuring you have enough fuel, and a reliable way to control it, is paramount. As highlighted by @adam_lz's experience upgrading his Datsun injectors after a standalone conversion, the right injectors are fundamental to safely and effectively extracting more power from an engine. A complete DeatschWerks fuel overhaul for an SR20 would typically involve not just injectors but potentially a higher-flow fuel pump and an adjustable fuel pressure regulator to ensure the entire system is balanced and capable of meeting the engine's demands.
Injector Sizing: A Crucial Decision
Choosing the correct injector size is one of the most critical aspects of engine tuning. Injector size, typically measured in cc/min (cubic centimetres per minute) or lb/hr (pounds per hour), dictates the maximum amount of fuel an injector can deliver at a given fuel pressure. Undersized injectors can lead to a lean fuel mixture, potentially causing engine damage due to detonation or overheating. Oversized injectors, on the other hand, can make it difficult to achieve a proper idle or low-speed fuel mixture, leading to a rich condition and poor drivability. Factors to consider when sizing injectors include:
- Horsepower Target: This is the primary driver for injector sizing. A general rule of thumb is to aim for injectors that are roughly 20% larger than your calculated maximum fuel requirement to provide headroom for future upgrades or unexpected conditions.
- Engine Type and Configuration: Naturally aspirated, turbocharged, or supercharged engines have different fuel requirements. Forced induction engines typically need significantly larger injectors due to the increased air density and potential for higher power output.
- Fuel Type: Using fuels like E85 requires a larger injector size (typically 30-40% larger) compared to gasoline because E85 has a lower energy density and requires more volume for the same power output.
- Fuel Pressure: Injector flow rates are usually specified at a particular fuel pressure (e.g., 3 bar or 43.5 psi). If your fuel system operates at a different pressure, you'll need to adjust the flow rate accordingly using injector flow rate calculators.
High vs. Low Impedance Injectors
DeatschWerks offers both high and low impedance injectors, and understanding the difference is vital for compatibility with your ECU and wiring harness.
| Feature | High Impedance (Low Resistance) | Low Impedance (High Resistance) |
|---|---|---|
| Coil Resistance | Typically 12-16 Ohms | Typically 2-4 Ohms |
| ECU Compatibility | Directly compatible with most factory ECUs and many aftermarket ECUs without additional resistors. | Require ballast resistors or specific driver modules if the ECU is not designed for low impedance injectors. |
| Flow Rate Range | Available across a wide range of flow rates. | Often used for very high flow rates where faster injector response is beneficial. |
| Heat Generation | Generate less heat. | Can generate more heat, requiring proper management. |
DeatschWerks' high impedance injectors, such as the 1000cc/min set, are often favoured for their ease of integration with most modern engine management systems. They typically do not require external resistors, simplifying the wiring process.
Installation and Tuning Considerations
While DeatschWerks injectors are designed for drop-in fitment, proper installation and tuning are crucial for optimal performance and longevity.
- Installation: Ensure the fuel rail and intake manifold are clean. Use new O-rings and pintle caps, which are usually supplied with the injectors or available separately. Proper seating of the O-rings is essential to prevent fuel leaks.
- Tuning: After installation, the engine's ECU must be re-tuned to account for the new injector flow rates and characteristics. This typically involves adjusting the fuel maps (e.g., injector dead time, base fuel table) to ensure the engine runs efficiently and safely. Professional tuning is highly recommended to maximise the benefits of the new injectors and prevent potential engine damage.
Frequently Asked Questions
Q1: How many DeatschWerks injectors are there?
A1: DeatschWerks offers a very wide range of injectors, covering numerous flow rates, lengths, and specifications to suit a vast array of vehicles and performance needs. While a precise fixed number isn't practical to state as new products are developed, their line is considered one of the most comprehensive in the industry.
Q2: Does an SR20 engine get a complete DeatschWerks fuel overhaul?
A2: An SR20 engine *can* receive a complete DeatschWerks fuel overhaul. This would typically involve upgrading to DeatschWerks injectors (e.g., 1000cc/min), a DeatschWerks fuel pump, and potentially other supporting fuel system components to match the increased fuel demands of a modified SR20 engine, especially when paired with a standalone ECU.
Q3: What is a DW injector?
A3: A DW injector is a fuel injector manufactured by DeatschWerks. They are known for their precision, reliable data, drop-in fitment, and value, offering excellent performance and support for tuning enthusiasts.
Q4: How do I choose the right DeatschWerks injector size for my car?
A4: Choosing the right size involves calculating your engine's maximum horsepower and fuel requirement, considering factors like boost pressure, fuel type (e.g., E85 requires larger injectors), and fuel pressure. DeatschWerks provides detailed specifications and often flow charts to help you select the appropriate injectors for your specific application.
Q5: Are DeatschWerks injectors high or low impedance?
A5: DeatschWerks offers both high and low impedance injectors. High impedance injectors are generally more common for modern applications due to their compatibility with most ECUs without additional resistors. Always check the specifications for the specific part number you are considering.
Conclusion
DeatschWerks injectors represent a commitment to performance and precision in the automotive aftermarket. By offering a comprehensive range, detailed data, and a focus on user-friendly fitment, they empower enthusiasts to push the boundaries of their engines. Whether you're embarking on a major engine build or simply seeking to improve the efficiency and power delivery of your current setup, investing in quality fuel injectors like those from DeatschWerks is a decision that can yield significant returns in performance and reliability. Always remember to consult with experienced tuners and refer to the specific product documentation to ensure you select and install the correct components for your vehicle.
