When it comes to ensuring the optimal performance and longevity of your vehicle, precision is paramount. One of the most fundamental yet often overlooked aspects of automotive maintenance and repair is the correct alignment of various components. This is where the humble, yet incredibly powerful, dial indicator comes into play. But what exactly is dial indicator alignment, and why is it so critical?

Table

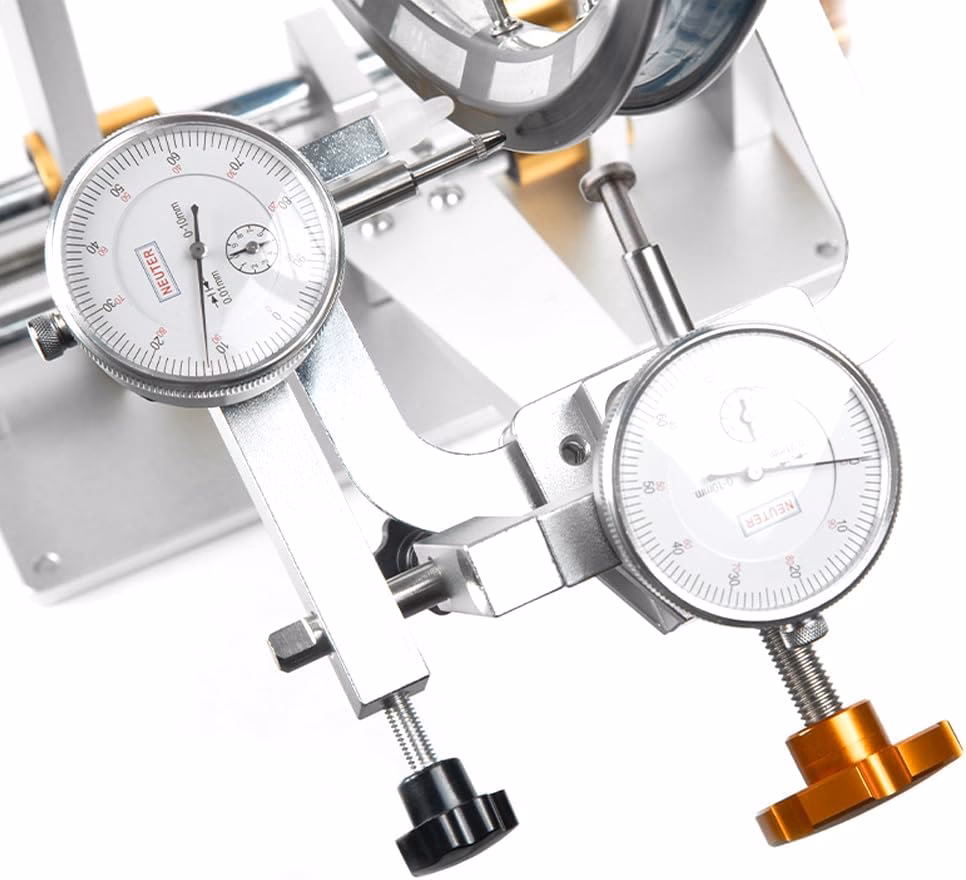

Understanding the Dial Indicator

Before we delve into alignment, let's quickly familiarise ourselves with the tool itself. A dial indicator is a precision measuring instrument used to measure small distances and displacements. It typically features a graduated dial face that displays measurements in thousandths of an inch or hundredths of a millimetre, driven by a finely geared mechanism. It's the go-to tool for detecting even the slightest runout, wobble, or misalignment in rotating parts or flat surfaces.

What is dial indicator alignment?
Dial Indicator Alignment Basics - Free download as Word Doc (.doc / .docx), PDF File (.pdf), Text File (.txt) or read online for free. Dial indicators are used to measure the relative position of machine shafts.

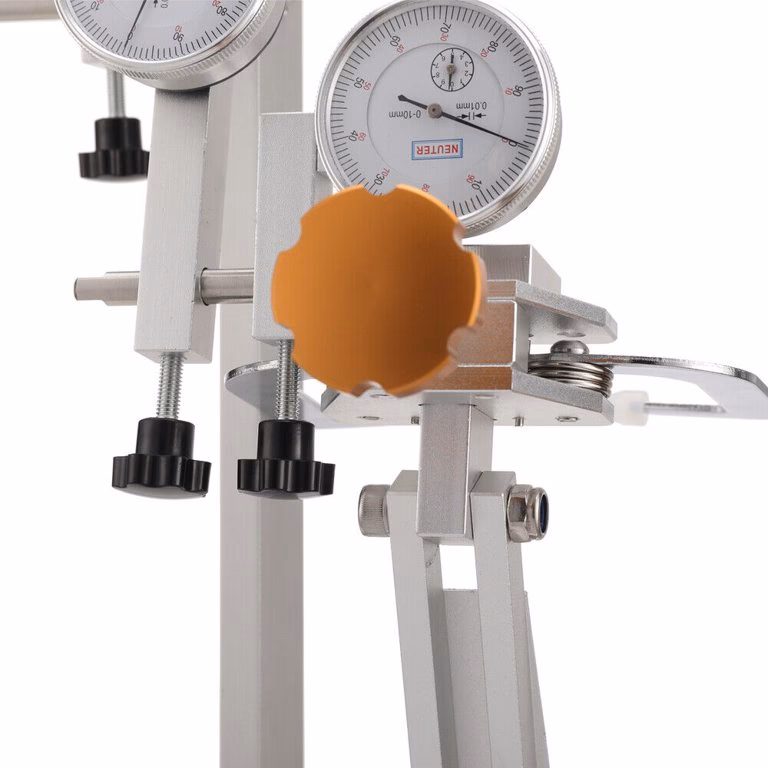

What is Dial Indicator Alignment?

Dial indicator alignment, in essence, is the process of using a dial indicator to verify and, if necessary, correct the precise positioning and concentricity of critical automotive components. It's about ensuring that parts are spinning true, surfaces are perfectly flat, and that the relationships between different components are exactly as the manufacturer intended. This level of accuracy is vital for a multitude of reasons, impacting everything from engine smoothnessto braking effectiveness.

Why is Dial Indicator Alignment So Important?

The reasons for meticulously aligning components with a dial indicator are numerous and significant:

  • Reduced Wear and Tear: Misaligned parts are subjected to uneven forces and stresses. This can lead to premature wear on bearings, seals, gears, and other vital components, drastically shortening their lifespan.
  • Improved Performance: Proper alignment ensures that components operate smoothly and efficiently. For example, correctly aligned wheels reduce rolling resistance, leading to better fuel economy and a more responsive drive.
  • Enhanced Safety: Critical systems like steering and braking rely heavily on precise alignment. Misalignment in these areas can compromise vehicle control and significantly increase the risk of accidents.
  • Reduced Vibrations and Noise: Unbalanced or misaligned rotating parts, such as wheels or driveshafts, can cause noticeable vibrations and noise, detracting from the driving experience and potentially indicating underlying problems.
  • Accurate Assembly: During engine rebuilds or other complex repairs, dial indicators are essential for ensuring that components like crankshafts, camshafts, and cylinder heads are perfectly seated and aligned.

Common Applications of Dial Indicator Alignment

Dial indicators are employed in a wide array of automotive applications. Here are some of the most common:

1. Wheel Alignment

While modern wheel alignment is largely done with sophisticated laser equipment, the fundamental principles of ensuring wheels are perpendicular to the ground and parallel to each other are rooted in the concepts measured by dial indicators. Historically, dial indicators were used to measure toe, camber, and caster on classic vehicles. Understanding these principles is still valuable.

2. Brake Disc (Rotor) Runout

This is perhaps one of the most common and critical uses of a dial indicator for the average motorist. A warped or improperly seated brake disc will cause pulsating brake pedals, uneven braking, and premature wear on brake pads and calipers. Dial indicators are used to measure the lateral and radial runout of the brake discs to ensure they are within manufacturer specifications. Even a slight deviation can cause noticeable issues.

Measuring Brake Disc Runout: A Step-by-Step Guide

  1. Ensure the wheel hub and the back of the brake disc are clean and free of debris.
  2. Mount the dial indicator securely to a stable point, often using a magnetic base attached to the suspension or caliper bracket.
  3. Position the probe of the dial indicator against the face of the brake disc, ensuring it's perpendicular to the surface.
  4. Rotate the brake disc slowly by hand, observing the dial indicator. Note the highest and lowest readings. The difference between these is the runout.
  5. Compare the measured runout to the vehicle manufacturer's specifications.
  6. If the runout is excessive, the disc may need to be skimmed (resurfaced) or replaced.

3. Crankshaft and Camshaft Straightness

In engine building and rebuilding, ensuring the crankshaft and camshafts are perfectly straight is absolutely vital. Any bend or runout in these core components will lead to severe engine imbalance, bearing damage, and catastrophic failure. Dial indicators are used to measure the runout at various journals along the crankshaft and camshaft.

4. Flywheel and Clutch Assembly Alignment

When replacing a clutch or flywheel, ensuring they are perfectly flat and concentric is important for smooth engagement and disengagement of the clutch. Dial indicators can be used to check for runout on the flywheel's mounting surface and the clutch cover.

5. Driveshaft and Axle Straightness

Similar to crankshafts, driveshafts and axles must be perfectly straight to avoid vibrations and ensure smooth power delivery. Dial indicators are used to check for runout along the length of these components.

6. Cylinder Head Flatness

After removing a cylinder head, especially if it's been overheated, it's crucial to check its flatness. A warped cylinder head can lead to blown head gaskets and coolant leaks. A straight edge is used in conjunction with a dial indicator to measure any deviation across the mating surface of the cylinder head.

Setting Up a Dial Indicator for Alignment Checks

A successful dial indicator alignment check relies on a proper setup. Here are the key considerations:

  • Stable Mounting: The dial indicator must be mounted rigidly. Any movement in the indicator or its mounting base will render the readings inaccurate. Magnetic bases are popular for their versatility, but ensure they have a strong hold.
  • Probe Contact: The probe of the dial indicator needs to make consistent contact with the surface being measured. Ensure the probe is perpendicular to the surface for accurate radial runout measurements, or parallel for axial runout.
  • Zeroing the Indicator: Before taking a measurement, the dial indicator needs to be zeroed. This is typically done by rotating the bezel of the dial so the needle points to zero when the probe is lightly pressed against the surface at the starting point.
  • Consistent Rotation: When checking rotating components, ensure you rotate them smoothly and consistently, ideally by hand, to avoid introducing external forces that could skew the readings.

Dial Indicator Specifications and Tolerances

Every component has specific tolerances set by the manufacturer. These are the maximum acceptable amounts of runout or misalignment. It's crucial to consult your vehicle's service manual for these specifications. For example:

ComponentTypical Tolerance (Runout)
Brake Disc (Lateral)0.001" - 0.003" (0.025mm - 0.076mm)
Crankshaft (Main Journals)< 0.0005" (< 0.013mm)
Cylinder Head (Flatness)< 0.002" (< 0.05mm) across length

Note: These are general examples; always refer to your specific vehicle's service manual.

Troubleshooting Common Alignment Issues

If your dial indicator readings are outside of specifications, it's time to investigate:

  • Brake Disc Runout: Check for debris between the disc and the hub, ensure the wheel nuts are torqued correctly, or consider resurfacing/replacing the disc.
  • Wheel Wobble: Could be due to bent wheels, unbalanced tyres, or issues with wheel bearings.
  • Engine Vibrations: May point to crankshaft issues, imbalance in rotating assemblies (flywheel, clutch), or even engine mounts.

Frequently Asked Questions

Q1: Can I use a dial indicator for wheel balancing?
No, a dial indicator is not used for wheel balancing. Wheel balancing involves adding small weights to the wheel rim to counteract imbalances detected by a balancing machine.

Q2: How do I know if my brake discs are warped?
Symptoms include a pulsating brake pedal, especially during hard braking, and a vibration felt through the steering wheel or the car's body. Measuring with a dial indicator confirms the extent of the warping (runout).

Q3: What's the difference between radial and axial runout?
Radial runout is the variation in distance from the centre of rotation to the surface being measured as it rotates. Axial runout (or wobble) is the variation in the component's angle relative to its intended plane of rotation.

Q4: Is dial indicator alignment a job for a DIY mechanic?
While basic checks like brake disc runout can be done by a skilled DIY mechanic with the right tools and knowledge, more complex alignments, especially those involving internal engine components, are best left to professionals.

Conclusion

Dial indicator alignment is a cornerstone of precision automotive work. It's a technique that, when applied correctly, can prevent premature component failure, enhance vehicle performance, and ensure the safety of you and your passengers. Whether you're a seasoned mechanic or a budding enthusiast, understanding and utilising the dial indicator is a skill that pays dividends in the long run. Always remember to consult your vehicle's service manual for specific tolerances and procedures.
