Decoding Airbag Faults: Your Guide to OBD-II Scanners

The illuminated airbag warning light on your dashboard can be a source of significant concern for any vehicle owner. It signifies a potential issue within the Supplemental Restraint System (SRS), a critical safety feature designed to protect occupants in the event of a collision. Understanding how to diagnose and address these faults is paramount for maintaining vehicle safety. A common question that arises is whether a standard OBD-II scanner is sufficient for this task, or if specialised equipment is required. This article delves into the world of airbag diagnostics, exploring the fault codes, the tools needed, and the process of resolving these often-intimidating issues.

Understanding Airbag Fault Codes

Airbag Electronic Control Units (ECUs) store diagnostic trouble codes (DTCs) when they detect a malfunction within the SRS. These codes act as a digital language, pointing technicians and informed owners towards the specific problem area. While some codes are manufacturer-specific, many fall under standardized classifications. Here are some common code ranges and their general implications:

Common Airbag DTC Ranges:

In essence, these codes frequently point to issues such as faulty airbag sensors (front, side, or rear), disconnected or damaged wiring, malfunctioning airbag modules, or problems within the deployment circuits. It’s crucial to remember that the exact description can vary, but the underlying theme is a disruption in the SRS's ability to function correctly.

The Essential Tool: OBD-II Scanner with SRS Capabilities

The critical question: can a standard OBD-II scanner diagnose airbag faults? The answer is nuanced. While a basic OBD-II scanner can retrieve generic powertrain codes (P-codes), it is often insufficient for delving into the intricacies of the SRS. To effectively diagnose and clear airbag fault codes, you will need an advanced scan tool that specifically supports airbag diagnostics or SRS codes.

Why a Standard OBD-II Scanner Might Not Be Enough:

• Limited System Access: Standard scanners are primarily designed for engine and emissions-related diagnostics. They may not have the necessary protocols or software to communicate with the airbag ECU.
• Generic vs. Specific Codes: Airbag systems generate unique codes (often starting with 'B' or 'C') that require specialised interpretation. A basic scanner will likely miss these.

Recommended Diagnostic Tools:

For effective airbag diagnosis, consider these types of tools:

1. Advanced OBD-II Scanners with SRS Functionality:

These are professional-grade tools that go beyond basic diagnostics. They are equipped to access various vehicle modules, including the SRS.

• Examples: Autel MaxiCOM or MaxiDiag series, Launch X431, Bosch KTS diagnostic tools, Snap-on SOLUS Ultra or MODIS, and Foxwell NT650 or NT530 are all well-regarded options.
• Functionality: They connect to the vehicle's OBD-II port (typically located under the dashboard near the driver's seat) and allow you to read, interpret, and often clear SRS fault codes. Many also offer live data streams from the airbag system and may provide guided troubleshooting steps.

2. Dedicated SRS Airbag Scanners:

Some tools are specifically built for the comprehensive diagnosis of airbag and other restraint systems. These can offer even more in-depth code reading, live data, and specialised functions tailored to the SRS.

• Examples: Autel MaxiSys, Launch X431 (specific models), and other specialised SRS diagnostic tools.

The Diagnostic Process: Step-by-Step

Once you have the appropriate tool, the process of checking and clearing airbag fault codes is relatively straightforward, but precision and safety are paramount.

Step-by-Step Guide:

1. Connect the Diagnostic Tool: Locate your vehicle's OBD-II port and securely plug in your chosen scanner.
2. Ignition Position: Turn the ignition key to the "ON" position. It's generally recommended not to start the engine at this stage, as this can sometimes interfere with the diagnostic process or trigger unwanted system responses.
3. Access the SRS System: Navigate through the scanner's menu to find and select the "Airbag System" or "SRS" option. The exact wording may vary depending on the scanner's software.
4. Read the Fault Codes: Initiate the code reading process. The scanner will communicate with the airbag ECU and display any stored DTCs. Make a detailed note of each code, including any accompanying descriptions provided by the scanner.
5. Interpret the Codes: This is a crucial step. Consult your scanner's built-in code library, the vehicle's owner's manual, or a reputable online database (like those offered by your scanner manufacturer) to understand the specific meaning of each code. For instance, a B0001 code typically points to a driver-side airbag module circuit issue.
6. Address the Underlying Issue:Crucially, do not simply clear the codes without addressing the root cause. This is a common mistake that leads to the codes returning immediately or, worse, an inoperative airbag system when it's needed most. If a code indicates a faulty sensor, a damaged wire, or a malfunctioning module, that component must be repaired or replaced first.
7. Clear the Fault Codes: Once the necessary repairs have been completed, you can use the diagnostic tool to clear the stored fault codes. Look for an option such as "Clear Codes," "Erase Faults," or "Reset Airbag System."
8. Cycle Ignition: The scanner may prompt you to turn the ignition off and then back on, or to restart the engine. Follow these instructions carefully.
9. Verify the Repair: Start the engine and observe the airbag warning light. If the repair was successful and the codes have been cleared properly, the warning light should extinguish.
10. Check for Recurring Codes: If the airbag warning light remains illuminated or reappears after a short period, it indicates that the original issue has not been fully resolved, or a new problem has emerged. Further diagnosis will be necessary.

Troubleshooting Common Communication Issues

One of the more frustrating problems can be when the airbag module itself is not communicating with the diagnostic tool. This can stem from several sources:

Reasons for Module Communication Failure:

• Improper Grounding: The airbag module must be securely bolted down during reinstallation. A loose or missing ground connection is a surprisingly common cause of communication problems.
• Damaged Communication Pins: Inspect the pins within the electrical connector where the wiring harness plugs into the airbag module. Look for any signs of corrosion, bending, or breakage. These pins are delicate and can easily become damaged during installation or removal.
• Scanner or Software Issues: As discussed, using an incompatible or outdated scanner is a primary culprit. Ensure your scanner explicitly supports SRS diagnostics for your vehicle's make and model, and always keep its software updated.
• Wiring Harness Damage: Inspect the wiring and harness leading to and from the airbag module for any cuts, abrasions, or other damage that could interrupt the communication signals.

If, after thorough inspection, you cannot identify the cause of communication failure, it may be necessary to consult a professional or consider sending the module to a specialised repair service, such as Safety Restore, for testing and potential refurbishment.

Keeping Your Scanner Up-to-Date

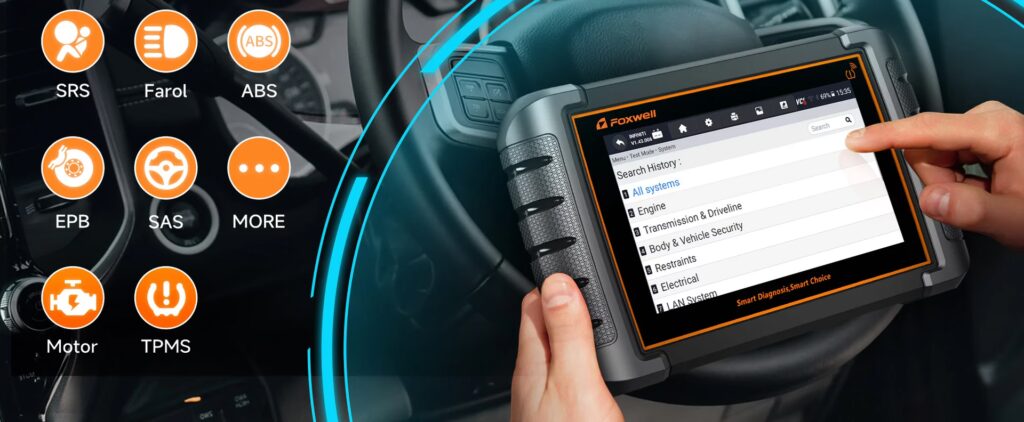

The automotive industry is constantly evolving, with new vehicle models and updated diagnostic protocols being released regularly. To ensure your diagnostic scanner remains effective, it is absolutely vital to keep its software current. Manufacturers often provide software updates that include new vehicle coverage, expanded code libraries, and improved diagnostic algorithms. Neglecting these updates can lead to an inability to diagnose newer vehicles or even accurately read codes from existing ones. Tools like the Foxwell NT809BT, with its Wi-Fi connectivity, make this process significantly easier, allowing for quick and effortless software updates.

Safety First: Working with Airbags

It cannot be stressed enough: the airbag system is a life-saving safety feature, but it can also be dangerous if handled improperly. Always adhere to the following safety precautions:

• Disconnect the Battery: Before working on any part of the SRS, always disconnect the negative terminal of the vehicle's battery. Allow several minutes for any residual charge in the system to dissipate. This is a critical step to prevent accidental airbag deployment.
• Follow Manufacturer Guidelines: Always refer to your vehicle's specific service manual for detailed procedures and safety warnings related to the SRS.
• Professional Assistance: If you are unsure about any aspect of diagnosing or repairing the airbag system, it is always best to seek assistance from a qualified and experienced mechanic. Tampering with the SRS without the proper knowledge and tools can have severe consequences.

Frequently Asked Questions (FAQs)

How do I connect an OBD2 scanner to read airbag codes?

Plug the OBD2 scanner into the vehicle's diagnostic port, which is typically located under the dashboard, usually on the driver's side. Ensure the ignition is in the 'ON' position without the engine running.

What should I do if my OBD2 scanner doesn't read airbag codes?

This usually means your scanner lacks the necessary functionality. You need a scanner that specifically supports SRS (Supplemental Restraint System) diagnostics. Check your scanner's specifications, and if it doesn't support SRS, consider purchasing one that does. Also, ensure the scanner's software is up to date.

Can I clear airbag codes with an OBD2 scanner?

Yes, many advanced OBD2 scanners that support airbag diagnostics do allow you to clear these codes. However, it is imperative that you first diagnose and repair the underlying fault that caused the code to be set. Clearing codes without fixing the problem is a temporary measure and can lead to system failure.

My airbag light is on, but my scanner doesn't show any codes. What could be wrong?

This could indicate a temporary fault that has self-cleared but left a history code (which some basic scanners might not read), a faulty bulb in the warning light itself, or a more complex issue within the module or wiring that requires a more advanced diagnostic tool or professional inspection.

Is it safe to clear airbag codes myself?

It can be safe if you have the correct diagnostic tool, understand the codes, and have addressed the underlying issue. However, due to the critical safety nature of the airbag system, if you are not confident in your abilities or the diagnosis, it is always safer to consult a professional mechanic.

In conclusion, while a basic OBD-II scanner may not be sufficient, an advanced scan tool with dedicated airbag diagnostic capabilities is an invaluable asset for any car owner looking to maintain the safety and integrity of their vehicle's SRS. By understanding the fault codes, using the right tools, and adhering to strict safety protocols, you can effectively diagnose and resolve airbag system issues, ensuring optimal protection for yourself and your passengers.
