Ford FDRS: The Ultimate Diagnostic Tool

Understanding Ford's Diagnostic Powerhouse: FDRS

When your Ford vehicle encounters an issue, the need for swift, accurate diagnosis and repair becomes paramount. Modern Fords are sophisticated machines, packed with complex electronic systems that require specialised tools for effective troubleshooting. This is precisely where the Ford Diagnostic & Repair System, commonly known as FDRS, comes into play. If you're a Ford owner in West Yorkshire, from Bradford to Wakefield, or a technician working with these vehicles, understanding FDRS is key to maintaining optimal performance and resolving faults efficiently.

What Exactly is Ford FDRS?

FDRS, or Ford Diagnostic and Repair System, is Ford's proprietary diagnostic software. It's the modern evolution of their previous diagnostic system, the Integrated Diagnostic System (IDS). Essentially, FDRS is a comprehensive software application designed to allow technicians to communicate with, diagnose, and repair Ford, Lincoln, and Mercury vehicles manufactured from 1996 onwards. It provides access to an extensive range of functions, including deep-level vehicle diagnostics, module programming, software updates, and system resets. For any professional working on Fords, FDRS is an indispensable tool, offering the detailed diagnostic information necessary for quick and precise repairs.

The Evolution from IDS to FDRS

The journey of Ford's diagnostic software began with the Integrated Diagnostic System (IDS) in the late 1990s. Over the years, Ford has consistently invested in improving and updating this crucial software. The result is the current iteration, FDRS. Each update has enhanced the software's capabilities, making it more powerful, user-friendly, and capable of handling the increasing complexity of modern vehicles. FDRS ensures that technicians are equipped with the latest tools and information, directly from the manufacturer, to address even the most intricate issues. This continuous development means that FDRS is always at the forefront of automotive diagnostic technology.

Key Features and Capabilities of FDRS

FDRS is not just a simple fault code reader; it's a sophisticated platform offering a multitude of features that streamline the diagnostic and repair process:

• Access to Latest Ford Diagnostic Information: FDRS is continuously updated with the most current diagnostic procedures, technical service bulletins (TSBs), and repair data directly from Ford. This ensures technicians are always working with accurate, up-to-date information.
• Vehicle-Specific Diagnostics: The system provides highly detailed diagnostic information tailored to each specific Ford model, year, and configuration. This granular approach allows for pinpoint accuracy in fault identification.
• Comprehensive System Tests: FDRS includes a wide array of diagnostic tests for various vehicle systems, including the engine, transmission, braking systems, suspension, climate control, and more. These tests help isolate the root cause of a problem.
• Live Data Streams: Technicians can monitor real-time data from hundreds of vehicle sensors. This live data, often presented in graphical formats, is crucial for diagnosing intermittent faults and understanding how different systems are performing under various conditions.
• Module Programming (FMP): A significant feature is Ford Module Programming (FMP), which allows for the programming, reprogramming, and configuration of various vehicle control modules (ECUs). This is essential for replacing faulty modules, updating software, or enabling new features.
• Guided Fault Finding: FDRS often includes guided diagnostic procedures. These step-by-step workflows assist technicians in systematically diagnosing and resolving complex issues, reducing guesswork and saving time.
• Software Updates and Reprogramming: Keeping the vehicle's software up-to-date is vital for performance, drivability, and emissions. FDRS facilitates the flashing of new software versions to existing ECUs, addressing known issues and improving functionality.
• Installation of New Control Units: When a control unit needs replacement, FDRS guides the technician through the process of installing and configuring the new unit, ensuring it communicates correctly with the rest of the vehicle's systems.
• Key Programming: FDRS can be used to program new keys and remote central locking fobs, a common requirement after a lost key or a battery replacement.
• Injector Coding: For diesel and some petrol engines, FDRS allows for the coding of new fuel injectors, ensuring optimal fuel delivery and engine performance.
• DPF Regeneration: For diesel vehicles equipped with a Diesel Particulate Filter (DPF), FDRS can initiate a forced regeneration cycle to clear soot buildup and restore filter efficiency.
• Brake Bleeding: Modern vehicles with ABS and electronic stability control often require specific procedures for bleeding the brake system, which FDRS can facilitate.
• Steering Angle Resets: After certain steering or suspension work, the steering angle sensor may need recalibration, a task that FDRS can perform.

Benefits of Using FDRS

The advantages of employing FDRS in an automotive repair setting are substantial:

• Faster Diagnosis and Repair Times: By providing direct access to manufacturer-level diagnostic data and guided procedures, FDRS significantly reduces the time it takes to identify and fix problems. This means less downtime for the customer.
• Accurate Diagnoses: The specificity of the data and the depth of the tests minimise the risk of misdiagnosis, ensuring that repairs are performed correctly the first time.
• Improved Workshop Efficiency: Streamlined diagnostic workflows and access to all necessary tools within one system boost overall workshop productivity.
• Enhanced Customer Satisfaction: Faster, more accurate repairs lead to happier customers who can rely on their vehicles. The ability to perform advanced functions like module programming and software updates also ensures that vehicles are repaired to the highest manufacturer standards.

FDRS vs. IDS: A Clarification

While the terms FDRS and IDS are often used interchangeably, it's important to note that FDRS is the newer, more advanced system. IDS was the predecessor. FDRS builds upon the foundation of IDS, offering enhanced coverage for newer models and incorporating more advanced diagnostic and programming functionalities. In essence, FDRS is the current generation of Ford's integrated diagnostic tool.

Specific Ford Models Supported

FDRS is designed to work with a vast array of Ford vehicles, including popular models such as:

• Ford Transit Custom
• Ford S-Max
• Ford C-Max
• Ford Focus
• Ford Fiesta
• Ford Mondeo
• Ford Kuga
• Ford Ranger
• Ford Ka
• Ford GT
• Ford Galaxy
• Ford EcoBoost models
• Ford Fusion

This extensive coverage ensures that whether you drive a family saloon, a commercial van, or a performance car, FDRS can provide the necessary diagnostic support.

Module Programming and Coding Capabilities

One of the most powerful aspects of FDRS is its ability to perform module programming and coding. This is crucial when replacing components like the Engine Control Module (ECM/PCM), Body Control Module (BCM), Anti-lock Braking System (ABS) module, or Airbag (SRS) module. Without proper programming and coding, a new module may not function correctly or at all. FDRS allows technicians to:

• Program Engine ECUs / PCMs
• Program Body Modules (BCM)
• Program CIM Modules
• Program Rear Body Modules
• Program Cooling System Control Units
• Program ABS Modules
• Program SRS / Airbag Modules
• Program Key Fobs and Immobiliser Systems
• Program Central Locking Systems
• And many other specific modules fitted to Ford vehicles.

Furthermore, FDRS includes tools like the Incode-Outcode Calculator, allowing for specific security-related functions, and access to special function sheets and engineering applications, providing a truly dealer-level diagnostic experience.

Requirements for Using FDRS

To effectively use FDRS, certain hardware and software requirements must be met:

• Operating System: A compatible Windows operating system (Windows 7, 8, 8.1, or 10, 32-bit or 64-bit).
• Processor: A modern Intel Core i3, i5, i7, i9, or equivalent AMD processor.
• RAM: A minimum of 8GB of RAM is recommended for smooth operation.
• Hard Drive Space: At least 40GB of free space is needed for the software installation and data.
• Display: A monitor with a resolution of 1024 x 768 or higher.
• USB Ports: Essential for connecting the diagnostic interface.
• Internet Connection: A reliable broadband connection is required for software updates, license activation, and online functions.

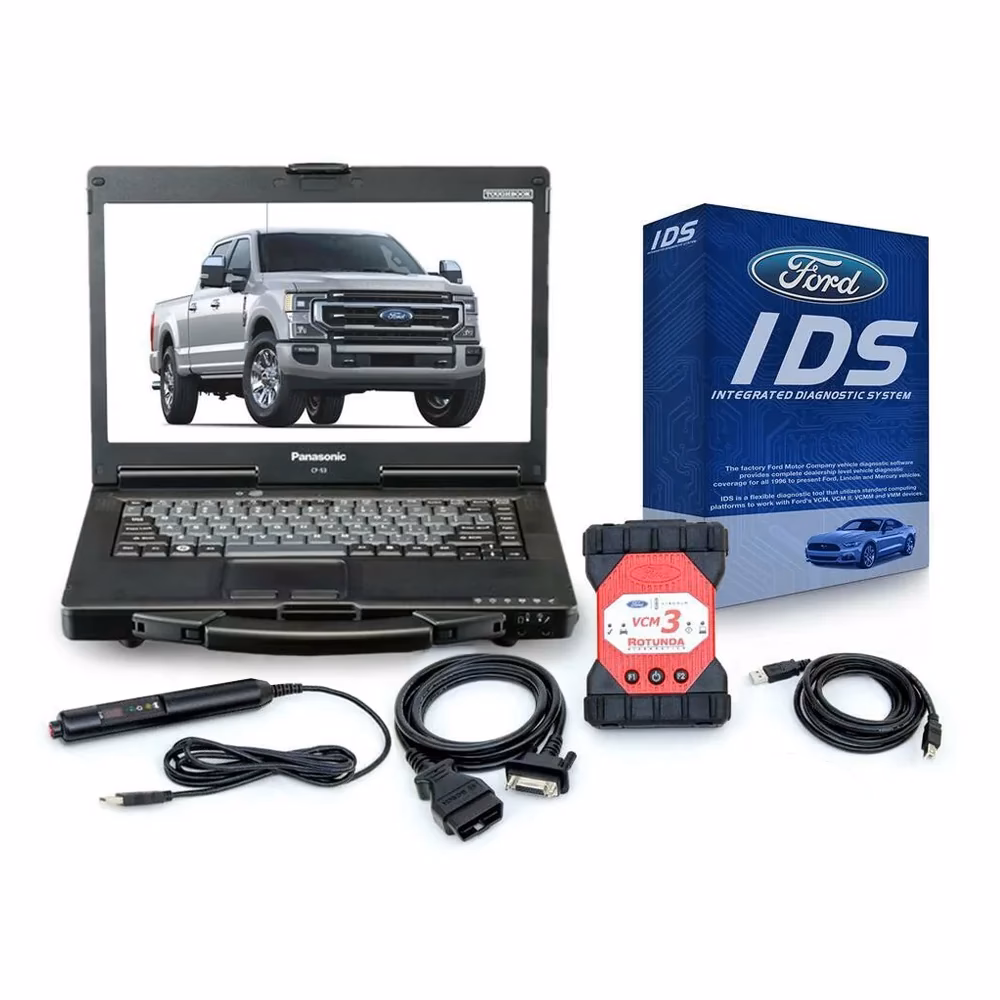

• Diagnostic Interface: A Ford VCM II (Vehicle Communication Module II) or another J2534-compliant pass-thru device is necessary to connect the computer to the vehicle's OBD-II port.
• Software Licenses: A valid FDRS software license and any required vehicle communication module subscriptions are mandatory.

Licensing and Access to FDRS

It's crucial to understand that FDRS software is primarily intended for authorised Ford dealerships and certified technicians. Access is typically granted through a licensing or subscription model. These licenses can range from short-term (e.g., 3 days) to longer periods (up to a year), with costs varying based on the subscription duration. To obtain a license, proof of certification or employment within a Ford-authorised repair facility is usually required. This ensures that the powerful diagnostic capabilities of FDRS are used by trained professionals.

Getting Your Ford Diagnosed with FDRS

For Ford owners in West Yorkshire, including areas like Bradford, Leeds, Wakefield, Huddersfield, Halifax, and Pudsey, accessing dealer-level diagnostics is straightforward. Mobile services equipped with the latest Ford FDRS/IDS equipment can perform all the advanced functions mentioned above. Whether it's reading fault codes, analysing live data, reprogramming modules, or performing specialised procedures, these services offer a convenient and professional solution. You can contact them directly via phone or message to arrange a diagnostic session for your Ford vehicle.

Frequently Asked Questions

What is the difference between FDRS and IDS?

FDRS is the newer, more advanced diagnostic software from Ford, succeeding the older IDS. FDRS offers enhanced coverage for newer models and more sophisticated diagnostic and programming features.

Can I buy Ford FDRS software myself?

FDRS software is generally restricted to Ford dealerships and certified independent repair shops. Access is typically through a paid license or subscription from Ford or authorised vendors.

What kind of repairs can be done with FDRS?

FDRS enables a wide range of repairs, including reading and clearing fault codes, live data analysis, module programming, software updates, key programming, DPF regeneration, and much more.

Is FDRS only for newer Ford models?

While FDRS has expanded coverage for newer models (from 2018 onwards), it can also diagnose and repair Ford vehicles dating back to 1996.

What is VCM II?

The VCM II (Vehicle Communication Module II) is a diagnostic hardware interface manufactured by Ford. It acts as the bridge between a technician's computer and the vehicle's OBD-II port, allowing the FDRS software to communicate with the car's ECUs.

In conclusion, the Ford Diagnostic and Repair System (FDRS) is an essential tool for maintaining the health and performance of modern Ford vehicles. Its comprehensive capabilities ensure that technicians can diagnose and repair issues with precision and efficiency, keeping Fords on the road and performing at their best.
