Understanding Your Car's Engine Management System

In the intricate world of modern automotive engineering, few systems are as crucial to a vehicle's reliable operation and performance as the Engine Management System (EMS). Far more than just a collection of parts, the EMS acts as the central nervous system for your engine, diligently overseeing and adjusting its functions to ensure optimal power delivery, fuel efficiency, and compliance with stringent emissions regulations. From the moment you turn the key, this sophisticated electronic network begins its tireless work, translating countless data points into precise commands that govern the very heart of your car. Understanding the EMS is key to appreciating the technological marvels beneath your bonnet and ensuring your vehicle remains a dependable companion on the road.

What is an Engine Management System (EMS)?

At its core, an Engine Management System (EMS) is an electronic control unit that manages a series of actuators to ensure the internal combustion engine runs at peak efficiency. It’s a dynamic system, constantly monitoring various engine parameters and making real-time adjustments. Historically, engine control was predominantly mechanical, relying on carburetors and distributors. However, with the advent of advanced electronics, the EMS has evolved into a highly integrated and precise digital system, capable of fine-tuning aspects that were once impossible to control with such accuracy. The primary objectives of an EMS are multifaceted: to maximise fuel efficiency, minimise harmful exhaust emissions, and deliver optimal engine output and drivability across all operating conditions. This complex interplay of sensors, the central processing unit, and actuators ensures that your vehicle performs reliably and responsibly.

The Brain of Your Vehicle: The Engine Control Unit (ECU)

The undisputed 'brain' of the EMS is the Engine Control Unit (ECU), also sometimes referred to as the Powertrain Control Module (PCM). This sophisticated computer unit is responsible for processing all the incoming data from various sensors and then sending out precise commands to the engine's actuators. In its simplest form, an ECU might solely manage the quantity of fuel injected into each cylinder during every engine cycle. However, modern, advanced ECUs are far more comprehensive. They meticulously control critical functions such as ignition timing, variable valve timing, the level of boost maintained by a turbocharger, and a multitude of other engine system peripherals. Beyond core engine performance, the ECU plays an increasingly vital role in maintaining environmental controls, enhancing fuel economy, ensuring safety features operate correctly, and guaranteeing compliance with the ever-evolving legislative requirements placed on contemporary engines. The ECU operates using complex algorithms and pre-programmed maps, constantly comparing real-time engine data against ideal parameters to make instantaneous adjustments, ensuring the engine runs as smoothly and efficiently as possible.

The Senses of the System: EMS Sensors

For the ECU to make informed decisions, it relies heavily on a vast network of sensors. These sensors act as the 'eyes and ears' of the EMS, continuously monitoring various physical parameters of the engine and its environment, converting them into electrical signals that the ECU can understand. The accuracy and responsiveness of these sensors are paramount to the entire system's performance. There's a wide array of sensor types, each designed for a specific purpose and operating principle. For instance, some may use electromagnetic properties, while others rely on the Hall effect, photo-electric principles, resistance changes, or even piezo-electric elements. Their performance can be influenced by factors such as sensitivity, accuracy, linearity, and stability, as well as environmental conditions like extreme heat, vibrations, moisture, and contaminants. Understanding the role of these sensors is fundamental to diagnosing issues within the EMS.

The Muscles of the System: EMS Actuators

If sensors are the eyes and ears of the EMS, then actuators are its muscles, carrying out the commands issued by the ECU. These devices convert electrical signals from the ECU into physical actions that directly influence engine operation. Without actuators, the ECU's sophisticated calculations would remain theoretical, unable to affect any change.

• Fuel Injectors: Precisely spray fuel into the engine's combustion chambers, with the ECU controlling the duration and timing of the injection.
• Ignition Coils / Spark Generators: Create the high-voltage spark necessary to ignite the fuel-air mixture in the cylinders, with the ECU dictating the exact timing. Modern systems often use individual coils for each spark plug for greater precision.
• Idle Control Valves (ICV): Regulate the amount of air bypassing the throttle plate when the engine is idling, maintaining a stable idle speed.
• Exhaust Gas Recirculation (EGR) Valves: Reroute a portion of exhaust gases back into the engine's combustion chambers to reduce nitrogen oxide (NOx) emissions, particularly in diesel engines. Integrated designs, combining EGR with air intake throttle valves, have led to more compact and efficient solutions.
• Variable Valve Timing (VVT) Actuators: Adjust the timing or lift of the engine's intake and exhaust valves, optimising engine performance across different RPMs and loads for improved power and fuel economy.
• Turbocharger Wastegate / Boost Control Solenoids: Regulate the turbocharger's boost pressure to prevent over-boosting and ensure optimal power delivery.

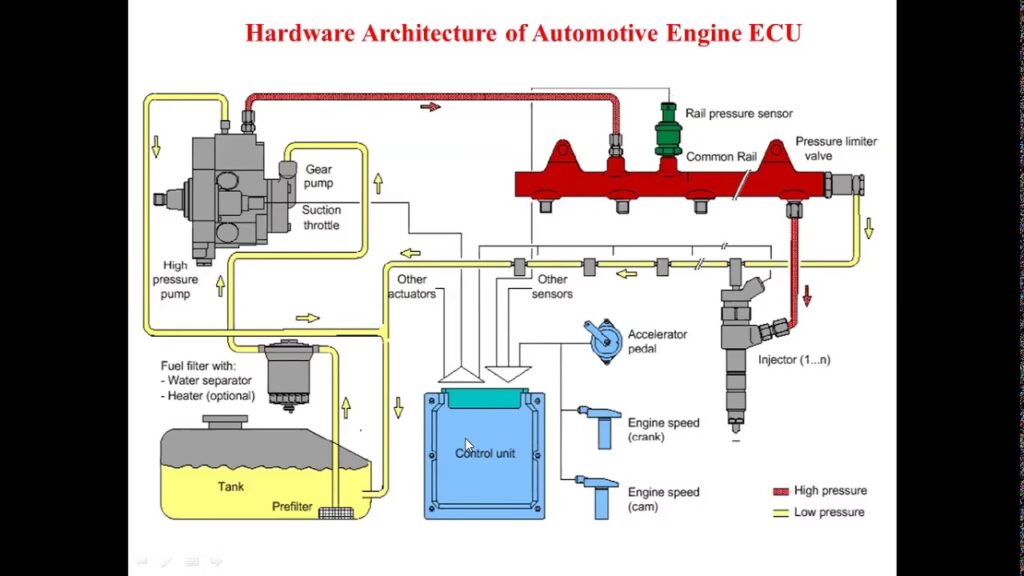

The synergy between the ECU, sensors, and actuators forms a continuous closed-loop control system, where adjustments are made in real-time based on feedback, ensuring the engine constantly operates within its optimal parameters.

The Interplay: How EMS Components Work Together

The true genius of the EMS lies not just in its individual components, but in their seamless interrelationship and interaction. This intricate dance can be understood through the fundamental principle of input-process-output. Sensors provide the 'input' data, the ECU 'processes' this information, and actuators generate the 'output' or action. This forms a dynamic feedback loop, often referred to as closed-loop control. For example, the Lambda sensor detects too much oxygen in the exhaust (lean mixture), signals this to the ECU. The ECU processes this, determines more fuel is needed, and commands the fuel injectors (actuators) to spray more fuel. The Lambda sensor then detects the change, and the cycle continues, constantly fine-tuning the mixture.

Signal processing is a crucial aspect of this interaction. Many sensors generate analogue signals, which need to be converted into digital data (Analogue-to-Digital or A/D conversion) for the ECU's digital processor. Conversely, the ECU's digital commands often need to be converted back into analogue signals (Digital-to-Analogue or D/A conversion) to control certain actuators. Furthermore, modern vehicles utilise complex communication networks, such as Controller Area Network (CAN) systems, to allow various ECUs and systems within the vehicle to communicate efficiently and share data, facilitating integrated functions like a sport mode on gearbox selection influencing engine parameters.

The location and functional relationships between components are also critical. A sensor's position relative to the component it monitors is vital for accurate readings. Moreover, the impact of a single component's failure can ripple throughout the entire system. A faulty speed sensor, for instance, could affect not just the speedometer but also gear shift points in an automatic transmission, cruise control, and even fuel injection calculations. Similarly, a malfunctioning Lambda sensor can lead to incorrect fuel mixtures, resulting in poor fuel economy, increased emissions, and potential damage to the catalytic converter. This interconnectedness underscores the importance of a holistic approach when diagnosing and repairing EMS issues.

Pioneering Technologies and Their Impact

The continuous evolution of the EMS has been driven by relentless innovation from leading automotive component manufacturers. Their work focuses on pushing the boundaries of fuel efficiency, reducing emissions, and enhancing engine output. Several 'world firsts' have significantly shaped the capabilities of modern EMS.

For instance, the development of advanced Exhaust Gas Recirculation (EGR) Valves, particularly those integrated with an air intake throttle valve, marked a significant leap forward. This integration allowed for improved emissions performance in diesel engines within a more compact and efficient design. By precisely controlling the amount of exhaust gas returned to the combustion chamber, NOx emissions are drastically reduced without significantly compromising engine power.

Another pivotal innovation was the introduction of plug-in Mass Air Flow (MAF) meters. By designing these meters to be inserted directly into an intake pipe wall, manufacturers achieved a reduction in overall vehicle weight and simplified the installation process, making maintenance and assembly more straightforward for both production lines and the aftermarket. This seemingly small design change contributed to broader improvements in vehicle efficiency.

Furthermore, the advancement of Lambda Sensors by adding quantitative measurements was a game-changer. Initially, Lambda sensors primarily indicated whether the air-fuel mixture was rich or lean. However, with quantitative measurements, the ECU receives precise data on the exact deviation from the ideal stoichiometric ratio. This enhanced accuracy in detecting air and fuel mixture levels has profoundly improved ignition performance, combustion efficiency, and subsequently, emission control. These technological breakthroughs, born from years of precision engineering and a deep understanding of OE quality, have paved the way for the sophisticated and highly efficient engine management systems we see in vehicles today, with these advanced components now widely available to the aftermarket.

Diagnosing EMS Faults: What to Look For

When your car's Engine Management System develops a fault, it can manifest in various ways, from subtle performance drops to significant drivability issues. Modern vehicles are equipped with sophisticated On-Board Diagnostics (OBD) systems, particularly OBD-II in the UK and Europe, which are invaluable tools for identifying EMS problems. The most common indicator of an EMS fault is the illumination of the 'Check Engine' light (also known as the Malfunction Indicator Lamp or MIL) on your dashboard. However, symptoms can also include:

• Reduced fuel economy
• Rough idling or stalling
• Loss of power or poor acceleration
• Increased exhaust emissions (visible smoke, strong odours)
• Engine misfires
• Difficulty starting the engine

To diagnose an EMS fault accurately, professional technicians utilise a range of specialised test equipment. This includes:

• OBD-II Scanners: These devices connect to your vehicle's diagnostic port and retrieve 'fault codes' (Diagnostic Trouble Codes or DTCs) stored by the ECU. Each code corresponds to a specific system or component malfunction, providing a starting point for diagnosis.
• Multi-meters: Used for checking voltage, resistance, and current in various circuits and components like sensors and actuators.
• Oscilloscopes: Provide a visual representation of electrical signals, allowing technicians to assess the waveform and integrity of sensor outputs and actuator inputs.
• Fuel Pressure Testers: To check the fuel pump's operation and fuel system integrity.
• Breakout Boxes: Allow safe and easy access to ECU pins for testing circuits without damaging the ECU itself.

When carrying out tests, safe working practices are paramount, especially when dealing with high-voltage ignition components or the extremely high pressures in common rail fuel systems. Diagnostics often involve checking for common issues like moisture ingress, dirt, corrosion on connectors, wiring integrity, and the physical condition of sensors and actuators. Correct interpretation of fault codes, coupled with live data analysis from the ECU (e.g., sensor outputs in real-time, ignition timing, fuel trim values), allows technicians to pinpoint the exact cause of the malfunction, ensuring an efficient and effective repair.

Maintaining Your EMS: Tips for Longevity

While the Engine Management System is designed for robustness, proactive maintenance can significantly contribute to its longevity and reliable operation. Regular servicing according to your vehicle manufacturer's schedule is crucial, as this often includes checks of relevant filters and fluids that impact EMS components.

Here are some general tips for maintaining your EMS:

• Use Quality Fuel: High-quality fuel helps keep fuel injectors clean and ensures proper combustion, reducing strain on the EMS.
• Replace Air Filters Regularly: A clogged air filter can restrict airflow, causing the MAF sensor to provide inaccurate readings, leading to poor fuel economy and performance.
• Check Wiring and Connectors: Periodically inspect visible wiring harnesses and connectors for signs of damage, corrosion, or loose connections. These can easily interrupt signals to and from the ECU, leading to faults.
• Address Warning Lights Promptly: Never ignore a 'Check Engine' light. Even if the car seems to be running fine, it's indicating a problem that could escalate if left unaddressed. Early diagnosis can prevent more significant and costly repairs.
• Use Genuine or OE Quality Parts: When replacing sensors or actuators, always opt for genuine OEM (Original Equipment Manufacturer) or equivalent OE quality aftermarket parts. Inferior components may not provide accurate readings or reliable operation, leading to recurring issues or even damage to the ECU.
• Keep Your Battery Healthy: A weak or failing car battery can cause erratic voltage fluctuations that can confuse the ECU and lead to false fault codes or system malfunctions.

By adopting these preventative measures, you can help ensure your EMS continues to function optimally, keeping your vehicle running smoothly, efficiently, and reliably for years to come.

Frequently Asked Questions (FAQs)

Navigating the complexities of your car's Engine Management System can raise many questions. Here are some of the most common queries we encounter:

What exactly is an ECU?

The ECU, or Engine Control Unit, is the central computer of your car's Engine Management System. It receives data from numerous sensors, processes this information using complex algorithms, and then sends commands to various actuators to control critical engine functions like fuel injection, ignition timing, and emissions, ensuring optimal performance and efficiency.

How often should EMS components be checked?

While specific EMS components don't have a strict 'replacement schedule' like oil filters, they are typically checked as part of your vehicle's regular service intervals. If you experience any performance issues or the 'Check Engine' light illuminates, it's crucial to have the EMS diagnosed immediately. Preventative checks on wiring and connectors can be done during routine inspections.

Can a faulty sensor cause other problems in the engine?

Absolutely. Due to the interconnected nature of the EMS, a faulty sensor can send incorrect data to the ECU, leading to a cascade of issues. For example, a bad Mass Air Flow sensor might cause the ECU to inject too much or too little fuel, leading to poor fuel economy, rough idling, or excessive emissions. A faulty Lambda sensor can damage your catalytic converter over time.

What is 'closed-loop control' in an EMS?

Closed-loop control refers to the EMS's ability to continuously monitor and adjust engine parameters in real-time based on feedback. Sensors provide input, the ECU processes it and sends commands to actuators, and then sensors monitor the results of those actions, completing the 'loop'. This constant feedback allows the system to maintain optimal performance and efficiency dynamically.

Is it expensive to fix EMS issues?

The cost of repairing EMS issues varies widely depending on the specific component that has failed. A simple sensor replacement might be relatively inexpensive, while a new ECU can be a significant investment. Early diagnosis through fault codes and professional testing can often prevent minor issues from escalating into more costly repairs. Always consult a qualified mechanic for an accurate assessment.
