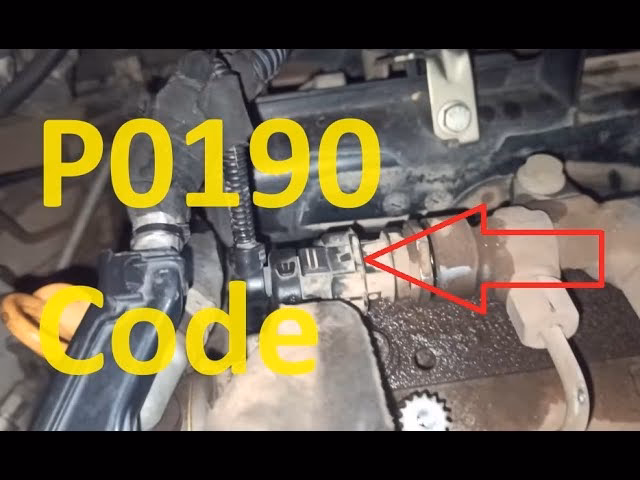

Understanding the P0190 Trouble Code

The P0190 trouble code is a flag that indicates a malfunction within the circuit responsible for monitoring your vehicle's fuel rail pressure. Essentially, your engine's control unit (ECU) isn't receiving the correct information from the Fuel Rail Pressure (FRP) sensor. This sensor is a crucial component in your car's fuel delivery system, constantly measuring the pressure within the fuel rail and relaying this vital data to the ECU. The ECU then uses this information to precisely regulate the amount of fuel injected into the engine for optimal performance, fuel efficiency, and emissions control. When this communication breaks down, it can lead to a range of drivability issues.

What Does P0190 Mean?

The P0190 code specifically points to a 'Fuel Rail Pressure Sensor – Circuit Malfunction'. This means the problem lies within the electrical pathway connecting the FRP sensor to the ECU. It's not necessarily an issue with the fuel pressure itself, but rather with how that pressure is being measured or reported. The ECU, in the absence of accurate sensor data, will often resort to using a pre-programmed, simulated value for fuel pressure. This can lead to the engine operating outside its ideal parameters.

Common Symptoms of the P0190 Code

When the P0190 code is triggered, the most immediate and noticeable symptom is often the illumination of the 'Check Engine' or 'Service Engine Soon' light on your dashboard. However, depending on the severity of the circuit malfunction, you might experience other drivability issues:

• Check Engine Light: The primary indicator that something is amiss.
• Engine Will Not Start: In some cases, a complete loss of signal from the FRP sensor can prevent the engine from starting at all.
• Hard Starting/Long Cranking Time: The engine may struggle to fire up, requiring extended cranking.
• Engine Stalling: The engine might cut out unexpectedly, which can be particularly dangerous in traffic.
• Lack of Power: You may notice a significant reduction in acceleration and overall engine power.
• Limp Mode: Many vehicles will enter a 'limp mode' or 'fail-safe' mode, drastically reducing engine power and RPMs to prevent further damage.
• Rough Idle: The engine may run unevenly when idling.

What Causes the P0190 Code?

The P0190 code points directly to an electrical issue within the FRP sensor's circuit. The most common culprits include:

• Faulty Fuel Rail Pressure Sensor: The sensor itself may have failed internally due to heat, vibration, or age. This is a very common cause.
• Damaged Wiring: The wires connecting the FRP sensor to the ECU can become damaged through chafing, rodent damage, or improper routing, leading to an open or short circuit.
• Corroded Connectors: The electrical connectors for the FRP sensor and the ECU can suffer from corrosion, especially in damp or salty environments, leading to poor conductivity.
• Faulty ECU (Less Common): While less frequent, a problem with the Engine Control Unit itself can also manifest as a sensor circuit malfunction.

How Serious is the P0190 Code?

The P0190 code is generally considered to be of medium severity. While it might not immediately cause catastrophic engine failure, it can significantly impact performance and, if left unaddressed, could lead to long-term issues. The vehicle entering limp mode is a clear indication that the ECU is trying to protect the engine. Driving with this code active can lead to increased wear on engine components due to improper fuel delivery and air-fuel mixture. It's advisable to address this issue promptly.

Diagnosis and Repairing the P0190 Code

Diagnosing the P0190 code requires a systematic approach, focusing on the electrical circuit rather than the fuel pressure itself. Here's a breakdown of the diagnostic process:

Recommended Tools for Diagnosis:

• OBD2 Scanner: Essential for reading trouble codes and monitoring live data from the ECU.
• Digital Multimeter (DMM): Crucial for testing voltage, resistance, and continuity in the sensor's circuit.
• Vehicle-Specific Wiring Diagrams: These are vital for understanding the sensor's circuit and identifying the correct wires and pinouts.
• Fuel Pressure Gauge: While the code points to a circuit issue, a gauge can be helpful to rule out actual pressure problems in more complex cases or to verify sensor readings.

Diagnostic Steps:

1. Scan for Codes: Connect an OBD2 scanner to the vehicle's diagnostic port and retrieve all stored trouble codes. Note down the P0190 code and any other related codes.

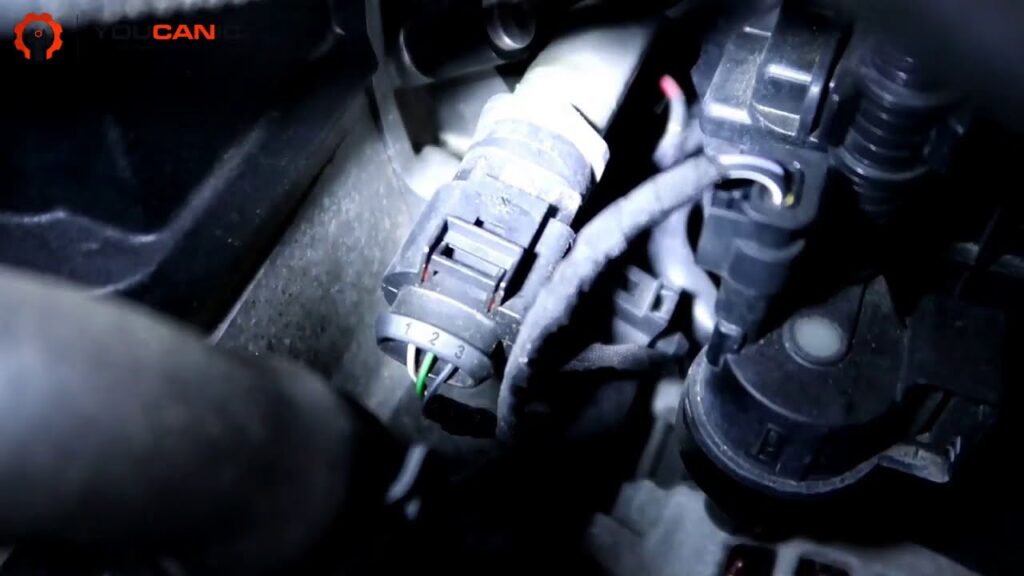

2. Inspect the FRP Sensor and Connector: Locate the Fuel Rail Pressure sensor, which is typically mounted directly on the fuel rail. Visually inspect the sensor and its electrical connector for any signs of damage, corrosion, loose connections, or debris. Clean the connector if necessary.
3. Check Wiring: Carefully inspect the wiring harness leading from the FRP sensor to the ECU. Look for any chafed, cut, burnt, or corroded wires. Pay close attention to areas where the wiring might rub against other components.
4. Test Sensor Resistance: Consult your vehicle's repair manual for the specified resistance values for the FRP sensor. Disconnect the sensor and use your multimeter to measure the resistance across its terminals. Compare the readings to the manufacturer's specifications. If the resistance is out of range, the sensor is likely faulty.
5. Test Circuit Continuity: With the sensor and ECU disconnected, use your multimeter to check for continuity between the sensor's connector pins and the corresponding pins at the ECU connector. Resistance should be very low (close to 0 Ohms) for a good circuit.
6. Test for Shorts: Check for shorts to ground and shorts between circuits. Resistance to ground and between other wires should be very high (ideally infinite or megaohms).
7. Check Sensor Signal and Reference Voltage: With the ignition on (KOEO - Key On Engine Off), and referring to your wiring diagram, backprobe the FRP sensor connector or the ECU connector. Check for the correct reference voltage (usually 5V) and ground signal. Then, check the sensor's output signal voltage, which will vary with pressure. Compare these readings to the manufacturer's specifications.
8. Perform a Wiggle Test: Gently wiggle the wiring harness and connectors while monitoring the sensor's data on your scanner or with your multimeter. If you notice intermittent drops or spikes in voltage or resistance, it indicates a loose connection or a break in the wiring.
9. Consider Fuel Pressure: Although the P0190 code indicates a circuit issue, it's worth verifying actual fuel pressure with a gauge if possible. A faulty fuel pump or regulator could, in rare instances, lead to readings that the ECU interprets as a circuit problem.
10. Evaluate the ECU: If all circuit tests pass and the sensor appears to be functioning correctly, the ECU itself may be the source of the problem. This is the least common cause and usually requires professional diagnosis.

Common Repair Mistakes to Avoid:

When dealing with the P0190 code, it's crucial to avoid common diagnostic pitfalls:

• Replacing the FRP sensor without testing the circuit: Many mechanics will immediately replace the sensor, but if the wiring or connector is the actual problem, the P0190 code will return.
• Focusing solely on fuel pressure: Confusing a circuit malfunction with a fuel pressure problem can lead you down the wrong diagnostic path, wasting time and money on unnecessary fuel system repairs.

Repair Options for P0190:

The repair for a P0190 code will depend on the diagnosed cause:

• Replace Fuel Rail Pressure Sensor: If the sensor is found to be faulty, replacement is the solution.
• Repair Wiring: Damaged or corroded wiring should be repaired or replaced. This may involve splicing in new sections of wire or repairing damaged connectors.
• Clean Connectors: If corrosion is found in the connectors, they should be thoroughly cleaned with an electrical contact cleaner.
• Replace ECU: In the rare event that the ECU is the issue, it will need to be replaced and programmed by a qualified technician.

Estimated Cost of Repair:

The cost of repairing a P0190 code can vary significantly based on the cause and the vehicle's make and model. Here are some general estimates:

• Replace Fuel Rail Pressure Sensor: £30 - £60 (parts) + labour
• Repair Fuel Rail Pressure Sensor Wiring: £30 - £70 (for minor repairs) + labour
• Replace Engine Control Unit (ECU): £1000 - £2000+ (parts and programming) + labour

Diagnosis costs are typically separate and can range from £50 to £150.

Is It Safe to Drive With Code P0190?

Driving with the P0190 code active is not recommended. While your car might still run, the ECU is operating with inaccurate information. This can lead to:

• Poor fuel economy
• Increased emissions
• Reduced engine performance
• Potential for engine damage due to incorrect air-fuel mixtures
• The risk of the engine stalling, especially at inconvenient times.

It's best to address the issue as soon as possible to ensure safe and efficient operation of your vehicle.

How Do You Clear Code P0190?

Once the underlying cause of the P0190 code has been identified and repaired, the code can be cleared using an OBD2 scan tool. It's important to clear the code after the repair to confirm the fix. However, if the problem hasn't been properly resolved, the P0190 code will likely reappear.

Related P0190 Trouble Codes:

The P0190 code is part of a series of codes related to the Fuel Rail Pressure Sensor circuit. Other related codes include:

• P0191: Fuel Rail Pressure Sensor Circuit Range/Performance
• P0192: Fuel Rail Pressure Sensor Circuit Low Input
• P0193: Fuel Rail Pressure Sensor Circuit High Input
• P0194: Fuel Rail Pressure Sensor Circuit Intermittent

Understanding these related codes can provide further insight into potential sensor issues.

Mechanic Insights and Case Studies

Looking at real-world repair cases provides valuable insight into how mechanics approach the P0190 code:

Case Study 1: Ford Explorer XLT

A 2005 Ford Explorer XLT presented with a P0190 code and a rough idle with a rich fuel mixture. Despite replacing the fuel pump and filter, the issue persisted. After diagnosing the FRP sensor circuit, it was found that the sensor itself was faulty. Replacing the fuel pressure sensor resolved the P0190 fault code and restored smooth engine operation.

Case Study 2: Volvo S40

A 2005 Volvo S40 had its engine replaced, but the P0190 code and MIL light remained. The fuel pressure sensor had not been replaced during the engine work. Further investigation and referencing service information led to the identification and replacement of the correct fuel pressure sensor, clearing the code and resolving the problem.

Case Study 3: Ford Contour SE

A 1999 Ford Contour SE triggered a P0190 code. After an initial replacement of the FRP sensor, the code returned shortly after. Further diagnostics revealed a weak fuel pump as the root cause. Replacing the fuel pump with an updated design resolved the issue, highlighting that sometimes the symptoms of a failing pump can mimic sensor circuit problems.

These cases underscore the importance of thorough diagnostics. While the FRP sensor is often the culprit, it's essential to consider the entire circuit and related components, including the fuel pump, wiring, and connectors.

Diagnostic Summary Table:

In conclusion, the P0190 trouble code is a signal that your vehicle's Fuel Rail Pressure Sensor circuit is experiencing a malfunction. By understanding the symptoms, potential causes, and following a systematic diagnostic approach, you can effectively identify and repair the issue, ensuring your engine receives the precise fuel delivery it needs for optimal performance.
