Mastering V-Brake Pads: Performance & Compatibility

For many cycling enthusiasts, especially those who appreciate the robust simplicity of older bicycle designs, the question of V-brake pad compatibility remains a pertinent one. Back in their heyday, V-brakes were the undeniable king of bicycle stopping power, offering a significant improvement over their cantilever predecessors. Yet, as bicycle technology has evolved, so too have the components, leaving some riders wondering if they can still get the optimal performance from their cherished V-brake equipped bikes. This article delves deep into the world of V-brake pads, exploring historical gems, modern alternatives, and crucial compatibility considerations to ensure your ride always stops on a sixpence.

A Look Back: The Reign of V-Brakes and the Legendary Scott Mathauser

Before disc brakes became ubiquitous, V-brakes, often referred to as direct-pull cantilevers, were the go-to choice for mountain bikes and eventually hybrid and touring bikes. They offered superior power and modulation compared to traditional cantilevers, thanks to their longer arms and different cable pull ratio. Their widespread adoption meant that manufacturers poured resources into optimising their performance, and a key component in that quest was the brake pad.

Among the pantheon of V-brake pads, one name stands out with legendary status: the Scott Mathauser pad. These pads were renowned for their distinctive, soft compound, often described as having the texture and colour of a pink pencil eraser. What made them so special? Their unique compound provided exceptional grip and modulation, particularly in dry conditions, allowing riders to finely control their braking force. This meant less skidding and more controlled deceleration, a significant advantage on technical trails or busy city streets. Unfortunately, like many iconic cycling components, Scott Mathauser pads are no longer manufactured, leaving a void for those seeking that specific 'feel'. However, their legacy lives on, influencing modern pad designs and compounds that aim to replicate their acclaimed performance.

Modern Alternatives: Finding Your Ideal Compound

While the original Scott Mathauser pads are a relic of the past, the good news is that several reputable brands today offer compounds that aim to mimic or even surpass their performance characteristics. When choosing a new pad, understanding the different compounds available is crucial, as each offers distinct advantages depending on your riding conditions and preferences.

One of the most highly regarded names in modern brake pads is Kool-Stop. This brand has built a stellar reputation for producing high-quality pads with various compounds tailored for different weather conditions. Their most famous is arguably the Salmon compound, renowned for its exceptional performance in wet conditions, providing reliable stopping power even in a downpour. The Black compound is designed for drier conditions, offering excellent power and durability. Many riders opt for Kool-Stop's dual-compound pads, which combine the best of both worlds, featuring both black and salmon inserts for versatile all-weather performance. The soft nature of Kool-Stop pads often reminds riders of the classic Mathauser feel, offering great modulation and low lever effort.

Another brand that often comes to mind when discussing vintage-style brake pads is Yokozuna. They are known for offering replacement brake blocks that fit older, specific caliper designs, such as the Dia-Compe Gran Compe calipers mentioned in the original query. Yokozuna pads typically offer a good balance of stopping power and durability, often available in compounds that perform well across various conditions. Their focus on classic designs makes them a go-to for riders with older or niche brake systems.

Beyond these, brands like Jagwire, Shimano, and BBB also offer a range of V-brake pads. Shimano's pads are generally known for their good all-round performance and durability, often coming in a range of compounds suitable for different riding styles. Jagwire offers a variety of aftermarket pads, including those with different compounds for specific needs, often providing excellent value.

Understanding Brake Pad Compounds:

• Soft Compounds (e.g., Kool-Stop Salmon, Scott Mathauser-like): Offer superior grip and modulation, especially in wet conditions. Tend to wear faster and may accumulate rim material more quickly. Ideal for riders prioritising stopping power and feel.
• Hard Compounds (e.g., standard black rubber): More durable and last longer. May offer slightly less initial bite and modulation, particularly in the wet. Good for riders seeking longevity and consistent performance in dry conditions.
• Dual Compounds: Combine different materials to offer a balance of wet and dry performance. A popular choice for all-weather riders.

Compatibility Conundrums: Will They Fit Your Calipers?

This is where the user's initial question truly comes into play. The answer to "Can I use V-brake pads?" is almost always yes, but the specific type of pad you need depends entirely on your calipers. There are two primary styles of V-brake pads you'll encounter:

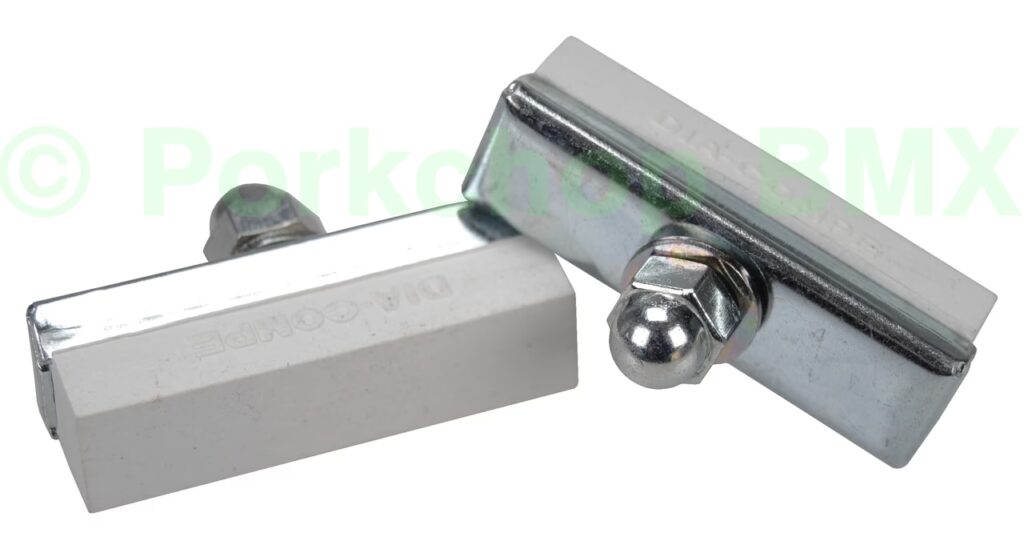

1. The 'Block' Style (Older & Niche Calipers):

As the input correctly identifies, older calipers, such as the Dia-Compe Gran Compe or some Campagnolo models from the late 80s and early 90s, often use a 'block' style pad. These are solid blocks of rubber that slide into a specific metal holder or are bolted directly to the caliper arm. The critical aspect here is the shape and mounting hole of the block. If you have such calipers, you will likely need to order pads specifically designed to fit them. This is where brands like Yokozuna shine, as they continue to produce these less common block styles. Visiting a local bike shop (LBS) that specialises in vintage or high-end road components might also yield results, as Campagnolo-compatible pads often share similar dimensions with these older Dia-Compe blocks.

2. The 'Cartridge' Style (Modern V-Brakes):

The more common style found on most V-brakes from the mid-90s onwards is the cartridge system. Here, the brake pad is a replaceable insert that slides into a reusable metal shoe. When the pad wears out, you simply replace the rubber insert, not the entire shoe. These are far more universal, with most cartridge inserts being interchangeable across different brands, though lengths can vary. This design is highly convenient and environmentally friendly, as it reduces waste. If your V-brakes have a bolt that goes through the pad and then into a holder, chances are you have a cartridge system.

To determine what you need, carefully inspect your current brake pads. Do they look like a solid block of rubber, or do they have a metal holder with a separate rubber insert? If in doubt, take a photo or remove one of your existing pads and take it to your LBS for expert identification.

Installation and Adjustment: Achieving Optimal Stopping Power

Even the best brake pads won't perform optimally if they're not installed and adjusted correctly. Proper setup is crucial for maximising braking power, preventing squealing, and ensuring even wear.

1. Remove Old Pads: Use an Allen key or spanner to loosen the bolt securing the pad to the caliper arm. Remove the old pad and any washers or spacers.
2. Clean the Rim: Before installing new pads, thoroughly clean your wheel rims. Dirt, grime, and brake dust can contaminate new pads and reduce braking efficiency. Use a clean rag and a suitable degreaser (like isopropyl alcohol) to wipe the braking surface until it's clean and residue-free.
3. Install New Pads: Slide the new pad into the holder (for cartridge systems) or attach the new block pad, ensuring all washers and spacers are in their correct positions. The washers are crucial for fine-tuning the pad's alignment.
4. Positioning and Toe-In: This is perhaps the most critical step.
• Height: The pad should sit squarely on the rim's braking surface, not touching the tyre or dropping below the rim.
• Angle: The pad should make full contact with the rim when the brake is applied. Crucially, V-brake pads benefit greatly from 'toe-in'. This means the front edge of the pad (the part that first contacts the rim) should touch the rim slightly before the rear edge. A common recommendation is to have a gap of about 0.5mm to 1mm at the rear. This slight angle helps prevent brake squeal and improves initial bite. You can achieve this by adding a thin washer behind the rear part of the pad, or by carefully adjusting the pad's angle when tightening the retaining bolt.
5. Tighten Bolts: Once satisfied with the pad's position and toe-in, firmly tighten the retaining bolt.
6. Check Cable Tension: After installing new pads, you might need to adjust your brake cable tension. With the wheel spinning freely, the pads should clear the rim by a few millimetres on both sides. Pull the brake lever to check for firm, responsive braking without excessive lever travel.

Maintenance and Longevity: Keeping Your Brakes Sharp

Brake pads are wear items, and their lifespan depends heavily on riding conditions, frequency of use, and your riding style. Regular maintenance can significantly extend their life and ensure consistent performance.

• Check for Wear: Most V-brake pads have wear indicator lines. When the pad wears down to these lines, it's time for replacement. Even without indicators, if the pad material is very thin or the braking surface feels hard and glazed, it's time for new ones.
• Clean Pads and Rims: Periodically, check your pads for embedded debris (small bits of metal, grit). These can score your rims and reduce braking performance. Use a pick or a small screwdriver to carefully remove any embedded particles. Cleaning your rims regularly will also prolong pad life and improve braking.
• Adjust for Wear: As pads wear, your brake lever will need to be pulled further to engage the brakes. You can compensate for this by adjusting the barrel adjuster on your brake lever or caliper, or by re-tensioning the cable at the caliper.
• Consider Conditions: Riding in wet, muddy, or sandy conditions will accelerate pad wear significantly. If you frequently ride in such environments, inspect your pads more often.

Troubleshooting Common V-Brake Issues

Even with new pads, you might encounter issues. Here are some common problems and their solutions:

• Squealing Brakes: This is perhaps the most common complaint. Causes include:
  • Incorrect toe-in: Re-adjust for proper toe-in.
  • Contaminated pads or rim: Clean both thoroughly. If pads are heavily contaminated with oil or grease, they may need replacement.
  • Loose brake caliper or wheel: Ensure all bolts are tight.
  • Hard pad compound: Consider a softer compound pad.
• Poor Braking Performance:
  • Worn pads: Replace them.
  • Glazed pads: The surface of the pad can become hard and shiny, reducing friction. Lightly sand the pad surface with fine-grit sandpaper.
  • Contaminated pads/rim: Clean thoroughly.
  • Incorrect cable tension: Adjust for proper tension.
• Uneven Pad Wear:
  • Misaligned caliper arms: Check that both arms move equally when the brake is applied. Adjust spring tension if necessary.
  • Improper pad alignment: Ensure pads are making full, even contact with the rim.

Comparative Table of Popular V-Brake Pad Compounds

Frequently Asked Questions About V-Brake Pads

Q: How often should I replace my V-brake pads?
A: It depends heavily on your riding conditions and frequency. Inspect them regularly for wear indicators or thinning material. For daily riders, every 6-12 months might be typical, but aggressive riding in wet conditions could necessitate replacement much sooner.

Q: Can I use modern cartridge pads on my older V-brakes?
A: If your older V-brakes use a cartridge-style shoe (where the rubber insert is replaceable), then yes, most modern cartridge inserts will fit. However, if your calipers require the older 'block' style pad, you will need to source specific block replacements like those from Yokozuna or similar vintage-compatible brands.

Q: Why do my V-brakes squeal so much?
A: Squealing is most commonly caused by incorrect toe-in, contaminated pads or rims, or loose components. Ensure your pads have adequate toe-in, and that both pads and rims are clean and free of grease or debris.

Q: Are more expensive brake pads worth the cost?
A: Often, yes. Higher-quality pads, particularly those from brands like Kool-Stop, offer superior compounds that provide better stopping power, modulation, and often less rim wear. While they might wear faster, the improved safety and riding experience are often well worth the investment.

Q: What is 'toe-in' and why is it important for V-brakes?
A: Toe-in refers to the slight angle at which the brake pad contacts the rim, where the front edge of the pad touches the rim just before the rear edge. It's crucial for V-brakes to prevent squealing by dampening vibrations and to ensure more consistent and controlled braking, especially as the pads wear.

Conclusion

While V-brakes may no longer be at the cutting edge of bicycle braking technology, they remain a highly effective and reliable system for countless bikes around the world. Understanding the nuances of brake pad compatibility, selecting the right compound for your needs, and ensuring proper installation and maintenance are key to unlocking their full potential. Whether you're chasing the legendary feel of a Scott Mathauser pad with modern alternatives like Kool-Stop or finding the perfect fit from Yokozuna for your vintage calipers, the right pads will transform your ride, providing the confident stopping power you need for every adventure. Don't underestimate the impact of good brake pads – they are your primary safety feature and a crucial component for enjoyable cycling.
