Decoding Deutz Engine Error Codes

For anyone operating or maintaining heavy machinery powered by a Deutz engine, understanding the language of its diagnostic trouble codes is paramount. These engines are renowned for their robust design and reliability, but like any sophisticated piece of engineering, they rely on complex electronic management systems to monitor performance and health. When something isn't quite right, these systems communicate through a series of error codes, acting as crucial indicators of underlying issues. Ignoring these signals can lead to more significant damage, costly repairs, and ultimately, undesirable downtime. This comprehensive guide will demystify Deutz engine error codes, explaining how to interpret them, what common issues they point to, and how to approach effective troubleshooting to keep your equipment running efficiently across the UK and beyond.

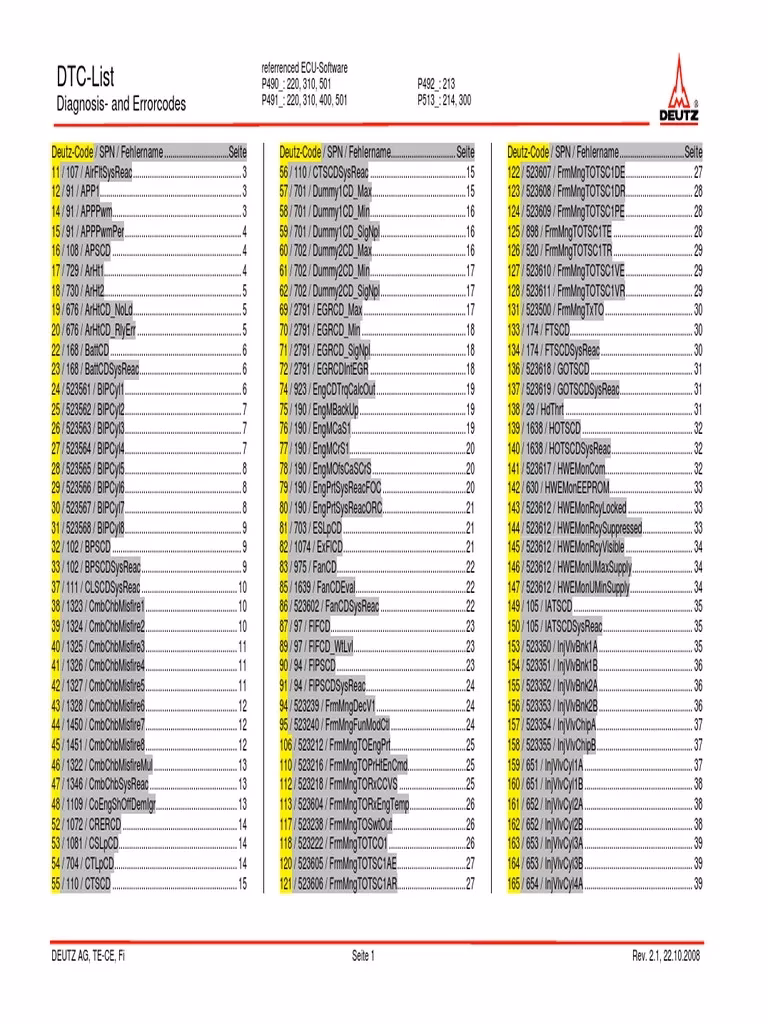

What Are Deutz Engine Error Codes?

Deutz engine error codes, often referred to as Diagnostic Trouble Codes (DTCs), are specific alphanumeric or numerical sequences generated by the engine's Electronic Control Unit (ECU). These codes serve as a vital communication link between the engine's internal sensors and the operator, signalling when a parameter falls outside its specified operating range or when a component malfunctions. They are the first alert system, prompting further investigation before a minor issue escalates into a major breakdown. Deutz engines utilise various engine management systems (EMS), including EMS2, EMR3, and EMR4, each with its own set of diagnostic capabilities and code structures, though the underlying principle remains the same.

The role of these management systems is to continuously monitor a multitude of engine parameters, such as fuel pressure, coolant temperature, oil pressure, intake air temperature, and crankshaft speed. When a deviation occurs, the ECU logs a specific code, often illuminating a warning lamp on the dashboard. This immediate feedback allows technicians to pinpoint the problematic area much faster than traditional, manual troubleshooting methods.

How to Read Deutz Engine Error Codes

While modern diagnostic tools can connect directly to the ECU to retrieve a detailed list of codes, many Deutz engines, especially older models or in emergency situations, allow for a simpler method of reading codes directly from the dashboard warning lamps. This method involves observing a sequence of flashes from a designated lamp, typically the engine lamp or a dedicated diagnostic indicator.

The flash code system typically consists of three parts, communicated by a sequence of short and long flashes:

• Short Flash (0.4 seconds): Represents a digit.
• Long Flash (0.8 seconds): Separates the digits within a code.

To read a code, you might observe a pattern like this: short-long-short flashes. For example, a sequence might be: (short flash) - (long flash) - (short flash) - (short flash) - (long flash) - (short flash) - (short flash) - (short flash). This would translate to a code of 1-2-3.

It's crucial to pay close attention to the timing and number of flashes. A brief pause between codes usually indicates the end of one code and the beginning of the next. If multiple codes are stored, the system will typically cycle through them repeatedly until the ignition is turned off. Always consult your specific engine's manual, as the exact lamp used and the procedure for initiating the flash code sequence can vary slightly between Deutz models and EMS versions.

Common Deutz Engine Diagnostic Trouble Codes Explained

Understanding the meaning behind the flash codes is the next critical step. While an exhaustive list is extensive and often found in detailed service manuals (like those for EMR3 or EMR4 systems), many codes fall into common categories. Here, we'll delve into some frequently encountered codes and their implications, providing a foundational understanding for initial diagnosis.

Temperature and Pressure Related Codes

Many codes relate to the engine's vital fluid temperatures and pressures, indicating issues that can quickly lead to severe engine damage if not addressed.

• 1-2-3 Access to the coolant temperature lamp - Invalid signal, exceeds the device control time: This suggests an issue with the coolant temperature sensor or its circuit. An inaccurate reading can lead to improper engine management, potentially causing overheating or overcooling.
• 1-2-8 The intake air temperature sensor signal is incorrect: An incorrect intake air temperature reading can affect fuel-air mixture calculations, leading to poor combustion and reduced engine efficiency.
• 1-3-3 Temperature sensor Transmission oil Wrong signal: Critical for transmissions, this code points to a problem with the oil temperature sensor, which can impact gear shifting and transmission longevity.
• 1-3-4 Rail pressure monitoring system Pressure signal / pressure deviation out of range: This is a serious fuel system code, indicating issues with the high-pressure fuel rail. It could mean a faulty sensor, a leak, or problems with the fuel pump, directly affecting engine power and operation.
• 2-3-1 Oil pressure monitoring Pressure out of range: One of the most critical warnings. Low oil pressure can quickly lead to catastrophic engine failure due to insufficient lubrication. Always investigate immediately.
• 2-3-2 Coolant temperature control - Temperature above specified range: Indicates engine overheating. This could be due to low coolant, a faulty thermostat, a blocked radiator, or a malfunctioning fan.
• 2-3-3 Regulates the temperature of the intake air above the set temperature range: Similar to 1-2-8, but specifically indicating high intake air temperature, potentially due to restricted airflow or a faulty intercooler.
• 2-3-7 Fuel temperature control Temperature outside the specified range: Fuel temperature affects its density and viscosity, influencing injection timing and fuel economy.

Sensor and Signal Related Codes

These codes often point to issues with the various sensors that provide data to the ECU, or the integrity of the signals themselves.

• 1-2-6 Speed control (pedal) - Invalid / fuzzy signal: This relates to the accelerator pedal sensor. A 'fuzzy' signal means inconsistent or unreliable data, leading to erratic engine speed or loss of throttle response.
• 1-4-4 Lubricating oil temperature sensor Incorrect / fuzzy signal / Oil temperature monitoring Temperature outside the specified range: Similar to other temperature sensor issues, but specific to engine oil, which is vital for lubrication and cooling.
• 2-8-2 Sensor supply voltage 1/2/3 Voltage outside the specified range: This is a more general code indicating a power supply issue to one or more sensors. It could be a wiring fault, a short circuit, or an ECU internal issue.
• 2-9-2 Atmospheric pressure sensor Wrong / fuzzy signal: The atmospheric pressure sensor helps the ECU compensate for altitude changes. An incorrect signal can affect fuel delivery and engine power, especially at varying elevations.

System Performance and Control Codes

These codes indicate problems with how the engine's various systems are performing or being controlled.

• 2-4-1 Combustion control detected misfire in one or more cylinders: A very common and concerning code. Misfires can lead to reduced power, increased fuel consumption, and potential damage to catalytic converters. Causes can range from faulty injectors to ignition system issues or low compression.
• 2-7-1 CAN Bus timeout of one or more transmitted data blocks, inactive bus: The CAN (Controller Area Network) bus is the communication backbone of the engine's electronic systems. A timeout indicates a loss of communication between modules, which can cause a wide range of operational problems. This often points to wiring issues or a faulty module.
• 3-1-8 Battery voltage out of range (below or above): Indicates an issue with the vehicle's electrical system, specifically the battery voltage. This could be a failing battery, alternator issues, or charging system faults.
• 5-1-4 Control terminal signal 15 (ignition power wire) not detected: Terminal 15 is the ignition switch power supply. If this signal isn't detected, the ECU won't recognise that the ignition is on.
• 5-1-5 Control terminal 50 detected a constant signal (wire to start the starter): Terminal 50 is the starter motor activation wire. A constant signal means the starter circuit is continuously engaged or shorted, which can damage the starter.

Deutz Engine Malfunctions: Symptoms and Solutions

Beyond specific codes, understanding common engine malfunctions and their typical causes can greatly assist in troubleshooting. Often, a code will point to a symptom that you've already observed. Here's a breakdown of common Deutz engine issues and initial diagnostic steps:

Engine Will Not Start or Starts Badly

This is a frustrating issue, often with multiple potential culprits. If the engine cranks but fails to fire, or struggles to do so:

• Clutch not disengaged (if applicable): Ensure the clutch is fully disengaged to allow starting.
• Start temperature limit not reached: In cold conditions, the engine might require a certain temperature before starting. Check glow plugs or pre-heating systems.
• Wrong SAE viscosity grade of engine oil: Incorrect oil can make cranking difficult, especially in extreme temperatures. Consider an oil change to the recommended grade.
• Fuel quality does not correspond to the instructions for use: Contaminated or incorrect fuel can prevent combustion. Drain and replace with fresh, correct fuel.
• Air in the fuel system: Air pockets prevent proper fuel delivery. Bleed the fuel system.
• Battery defective or not charged: A weak battery cannot provide enough cranking power. Check battery voltage and charge or replace if necessary.
• Cable connections to starter disconnected or oxidised: Poor electrical connections impede current flow. Clean and secure all connections to the starter.
• Starter defective or gear not engaging: A faulty starter motor or Bendix drive will prevent the engine from cranking. Inspect and replace the starter if needed.

Engine Will Not Start and Diagnostic System Indicator Flashes

If the engine refuses to start and a diagnostic light flashes, it often indicates the engine electronics are actively preventing start-up as a protective measure.

• Engine electronics blocking start: This is a direct command from the ECU. You must check the specific error code displayed, as it will point to the reason for the blockage (e.g., critical sensor failure, security lockout). Resolve the underlying error before attempting to start again.

Engine Starts, But Works Intermittently or Stops

This suggests an issue with consistent fuel delivery or combustion.

• Fuel quality does not correspond to the instructions for use: As above, poor fuel can cause erratic running.
• High pressure fuel line leaking: A leak will cause pressure drops, leading to inconsistent fuel supply to injectors. Inspect lines for leaks and repair.
• Faulty injection valve (injector): A failing injector won't spray fuel correctly, leading to misfires or complete cylinder cutout. Check and replace faulty injectors.

Engine Gets Very Hot. The Temperature Alarm is Triggered.

Overheating is a serious issue that can cause irreparable engine damage.

• Not enough coolant: The simplest cause. Check coolant level and top up. Inspect for leaks.
• Coolant heat exchanger dirty: Blocked fins on the radiator or intercooler prevent efficient heat dissipation. Clean thoroughly.
• Coolant pump malfunction (V-ribbed belt torn or loose): A faulty water pump or a slipping/broken belt means no coolant circulation. Check belt tension and condition; inspect pump.
• Oil level too low/high: Both low and excessively high oil levels can lead to overheating as oil also plays a role in cooling. Adjust oil level to specification.
• Fan / V-belt broken or loose: If the cooling fan isn't turning correctly, airflow over the radiator is compromised. Check belt and fan operation.
• Thermal short circuit in the cooling system / Too high resistance in the cooling system / too low flow: These point to internal blockages, a faulty thermostat, or incorrect hose routing that restricts coolant flow. A professional diagnostic is often needed here.

The Engine is Missing Power

A reduction in power can stem from various issues affecting combustion, fuel delivery, or air intake.

• Oil level too high: Excessive oil can cause foaming, leading to reduced lubrication and increased resistance, thus robbing power.
• Oil filter on air and / or oil side dirty: Clogged filters restrict flow, impacting engine performance. Replace filters.
• Fuel quality does not correspond to the instructions for use: Poor fuel directly affects power output.
• Air filter dirty / turbocharger defective: A dirty air filter restricts vital airflow. A faulty turbocharger won't provide sufficient boost pressure. Inspect/replace.
• Service switch / indicator malfunction air filter: If the filter restriction indicator is faulty, you might not know the air filter is clogged.
• Air discharge line leaking / Charge air cooler dirty: Leaks in the turbocharger system or a dirty intercooler mean less boosted air reaches the engine.
• High pressure fuel line leaking / Injection valve defective: As mentioned, fuel system issues directly impact power.

The Engine is Low on Power and the Diagnostic Warning Lamp is On

This is a clear indicator of the ECU entering 'limp mode' or reducing power due to a detected fault.

• Engine electronics reduce power: The ECU has detected a fault (as indicated by the warning lamp and specific code) and has intentionally reduced engine power to prevent further damage. You must check the code and rectify the underlying issue to restore full power.

The Engine Does Not Run on All Cylinders

This is typically a misfire or complete cylinder failure.

• High pressure fuel line leaking / Injection valve defective: These are primary causes. A cylinder won't fire if it's not receiving fuel or if the fuel isn't atomised correctly.

The Engine Has No Oil Pressure or Is Too Low

A critical condition requiring immediate attention.

• Oil level too low: The simplest cause. Add oil immediately.
• Engine roll too much: Operating the engine at extreme angles can cause oil to slosh away from the pickup, leading to momentary oil starvation. Reduce engine roll during operation.
• Wrong SAE viscosity grade of engine oil: Incorrect oil might not maintain sufficient film strength or pressure, especially at operating temperatures.

Excessive Oil Consumption in the Engine

Increased oil consumption can indicate wear or operational issues.

• Oil level too high: Overfilling can lead to oil being pushed past seals or into the combustion chamber.
• Engine roll too much: Similar to low oil pressure, excessive tilt can allow oil to bypass seals.

Blue Smoke Comes Out of the Engine

Blue smoke typically indicates oil is being burned in the combustion chamber.

• Oil level too high: Overfilling can lead to oil entering the combustion chambers.
• Engine roll too much: Allows oil to bypass piston rings or valve stem seals.
• Other causes include worn piston rings, valve guides, or turbocharger seals.

White Smoke Comes Out of the Engine

White smoke usually signifies unburnt fuel or coolant being burned.

• Start temperature limit not reached: In cold conditions, engines might produce white smoke until they warm up, as fuel doesn't combust completely.
• Fuel quality does not correspond to the instructions for use: Poor quality or contaminated fuel can lead to incomplete combustion.
• Faulty injection valve: An injector that dribbles fuel instead of atomising it properly will result in unburnt fuel exiting as white smoke.
• Other causes include head gasket issues (burning coolant), or timing issues.

The Evolution of Deutz Engine Management Systems: EMS2, EMR3, and EMR4

Deutz has continuously evolved its Engine Management Systems (EMS) to meet increasingly stringent emission standards and improve engine efficiency. Understanding these systems helps in appreciating the complexity behind the diagnostic codes:

EMS2 (Engine Management System 2): An earlier generation, providing fundamental electronic control over fuel injection and basic engine parameters. Diagnostics were often simpler, relying heavily on flash codes and less sophisticated diagnostic tools.

EMR3 (Engine Management Regulation 3): A significant leap forward, EMR3 systems brought more precise control over fuel injection (common rail technology), exhaust gas recirculation (EGR), and turbocharging. This allowed for better fuel economy and reduced emissions. The diagnostic capabilities expanded, with more detailed codes and the need for more advanced diagnostic software for full access.

EMR4 (Engine Management Regulation 4): The latest iteration, EMR4 systems offer even greater control and integration. They incorporate advanced features like selective catalytic reduction (SCR) for NOx reduction, diesel particulate filters (DPF) for soot control, and more sophisticated sensor arrays. Diagnostics on EMR4 systems are highly integrated, often requiring proprietary Deutz diagnostic software (like Deutz SerDia) to fully interpret codes, perform system tests, and clear faults. The code lists for EMR4 are typically the most extensive, reflecting the increased complexity of the engine's operation.

Each generation of EMS offers enhanced performance but also introduces more complexity in troubleshooting. While flash codes provide a quick overview, a dedicated diagnostic tool is almost always necessary for a comprehensive analysis and resolution of issues in EMR3 and EMR4 equipped engines.

Frequently Asked Questions (FAQs)

Q: Can I clear Deutz error codes myself?
A: Some simpler, non-critical codes might clear themselves after the fault is resolved and the engine has completed a few operating cycles. However, for most significant codes, especially those from EMR3 and EMR4 systems, you will need a specific diagnostic tool (like Deutz SerDia) to clear them. It's crucial to resolve the underlying issue first; simply clearing codes without addressing the problem will only result in them reappearing.

Q: What diagnostic tools are needed for Deutz engines?
A: For basic flash codes, no special tool is needed, just observation. For a comprehensive diagnosis, you'll need a laptop with Deutz SerDia diagnostic software and the appropriate interface cable (e.g., Deutz DeCOM). Universal OBD-II scanners are generally not compatible with Deutz's proprietary systems, especially for industrial and off-highway engines.

Q: How often should I check for codes?
A: It's good practice to check for codes whenever a warning lamp illuminates. Beyond that, incorporating a routine diagnostic scan during scheduled maintenance can help identify intermittent or pending issues before they become critical. Modern Deutz engines often log 'event codes' that don't trigger a lamp but indicate minor deviations, which can be useful for proactive maintenance.

Q: Are all Deutz codes critical?
A: No. Codes range in severity. Some indicate minor deviations (e.g., a sensor reading slightly out of range), while others point to critical failures (e.g., low oil pressure, severe misfire). The engine management system often categorises them (e.g., active faults, passive faults, warnings). Always consult the Deutz trouble code list for your specific EMS version to understand the severity and recommended action for each code. Critical codes will often put the engine into 'limp home' mode or prevent it from starting.

Conclusion

Deutz engine error codes are not just random flashes or numbers; they are the voice of your engine's electronic brain, providing invaluable insights into its health and performance. By understanding how to read these codes, what they signify, and the common malfunctions they point to, operators and technicians can significantly reduce diagnostic time, prevent more severe damage, and ensure the longevity and reliability of their Deutz-powered machinery. While some basic troubleshooting can be performed with just the flash codes, investing in proper diagnostic tools and consulting detailed service manuals for specific EMS versions (EMS2, EMR3, EMR4) is essential for comprehensive and accurate repairs. Proactive maintenance and a clear understanding of these diagnostic signals are key to keeping your Deutz engine running at its optimal best, delivering consistent power and performance in the demanding environments it's designed for.
