In the intricate world of modern commercial vehicles, where engines are increasingly sophisticated networks of sensors, computers, and mechanical components, the ability to accurately diagnose and troubleshoot issues is paramount. Gone are the days when a simple visual inspection or a keen ear was enough. Today, advanced diagnostic software is the lifeblood of effective maintenance and repair. At the forefront of this technology for Detroit™ powertrain and Freightliner™ vehicle systems stands DiagnosticLink™, a powerful computer-based tool that has revolutionised how professionals interact with these complex machines.
For many years, the primary diagnostic software for Detroit Diesel engines was known as Detroit Diesel Diagnostic Link, or DDDL. Over time, as vehicle technology advanced and the integration between engine and vehicle systems became more profound, the software evolved. DiagnosticLink™ represents the latest iteration, offering enhanced capabilities, a more intuitive interface, and broader coverage for the comprehensive Detroit™ powertrain and integrated Freightliner™ vehicle systems. It's more than just a name change; it signifies a leap forward in diagnostic precision and efficiency, designed to meet the demands of today's high-tech commercial vehicles.

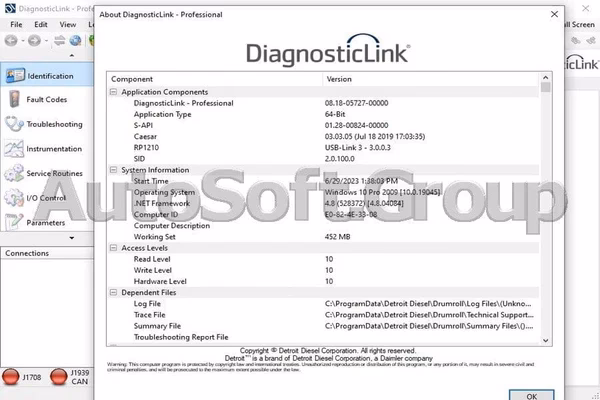

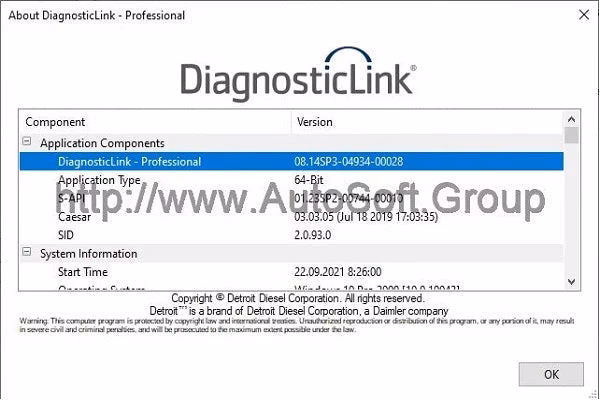

What is DiagnosticLink™? A Comprehensive Overview
At its core, DiagnosticLink™ is a sophisticated software application that acts as a bridge between a technician's computer and the vehicle's electronic control units (ECUs). It allows users to delve deep into the operational heart of the engine and vehicle, providing an unprecedented level of insight into their health and performance. Let's explore its key functionalities:
1. ECU Information Display
One of the foundational aspects of DiagnosticLink™ is its ability to display a wealth of information directly from the vehicle's ECUs. This isn't just basic data; it encompasses critical details that are vital for proper diagnosis and service history. Users can view engine hours, Vehicle Identification Numbers (VINs), current software versions, calibration IDs, and even historical operational data. Understanding this information is crucial for ensuring the correct software is installed, verifying component compatibility, and tracking the vehicle's operational life. It provides a digital fingerprint of the vehicle, essential for accurate record-keeping and troubleshooting.
2. Diagnostic Fault Codes
Perhaps the most commonly utilised feature, DiagnosticLink™ excels at reading and interpreting fault codes. Modern engines generate these codes when a sensor detects an anomaly or a system operates outside its predefined parameters. DiagnosticLink™ doesn't just display a cryptic code; it provides detailed descriptions, often including the fault's status (active or inactive), the conditions under which it occurred, and sometimes even suggested troubleshooting steps. This capability is invaluable for quickly pinpointing potential issues, from minor sensor malfunctions to more critical engine problems. Crucially, the software enables technicians to understand the root cause of a fault rather than merely clearing the code, which is vital for preventing recurrence.
3. Instrumentation (Live Data Monitoring)
Beyond static information and fault codes, DiagnosticLink™ offers real-time instrumentation, allowing technicians to monitor live operational data from various sensors and systems. Imagine observing engine RPM, coolant temperature, oil pressure, fuel pressure, boost pressure, and even individual sensor readings as the engine runs. This live data feed is incredibly powerful for dynamic diagnosis. For instance, a technician can observe how a specific pressure sensor behaves during a road test, identifying intermittent issues that might not trigger a fault code immediately. It helps in verifying repairs, assessing performance under load, and fine-tuning engine parameters for optimal efficiency.
4. Running Service Routines
Modern vehicle maintenance often requires more than just tightening bolts; it demands interactive communication with the vehicle's ECUs to perform specific tasks. DiagnosticLink™ facilitates a wide array of service routines that are otherwise impossible. These can include initiating a Diesel Particulate Filter (DPF) regeneration cycle, performing injector cut-out tests to identify faulty injectors, running cylinder compression tests (often virtually, using sensor data), calibrating sensors, or even adjusting vehicle parameters like speed limits or idle shutdown timers. These routines are fundamental to efficient and precise maintenance, allowing technicians to perform complex tasks quickly and accurately, ultimately contributing to reduced downtime and enhanced vehicle longevity.
Why is DiagnosticLink™ Indispensable? The Benefits
The sophisticated capabilities of DiagnosticLink™ translate into significant benefits for various stakeholders in the commercial vehicle industry:
- For Technicians and Workshops: It provides faster, more accurate diagnosis, significantly reducing troubleshooting time. This means vehicles spend less time in the workshop and more time on the road, improving workshop efficiency and customer satisfaction. The ability to perform advanced service routines also ensures that repairs are thorough and effective.
- For Fleet Managers and Owner-Operators: DiagnosticLink™ offers a window into the health of their fleet or individual vehicle. By understanding fault codes and monitoring performance data, they can engage in proactive maintenance, preventing minor issues from escalating into costly breakdowns. This leads to better fuel efficiency, extended vehicle life, and optimised operational costs.
- Ensuring Vehicle Reliability and Performance: Ultimately, the software helps maintain the highest standards of vehicle reliability and performance. By accurately identifying and addressing issues, it ensures that Detroit™ powered vehicles operate at peak efficiency, meeting emissions standards and delivering consistent power and economy.
It's important to note that while DiagnosticLink™ offers a broad spectrum of functionalities, certain features are available for authorised users only. This tiered access system is a common practice in the automotive industry, particularly for heavy-duty vehicles. Advanced functionalities, such as critical parameter adjustments, reprogramming ECUs, or accessing highly sensitive proprietary data, are typically restricted. This is not to withhold information but to ensure that complex and potentially vehicle-altering operations are performed by trained and certified professionals who understand the implications and safety protocols. It safeguards the vehicle's integrity, ensures compliance with regulations, and prevents accidental damage or misuse.
Hardware and Software Requirements
To run DiagnosticLink™, users typically require a Windows-based laptop or PC with sufficient processing power and memory. Crucially, a compatible data link adapter is needed to establish communication between the computer and the vehicle's diagnostic port. Detroit Diesel offers its own proprietary adapters, but other J2534 compliant devices may also work. The appropriate cables (often a 9-pin Deutsch connector for heavy-duty vehicles or an OBD-II connector for lighter applications) are also essential to complete the connection.
DiagnosticLink™ vs. Generic Diagnostic Tools: A Comparison
While generic OBD-II scanners can provide some basic information, they are no match for the depth and specificity offered by DiagnosticLink™. Here's a comparative look:
| Feature Area | Generic OBD-II Scanners | DiagnosticLink™ (Detroit™/Freightliner™) |
|---|---|---|
| Engine Systems Coverage | Limited, generic powertrain data (P-codes) | Comprehensive Detroit™ powertrain systems |
| Vehicle Systems Coverage | Basic emissions-related systems only | Extensive Freightliner™ vehicle systems (ABS, transmission, chassis, etc.) |
| Fault Code Specificity | Generic P-codes with limited descriptions | Manufacturer-specific SPN/FMI codes with detailed descriptions and troubleshooting guidance |
| Live Data Parameters | Limited set of standard PIDs (e.g., RPM, speed, basic temps) | Extensive, manufacturer-specific sensor data, including proprietary parameters |
| Service Routines & Tests | Very few or none (e.g., readiness monitors) | Many, manufacturer-specific diagnostic tests and service routines (e.g., DPF regen, injector tests) |
| Parameter Adjustments | None | Some (e.g., speed limits, idle shutdown) with authorised access |
| ECU Information Depth | Basic VIN, mileage, engine type | Detailed ECU information, calibration IDs, software versions, historical data |
Frequently Asked Questions (FAQs)
Q: What's the main difference between DDDL and DiagnosticLink™?
A: DiagnosticLink™ is the current, updated software, essentially replacing DDDL. It offers enhanced features, broader coverage for newer Detroit™ engines and Freightliner™ vehicle systems, and an improved user interface, reflecting advancements in vehicle technology and integration. It's the modern successor.
Q: Can I use DiagnosticLink™ for my personal Detroit Diesel powered vehicle?
A: While the software is generally available, certain advanced features require authorisation. For basic diagnostics, monitoring, and some service routines, it can be very useful for owner-operators. However, professional repair shops and dealerships will typically have full access to all functionalities due to their training and authorisation.
Q: Does DiagnosticLink™ work with all Detroit Diesel engines and Freightliner vehicles?
A: It is primarily designed for modern Detroit™ powertrain systems and integrated Freightliner™ vehicle systems. While it may offer some backward compatibility, its full capabilities are realised with newer engine models and vehicles. Always check the specific compatibility information provided by Detroit Diesel for your particular engine or vehicle model.
Q: What hardware do I need to run DiagnosticLink™?
A: You'll typically need a Windows-based laptop or PC, a compatible data link adapter (such as the Detroit Diesel Diagnostic Link Adapter or other J2534 compliant devices), and the appropriate cables to connect to your vehicle's diagnostic port, which is usually a 9-pin Deutsch connector or an OBD-II port.
Q: Is DiagnosticLink™ difficult to learn?
A: Like any professional diagnostic tool, it has a learning curve. Basic functions like reading fault codes and viewing live data are relatively intuitive. However, mastering advanced diagnostics, understanding complex system interactions, and performing specific service routines requires proper training and experience. Detroit Diesel often provides training resources for authorised users to ensure proficient use.
Conclusion
In an era where commercial vehicles are more technologically advanced than ever, tools like Detroit Diesel DiagnosticLink™ are not just accessories; they are fundamental necessities. By providing unparalleled access to ECU information, precise troubleshooting through fault codes, real-time instrumentation, and the ability to perform crucial service routines, DiagnosticLink™ empowers technicians and owners alike. It ensures that Detroit™ powered engines and Freightliner™ vehicles can be maintained, repaired, and optimised with the highest degree of accuracy and efficiency. Investing in understanding and utilising this powerful software is an investment in the longevity, reliability, and peak performance of these vital machines on our roads.
