Derbi Engines: Powering Your Two-Wheeled Adventure

For enthusiasts and daily riders alike, understanding the engine that powers your Derbi moped is crucial. These popular 50cc machines, especially the Senda range, have carved out a significant niche in the UK and European market, known for their robust performance and agile handling. But what exactly beats beneath the frame? This article dives into the specifics of Derbi engines, focusing on the prevalent D50B0 and its predecessor, the EBE50, along with common modifications, maintenance tips, and answers to your most pressing questions.

At the core of many modern Derbi mopeds, particularly the Senda 50 SM and X-Treme models from 2006 onwards, you'll find the D50B0 engine. This two-stroke, liquid-cooled, 50cc powerhouse was a significant evolution for Derbi, designed to meet stricter emissions standards, specifically Euro 3. It replaced the long-serving EBE50 engine, bringing with it refinements in design and efficiency. The D50B0 is renowned for its reliability and its surprising capability for modification, making it a favourite among those looking to extract more performance from their moped.

The Evolution: D50B0 vs. EBE50

Before the D50B0 became the standard, Derbi mopeds were largely equipped with the EBE50 engine. Understanding the transition between these two powerplants is key to identifying your moped's heart and planning any potential upgrades or maintenance. The EBE50 was a workhorse, a staple in Derbi models for many years prior to 2006. It was known for its simplicity and ruggedness, offering a solid foundation for riders.

The shift to the D50B0 was primarily driven by evolving environmental regulations. The D50B0 incorporated design changes to achieve cleaner emissions, without sacrificing the characteristic two-stroke punch that Derbi riders appreciate. While both are 50cc, two-stroke, liquid-cooled units, the internal architecture and some external components differ, making part interchangeability limited in certain areas. For instance, ignition systems and cylinder designs often vary significantly between the two.

Key Differences and Identification

Identifying which engine your Derbi Senda has is usually straightforward. For models produced from 2006 onwards, it's highly probable you have a D50B0. Older models typically feature the EBE50. Visually, subtle differences in the crankcase casting, water pump location, and ignition cover can help distinguish them. The D50B0 often has 'D50B0' cast into the engine block itself, making identification even easier. It's also worth noting that the D50B0 is often referred to as the 'Euro 3' engine, highlighting its compliance with the European emissions standard.

Unlocking Performance: CDI Units and Rev Limits

One of the most common modifications Derbi owners explore is upgrading the Capacitive Discharge Ignition (CDI) unit. Stock CDIs on 50cc mopeds are often restricted, limiting the engine's maximum RPM (revolutions per minute) to comply with local power regulations. An unrestricted CDI is designed to remove this limitation, theoretically allowing the engine to rev higher.

However, the real-world impact of an unrestricted CDI can sometimes be less straightforward than expected. As observed by some owners, while an unrestricted CDI might allow the engine to rev significantly higher in neutral (e.g., from 9,300 RPM to 12,000 RPM), this doesn't always translate to a noticeable power increase or higher top speed when riding. This phenomenon is often due to the engine's original ignition curve, which might still retard timing at higher RPMs, or simply because the stock cylinder and exhaust are not designed to produce meaningful power at those elevated engine speeds. The engine might rev, but it lacks the necessary torque to propel the moped effectively at those RPMs.

For genuine performance gains, an unrestricted CDI is often just the first step. It needs to be paired with other modifications that allow the engine to breathe and produce power efficiently at higher RPMs, such as a larger bore cylinder kit and a performance exhaust system. Without these complementary upgrades, the benefits of an unrestricted CDI alone can be minimal.

Common Engine Concerns and Maintenance

Like any mechanical component, Derbi engines require regular maintenance to ensure longevity and optimal performance. Some issues are more common than others, and being prepared can save you time and money.

Gaskets and Seals: The Unsung Heroes

Over time, engine seals and gaskets can degrade, leading to leaks and a loss of compression or lubrication. This is particularly true for two-stroke engines, where crankcase seals are vital for proper air-fuel mixture flow. Owners often find that after years of use, seals become brittle and fail, necessitating an engine rebuild. Replacing crankcase seals, cylinder base gaskets, and especially the head gasket, is crucial during any significant engine work or rebuild. A leaking head gasket, as one owner noted, can be a frustrating issue, sometimes costing more to replace than the value of a cheap cylinder kit. It underscores the importance of quality parts and proper installation during any engine reassembly.

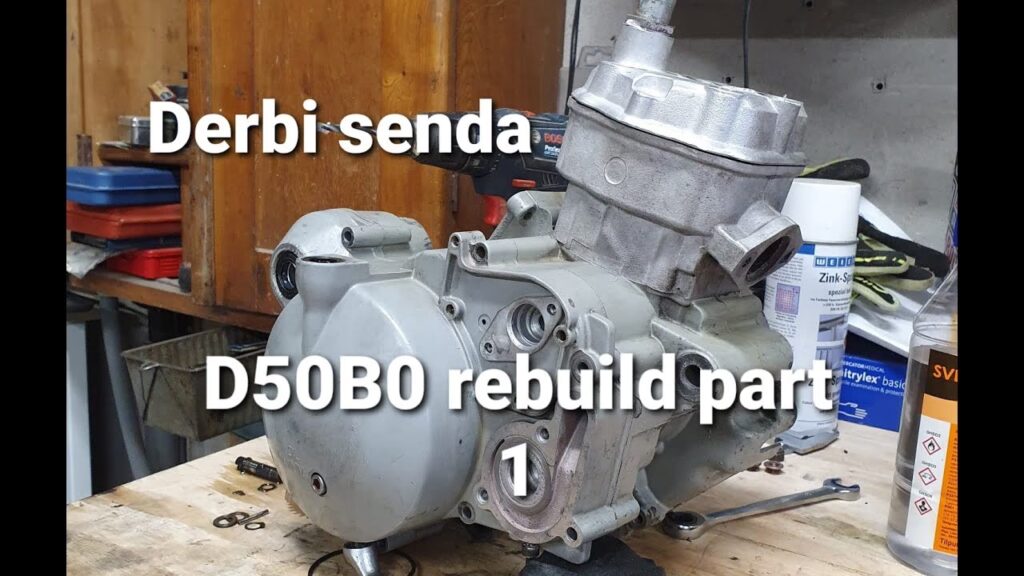

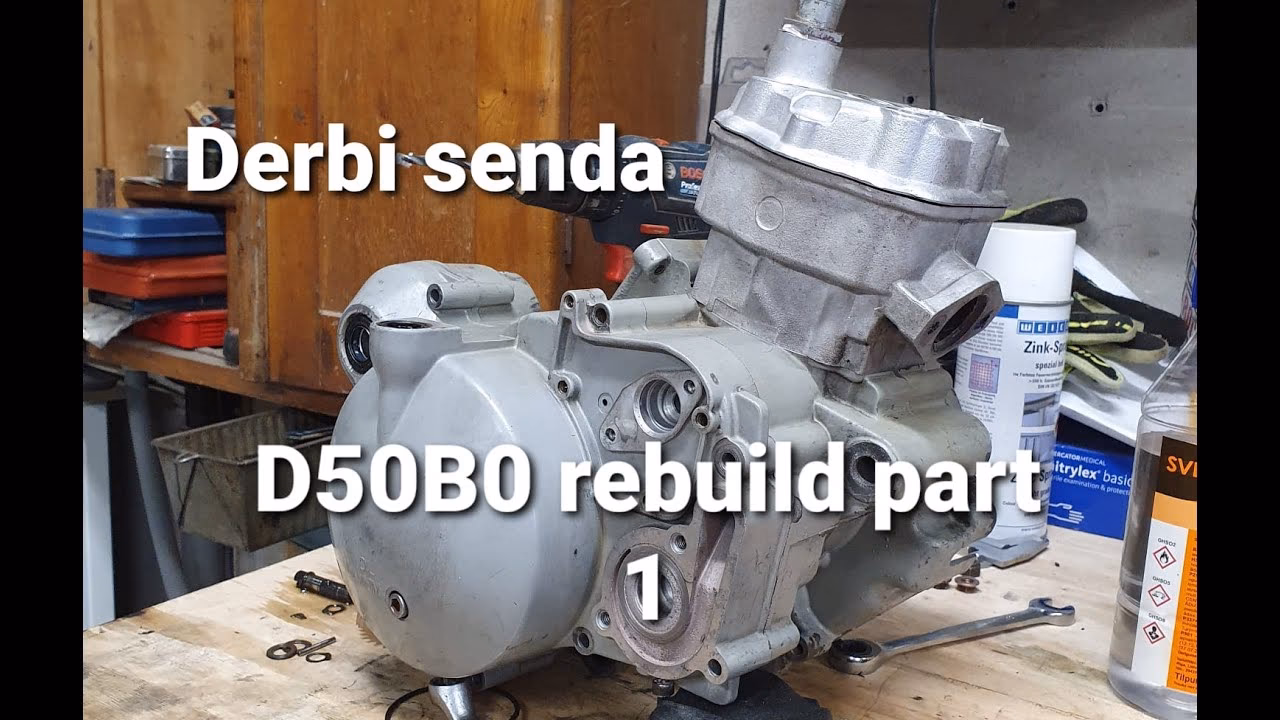

The Engine Rebuild Process

An engine rebuild, while daunting for some, is a rewarding process for many Derbi owners. It typically involves removing the engine from the frame, disassembling it, inspecting components for wear (crankshaft, bearings, cylinder, piston), replacing worn parts like seals and gaskets, and then meticulously reassembling everything. A successful rebuild ensures the engine runs smoothly, with optimal compression and no leaks. It's a fantastic opportunity to clean internal components and ensure everything is within specification.

Stepping Up: 70cc/80cc Cylinder Kits and Beyond

For those craving more power, upgrading to a 70cc or even 80cc cylinder kit is a popular modification. These kits significantly increase the engine's displacement, leading to substantial gains in torque and horsepower. However, it's not simply a matter of bolting on a larger cylinder; a comprehensive approach is often required for reliable performance.

Choosing Your Cylinder Kit

The market offers a wide range of big bore kits, from budget-friendly options to high-performance race kits. As observed, cheap kits (around £35) can be appealing, but they often come with compromises. They might not include essential components like a cylinder head, requiring improvisation (e.g., machining the original head). More importantly, the quality of materials and manufacturing tolerances can be lower, impacting durability and performance. Investing in a reputable brand's kit, though more expensive, generally yields better results and longevity.

Matching Components: Exhaust, Crankshaft, and Carburettor

• Exhaust System: A stock exhaust is highly restrictive and will severely limit the performance of a 70cc/80cc kit. An aftermarket performance exhaust is essential to allow the engine to expel gases efficiently and produce power at higher RPMs.
• Crankshaft: A stock crankshaft, especially one with "many miles on it," may not be robust enough to handle the increased stresses from a larger, more powerful cylinder. Upgrading to a reinforced crankshaft is highly recommended, if not mandatory, for 70cc and 80cc kits to prevent premature failure.
• Carburettor: A larger carburettor is necessary to provide the increased air-fuel mixture required by a bigger cylinder. While a stock carb might work to some extent, it will restrict the engine's potential. Common upgrades range from 19mm to 24mm or even larger, depending on the kit and desired performance. Proper jetting is critical for optimal performance and engine longevity.
• Ignition System: While a stock Ducati ignition might function, for high-performance setups, an aftermarket ignition system can offer more precise timing control and a stronger spark, further optimising power delivery across the rev range.

Table: Common Derbi Engine Upgrades

Identifying Your Derbi Model and Engine Number

Sometimes, even with papers, identifying the exact model year or specific variant of your Derbi Senda can be tricky. While the papers might simply state 'Derbi Senda 50 SM', visual cues can help. Look at frame colours, seat covers, and specific fairing designs. Forum communities and online resources often have detailed guides or picture archives that can help narrow down the model year based on these aesthetic details. For instance, a black seat cover or particular frame colour might point to a 2007 or 2008 X-Treme model.

Regarding the engine number, its precise location can vary slightly between models and engine types. Generally, you'll find the engine number stamped directly onto the engine block itself, often on a flat machined surface near the crankcase split, or close to the cylinder base. It's usually a series of alphanumeric characters. You might need to clean the area thoroughly and use a strong light to locate it. For the Derbi Senda R DRD, the engine number will be in a similar location on the engine block, though specific diagrams for that exact model might pinpoint it more precisely if you consult a workshop manual or parts diagram.

Frequently Asked Questions About Derbi Engines

Q: What's the main difference between a D50B0 and EBE50 engine?

A: The D50B0 is the newer engine, introduced around 2006 to meet Euro 3 emissions standards. It features internal refinements compared to the older EBE50, which was used in earlier Derbi models. While both are 50cc two-stroke, liquid-cooled engines, their internal components and some external fittings (like ignition systems) are often not interchangeable.

Q: Why does my Derbi rev high in neutral but lose power when riding with an unrestricted CDI?

A: This is a common phenomenon. While an unrestricted CDI allows higher RPMs, the stock cylinder, exhaust, and sometimes the ignition curve itself, are not optimised for power production at those speeds. The engine might rev, but it's not producing effective power. To gain actual performance, you'll need complementary upgrades like a performance exhaust and a larger cylinder kit.

Q: Do I need a new crankshaft for a 70cc kit on my Derbi?

A: While some very mild 70cc kits might get away with a stock crankshaft for a short period, it is highly recommended to upgrade to a reinforced crankshaft, especially for higher performance 70cc or 80cc kits. Stock crankshafts are not designed to withstand the increased stress and power of a larger cylinder and will likely fail prematurely.

Q: What size carburettor should I get for a 70cc Derbi?

A: The ideal carburettor size depends on the specific 70cc kit and your performance goals. Generally, for a 70cc kit, a carburettor in the range of 19mm to 24mm is common. It's crucial to select a carburettor that matches the kit's requirements and to properly jet it for optimal performance and engine reliability.

Q: My head gasket is leaking. Is it worth replacing?

A: Yes, absolutely. A leaking head gasket can lead to a loss of compression, overheating, and ultimately engine damage. While the cost of the gasket might seem disproportionate to a cheap cylinder kit, replacing it is vital for engine health. If the cylinder itself is in poor condition, consider replacing both with a new, possibly upgraded, cylinder kit that includes a head.

Q: Can I run a 70cc kit with a stock exhaust?

A: You can, but it's not recommended. A stock exhaust is highly restrictive and will severely limit the power output of a 70cc kit. You won't experience the full benefits of the upgrade, and it could even lead to overheating issues due to excessive back pressure. An aftermarket performance exhaust is crucial for a 70cc setup.

Q: How can I tell if my Derbi Senda has a D50B0 or EBE50 engine?

A: Check the engine block itself; the D50B0 often has 'D50B0' cast into it. Also, models from 2006 onwards are very likely to have the D50B0. Older models typically have the EBE50. There are also visual differences in the crankcase and water pump areas.

Conclusion

The Derbi D50B0 engine is a robust and highly capable powerplant for 50cc mopeds, offering a solid foundation for both daily commuting and performance tuning. Understanding its characteristics, its differences from the earlier EBE50, and the implications of various modifications is key to getting the most out of your machine. Whether you're performing routine maintenance, tackling an engine rebuild, or planning a significant performance upgrade, always prioritise quality parts and proper installation. With the right care and attention, your Derbi engine will continue to provide reliable and exciting rides for years to come. Remember, a well-maintained engine is a happy engine, ensuring your two-wheeled adventure is always a smooth one.
