Powerstroke Exhaust Systems Explained

Choosing the Right Exhaust for Your 6.7 Powerstroke: A Comprehensive Guide

When it comes to enhancing your 6.7 Powerstroke, one of the most significant upgrades you can make is to its exhaust system. However, the sheer number of options available can be quite overwhelming. From different manufacturers and pipe diameters to the presence or absence of a muffler, and whether to opt for a downpipe-back or muffler-back system, the choices can seem endless. This guide aims to demystify the process, helping you select the perfect exhaust system to meet your specific needs, whether you prioritise sound, performance, or managing exhaust gas temperatures (EGTs).

Understanding the Components: What is a Downpipe Back Exhaust System?

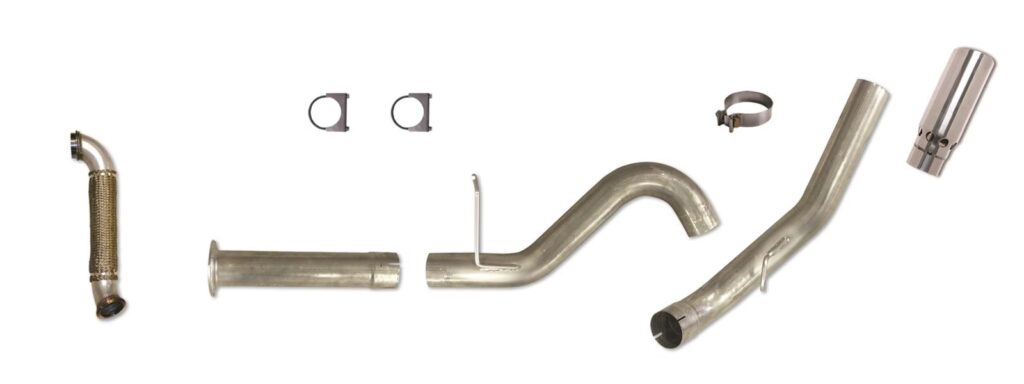

At its core, a downpipe back exhaust system refers to a complete replacement of your truck's exhaust from the downpipe onwards. The downpipe is the crucial pipe that connects directly to the turbocharger, acting as the first section of the exhaust. A downpipe back system, therefore, encompasses everything from this point all the way to the tailpipe that exits your vehicle. This type of system offers the most comprehensive upgrade, allowing for significant improvements in airflow and, consequently, performance and EGT reduction.

Key Considerations When Selecting an Exhaust System

Navigating the world of aftermarket exhaust systems involves understanding several key choices. Here's a breakdown of the most common variations you'll encounter for the 6.7 Powerstroke:

Material: Stainless Steel vs. Aluminised Steel

The material of your exhaust system plays a vital role in its longevity and appearance.

While stainless steel offers superior resistance to corrosion and a more enduring aesthetic, aluminised steel provides a more economical entry point. If your budget is tight, aluminised steel can be a sensible choice, but be prepared for potential surface rust over time if the protective coating is compromised.

Pipe Diameter: 4-Inch vs. 5-Inch

The diameter of your exhaust piping has a direct impact on exhaust flow and engine efficiency.

• 4-Inch Systems: Offer a noticeable improvement over stock systems, enhancing sound and performance. They are a popular choice for a good balance of benefits and cost.
• 5-Inch Systems: Designed for maximum flow and the lowest possible Exhaust Gas Temperatures (EGTs). If your priority is to keep your engine running as cool as possible, especially under heavy load or when towing, a 5-inch system is the superior choice. They also typically produce a deeper, more aggressive exhaust note.

The decision between 4-inch and 5-inch often hinges on your specific goals. For those seeking the absolute lowest EGTs and a throatier exhaust note, the larger 5-inch diameter is the way to go, provided your budget allows.

System Type: Downpipe Back vs. Muffler Back

This distinction dictates how much of the original exhaust system you are replacing:

• Downpipe Back: As discussed, this replaces everything from the downpipe to the tailpipe. It offers the most significant gains in flow and potential for EGT reduction. Systems like the FLO PRO 4″ DOWNPIPE BACK NO MUFFLER are prime examples, offering a complete overhaul from the turbocharger.
• Muffler Back: This system replaces the exhaust from the muffler to the tailpipe. It's a less extensive modification, primarily affecting the sound of the exhaust. If your main goal is to alter the sound without impacting performance or EGTs significantly, a muffler back system might suffice.

Muffler: With or Without?

The presence or absence of a muffler is a critical factor influencing the sound profile of your truck.

• No Muffler (Muffler Delete): Opting for an exhaust system without a muffler will result in a much louder and more aggressive exhaust note. This is often favoured by those building dedicated performance or competition vehicles. However, it's essential to be aware of local noise ordinances and potential legal restrictions when choosing this option for street use.
• With Muffler: A muffler is designed to reduce exhaust noise. If you prefer a more subdued sound, or need to comply with stricter noise regulations, a system that includes a muffler is the appropriate choice. Modern aftermarket mufflers can still offer an improved sound over stock without being excessively loud.

Exhaust Configuration: Single vs. Dual Exit

While single exit exhaust systems have been the dominant choice for many years, dual exit systems offer a distinct aesthetic and can sometimes influence exhaust scavenging.

• Single Exit: The traditional and most common configuration. It's generally more cost-effective and simpler in design.
• Dual Exit: Offers a more aggressive visual appeal, reminiscent of performance vehicles from past decades. While the performance difference is often minimal, some enthusiasts prefer the look and the slightly different exhaust note that can accompany a dual exit setup. The main consideration here is often personal preference and the slightly higher cost associated with a dual system.

Replacement Pipe vs. Full System

For those on a tighter budget or looking for a minimal modification, a 'straight replacement pipe' or 'delete pipe' can be an option. These typically replace specific restrictive sections of the stock exhaust, such as the muffler or catalytic converter (though removing the catalytic converter may have legal implications depending on your location). These can be very inexpensive (often under £200) and can provide noticeable gains in sound and a slight improvement in flow. However, it's crucial to note that these are often considered competition use parts, and pairing them with a tuner is highly recommended to optimise performance and prevent potential issues.

Why Choose a Downpipe Back System for Performance and EGTs?

A downpipe back exhaust system provides the most significant benefits for your 6.7 Powerstroke for two primary reasons:

1. Improved Airflow and Lower EGTs: By increasing the diameter of the exhaust piping from the turbocharger onwards, you allow exhaust gases to escape more freely. This reduced backpressure leads to lower Exhaust Gas Temperatures (EGTs). Lower EGTs are crucial for engine longevity, especially when towing or under heavy load, as they reduce the thermal stress on critical engine components.
2. Enhanced Turbocharger Efficiency: Systems like those from FLO PRO often feature a specifically machined flange that mates perfectly with either stock or aftermarket turbochargers. This precision fitment eliminates potential weak points found in some stock setups where stress or vibrations can lead to downpipe failure. A well-designed downpipe ensures efficient gas transfer directly from the turbo, maximising its effectiveness.

The FLO PRO Advantage: Quality and Durability

When selecting an exhaust system, the quality of the components and the manufacturing process are paramount. FLO PRO stands out for its commitment to quality, particularly in its use of Torca lapjoint style clamps. Unlike many competitors who use simpler 'squish' clamps that can crush the pipe and create potential leak points, Torca clamps provide a secure, leak-free seal. Furthermore, FLO PRO's contour-bent hangers offer significantly more weld surface area (6-7 inches) compared to the typical 1-inch welds found on many other systems. This robust construction ensures greater durability and resistance to the stresses and vibrations inherent in heavy-duty diesel applications, contributing to a longer-lasting and more reliable exhaust system.

Frequently Asked Questions (FAQs)

Q1: What is the primary benefit of a downpipe back exhaust?
A: The primary benefits are improved exhaust flow, leading to lower EGTs and potentially increased horsepower and torque. It also offers a significant upgrade in exhaust sound.

Q2: Should I get a 4-inch or 5-inch exhaust?
A: If your priority is the lowest possible EGTs and a deeper exhaust note, a 5-inch system is generally preferred. A 4-inch system offers a good balance of performance and cost.

Q3: Is a muffler necessary for a diesel truck?
A: It depends on your preference for sound and local regulations. For a loud, aggressive sound, a muffler delete is common. For a quieter operation or to comply with noise laws, a muffler is recommended.

Q4: What's the difference between stainless steel and aluminised steel for exhaust systems?
A: Stainless steel is more resistant to rust and corrosion, offering better longevity and appearance, but at a higher cost. Aluminised steel is more affordable but may develop surface rust over time.

Q5: Are straight replacement pipes a good option?
A: Straight replacement pipes can offer a budget-friendly way to improve sound and flow, but they are often considered for competition use and are best paired with a tuner for optimal results and safety.

Choosing the right exhaust system for your 6.7 Powerstroke is a decision that impacts your truck's performance, sound, and longevity. By understanding the different options available and considering your specific needs, you can make an informed choice that enhances your driving experience.
