Understanding the Denso ECU Tool: A Comprehensive Guide
For automotive technicians and tuning specialists, the Denso ECU Tool represents a powerful solution for interacting with and modifying vehicle Engine Control Units (ECUs). This versatile tool is specifically designed to read and write data to Denso-manufactured ECUs, offering a gateway to enhanced vehicle performance, diagnostics, and calibration. Its capabilities extend to a wide array of vehicle makes and models, primarily focusing on those equipped with specific Denso microcontrollers and memory configurations.
At its core, the Denso ECU Tool supports ECUs that house either the 64F7055, 64F7058, or 64F7059 microcontrollers. These microcontrollers are the brains of the ECU, processing vast amounts of data to manage engine operations. The tool's proficiency lies in its ability to perform full read and write operations on both the flash memory, where the ECU's software resides, and the EEPROM memory, which stores critical configuration and calibration data. Common EEPROM types supported include the 93A86 and 93A56, though variations like 93C66 and 93C86 are also frequently encountered.
A significant advantage of the Denso ECU Tool is its flexibility in connectivity. Operations can be carried out via the standard OBD (On-Board Diagnostics) port using either K-LINE or CAN protocols, or directly on the bench without the need to physically open the ECU. This bench-style connection simplifies the process and reduces the risk of damage to the delicate ECU components. Furthermore, the tool offers advanced functionalities on certain ECUs, such as odometer calibration, crucial for vehicle servicing and resale, and pincode extraction or reset (virginisation), which is vital for immobiliser system management.
Key Features and Capabilities
The Denso ECU Tool boasts a range of features designed to streamline ECU work:
- Full Read/Write Access: Enables complete data extraction and programming of both Flash and EEPROM memories.
- Multiple Communication Protocols: Supports K-LINE and CAN for versatile connectivity.
- Bench and OBD Operation: Offers flexibility in how the ECU is accessed.
- Advanced Functions: Includes odometer calibration, pincode extraction, and ECU reset (virginisation).
- CRC Calculator: Integrated functionality for calculating Flash memory Cyclic Redundancy Checks, essential for data integrity verification.
- Comprehensive Documentation: Access to wiring diagrams and ECU pictures in the DOWNLOADS section of the associated webpage.
Supported Vehicle Makes and Models
The Denso ECU Tool's compatibility spans a wide variety of manufacturers, with a particular emphasis on European and Asian vehicles. Below is a detailed breakdown of commonly supported ECUs by vehicle make and model, highlighting the specific microcontrollers and memory types:
| Vehicle Make | Model/Engine | Denso ECU Part Number (Examples) | Microcontroller | EEPROM Type | Supported Operations | Communication |
|---|---|---|---|---|---|---|
| Opel | Meriva, Corsa C 1.7 CDTI HYBRID ECU | N/A | 64F7055 | 93C66 | Full R/W, Pincode Show, Reset (Virgin) | CAN & K-LINE |
| Opel | Vectra C/Signum 3.0 CDTI | N/A | 64F7058 | 93C86 x2 | Full R/W, Pincode Show, Odometer Calibration, Reset (Virgin) | CAN |
| Opel | 1.7CDTI (110/125CV) Astra H/J, Zafira B, Corsa D, Meriva B, Tigra B | Z17DTJ/Z17DTR/Z17DTH/A17DTH/A17DTR | 64F7058 | 93C86 x3 | Full R/W, Odometer Calibration, Pincode Show, Reset (Virgin) | CAN |
| Opel | 1.7CDTI (110/125CV) Astra H/J, Zafira B, Corsa D, Meriva B, Tigra B | (See above) | 64F7059 | 93C86 x4 | Full R/W, Odometer Calibration, Pincode Show, Reset (Virgin) | CAN |
| Mazda | 3/5/6 RF7 ECU | N/A | 64F7058 | 93C86 | Full R/W | CAN |
| Mazda | 2 1.5 (from 2010) | N/A | 64F7058 | 93A56 | Full R/W | CAN |
| Mazda | 6 2.2TD R2AC | N/A | 64F7058 | 93C86 | Full R/W | CAN |
| Mazda | RX8 | N/A | 64F7055 | 93C56 | Full R/W | CAN |
| Nissan | Navara/Pathfinder 2.5DCI (2005-2009) | N/A | 64F7058 | 93C86 | Full R/W | CAN |
| Nissan | Navara/Pathfinder D40 2.5DCI (from 2010) | N/A | 64F7059 | 93C86 | Full R/W | CAN |
| Mitsubishi | L200/Pajero 4D56/4M41 2.5/3.2DID (till 2009) | N/A | 64F7058 | 93C86 | Full R/W | CAN |
| Mitsubishi | L200/Pajero 4D56/4M41 2.5/3.2DID (from 2009) | N/A | 64F7059 | 93C86 | Full R/W | CAN |
| Mitsubishi | Delica D5/Outlander 2.2DID 4N14 (from 2009) | N/A | 64F7059 | 93C86 | Full R/W | CAN |
| Subaru | Forester 2.0D KH | N/A | 64F7058 | 93C86 | Full R/W | CAN |
| Subaru | Outback 2.0DNG | N/A | 64F7059 | 93C86 | Full R/W | CAN |
| Suzuki | 1.3/1.5/1.6 (Models from 2007) | N/A | 64F7058 | 93A56 | Full R/W | CAN |
| Suzuki | 1.3/1.5/1.6 (Models < 2007) | N/A | 64F7055 | 93A56 | Full R/W | CAN |
| Suzuki | Jimny 1.3 (< 2007) | N/A | 64F7055 | 93A56 | Full R/W | CAN |
| Volvo | V50/S40/V40 (2006-2010) 140/170hp | N/A | 64F7058 | 93C56 | Full R/W | CAN |
| Volvo | V70/S60/S80 (till 2006) 140/170hp | N/A | 64F7058 | 93C56 | Full R/W | CAN |
| Volvo | V70/S60/S80 (till 2006) 140/170hp | N/A | 64F7055 | 29LV200BC (External Flash), 93C56 | Full R/W (Flash & EEPROM) | CAN |
| Volvo | S80/XC90 4.4L V8 (2007-2010) | N/A | 64F7058 | 93A86 | Full R/W | CAN |
| Jaguar/Land Rover | P3.0NA / XF 4.2SC | N/A | 64F7058 | 93A86 | Full R/W | CAN |
| Jaguar | S-Type 4.2 V8 / V8SC | N/A | 64F7058 | 93A86 | Full R/W | CAN |
Denso ECU Tuning with Alientech KESS3
The Alientech KESS3 is a powerful tool that complements the capabilities of Denso ECU work, particularly in the realm of tuning and remapping. With recent updates, the KESS3 has expanded its support for Denso ECUs, enabling tuning via Bench and Boot modes for several Japanese brands, including Subaru, Lexus, Mazda, and Suzuki. This expansion allows tuners to offer enhanced performance, improved fuel efficiency, and customisation for a growing number of vehicles.
The KESS3 supports a range of Denso ECUs, identified by their specific part numbers, for tuning purposes. These include:
- Denso 112731-5040
- Denso 112800-3288
- Denso 275236-0011
- Denso 279721-3830
- Denso ZYE9
- Denso L831
- Denso 112331-0380
- Denso 33910-057LX
The KESS3 also offers cloning capabilities for specific Denso ECUs, namely the Denso 112731-5040, Denso L831, and Denso 112331-0380. ECU cloning involves creating an exact replica of an existing ECU's data onto a new unit, which is invaluable for replacing faulty ECUs without the need for extensive re-coding or immobiliser programming.
KESS3 Supported Denso ECUs for Tuning and Cloning
| Denso ECU Part Number | Alientech Tool | Mode | Vehicle Make | Supported Operations | Example Vehicle Models |
|---|---|---|---|---|---|
| 112731-5040 | KESS3 | BOOT MODE | Subaru | RD, WR, Clone | Forester 2.5i CVT Petrol, Legacy 2.5i CVT Petrol, Outback 2.5i CVT Petrol |
| 112800-3288 | KESS3 | BENCH MODE | Subaru | RD, WR | Impreza 1.6i 5MT Petrol, Impreza 1.6i CVT Petrol, Impreza 2.0i 5MT Petrol, Impreza 2.0i CVT Petrol |
| 275236-0011 | KESS3 | BOOT MODE | Lexus | RD, WR | RX RX400h 3.3 V6 Hybrid Petrol |
| 275236-0011 | KESS3 | BOOT MODE | Toyota | RD, WR | Highlander 3.3 V6 Hybrid Petrol |
| 279721-3830 | KESS3 | BENCH MODE | Mazda | RD, WR | 3 1.6 SkyActiv-G Petrol |
| ZYE9 | KESS3 | BENCH MODE | Mazda | RD, WR | 2 1.5 MZR 4AT Petrol, 2 1.5 MZR 5MT Petrol |
| L831 | KESS3 | BENCH MODE | Mazda | RD, WR, Clone | MX-5 1.8 16v MZR 5MT Petrol, MX-5 2.0 16v MZR 6MT Petrol |
| 112331-0380 | KESS3 | BENCH MODE | Subaru | RD, WR, Clone | G3X Justy 1.3 5MT Petrol, G3X Justy 1.5 5MT Petrol |
| 112331-0380 | KESS3 | BENCH MODE | Suzuki | RD, WR, Clone | Ignis 1.3 VVT Petrol, Ignis 1.5 VVT Petrol, Swift 1.3 16v Petrol |
| 33910-057LX | KESS3 | BENCH MODE | Suzuki | RD, WR | Grand Vitara 2.4 VVT Petrol, Kizashi 2.4 VVT Petrol |

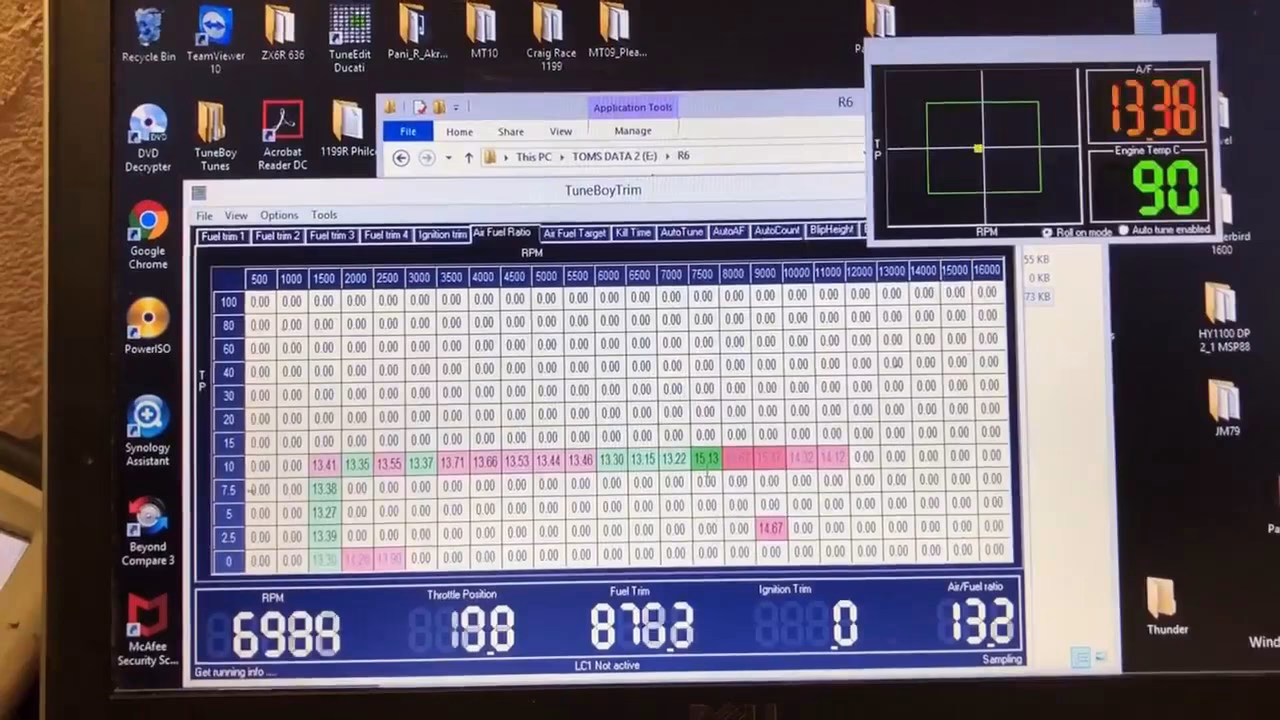

Technical Support and ECU Remapping
For specific technical support concerning Denso ECUs, particularly models like the Denso 89661-xxxxx series found in Toyota and Lexus diesel vehicles with 2.0L and 2.2L engines, the primary point of contact is the developer at [email protected]. This support channel is crucial for those involved in editing and tuning these particular ECUs, which often involves adjusting parameters such as rail pressure, target fuel quantity, requested torque, torque limitation, and boost pressure. These adjustments are key to optimising engine performance and fuel economy.
The integration of tools like the Denso ECU Tool and the Alientech KESS3 provides a robust platform for automotive professionals to offer advanced services. By activating the necessary CAR – BENCH/BOOT protocols on the KESS3, technicians can significantly expand their tuning capabilities and cater to a broader range of vehicles. Training and support for the KESS3 are readily available, both in classroom settings and online, ensuring users can maximise the tool's potential.
Frequently Asked Questions
Q1: Can a Denso KESS3 be cloned?
A1: Yes, the Alientech KESS3 supports ECU cloning for specific Denso ECUs, including the Denso 112731-5040, Denso L831, and Denso 112331-0380. This feature is invaluable for ECU replacement and data transfer.
Q2: What microcontrollers does the Denso ECU Tool primarily support?
A2: The Denso ECU Tool works with ECUs containing 64F7055, 64F7058, and 64F7059 microcontrollers.
Q3: Can I perform ECU operations without opening the ECU?
A3: Yes, the Denso ECU Tool allows operations via K-LINE or CAN through the OBD port, or directly on the bench without needing to open the ECU casing.
Q4: What are some of the advanced functions offered by the Denso ECU Tool?
A4: Advanced functions include odometer calibration, pincode extraction, and ECU reset (virginisation) on supported ECUs.
Q5: Where can I find wiring diagrams and ECU pictures for supported vehicles?
A5: Wiring diagrams and ECU pictures are typically available in the DOWNLOADS section of the respective tool's webpage.
In conclusion, the Denso ECU Tool is an indispensable asset for anyone working with Denso ECUs. Its comprehensive support for various microcontrollers, memory types, and vehicle models, coupled with advanced functionalities and flexible operation modes, makes it a go-to solution for diagnostics, programming, and calibration tasks.
