Understanding the Delphi DS150E Diagnostic Tool

The Delphi DS150E: A Comprehensive Guide to Vehicle Diagnostics

In the fast-paced world of automotive repair and maintenance, having the right diagnostic tools is paramount. The Delphi DS150E stands out as a versatile and highly capable diagnostic interface, widely adopted by professional mechanics and automotive enthusiasts alike. This device acts as a crucial link between a vehicle's Electronic Control Units (ECUs) and a technician's computer or tablet, enabling a deep dive into a vehicle's systems. Whether you're troubleshooting complex engine issues, performing routine maintenance, or accessing specific vehicle data, the DS150E offers a robust solution. This article aims to demystify how the Delphi DS150E works, its key features, its software, and why it's become an indispensable tool in modern automotive workshops.

What is the Delphi DS150E?

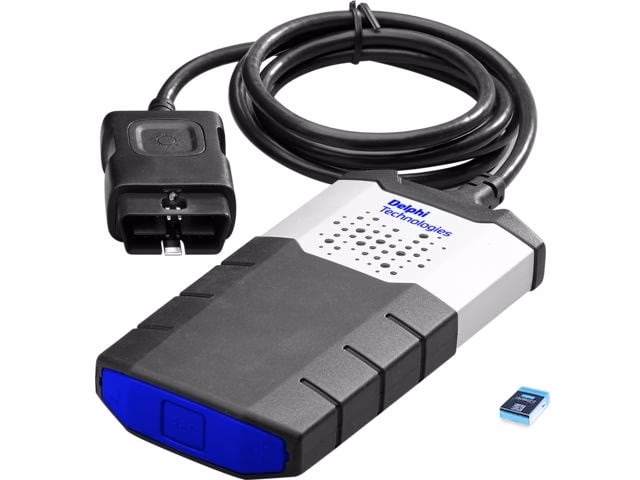

The Delphi DS150E is essentially a diagnostic scanner that connects to a vehicle's On-Board Diagnostics (OBD-II) port. It's designed to communicate with a vast array of ECUs found in most modern vehicles, including those related to the engine, transmission, ABS, airbags, body control modules, and more. The primary function of the DS150E is to read diagnostic trouble codes (DTCs), view live data streams from various sensors, perform component tests, and even carry out certain coding and programming functions, depending on the vehicle and software version. Its versatility and comprehensiveness make it suitable for a wide range of makes and models, from European and American cars to Asian vehicles.

How Does it Connect and Communicate?

The DS150E typically connects to a vehicle via its standard 16-pin OBD-II connector. This port is usually located under the dashboard, near the steering column. Once physically connected, the device communicates with the vehicle's ECUs using various diagnostic protocols, such as:

• ISO 9141-2
• K/L-Line (ISO 14230-4)
• J1850 PWM
• J1850 VPW
• CAN (Controller Area Network)
• J1939
• J1979

The DS150E acts as a translator, converting the complex electronic signals from the vehicle's ECUs into a format that can be understood and displayed by the diagnostic software running on a connected computer or tablet. This communication often happens wirelessly via Bluetooth or directly through a USB cable, offering flexibility in how technicians work.

The Role of the Software

The hardware of the Delphi DS150E is only one part of the equation; the diagnostic software is what brings it to life. The most commonly associated software is the Delphi diagnostic software, often referred to by its release versions, such as the 2015.03v. This software provides the user interface for interacting with the vehicle. Key functionalities within the software include:

• DTC Reading and Clearing: Identifying and erasing fault codes stored by the ECUs.
• Live Data: Monitoring real-time sensor readings (e.g., engine RPM, coolant temperature, throttle position) to diagnose performance issues.
• Actuator Tests: Activating specific vehicle components (e.g., cooling fan, fuel injectors) to check their functionality.
• Component Identification: Reading identification information from ECUs, such as VIN, part numbers, and software versions.
• Service Functions: Performing tasks like oil service resets, steering angle sensor calibration, and DPF regeneration (functionality varies by vehicle and software version).

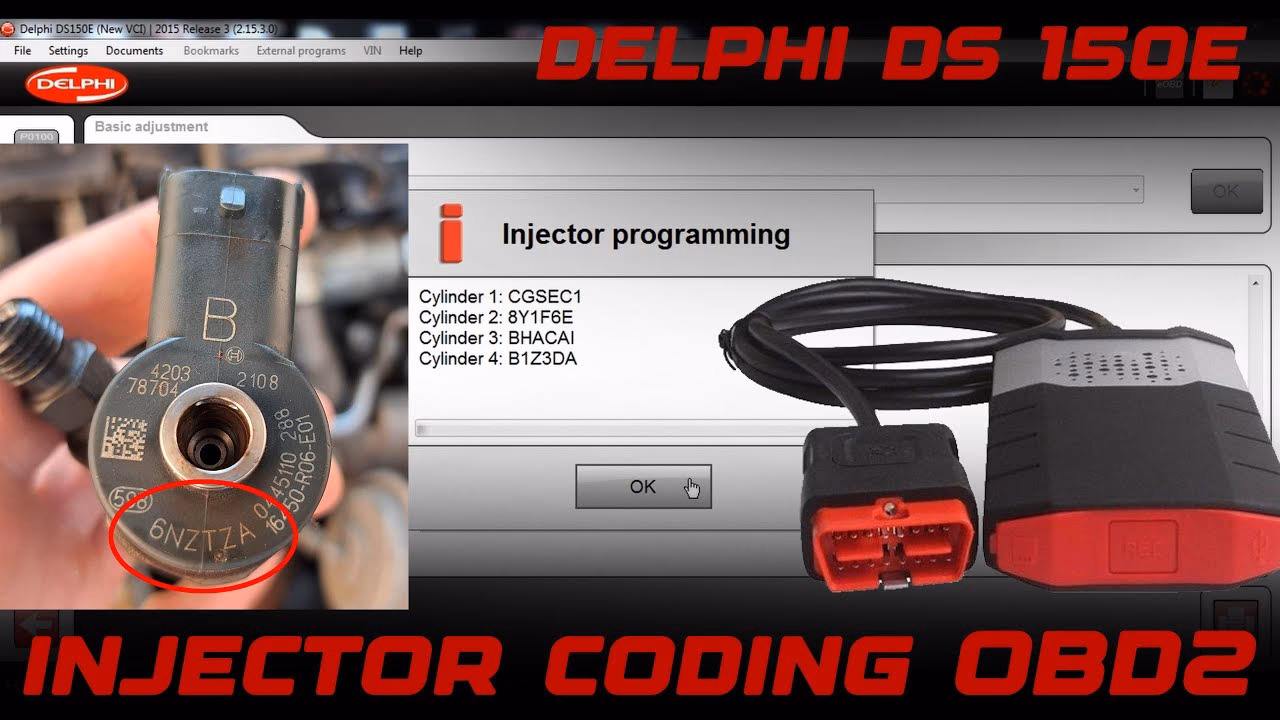

• Coding and Programming: In some cases, the software may allow for basic coding of new modules or parameter adjustments.

The 2015.03v version, for example, is known for its extensive vehicle coverage and features. When installing this version, it's crucial to follow specific steps, such as disabling internet connections and antivirus software to ensure a successful activation using the provided keygen. The process typically involves copying the relevant software (CARS or TRUCKS) to the computer, running the main executable, saving an activation file, using the keygen to generate an activation code, and then re-running the executable with the activated file.

Key Technical Specifications and Features

While the exact specifications can vary slightly between different iterations of the DS150E hardware, common features include:

Applications in the Automotive Workshop

The Delphi DS150E finds its place in a multitude of diagnostic and repair scenarios:

• Engine Diagnostics: Reading misfire data, fuel trim values, and sensor readings to pinpoint engine performance issues.
• Transmission Faults: Diagnosing automatic transmission problems by reading specific transmission DTCs and live data.
• Brake System Analysis: Accessing ABS and ESP modules to read codes, clear faults, and perform brake bleeding procedures (where supported).
• Airbag System Checks: Retrieving crash data and diagnosing airbag system faults.
• Body Control Module (BCM) Issues: Troubleshooting problems related to interior lights, power windows, central locking, and other comfort features.
• Maintenance Resets: Resetting service indicators for oil changes, brake pads, and other scheduled maintenance.

The ease of use and the breadth of functions make it an attractive option for independent garages and mobile mechanics who need a reliable all-around diagnostic tool without the prohibitive cost of manufacturer-specific equipment.

Advantages of Using the Delphi DS150E

The popularity of the DS150E stems from several key advantages:

• Wide Vehicle Coverage: Its ability to work with a vast number of car brands and models is a significant benefit.
• Cost-Effectiveness: Compared to dealership-level diagnostic tools, the DS150E offers excellent value for money.
• User-Friendly Interface: The accompanying software is generally intuitive, making it accessible even for less experienced users.
• Regular Updates: The software is often updated, ensuring compatibility with newer vehicle models and technologies.
• Bluetooth Connectivity: Wireless operation provides greater freedom of movement around the vehicle.

Common Issues and Troubleshooting

While generally reliable, users might encounter occasional issues:

• Installation Problems: Incorrect installation of the software (e.g., not disabling antivirus) can lead to activation failures. Ensure you follow the instructions meticulously, especially regarding internet and antivirus status. If the keygen doesn't run, installing .NET Framework 4.0 might be necessary.
• Connection Issues: Poor Bluetooth signal or a faulty USB cable can disrupt communication. Try re-pairing the Bluetooth device or using a different USB cable. Ensure the correct COM port is selected in the software.
• Incomplete Vehicle Coverage: While coverage is broad, some very new or niche models might not be fully supported by older software versions. Regular software updates are key to maintaining comprehensive coverage.
• Hardware Malfunctions: Though rare, the hardware unit itself can fail. Ensuring proper handling and avoiding power surges is important.

Getting the Right Software Version

As mentioned, software versions like 2015.03v are common. It's important to obtain software from reputable sources to ensure it's genuine and comes with the necessary activation tools. The process of downloading, installing, and activating the software is critical for the DS150E to function correctly. Always follow the provided installation tips to avoid common pitfalls.

Comparison with Other Diagnostic Tools

When compared to entry-level OBD-II code readers, the Delphi DS150E offers significantly more functionality, including live data, actuator tests, and a wider range of system access. Compared to high-end OEM (Original Equipment Manufacturer) diagnostic tools, the DS150E offers a broader, albeit less in-depth, coverage across multiple brands. It strikes a balance, providing professional-level diagnostic capabilities at a more accessible price point for independent workshops and serious DIY mechanics.

Conclusion

The Delphi DS150E is a powerful diagnostic tool that empowers mechanics with the ability to accurately diagnose and service a wide spectrum of vehicles. By understanding how it connects, the critical role of its software (like the 2015.03v version), and its operational features, users can leverage its full potential. Its combination of extensive vehicle compatibility, advanced diagnostic functions, and cost-effectiveness solidifies its position as a valuable asset in any automotive toolkit. For technicians seeking a reliable and comprehensive diagnostic solution, the Delphi DS150E continues to be a top contender.
