Understanding the Delphi DP210 Fuel Injection Pump

The Delphi DP210: A Deep Dive into a High-Performance Fuel Injection System

The automotive world is constantly evolving, with manufacturers striving for greater efficiency, reduced emissions, and enhanced performance. At the heart of many diesel engines lies the fuel injection system, a complex piece of engineering responsible for delivering precisely metered fuel to the combustion chamber. Among these systems, the Delphi DP210 distributor-type fuel injection pump stands out as a robust and versatile unit, designed to meet the stringent demands of modern diesel engines.

This article aims to provide a comprehensive overview of the DP210 pump, exploring its design principles, key features, applications, and the essential safety considerations that accompany its maintenance and servicing. Whether you're a seasoned mechanic or a curious enthusiast, understanding this component is crucial for appreciating the sophisticated technology that powers many industrial and agricultural vehicles.

What is the DP210 Fuel Injection Pump?

The DP210 is a distributor-type fuel injection pump. This means it uses a single pumping element to distribute pressurised fuel to each injector in sequence. It's a compact, self-contained unit designed for direct injection diesel engines, capable of supporting engines with three, four, or six cylinders. Its versatility is further highlighted by its compatibility with both clockwise and anti-clockwise gear drives, making it adaptable to a wide range of engine configurations.

Primarily, the DP210 is engineered for diesel engines operating in industrial and agricultural sectors, particularly those needing to comply with Tier 2 off-highway exhaust emissions legislation in Europe and the USA. This pump is the latest iteration in Delphi's lineage of well-regarded injection pumps, building upon the foundations of the DPA, DPS, and DP200 models. It represents Delphi's commitment to continuous product improvement, adapting to new regulations and evolving operational requirements.

Key Design Features and Innovations

The DP210 is packed with advanced features designed to optimise fuel delivery and engine performance:

• Internal Lubrication and Pressure: All internal working parts are lubricated by the diesel fuel itself. Crucially, the pump housing is maintained at an internal pressure. This positive pressure acts as a barrier, preventing the ingress of external dirt and foreign matter, thereby enhancing the longevity and reliability of the pump.
• Shaft Locked Orientation Timing: This feature allows for improved timing accuracy, ensuring that fuel delivery is precisely synchronised with the engine's combustion cycle.
• Servo Controlled Light Load Advance (LLA): LLA is a sophisticated timing mechanism that adjusts the injection timing based on engine load. At light loads, it advances the timing to improve combustion efficiency and reduce emissions.
• Speed Advance: Similar to LLA, this feature adjusts injection timing based on engine speed, further optimising performance across the rev range.
• Solenoid Switched Cold Advance: For cold starts, a solenoid can be activated to advance the timing, aiding in easier starting and smoother running in low temperatures.
• Torque Trimmer Control: This system allows for precise control over the maximum fuel delivery. It includes an excess fuel feature for starting, ensuring reliable ignition even in cold conditions.
• Transfer Pressure Curve Slope Adjustment: The pump allows for adjustment of the transfer pressure curve, with built-in viscosity compensation. This ensures consistent fuel delivery across a range of fuel temperatures and viscosities.

Optional Features for Customisation

Beyond its standard features, the DP210 can be fitted with a variety of options to meet specific customer and engine rating requirements:

• Boost Pressure Control: Essential for turbocharged engines, this feature adjusts fuel delivery based on the engine's boost pressure, optimising performance and preventing over-fuelling.
• High Strength Camrings: For demanding applications, stronger camrings can be fitted to withstand higher stresses.
• Quick Fit Low Pressure Connections: These facilitate easier and faster installation and maintenance of the low-pressure fuel lines.
• Throttle Levers with Combined Break-back and Throttle Return Spring: These offer enhanced throttle control and safety features, ensuring the throttle returns to idle reliably.

When Does a Fuel Pump Need Attention?

Fuel pumps typically require attention from a workshop for two primary reasons:

1. Investigation of Specific Faults: If an engine is exhibiting performance issues, a partial dismantling of the fuel pump might be necessary to diagnose and rectify the problem.
2. Complete Overhaul: A full overhaul is often performed concurrently with major engine maintenance, ensuring the entire fuel system is in optimal condition.

Safety First: Handling High-Pressure Fuel Systems

It is paramount to understand that fuel injection systems operate under extremely high pressures. The information provided in the source material highlights critical safety warnings that must be adhered to:

• High-Pressure Liquid Hazards: Do not allow skin to come into contact with fuel jets under pressure, especially from leaks in pipes or seals. High-pressure liquids can cause severe, even fatal, injuries. If injected under the skin, seek immediate medical attention.
• Ignition Sources: Keep the work area clear of ignition sources and do not smoke. Diesel fuel is flammable.
• Personal Protective Equipment (PPE): Always wear appropriate PPE, including safety glasses or a face shield, and suitable gloves.

These warnings underscore the importance of handling the DP210 pump with the utmost care and professionalism. The source material includes safety instructions in multiple languages, emphasising the universal need for caution.

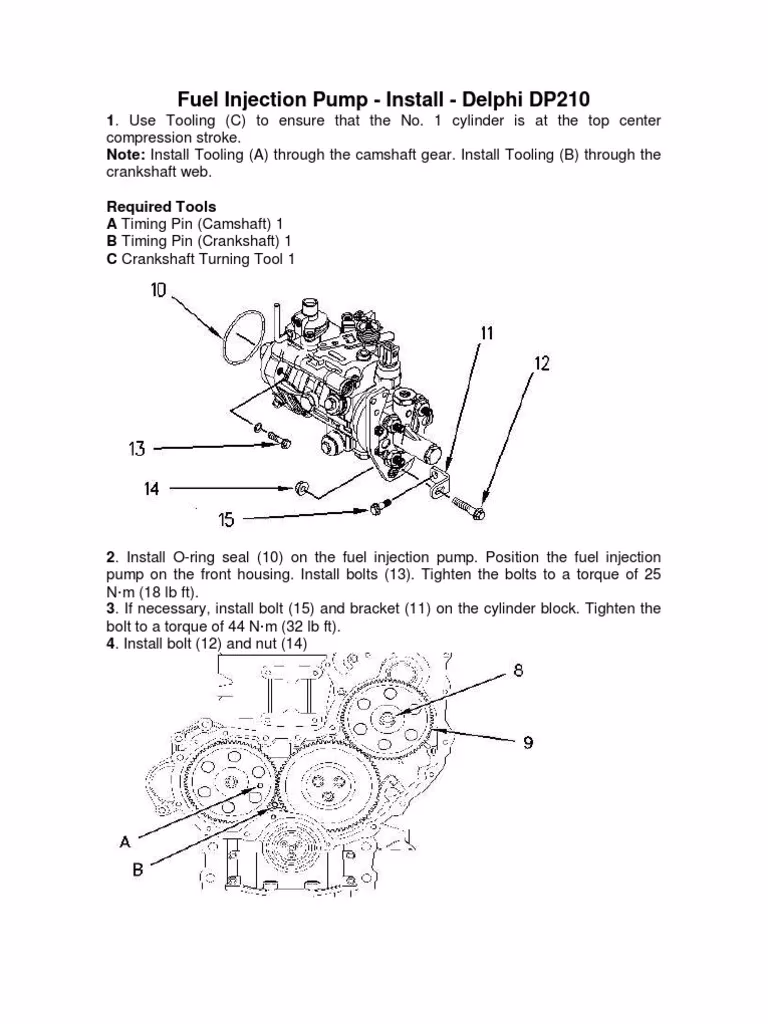

Servicing and Technical Expertise

Due to the inherent complexity of the DP210, the requirement for highly trained personnel, significant investment in specialised equipment, and the need for up-to-date technical information, testing and servicing of this pump should only be undertaken by a Delphi authorised distributor. Attempting repairs without the necessary expertise and tools can lead to further damage and safety risks.

Component Overview and Maintenance Schedule

A typical service manual for a pump like the DP210 would detail a comprehensive range of procedures, from dismantling to reassembly and testing. Key components and areas of focus would include:

Dismantling Procedures:

• Preparation: Cleaning, draining, mounting the pump, and securing critical components like the drive shaft lock bolt.
• Drive Shaft: Measurement of end float and radial play is crucial for assessing wear.
• High-Pressure Outlets and End Plate Assembly: Careful disassembly of these critical sealing areas.
• Electric Shut-off Solenoid (ESOS): A common component that may require testing or replacement.
• Transfer Pump: Responsible for supplying fuel to the high-pressure pumping element.
• Governor Components: Including the governor cover, control bracket, arms, and the all-speed governor mechanism.
• Advance Device: This unit adjusts injection timing dynamically.
• Hydraulic Head: The core of the pump, containing the pumping plungers.
• Drive Shaft Seals: Essential for preventing fuel leaks.

Component Inspection and Renewal:

Following dismantling, each component requires thorough inspection:

• Hydraulic Head Rotor and Plungers: Critical for fuel metering and pressure generation. Wear here significantly impacts performance.
• Cam Ring and Scroll Plates: These components control the timing and volume of fuel delivery.
• Rollers and Shoes: These engage with the cam ring to drive the plungers.
• Transfer Pump: Checked for wear and output.
• Endplate, Control Valves, Delivery Valves: These manage fuel flow and pressure.
• Springs, Fittings, and Linkages: Inspected for damage, fatigue, or incorrect settings.
• Throttle Shaft: Ensures smooth throttle response.
• Pump Housing: Checked for cracks or damage.
• Governor Control Cover: Houses many of the governor's regulating mechanisms.

Reassembly Procedures:

Reassembly is the reverse of dismantling but requires meticulous attention to detail, correct torque settings, and precise alignment of components. Key steps include:

• Fitting the governor weight assembly to the drive shaft.
• Assembling the hydraulic head, cam screw, and head locating fittings.
• Installing the advance device assembly.
• Correctly setting governor link lengths.
• Assembling the governor cover and its external components, including throttle levers and stop screws.
• Reassembling the drive hub, transfer pump, and endplate.
• Final installation of the ESOS and high-pressure outlets.
• Securing the drive shaft lock bolt and drain plug.

Leak Testing and Final Calibration:

After reassembly, the pump must undergo rigorous leak testing to ensure all seals are effective. The final stage involves testing the pump on a calibrated test bench according to specific parameters, often referred to as Pump Specification. This ensures it meets the required performance standards for fuel delivery, pressure, and timing across various operating conditions.

Test Procedure Parameters

A thorough test procedure for the DP210 would involve checking several key parameters:

• Pump Specification: Rotation direction, governor link length, plunger diameter, drive type, specific pump features (e.g., boost control), and the Original Equipment Manufacturer (OEM) code.
• Test Conditions: These define the environment for testing, including the type of test fluid, inlet feed pressure, the specific nozzles and nozzle holders to be used, nozzle opening pressure, and the high-pressure pipes connecting the pump to the nozzles.
• Pre-Test Notes: This section would include crucial preliminary information, such as the importance of leak testing before full calibration and any specific preparation required for the test bench setup.

Frequently Asked Questions (FAQ)

Q1: Can a Delphi workshop manual be used to reline a Case skid steer?

A1: While Delphi produces comprehensive workshop manuals for its fuel injection systems, including those compatible with Case skid steers, the manual itself typically focuses on the fuel injection system components. It would not provide instructions for relining the entire skid steer, such as the transmission or hydraulic systems. You would need a specific workshop manual for the Case skid steer model for those procedures.

Q2: What is the primary function of the Light Load Advance (LLA) in the DP210 pump?

A2: The LLA system automatically adjusts the injection timing to occur earlier when the engine is operating under light load conditions. This optimisation improves combustion efficiency, reduces fuel consumption, and can lower emissions during low-demand operation.

Q3: Why is it crucial to use only Delphi authorised distributors for servicing the DP210?

A3: The DP210 is a highly complex piece of equipment requiring specialised knowledge, calibrated tools, and access to up-to-date technical data. Authorised distributors possess these resources, ensuring that servicing is performed correctly, safely, and to the manufacturer's specifications, thereby maintaining the pump's performance and longevity.

Q4: Can I perform maintenance on the DP210 pump myself?

A4: Due to the advanced technology and critical safety aspects involved, it is strongly advised against performing maintenance or repairs on the DP210 pump without the proper training, tools, and technical information. Mishandling can lead to severe injury or irreparable damage to the pump.

Conclusion

The Delphi DP210 fuel injection pump is a testament to modern diesel engine technology. Its sophisticated design, incorporating features like servo-controlled timing, precise fuel delivery control, and internal protection mechanisms, makes it a highly effective component for a wide range of industrial and agricultural applications. However, its complexity demands professional servicing by authorised Delphi distributors. By understanding its capabilities and adhering to strict safety protocols, the longevity and optimal performance of this vital engine component can be assured.
