Revive Your AC: The 5N0820803 Delphi Compressor Fix

There's little worse on a sweltering British summer's day than a car's air conditioning system that refuses to blow cold. That initial blast of warm, stagnant air instead of a refreshing chill can turn any journey into an uncomfortable ordeal. For many owners of Audi, VW, Seat, and Skoda vehicles, this frustrating scenario often points to a very common, yet often misunderstood, fault within the Delphi AC compressor. Historically, this issue meant facing the daunting prospect of a full compressor replacement – a costly and time-consuming repair. However, a clever and cost-effective solution exists: a dedicated repair kit designed to address the specific Achilles' heel of these units.

This article delves into the intricacies of the 5N0820803 Delphi compressor repair kit, exploring the common fault it addresses, how to identify if your vehicle is suffering from it, and the significant benefits of opting for a repair over a complete replacement. We'll guide you through understanding the problem, determining compatibility, and what to expect from this ingenious fix that has saved countless motorists from unnecessary expense.

Understanding the Common Delphi Compressor Fault

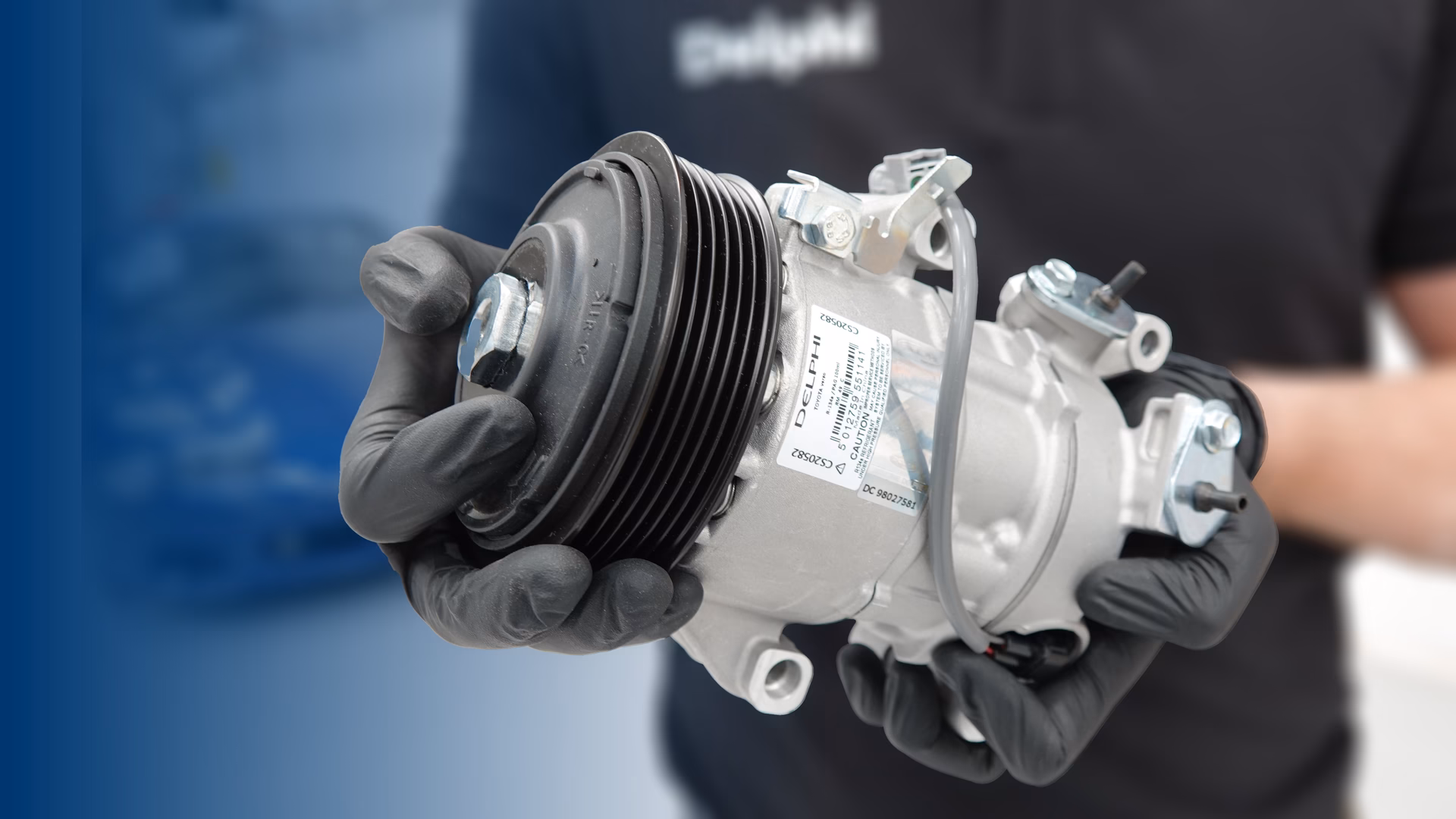

The Delphi AC compressor, widely fitted across various VAG group vehicles, is a robust component, but it has a known weak point: the shear plate and its retaining bolt. This isn't a design flaw that leads to catastrophic failure of the compressor itself, but rather a loosening of a critical connection that prevents the compressor from engaging and circulating refrigerant.

The Mechanism of Failure: Why Does It Happen?

To understand the fault, it's helpful to know how the compressor generally works. The compressor is driven by the engine via a serpentine belt, which turns a pulley. This pulley, however, doesn't directly drive the compressor shaft all the time. Instead, an electromagnetic clutch engages the compressor when the air conditioning system is switched on. Integral to this connection is the shear plate, which is designed to connect the pulley to the compressor's internal shaft. It's held in place by a central bolt.

Over time, due to constant vibration, heat cycles, and the rotational forces involved, the bolt that secures the shear plate to the compressor shaft can gradually loosen. Initially, this might be imperceptible, but as it continues to unwind, a crucial problem emerges: the splines within the shear plate, designed to interlock with the compressor shaft, begin to wear down and eventually strip. Once these splines are compromised, the pulley will continue to spin freely when the engine is running, but it will no longer effectively transmit power to the compressor shaft. The compressor remains stationary, unable to pump refrigerant, and consequently, no cold air is produced.

Identifying the Symptoms: Is Your AC System Affected?

Recognising the symptoms of this specific fault is key to avoiding misdiagnosis and unnecessary repairs. Here’s what to look out for:

• No Cold Air: This is the most obvious symptom. Despite the AC system being switched on, only ambient or warm air blows from the vents.
• Excess Noise from the Compressor Area: While less common than the lack of cold air, some owners might notice unusual clicking, rattling, or whirring sounds originating from the compressor, especially when the AC is engaged.
• Visual Confirmation of the Bolt: This is often the most definitive sign. If you can safely inspect the compressor, look at the central bolt on the shear plate. If it’s protruding or appears loose, or if the pulley is spinning but the central part of the compressor (the shear plate) is not, then you've likely found your culprit. In severe cases, the bolt might have completely fallen out and been lost.
• VCDS Logs Appear Normal: A tell-tale sign that differentiates this mechanical fault from electrical or pressure-related issues is that diagnostic scans (like those using VCDS for VAG cars) might indicate that the AC system's pressures are correct, and there are no electrical faults with the compressor clutch or pressure switch. This often leads mechanics down the wrong path, assuming a more complex internal compressor failure or a refrigerant leak.

The 5N0820803 Repair Kit: A Cost-Effective Solution

Before the advent of these specific repair kits, the only widely available solution for a stripped shear plate was to replace the entire AC compressor. This is a significant repair, often costing hundreds of pounds for the part alone, plus labour for draining and re-gassing the system. The 5N0820803 repair kit offers a dramatically different, and much more economical, approach.

What's Included in the Kit?

The typical repair kit for this Delphi compressor fault is straightforward, containing precisely what's needed to remedy the issue:

• 1x Replacement Shear Plate: This is the crucial component. It's a direct replacement for the original, often featuring an improved design to prevent the recurrence of the stripping issue.
• 4x Replacement Bolts: While only one bolt is typically used to secure the shear plate, providing multiple new bolts ensures you have fresh, strong fasteners for a secure fit.

Why Opt for a Repair Over Replacement?

The advantages of using a repair kit are compelling:

The financial savings are undoubtedly the most attractive aspect. By addressing only the failed component, you avoid the significant cost of a brand new compressor, which is often perfectly functional apart from this one specific point of failure. Furthermore, since the repair typically doesn't involve opening the sealed refrigerant system, you usually avoid the cost and hassle of draining and re-gassing the AC, a procedure that is mandatory when replacing the entire unit.

Compatibility: Is This Kit Right for Your Vehicle?

While this repair kit targets a common fault across several VAG vehicles, it's absolutely crucial to confirm compatibility before purchasing. The most reliable way to do this is to check the part number directly on your existing AC compressor. The kit is specifically designed to fit Delphi compressors only that carry certain part numbers.

Key Compressor Part Numbers

The repair kit is confirmed to work with compressors bearing the following OEM part numbers:

• 5N0820803
• 5N0820803A
• 5N0820803E
• 5K0820803A

It's important to physically locate the part number on your compressor, as relying solely on your vehicle's make and model can lead to errors. Manufacturers sometimes use different compressor brands or variations on the same model of car.

Commonly Affected Vehicles (Examples)

While you must always verify the part number on your specific compressor, this fault and therefore this repair kit is commonly applicable to Delphi compressors found in models such as:

• Audi: A1, A3
• Seat: Leon, Altea
• Skoda: Octavia, Fabia
• Volkswagen VW: Golf MK5, Golf MK6, Eos, Beetle, Caddy, Jetta, Touareg, Passat, Touran, Tiguan, Bora, Polo, Scirocco

Remember, this list is illustrative. The definitive check is always the part number stamped on your compressor.

The Repair Process: What to Expect

One of the most appealing aspects of this repair is its relative simplicity compared to a full compressor replacement. For many, it can be performed with the compressor still in situ, meaning you don't have to remove the entire unit from the vehicle. This significantly reduces labour time and complexity.

The general steps involved typically include:

1. Accessing the Compressor: This may involve removing some engine bay covers or undertrays to gain clear access to the front of the AC compressor.
2. Removing the Old Shear Plate: The damaged shear plate and its loose or stripped bolt need to be carefully removed. This might require specific tools, such as a spanner or socket set, and sometimes a puller if the shear plate is seized.
3. Installing the New Shear Plate and Bolt: The new shear plate is then aligned and fitted onto the compressor shaft, and the new retaining bolt is tightened to the manufacturer's specifications.
4. Testing: Once the new components are securely in place, the AC system can be tested to ensure cold air is now being produced.

While the process is often described as straightforward, it's essential to consult any specific instructions provided with the repair kit or reputable online video guides (without providing links, as per instructions). Proper technique and torque settings are crucial for a lasting repair.

Beyond the Repair: What If It Doesn't Fix It?

While the shear plate fault is incredibly common for these Delphi compressors, it's important to remember that it's not the *only* reason an AC system might fail. If you've replaced the shear plate and still have no cold air, consider these other potential issues:

• Refrigerant Leak: The most common AC problem after a mechanical fault is a leak in the system, leading to low refrigerant levels.
• Faulty Pressure Switch: This sensor monitors refrigerant pressure. If it fails, it can prevent the compressor from engaging.
• Electrical Faults: Issues with wiring, fuses, or the AC control module can prevent the system from operating.
• Internal Compressor Failure: Though less common for these symptoms, internal damage to the compressor itself is possible.

Always ensure your AC system is properly charged with the correct amount of refrigerant after any significant work, especially if the system was opened. Even if this repair doesn't require opening the system, an annual check of refrigerant levels is good practice.

Frequently Asked Questions (FAQs)

Q: How can I be sure my compressor is a Delphi unit?

A: The most reliable way is to physically inspect your compressor. Look for a label or stamp on the compressor body that indicates the manufacturer (Delphi) and the specific part number (e.g., 5N0820803). This may require lifting the car or removing some engine bay components for better access.

Q: Can I perform this repair myself, or do I need a mechanic?

A: For a competent DIY enthusiast with basic mechanical knowledge and tools, this repair is often achievable. Many find it straightforward, especially with instructional videos available online. However, if you are unsure or uncomfortable working on your vehicle, it's always best to consult a qualified mechanic.

Q: What if the bolt is already completely lost from the shear plate?

A: This is a common scenario. As long as the shear plate itself hasn't caused further damage by grinding against other components, the repair kit will still be effective. The new shear plate and bolts will replace the missing components.

Q: Do I need to re-gas my AC system after installing the repair kit?

A: In most cases, no. This repair addresses an external mechanical failure of the drive mechanism, not the sealed refrigerant circuit. Therefore, the system pressure and refrigerant levels should remain unaffected. However, if your system was already low on gas due to a separate leak, you would still need a re-gas.

Q: Is the 'improved design' shear plate truly better than the original?

A: Many aftermarket repair kits feature shear plates manufactured with slightly different material compositions or spline profiles designed to be more resistant to wear and loosening. While no part is infallible, these improvements aim to provide a more durable solution than the original OEM component that was prone to this specific failure.

Conclusion

The dreaded warm air from your car's air conditioning system doesn't always have to mean a hefty repair bill. For owners of Audi, VW, Seat, and Skoda vehicles equipped with the common Delphi 5N0820803 compressor, the shear plate repair kit offers an incredibly effective and affordable alternative to full compressor replacement. By understanding the specific symptoms, verifying your compressor's part number, and opting for this targeted solution, you can quickly and efficiently restore the cool, refreshing comfort to your vehicle. Don't suffer through another warm journey; address the fault with a smart, cost-effective repair.
