DeLorean's K-Jet Fuel Injection System Deep Dive

The DeLorean DMC-12, a car synonymous with futuristic design and cinematic fame, boasts more than just its distinctive gull-wing doors and stainless-steel body. Beneath its striking exterior lies a powertrain that, while perhaps less celebrated, is equally integral to its character: the Bosch K-Jet mechanical fuel injection system. In an era when electronic fuel injection was still finding its footing, the K-Jet offered a robust, albeit intricate, solution for precise fuel delivery, setting the DeLorean apart from its carburetted contemporaries and giving it a unique mechanical heart.

Understanding Bosch K-Jetronic: A Mechanical Marvel

K-Jetronic, often simply called K-Jet, is a continuous injection system developed by Bosch. Unlike modern electronic fuel injection (EFI) systems that use complex sensors, an engine control unit (ECU), and pulsed injectors, the K-Jet is almost entirely mechanical. It operates on the principle of airflow measurement: the more air the engine takes in, the more fuel it receives. This direct, mechanical link means there are no wires, no computer chips, and no diagnostic codes to read. While this simplicity can be a blessing in terms of electronic reliability, it also presents a unique set of challenges for maintenance and troubleshooting.

The system's genius lies in its reliance on precise mechanical components working in harmony to deliver a continuous, finely atomised spray of fuel into the engine's intake ports. This constant flow ensures smooth operation and good throttle response, provided all components are working as intended. It was a pioneering system that offered significant advantages over carburettors in terms of fuel efficiency, emissions control, and cold-starting capabilities, making it a popular choice for many European luxury and performance cars of its time, including the DeLorean.

The Anatomy of the DeLorean's K-Jet System

To truly appreciate how the DeLorean's fuel system operates, it's essential to understand the roles of its key components:

• Fuel Tank: Located at the rear of the vehicle, it stores the petrol. Its design includes a baffle system to prevent fuel slosh during cornering.
• Electric Fuel Pump: Positioned near the fuel tank, this pump draws fuel from the tank and sends it under high pressure (typically around 5 bar or 72 psi) through the fuel lines to the front of the car, where the rest of the K-Jet components reside.
• Fuel Accumulator: This often-overlooked component plays a crucial role. It's designed to maintain residual fuel pressure in the system after the engine is shut off, preventing vapour lock and aiding hot starts. It also dampens pulsations from the fuel pump, ensuring a steady flow.
• Fuel Filter: A vital component that protects the sensitive and precisely machined parts of the K-Jet system from contaminants. Regular replacement of this filter is paramount for the longevity and proper functioning of the entire system.

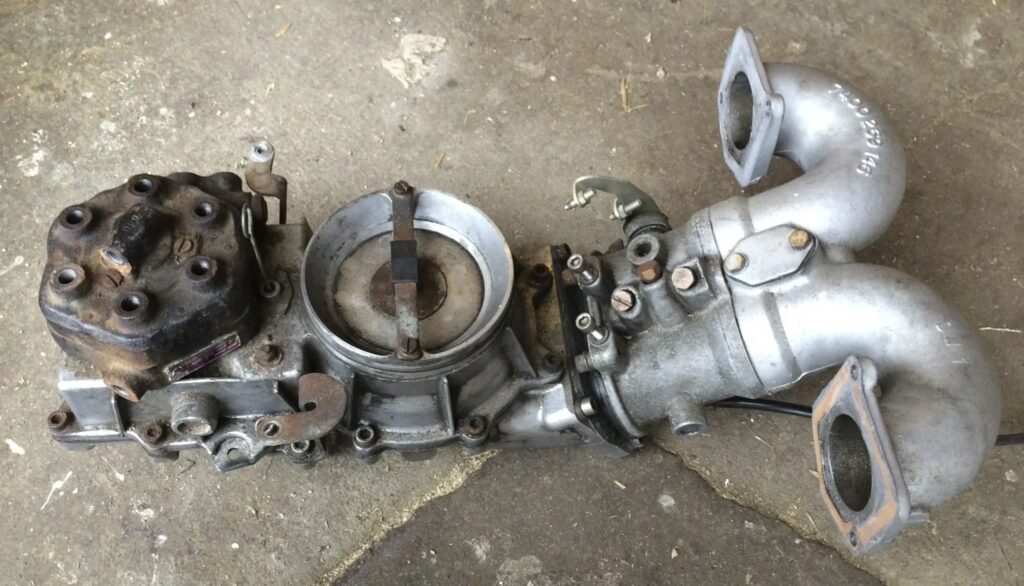

• Fuel Distributor: Often referred to as the brain of the K-Jet system, the Fuel Distributor is a complex unit. It receives pressurised fuel from the pump and, based on the position of the airflow sensor plate, precisely meters and distributes fuel to each injector. Inside, a control plunger moves up and down, directly linked to the airflow sensor plate, regulating the amount of fuel delivered to each cylinder's fuel line.
• Airflow Sensor Plate (Airflow Meter): Located within the air intake system, this plate moves proportionally to the volume of air entering the engine. It's mechanically linked to the control plunger in the fuel distributor. As more air enters, the plate rises, lifting the control plunger and allowing more fuel to be distributed.
• Control Pressure Regulator (Warm-Up Regulator - WUR): This critical component, sometimes called the WUR, modifies the control pressure acting on the fuel distributor's control plunger. By altering this pressure, the WUR can enrich or lean out the fuel mixture. For instance, during cold starts, the WUR lowers the control pressure, allowing the control plunger to rise higher for a given airflow, thus delivering a richer mixture necessary for cold engine operation. As the engine warms up, an internal bimetallic strip and heating element increase the control pressure, leaning out the mixture to normal operating levels.
• Fuel Injectors: These are simple, spring-loaded nozzles that open when the fuel pressure from the distributor overcomes the spring's resistance. Unlike pulsed electronic injectors, K-Jet injectors spray fuel continuously into the intake manifold, atomising it for efficient combustion.
• Auxiliary Air Valve: It's important to note that while the auxiliary air valve is a common component in many K-Jet applications (designed to increase idle speed during cold starts), it is not present in the DeLorean's K-Jet setup. This simplifies the cold-start mechanism slightly, relying primarily on the WUR for mixture enrichment.

How the DeLorean's K-Jet System Operates

The operation of the K-Jet system in the DeLorean is a symphony of mechanical precision. When the engine is running, the electric fuel pump continuously supplies pressurised fuel to the fuel distributor. As the engine breathes, air is drawn through the intake system, causing the airflow sensor plate to lift. This upward movement is directly translated via a lever to the control plunger within the Fuel Distributor.

The position of this control plunger dictates how much fuel flows through the individual metering slits to each of the six fuel lines leading to the injectors. The higher the plunger, the wider the slits, and the more fuel is delivered. This direct, mechanical linkage ensures that fuel delivery is always proportional to the amount of air entering the engine – a concept known as Continuous Injection.

Meanwhile, the Control Pressure Regulator (WUR) constantly adjusts the control pressure, which acts on the top of the fuel distributor's control plunger. By varying this pressure, the WUR fine-tunes the fuel mixture based on engine temperature. For example, a lower control pressure makes it easier for the airflow sensor plate to lift the control plunger, resulting in a richer mixture for cold starts. As the engine warms, the WUR increases the control pressure, leaning the mixture out to optimal levels for efficient running.

The fuel injectors, being simple pressure-actuated valves, open once the fuel pressure from the distributor reaches a certain threshold, continuously spraying fuel into the intake runners. This constant spray ensures a consistent air-fuel mixture entering the combustion chambers.

Advantages and Challenges of K-Jet in the DeLorean

The K-Jet system, while a product of its time, brought several advantages to the DeLorean:

• Robustness and Simplicity: Lacking complex electronics, the K-Jet system is inherently less susceptible to electrical failures, which can plague more modern vehicles. Its Mechanical nature means fewer sensors and wires to go wrong.
• Reliability: When properly maintained and free from contamination, the K-Jet system is incredibly reliable and can last for decades.
• Instant Start-up: The system's design, particularly the role of the Warm-Up Regulator and fuel accumulator, allows for quick and consistent cold and hot starts.

However, the K-Jet also presents unique challenges for modern DeLorean owners:

• Sensitivity to Contamination: The precision-machined internal components of the fuel distributor and injectors are highly susceptible to damage from dirt, rust, or varnish from old fuel. A single speck of dirt can cause significant operational issues.
• Wear and Tear: Over decades, the moving parts within the fuel distributor, WUR, and injectors can wear, leading to performance degradation, fuel leaks, or complete failure.
• Troubleshooting Complexity: Without diagnostic codes, pinpointing K-Jet issues requires a deep understanding of the system's mechanical principles, specialised pressure gauges, and a methodical approach. It's not a job for the inexperienced.
• Lack of Adaptability: Unlike modern EFI, the K-Jet system cannot dynamically adapt to changes in fuel quality, altitude, or minor engine modifications, making precise tuning more challenging.
• Vapour Lock: In hot climates, especially after a hot soak, the system can be prone to vapour lock if the fuel accumulator isn't holding pressure, leading to difficult hot starting.

Maintenance Essentials for Your DeLorean's K-Jet System

Given the K-Jet's unique characteristics, proactive maintenance is key to keeping your DeLorean running smoothly:

• Regular Fuel Filter Replacement: This is arguably the most crucial maintenance item. Replace the fuel filter every 12,000 miles or annually, or even more frequently if you suspect fuel contamination. A clean filter protects the entire system.
• Use High-Quality Fuel: Always use fresh, high-quality petrol. If your region uses high-ethanol fuels, consider using fuel stabilisers or additives designed to combat ethanol's corrosive effects on older fuel system components.
• Check for Leaks: Regularly inspect all fuel lines, connections, and injector seals for any signs of leaks. Fuel leaks are a serious fire hazard and must be addressed immediately.
• System Pressure Checks: Periodically check the system pressure and control pressure using a K-Jet specific pressure gauge. These pressures are fundamental to proper fuel delivery and can indicate issues with the fuel pump, accumulator, or WUR.
• Injector Cleaning/Replacement: Over time, injectors can become clogged or their spray patterns degrade. They can often be professionally cleaned and flow-tested, or replaced if necessary.
• Air Filter Maintenance: A clean air filter ensures accurate airflow measurement by the sensor plate, which is crucial for correct fuel delivery.

Common K-Jet Issues and Troubleshooting on the DeLorean

Understanding common symptoms can help diagnose K-Jet problems:

• Hard Starting (Cold or Hot): A common complaint. Cold start issues often point to the Warm-Up Regulator not enriching the mixture sufficiently. Hot start problems are frequently due to a failing fuel accumulator not holding residual pressure, leading to vapour in the fuel lines.
• Rough Idle or Stalling: Can be caused by a multitude of issues, including incorrect mixture adjustment, vacuum leaks (very common on older cars), faulty fuel injectors, or internal wear in the fuel distributor.
• Poor Performance or Lack of Power: Often indicative of insufficient fuel delivery, which could stem from a clogged fuel filter, a weak fuel pump, a failing WUR, or a worn fuel distributor.
• Fuel Leaks: Visible fuel leaks around injectors, fuel lines, or the fuel distributor are critical safety concerns. They typically require replacement of seals, lines, or specific components.
• "Running Rich" or "Running Lean": These conditions are often identified by exhaust smell, spark plug appearance, or a multi-gas analyser. Diagnosis involves checking control pressure and carefully adjusting the idle mixture screw.

Frequently Asked Questions

Q: Is the K-Jet system reliable in a DeLorean?
A: Yes, absolutely. While it's a mechanical system from the 1980s, a K-Jet system that has been properly maintained throughout its life, with regular fuel filter changes and attention to vital components, can be remarkably reliable. Many DeLoreans still run perfectly on their original K-Jet systems today.

Q: Can I convert my DeLorean's K-Jet to electronic fuel injection (EFI)?
A: Yes, it is possible. Several aftermarket conversion kits exist that replace the K-Jet system with a modern electronic fuel injection setup. Owners choose this for improved fuel economy, easier cold starting, better power delivery, and simpler diagnostics. However, it's a significant modification that alters the car's originality and requires a substantial investment in parts and labour.

Q: What is the most common part to fail in the K-Jet system?
A: While many components can eventually fail, the fuel accumulator and the Warm-Up Regulator are very common failure points due to age and wear. The fuel distributor itself can also suffer from internal wear or contamination, leading to costly repairs.

Q: How often should I replace the fuel filter?
A: For a DeLorean with a K-Jet system, it is highly recommended to replace the fuel filter every 12,000 miles or annually, whichever comes first. Given the system's sensitivity to contaminants, this is a very inexpensive preventative measure.

Q: Why is my DeLorean hard to start when hot?
A: This is a classic symptom of a failing fuel accumulator. If the accumulator cannot maintain residual fuel pressure after the engine is shut off, the fuel in the lines can vaporise (vapour lock) when hot, making it difficult for the engine to restart until the fuel system is repressurised and the vapour cleared.

Conclusion

The Bosch K-Jet mechanical fuel injection system is an integral part of the DeLorean DMC-12's identity. It represents a fascinating chapter in automotive engineering, bridging the gap between carburettors and the widespread adoption of electronic fuel injection. While it demands a certain level of understanding and diligent maintenance, its robust mechanical design means that with the right care, your DeLorean's K-Jet system can continue to deliver reliable performance for years to come. Embracing the unique mechanical charm of this system is part of the joy of owning and maintaining such an iconic vehicle, ensuring it remains a true head-turner on the roads of the UK and beyond.
