Replacing Your Diff Pinion Oil Seal

A leaking differential pinion oil seal can be a persistent annoyance, potentially leading to more significant issues if left unchecked. While it might seem like a daunting task, with the right guidance and tools, replacing this seal is a manageable DIY job for many vehicle owners. This comprehensive guide will walk you through the process, focusing on Rover axles, whilst also touching upon common queries and considerations for other differentials.

Understanding the Differential Pinion Oil Seal

The differential pinion oil seal, located at the front of the differential housing, is crucial for preventing gearbox oil from escaping along the propeller shaft. When this seal wears out or gets damaged, oil can leak, leading to low oil levels, potential gear damage, and environmental contamination. Keeping this seal in good condition is vital for the longevity and performance of your vehicle's drivetrain.

Tools and Materials You'll Need

Before you begin, ensure you have the following:

• New differential pinion oil seal (ensure it's the correct part number for your vehicle)
• Appropriate gearbox oil (e.g., EP80/90 GL4)
• Wrench set (including a 1-inch socket for the pinion nut)
• Breaker bar
• Torque wrench
• Screwdrivers (large flathead recommended for seal removal)
• Rubber mallet
• Drainage container
• Rags or paper towels
• Grease (EP80/90 recommended for splines and seal faces)
• Axle stands (if lifting the vehicle)
• Wheel chocks
• New nylock nuts and bolts for the propshaft
• Gloves and eye protection

Step-by-Step Guide to Replacement

1. Preparation and Drainage

Begin by locating the differential filler plug. It's a good practice to loosen and remove this first to ensure it's not seized. Then, position your drainage container beneath the differential drain plug and remove it to allow the old oil to drain completely. Once drained, replace the drain plug.

2. Removing the Propeller Shaft

The next step is to detach the propeller shaft from the differential output flange. This is typically secured by four bolts. While a dedicated propshaft tool can be helpful, two spanners often suffice. Once the bolts are removed, carefully tie the propeller shaft securely out of the way to prevent it from dangling or causing damage.

3. Accessing the Pinion Nut

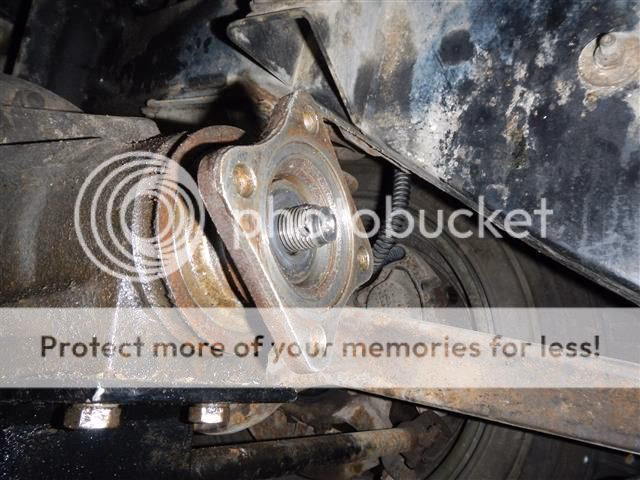

With the propshaft removed, you'll see the differential output flange. Locate the split pin securing the large pinion nut. Straighten and pull this split pin out. Now, you need to undo the 1-inch pinion nut. This nut is usually very tight, so you'll likely need a breaker bar. Crucially, to prevent the differential from turning while you apply force, use a wrench on the flange to hold it steady. Safety First: If your vehicle is on axle stands, be extremely cautious when applying force to this nut. The movement of the vehicle could cause it to become unstable and fall. For this step, it's advisable to have all four wheels on the ground, with the wheels securely chocked.

4. Removing the Drive Flange

Once the pinion nut is removed, the drive flange should slide off. It might require a gentle persuasion with a rubber mallet. As you remove it, pay close attention to the order of any washers or spacers that come off with it. Make a note of their arrangement, as this is critical for correct reassembly and maintaining the proper bearing preload. You will now have a clear view of the drive splines and the old oil seal.

5. Inspecting the Flange and Seal Area

Examine the surface of the drive flange where the seal runs. It should be smooth and clean. If you notice any pitting or scoring, the flange itself may need replacing, as a damaged surface will quickly ruin a new seal. Carefully prise out the old oil seal using a large flathead screwdriver. Be very careful not to scratch the housing surface where the seal sits.

6. Checking the Differential Bearings

While you have the flange off, it's an opportune moment to check the condition of the outer bearing. Gently wiggle it to assess for play. If you have a shim system for bearing preload, carefully remove the bearing and note the exact order and number of shims. If your axle uses a crush washer system, a common method is to mark the pinion nut before removal and then count the number of turns it takes to loosen it. When reassembling, turn the nut back the same number of turns until the marks align to set the correct preload. Important Note: Research the specific preload adjustment method for your vehicle's axle model before proceeding. Incorrect preload can lead to premature bearing failure.

7. Installing the New Seal

Clean the splines and the area where the new seal will be fitted. Lightly grease the splines with EP80/90 grease for easier installation. Carefully drift the new seal into place using a suitable drift or a large socket that matches the seal's outer diameter. Ensure the seal is seated just slightly below the surface of the housing it fits into. Critical Warning: If your new seal has a raised centre lip, it MUST be level with or below the axle casting. If it protrudes too much, the drive flange will destroy it upon rotation.

8. Reassembly

Grease the inner faces of the new seal to prevent dry running during the initial drive. Reinstall the drive flange, ensuring any spacers or shims are put back in their original order. Refit the pinion nut and torque it to the manufacturer's specification (often around 96 lbs/ft, but check your manual). Replace the split pin. Finally, reconnect the propeller shaft using new nylock nuts and bolts.

9. Checking the Axle Breather

A blocked axle breather can cause pressure to build up inside the differential, forcing oil out past the seal. Locate the breather (often a banjo bolt fitting) and check that it's clear. You can do this by blowing air through it. If it's blocked, clean or replace it. Ensuring the breather is clear is a crucial step to prevent your new seal from failing prematurely.

10. Refilling and Testing

Refill the differential with the correct type and quantity of oil (typically around 1.7 litres of EP80/90 GL4, until it starts to dribble from the filler hole). Take your vehicle for a test drive and carefully observe for any leaks around the new seal. Monitor for any unusual noises or behaviour.

Common Issues and Considerations

Seal Types and Mudshields

As noted in the provided information, different axle versions may require different seals. For instance, early Rover axles might use seal part number FRC8220, while later versions might use FTC5258. The later seals are often thinner and have a raised lip designed to work with a later-style mudshield. If you fit an early seal with a later mudshield, the mudshield can rub on the seal, causing premature failure. Conversely, pushing an early seal too far in to accommodate a later mudshield can prevent the seal lip from engaging correctly with the flange. Always verify the correct seal part number for your specific axle and mudshield configuration.

Salisbury Differential Pinion Seals

For Salisbury differentials, there are typically two seal options: STC4041 or AEU2515. Whichever you use, it should be installed between a gasket and a washer, according to the manufacturer's specifications.

Why is My Diff Seal Leaking?

A leaking diff seal doesn't always indicate catastrophic failure of the differential itself. Often, it's simply due to the seal's age, wear, or minor damage. However, other factors can contribute:

• Blocked Breather: As mentioned, pressure build-up is a common cause.
• Damaged Flange Surface: Pitting or scoring on the flange where the seal runs will cause leaks.
• Incorrect Installation: Fitting the seal too deep, too shallow, or at an angle can compromise its function.
• Wear and Tear: Seals are consumable parts and will eventually wear out.
• Contamination: Dirt or debris entering the differential can damage the seal.
• Excessive Backlash: While not a direct cause of seal leaks, significant backlash in the crown wheel and pinion can sometimes be associated with wear that might eventually affect the seal area. However, as one user pointed out, a clunk on gear changes is more likely due to other worn components before the differential itself fails.

If a seal is leaking, the primary course of action is to replace the seal and inspect the flange. Only if the flange is damaged or if there are clear signs of internal differential wear (e.g., excessive noise, significant backlash not related to bearing wear) should you consider a more extensive differential rebuild.

A Real-World Example: Defender Td5 Differential Issues

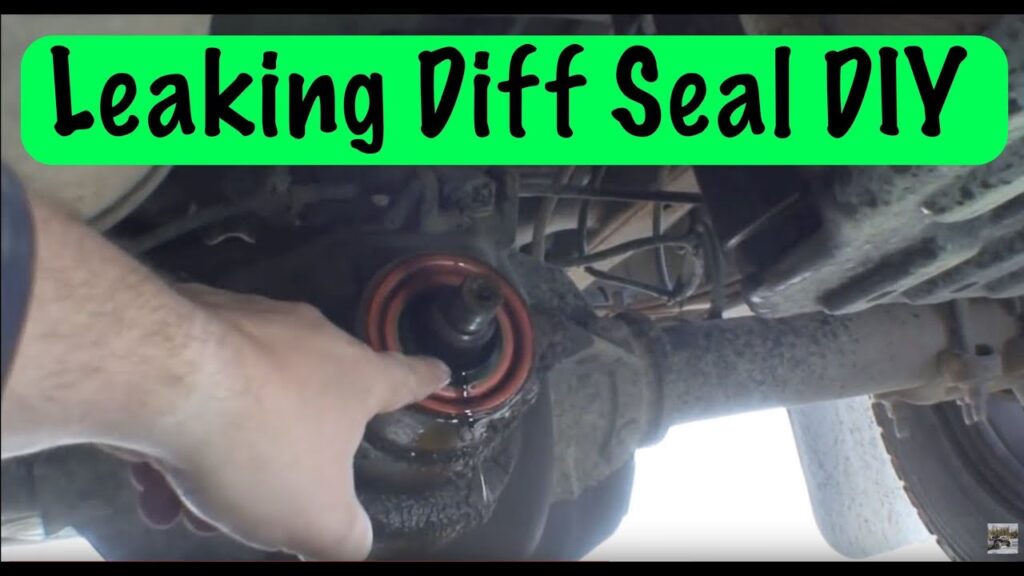

One user described a scenario with a 2001 Defender 90 Td5 experiencing a leak from the front differential seal after an oil change. While the initial suspicion was worn crown and pinion gears due to a clunking noise, a thorough inspection revealed that many other drivetrain components (UJs, wheel bearings, etc.) had already been replaced. The significant play was found when turning the rear prop shaft. The vehicle had a history of harsh use, including farm work and beach launching of a fishing boat, leading to potential salt water ingress and accelerated wear. The advice given was to first replace the seal and inspect the flange, rather than immediately assuming a full differential rebuild was necessary. The possibility of worn bearings or the need for re-shimming was highlighted as more likely than a complete failure of the crown and pinion gears, especially given the mileage.

Conclusion

Replacing a differential pinion oil seal is a practical maintenance task that can save you money and prevent more serious damage. By following these steps carefully, paying attention to detail, and prioritizing safety, you can successfully tackle this job. Remember to always use the correct parts and to verify the specific procedures for your vehicle model. A well-maintained differential, starting with a good oil seal, is key to a reliable driving experience.
