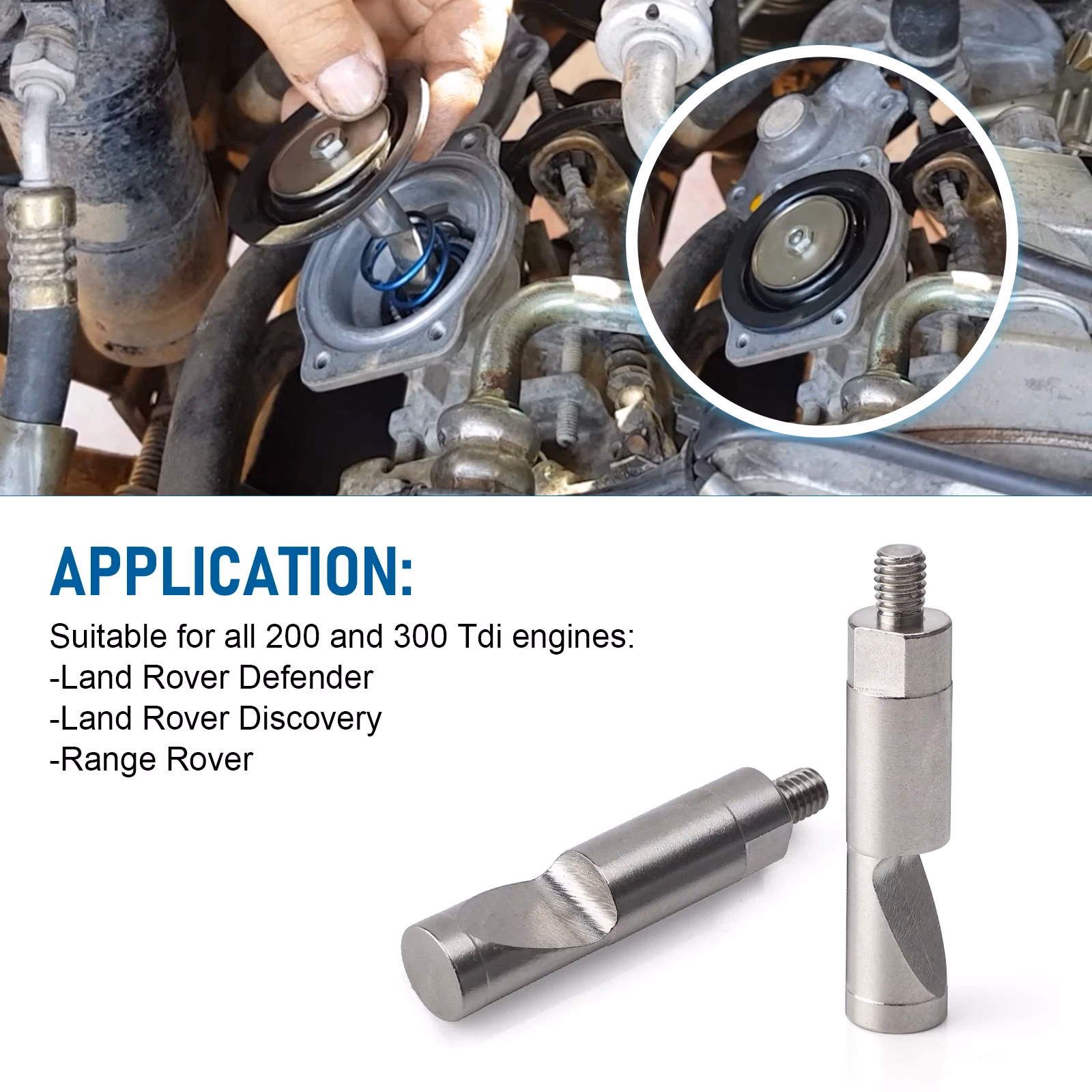

300Tdi Injector Pump Fuelling Pin Issues

The Land Rover 300Tdi engine is renowned for its robust and reliable nature, a workhorse that has powered countless adventures. However, like any complex piece of machinery, it can develop its own quirks. One area that can occasionally cause concern for owners is the injector pump, specifically the fuelling pin. If you've been experiencing issues with underfuelling or an unresponsive throttle, the fuelling pin might be the culprit. This article delves into the possibility of a stuck fuelling pin on a 300Tdi injector pump, exploring the symptoms, diagnostic steps, and potential solutions.

Understanding the Injector Pump's Fuelling Mechanism

Before we dive into potential problems, it's crucial to understand how the fuelling pin operates within the injector pump. The injector pump is the heart of the diesel fuel system, responsible for delivering precisely timed and pressurised fuel to the injectors. In the 300Tdi, a key component within this pump is the fuelling pin. This pin, often referred to as the control or metering pin, moves within a precisely machined bore. Its position dictates the amount of fuel that is delivered to the engine. The movement of this pin is controlled by various factors, including engine speed, throttle position, and load, ensuring the correct fuel delivery for optimal performance and efficiency. The pin typically interacts with a 'cone' or 'cam plate' to regulate this fuel flow. A slight rotation or axial movement of this cone, influenced by the governor or other control mechanisms, causes the pin to move in or out, thereby adjusting the fuel quantity.

Symptoms of a Stuck Fuelling Pin

A stuck fuelling pin can manifest in several ways, often leading to a noticeable degradation in engine performance. The most common symptom, as suggested in user discussions, is underfuelling. This means the engine is not receiving enough diesel to operate at its full potential. You might experience:

• Lack of Power: The vehicle feels sluggish, struggles to accelerate, and may have difficulty maintaining speed, especially on inclines.
• Poor Throttle Response: There's a delay or hesitation when you press the accelerator pedal, and the engine doesn't rev up as expected.
• Difficulty Starting: In severe cases, underfuelling can make the engine hard to start, particularly when cold.
• Black Smoke: While black smoke is often associated with overfuelling (unburnt fuel), severe underfuelling can sometimes lead to incomplete combustion and a degree of black smoke, especially under load, as the engine struggles to get enough air and fuel mix.
• Engine Stalling: In extreme cases, the engine might stall unexpectedly, especially at lower RPMs or when load is applied.

Could the Fuelling Pin Be Stuck? Diagnostic Clues

The question of whether the fuelling pin is stuck is a valid one for 300Tdi owners facing performance issues. Let's break down the diagnostic points mentioned:

1. Underfuelling and the Pin's Presence

The observation that the engine is underfuelling and the pin is likely still in the pump is a logical deduction. If the fuelling pin were to become completely dislodged or break internally in such a way that it ceased to function, the consequences could be more catastrophic. However, a pin that is *stuck* in a particular position, or restricted in its movement, would directly lead to either underfuelling (if stuck in a low-fuel position) or overfuelling (if stuck in a high-fuel position). The fact that it's underfuelling suggests the pin might be stuck in a position that restricts fuel flow, or that its ability to move to a higher-fuel position is impeded.

2. No Marks on the Cone in the Default Position

This observation is crucial. The 'cone' (or cam plate) is what the fuelling pin rides against. As the engine rotates, the profile of this cone dictates the movement of the fuelling pin, thereby controlling fuel delivery. If the pin is not making contact with the cone, or if its movement is not being influenced by the cone's profile, it strongly suggests a mechanical issue. If the cone shows no marks of the pin interacting with it, especially in what might be considered a 'default' or 'idle' position, it implies the pin is either not making contact, or it's stuck in a position where it doesn't engage the varying profile of the cone. This lack of interaction prevents the pump from accurately metering fuel based on engine speed and load, leading to consistent underfuelling.

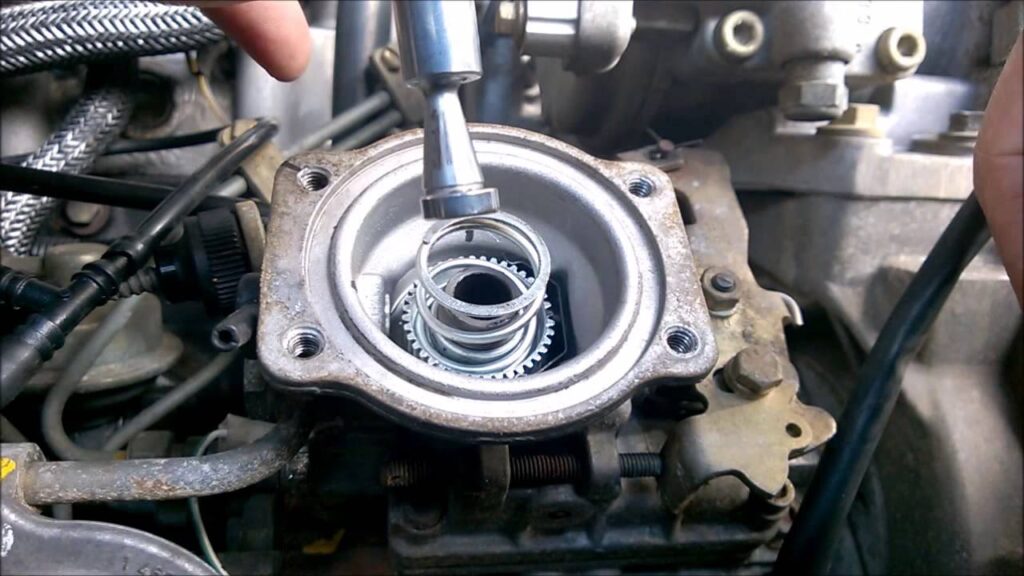

3. Adjusting the Diaphragm/Cone Makes No Difference

The diaphragm and cone are part of the control mechanism for the fuelling pin. Adjustments made to these components are intended to alter the fuel delivery. If, after making adjustments, there is no change in the fuelling whatsoever, it strongly reinforces the idea that the fuelling pin itself is the problem. It suggests that the control inputs are being applied, but they are not translating into the expected movement or effect of the fuelling pin. This could be due to the pin being seized in its bore, or a mechanical blockage preventing its movement, rendering the adjustments ineffective.

Potential Causes for a Stuck Fuelling Pin

Several factors can lead to the fuelling pin becoming stuck or restricted:

• Contaminated Fuel: Dirt, debris, or water in the diesel fuel can cause wear and tear, or even blockages within the fine tolerances of the injector pump. Small particles can lodge themselves between the pin and its bore, causing it to seize.
• Lack of Lubrication: Diesel fuel itself provides lubrication for the injector pump components. If the fuel quality is poor, or if the vehicle has been run for extended periods with very low fuel levels, the lack of proper lubrication can lead to increased friction and eventual seizing.
• Internal Wear: Over time and with high mileage, internal components can wear. This wear can lead to increased clearances or the formation of burrs and rough spots that impede the smooth movement of the fuelling pin.
• Corrosion: If the vehicle is stored for long periods, especially in damp conditions, internal components of the injector pump can corrode. This corrosion can create rough surfaces or even physically bind the fuelling pin.
• Over-advancing Timing: While less direct, incorrect engine timing, particularly if it leads to excessive heat or pressure spikes within the pump, could potentially contribute to component stress and eventual sticking.

Where to Find the Serial Number on a 300Tdi Engine

Locating the serial number of your 300Tdi engine is often necessary when ordering parts or seeking specific technical information. The serial number, also known as the VIN (Vehicle Identification Number) or engine number, can typically be found in a few key locations:

• On the Engine Block: The most common place is stamped directly onto the engine block itself. Look for a raised or etched plate, often near the front or side of the engine. It might be located near the cylinder head or the timing cover.
• On a Data Plate: Some vehicles have a data plate attached to the bulkhead (firewall) or inner wing that lists engine details, including the serial number.
• On the Injector Pump: While not the engine serial number, the injector pump itself will have its own manufacturer's serial number and part number, which is crucial for identifying the correct pump or its components. This is usually found on a metal tag affixed to the pump body.

Consulting your Land Rover's owner's manual or a reliable workshop manual specific to your model will provide the most accurate location for the engine serial number.

Troubleshooting and Potential Fixes

If you suspect a stuck fuelling pin, a systematic approach to troubleshooting is required:

1. Fuel System Check

Before assuming the worst, ensure the rest of the fuel system is in good order. Check for clean fuel filters, a functioning lift pump, and no air leaks in the fuel lines. Sometimes, issues that mimic a stuck pin are actually caused by fuel starvation.

2. Injector Pump Removal and Inspection

If fuel system checks don't reveal the problem, the injector pump may need to be removed from the vehicle. This is a complex procedure that requires precision timing and often specialised tools. Once removed, a qualified diesel technician can disassemble the pump to inspect the fuelling pin and its bore, as well as the associated control mechanisms.

3. Cleaning and Lubrication

In some cases, if the pin is only slightly stuck due to minor contamination or varnish, it might be possible to clean and lubricate the components. This often involves using specific cleaning solvents and ensuring all debris is removed before reassembly.

4. Component Replacement

If the fuelling pin or its bore is worn, damaged, or corroded, the affected components will need to be replaced. This might involve replacing just the pin, or potentially a more extensive rebuild of the pump.

5. Injector Pump Replacement

In cases of severe damage or if a repair is not economically viable, replacing the entire injector pump may be the most practical solution. It's vital to source a correct replacement pump for your 300Tdi model.

Preventative Maintenance for the Injector Pump

To minimise the risk of fuelling pin issues and other injector pump problems, adhere to a strict maintenance schedule:

• Regular Fuel Filter Changes: This is paramount. Use high-quality fuel filters and change them at the recommended intervals, or more frequently if you suspect poor fuel quality.
• Use Quality Diesel Fuel: Opt for reputable fuel stations and consider using a diesel additive that can help clean the fuel system and provide lubrication.
• Avoid Running on Fumes: Keep your fuel tank adequately topped up to prevent sediment from the bottom of the tank from being drawn into the fuel system.
• Address Leaks Promptly: Any fuel leaks, especially air ingress, should be repaired immediately as they can affect pump operation.

Frequently Asked Questions

Q1: Can I fix a stuck fuelling pin myself?

A1: While basic fuel system checks can be done by a competent DIYer, disassembling and repairing an injector pump is a highly specialised task. It requires specific knowledge, tools, and a clean environment to avoid further damage. It's generally recommended to entrust this to a qualified diesel injection specialist.

Q2: How much does it cost to repair an injector pump?

A2: The cost can vary significantly depending on the extent of the damage and the labour rates in your area. A simple cleaning and reseal might be a few hundred pounds, while a full rebuild or replacement could cost considerably more.

Q3: Is it possible for the fuelling pin to cause overfuelling?

A3: Yes, if the fuelling pin gets stuck in a position that allows more fuel to be delivered, it will cause overfuelling, leading to symptoms like excessive black smoke, poor fuel economy, and potential engine damage.

Q4: What is the role of the 'cone' in relation to the fuelling pin?

A4: The 'cone' (or cam plate) has a precisely shaped profile. As the engine rotates, the fuelling pin rides along this profile. The varying height and shape of the cone dictate the axial movement of the pin, which in turn controls the amount of fuel injected.

Q5: Where can I find a reliable diesel injection specialist?

A5: Ask for recommendations from other Land Rover owners, check specialist forums, or look for businesses that specifically advertise diesel pump repair and reconditioning services.

Conclusion

The possibility of a stuck fuelling pin on a 300Tdi injector pump is a genuine concern for owners experiencing power loss and poor throttle response. The diagnostic clues, such as consistent underfuelling despite no apparent interaction between the pin and cone, and the ineffectiveness of control adjustments, strongly point towards this issue. While a DIY fix is not advisable for pump internals, understanding the symptoms and potential causes empowers you to communicate effectively with a specialist and ensure your beloved 300Tdi gets the precise fuel delivery it needs to keep running reliably.
