Daimler V8 Flywheel: Essential Guide

The question of whether a Daimler V8 has a flywheel is a common one, particularly for those embarking on engine conversions or seeking a deeper understanding of their classic vehicle's mechanics. The short answer is a resounding yes, a flywheel is an integral and crucial component of the Daimler V8 engine, just as it is for most internal combustion engines designed to transmit power to a manual gearbox. However, understanding its specific role and the nuances of its implementation, especially in the context of potential conversions, is where the real insight lies.

What Exactly is a Flywheel?

A flywheel is essentially a heavy, rotating disc that is mounted to the crankshaft of an engine. Its primary purpose is to store rotational energy, acting as a reservoir of momentum. Internal combustion engines, by their nature, produce power in distinct pulses during the combustion cycle (the power stroke). Without a flywheel, these power pulses would result in a very jerky and uneven rotation of the crankshaft. The flywheel's mass smooths out these fluctuations, ensuring a much more consistent and continuous delivery of power to the drivetrain. Think of it like a cyclist pedalling: the flywheel is the momentum that keeps the wheels turning between the pushes of the pedals.

Beyond smoothing out power delivery, the flywheel also serves several other critical functions:

• Clutch Engagement: In vehicles equipped with a manual transmission, the flywheel provides the friction surface against which the clutch disc engages. This allows for the smooth transfer of power from the engine to the gearbox, and critically, allows the driver to disconnect the engine from the gearbox for gear changes or when the vehicle is stationary.
• Starting the Engine: The outer rim of the flywheel is typically fitted with a ring gear. This ring gear meshes with the starter motor's pinion gear, allowing the starter motor to crank the engine and initiate the combustion process.
• Engine Balancing: While not its primary function, the mass and precise balancing of the flywheel contribute to the overall balance of the rotating assembly, helping to minimise vibrations.

The Daimler V8 and its Flywheel

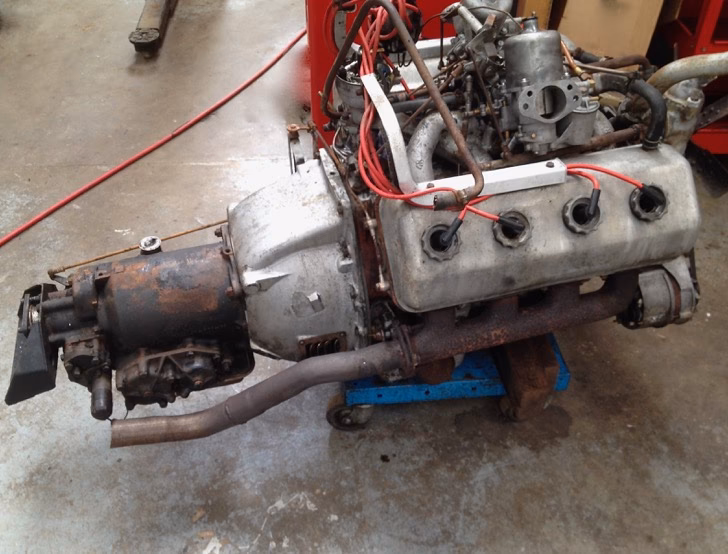

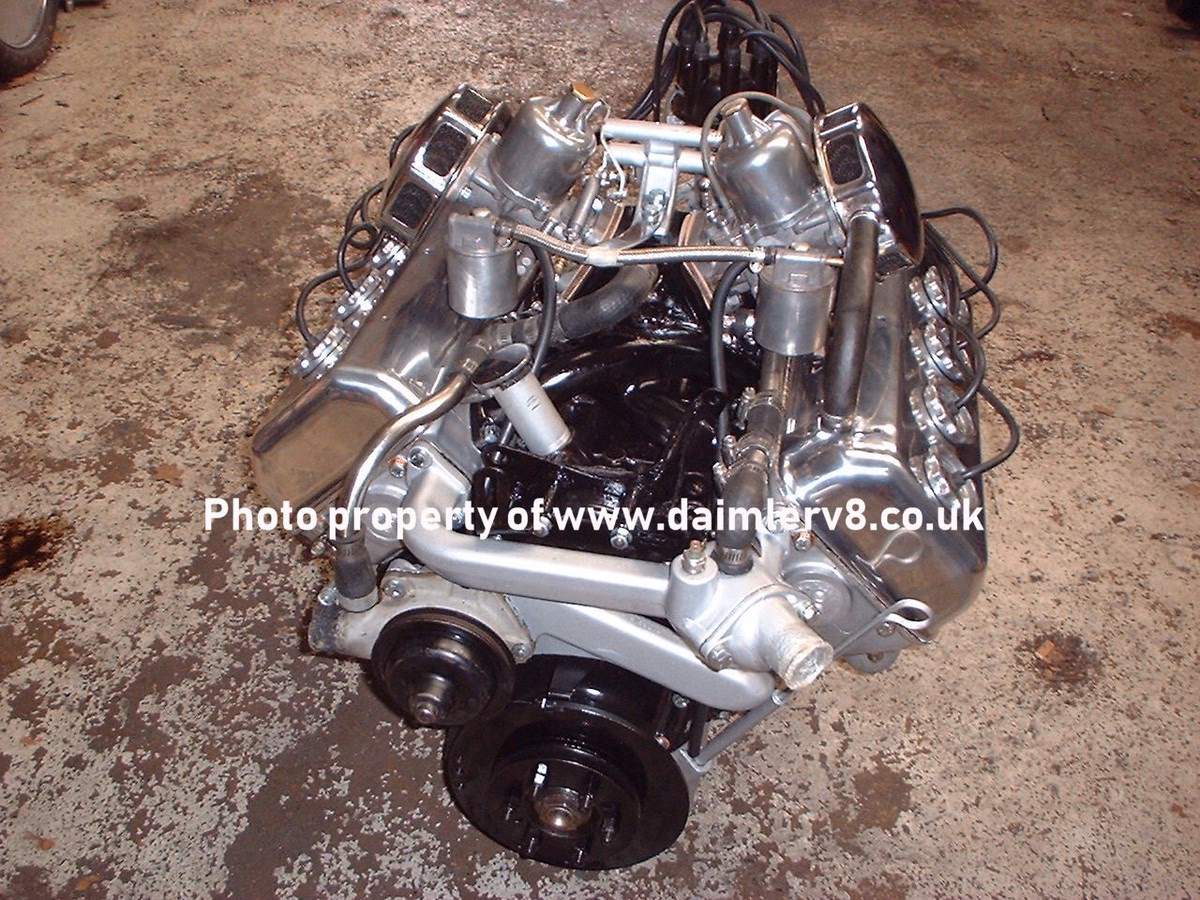

The Daimler V8, particularly in its classic applications such as the Daimler V8 250 (also known as the V8 250 or "The Daimler"), uses a robust V8 engine. This engine, like its contemporaries and successors, relies on a flywheel to perform the essential functions described above. The specific design and weight of the flywheel are carefully engineered to match the engine's characteristics, including its displacement, power output, and intended use.

In the context of the query regarding a Type 9 gearbox conversion, the flywheel becomes a central point of consideration. The Type 9 gearbox, famously used in Ford vehicles like the Sierra and Capri, is a popular choice for enthusiasts looking to upgrade or adapt powertrains. When mating an engine like the Daimler V8 to a different gearbox, one of the primary challenges is ensuring compatibility between the engine's crankshaft and the gearbox's input shaft, and this often centres around the flywheel and clutch assembly.

Flywheel vs. Flexplate: A Crucial Distinction

It's important to distinguish between a flywheel and a flexplate. While both are rotating discs connected to the crankshaft, a flexplate is typically found in vehicles with automatic transmissions. A flexplate is generally thinner and lighter than a flywheel. It doesn't have the mass to smooth out engine pulses in the same way a flywheel does, as the torque converter in an automatic transmission handles this smoothing function. Furthermore, a flexplate often has the ring gear for the starter motor integrated directly into it, and it connects the crankshaft to the torque converter's input. The mention of a "flexi plate" in the user's query suggests a potential automatic transmission origin or a misunderstanding of the component's role. For a manual gearbox conversion, a traditional, heavier flywheel is almost always required.

Acquiring or Manufacturing a Flywheel for Conversion

As Chris's query highlights, acquiring or manufacturing a suitable flywheel for an engine-to-gearbox conversion can be a significant hurdle. The key considerations when adapting a flywheel are:

• Crankshaft Mounting: The bolt pattern and pilot bearing/bushing on the flywheel must precisely match the end of the Daimler V8's crankshaft.
• Gearbox Input Shaft Compatibility: The flywheel must be drilled and tapped to accept the clutch cover, and the clutch disc splines must match the input shaft of the Type 9 gearbox. The pilot bearing in the flywheel must also be compatible with the Type 9 gearbox's input shaft nose.
• Weight and Balance: The flywheel's weight influences the engine's responsiveness. A heavier flywheel will provide smoother power delivery and make the engine more tractable at low revs but can feel sluggish on acceleration. A lighter flywheel will make the engine feel more responsive but can lead to a rougher idle and stalling if too light. The flywheel must also be balanced to match the engine's crankshaft assembly to avoid destructive vibrations.
• Ring Gear: As noted, the flywheel needs a ring gear for the starter motor. This can sometimes be a separate component that is press-fitted or "sweated" onto the flywheel, as suggested in the query. The ring gear's tooth count and pitch must be compatible with the starter motor being used.

Machining and Sourcing

The idea of machining a flywheel with the intention of sweating on a ring gear is technically feasible. Specialist engineering firms can manufacture flywheels from scratch, often using materials like forged steel for strength and durability. They can also machine them to precise tolerances, including the provision for a press-on ring gear. Sourcing a suitable pilot bearing is also critical. This bearing sits in the end of the crankshaft (or in the flywheel itself) and supports the tip of the gearbox input shaft, allowing it to be correctly aligned when the clutch is disengaged.

When undertaking such a conversion, obtaining accurate measurements of both the Daimler V8 crankshaft end and the Type 9 gearbox input shaft nose is paramount. This information will be essential for any engineering shop tasked with creating a custom flywheel or sourcing appropriate components.

Table: Key Flywheel Specifications and Considerations

Frequently Asked Questions (FAQs)

Q1: Does my Daimler V8 have a flywheel if it has an automatic gearbox?

A1: If your Daimler V8 is equipped with an automatic transmission, it will have a flexplate, not a traditional flywheel. The flexplate serves a similar purpose in connecting to the crankshaft but is lighter and interacts with the torque converter.

Q2: Can I use the original flexplate ring gear on a new flywheel?

A2: Potentially, yes. If the original ring gear from the flexplate can be carefully removed (often by heating) and the new flywheel is machined to accept it with a precise interference fit, it is a viable option. However, ensuring the correct fit and balance is crucial.

Q3: What are the risks of using an incorrectly balanced flywheel?

A3: An incorrectly balanced flywheel can cause severe vibrations, leading to premature wear on the crankshaft, engine bearings, gearbox, and even the chassis. In extreme cases, it can lead to catastrophic engine failure.

Q4: Where can I get a custom flywheel made for my Daimler V8 conversion?

A4: Specialist automotive engineering workshops, particularly those experienced in classic car modifications and engine conversions, are the best places to approach. Online forums dedicated to Daimler or V8 conversions can also be a good source for recommendations.

Q5: How much does it typically cost to have a custom flywheel made?

A5: Costs can vary significantly depending on the complexity, materials, and the engineering firm's location and reputation. Expect costs to range from several hundred to over a thousand pounds for a high-quality, custom-machined flywheel.

Conclusion

In summary, a Daimler V8 most certainly has a flywheel when paired with a manual transmission. It is a fundamental component responsible for the smooth operation, starting, and power transmission of the engine. For enthusiasts undertaking conversions, such as mating a Daimler V8 to a Type 9 gearbox, the flywheel is a critical piece of the puzzle. Careful consideration of its design, material, balance, and compatibility with both the engine and the new transmission is essential for a successful and reliable outcome. The challenges Chris mentioned – acquiring the correct flywheel and pilot bearing – are common in such projects, but with meticulous planning and the help of skilled engineers, these can be overcome to enjoy the unique character of the Daimler V8 in a new application.
