DIY Gearbox Oil Change: A Comprehensive Guide

Maintaining your car's gearbox is paramount for its longevity and ensuring smooth, efficient gear changes. Just like engine oil, gearbox oil degrades over time, losing its lubricating properties and accumulating contaminants. While often overlooked, a regular gearbox oil change can significantly extend the life of your transmission and prevent costly repairs down the line. This detailed guide will walk you through the process of changing your manual gearbox oil, empowering you to undertake this crucial maintenance task yourself. Be warned, old gearbox oil has a rather distinctive and unpleasant odour, so prepare yourself!

Gathering Your Essential Toolkit and Materials

Before you even think about getting under your vehicle, it's crucial to have all the necessary tools and materials at hand. Being prepared not only makes the job smoother but also significantly reduces the chances of frustrating delays. Here's what you'll need:

• 8mm Square Drain Plug Socket: This is a specific tool, often not found in standard socket sets, crucial for the gearbox drain plug.
• Spanner: To provide leverage for your drain plug socket.
• Drain Tray: Ensure it has a capacity of at least 4 litres to comfortably hold all the old oil.
• Disposable Gloves: Absolutely essential. Gearbox oil, especially used, is notoriously pungent and can be irritating to the skin.
• Large Piece of Cardboard: To lay on for comfort and, more importantly, to catch any unexpected drips or spills.
• 3.5 Litres of 75W80 Gear Oil: Always refer to your car's manual for the precise specification, but 75W80 is a common type. Ideally, purchase it in 1-litre squeeze bottles for easier refilling.
• Pair of Pliers: Useful for various tasks, including unscrewing the filler plug.
• New Copper Crushable Washer: This is vital for a leak-free seal on the drain plug. These are inexpensive and readily available from any good motor factors.
• Axle Stands: Non-negotiable for safety if you're raising the car. Never rely solely on a jack.

Having these items ready will ensure a seamless experience from start to finish.

Prioritising Safety and Vehicle Preparation

Safety should always be your number one concern when working under a car. Rushing or cutting corners can lead to serious injury. Follow these steps meticulously:

1. Warm the Oil (Optional but Recommended): A short drive of 10-15 minutes will warm the gearbox oil, making it less viscous and allowing it to drain more thoroughly. However, be extremely cautious as components under the car will be hot. Allow a few minutes for extreme heat to dissipate before touching anything.
2. Raise the Vehicle Safely: You may find it easier to access the drain plug by jacking up the front of the car. If you do, it is absolutely imperative that you use axle stands to support the vehicle securely. Never, under any circumstances, work under a car supported only by a jack.
3. Position Your Workspace: Lay the large piece of cardboard on the ground directly beneath the gearbox area. This will provide a cleaner, more comfortable surface to work on and will catch any unavoidable drips, making cleanup much easier.

Locating and Draining the Old Gearbox Oil

This is where the actual work begins. Accurate identification of the drain plug is critical to avoid draining the wrong fluid.

1. Identify the Gearbox: From the front of the car, looking down, the gearbox is typically located to the right of the engine. It's crucial not to confuse it with the engine oil sump plug. The gearbox is usually a more robust-looking casing connected to the driveshafts.

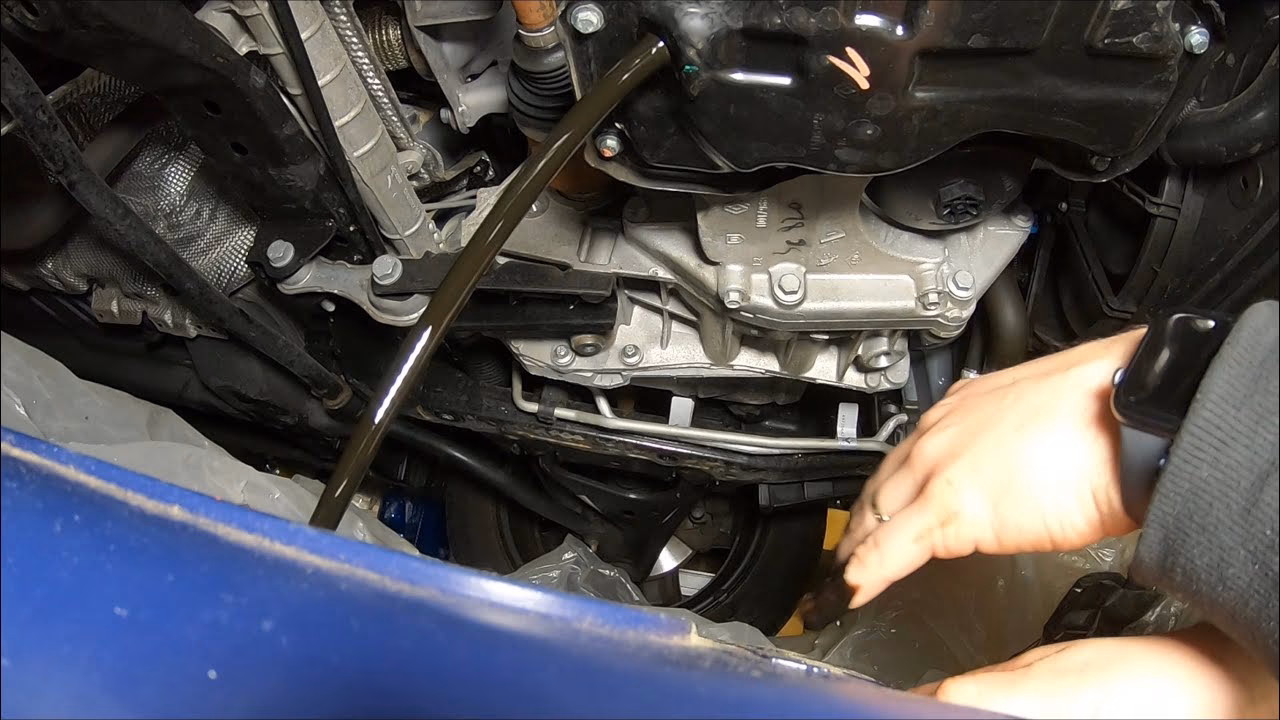

2. Locate the Drain Plug: The gearbox drain plug is situated at the very bottom of the gearbox casing. In some vehicles, a plastic under-tray or cover might obscure access to the plug. You may need to unclip or remove this cover to gain full access. The plug itself is often an 8mm square recess.
3. Position the Drain Tray: Once you've confidently located the drain plug, place your 4-litre capacity drain tray directly underneath it. Ensure it's centred to catch all the draining oil.
4. Remove the Drain Plug: Using your 8mm square drain plug socket and spanner, carefully loosen and then unscrew the drain plug. Be extremely careful not to drop the plug into the tray of hot, old oil. It's a common mistake and can be frustrating to retrieve!
5. Allow Complete Drainage: The old oil will begin to pour out immediately. While it's draining, take the opportunity to remove the old copper crushable washer from the drain plug and replace it with a new one. This new washer is essential for a leak-free seal upon refitting. Allow the oil to drain for as long as possible – patience here will ensure maximum old oil removal.
6. Refit the Drain Plug: Once the flow of oil has reduced to an occasional drip, carefully refit the drain plug with its new washer. Tighten it firmly with your spanner and socket. Do not over-tighten, but ensure it is snug to prevent leaks.
7. Lower the Vehicle: With the drain plug securely in place, remove the drain tray and carefully lower your car back onto its wheels. Leave the cardboard underneath the car for now; it will come in handy for any drips during the refilling process.

Refilling the Gearbox: Precision is Key

Getting the correct oil level is paramount for gearbox health. Too little can cause wear; too much can lead to frothing and seal damage.

1. Locate the Filler Plug: The gearbox filler plug can sometimes be visible from above the car, often on the top or upper side of the gearbox. However, it's not uncommon for it to be hidden beneath wiring looms or other engine bay components. In some cases, you might need to access it from underneath the car. It often looks like a plastic wing-nut headed bolt.
2. Remove the Filler Plug: Use your pliers to unscrew the plastic wing-nut headed bolt of the filler plug.
3. Ensure the Car is Level: This step is absolutely critical. For an accurate fill level, your car must be as level as possible. If it's tilted, you risk either under-filling (if the filler hole is higher than the true level) or over-filling (if it's lower). If you've jacked up the front, ensure the rear is also raised, or ideally, perform this step on a level surface with the car on all four wheels.
4. Slowly Add New Oil: Using your 1-litre squeeze bottles, slowly and steadily squeeze the new 75W80 gear oil into the filler hole. This process can take some time, especially if you're using bottles without a long neck or pump.
5. Monitor the Level: Continue adding oil until you see a steady stream of oil beginning to drip out of the filler hole. This is your indication that the gearbox is filled to the correct level. Don't be alarmed if you don't use all of the oil you purchased. While your car's manual might state a capacity of, for example, 3.4 litres, real-world refills often take closer to 2.5 litres due to residual old oil that doesn't drain.
6. Replace the Filler Plug: Once oil begins to drip, replace the filler plug. Screw it in by hand until it's snug. Do not over-tighten this plastic plug, as it can easily break.

Final Checks and Responsible Disposal

You're almost done! A few final steps will ensure everything is in order and you dispose of waste responsibly.

1. Check for Leaks: After refilling and securing both plugs, take a moment to visually inspect the drain plug and filler plug areas for any signs of leaks. A few drips on the cardboard are normal during the process, but you shouldn't see any continuous leaking.
2. Dispose of Old Oil: Old gearbox oil is a hazardous waste product and must be disposed of correctly. Do not pour it down drains or onto the ground. Many local recycling centres have dedicated oil drums for used engine and gearbox oil. Alternatively, your local friendly garage may be willing to dispose of it for you, sometimes for a small charge. Responsible disposal is crucial for environmental protection.

Comparing Old vs. New Gearbox Oil

Frequently Asked Questions (FAQs)

How often should I change my gearbox oil?

Unlike engine oil, gearbox oil doesn't have a universal change interval. It varies significantly between manufacturers and vehicle models. Some manufacturers state 'lifetime fill', but this generally means the life of the warranty, not the life of the vehicle. A good rule of thumb for manual gearboxes is every 50,000 to 100,000 miles, or every 5-7 years, especially if you do a lot of towing or aggressive driving. Always consult your car's service manual for the recommended interval.

What happens if I overfill or underfill my gearbox?

Overfilling: Can lead to increased internal pressure, causing oil to foam and potentially blow out seals. Foaming oil loses its lubricating properties, leading to excessive wear and heat. It can also create drag, reducing fuel efficiency.

Underfilling: Means parts of the gearbox won't receive adequate lubrication, leading to accelerated wear, overheating, and potential catastrophic failure. Gears may whine or grind, and shifting can become difficult.

Is 75W80 the only type of oil I can use?

No, the specific viscosity and API GL rating (e.g., GL-4, GL-5) of gearbox oil are crucial and depend entirely on your vehicle's manufacturer specifications. While 75W80 is common, many other types exist. Using the wrong type of oil can lead to poor performance, damage, and voided warranties. Always double-check your car's manual.

Do I really need axle stands, or can I just use the jack?

Absolutely, you must use axle stands. A jack is designed for lifting, not for supporting a vehicle for extended periods. Jacks can fail, slip, or be accidentally dislodged, leading to the vehicle collapsing. Working under a car without proper support is extremely dangerous and can result in severe injury or death. Never take this risk.

My gearbox is making a noise; will new oil fix it?

While fresh oil can sometimes alleviate minor noises by improving lubrication, it's not a magic cure for existing mechanical issues. If your gearbox is already making significant noises (whining, grinding, clunking), it likely indicates internal wear or damage that new oil alone cannot fix. It's best to have it inspected by a professional mechanic.

Conclusion

Changing your gearbox oil is a rewarding DIY task that can save you money and give you a deeper understanding of your vehicle's mechanics. While it requires a bit of preparation and careful execution, the process is straightforward if you follow these steps diligently. Remember, take your time, stay calm, and if you are at all unsure about any part of the process, it's always best to seek assistance from someone experienced or a professional mechanic. Your gearbox will thank you for the fresh lease of life, ensuring your driving experience remains smooth and reliable for miles to come. Good luck!
