Dacia 1.5 dCi Oil: Selection & DIY Change Guide

When it comes to maintaining your Dacia 1.5 dCi, particularly models like your 2016 Duster, selecting the correct engine oil and performing regular changes are paramount for its longevity and performance. It's commendable that you took the initiative to change the oil shortly after acquiring your Duster, especially given your preference for a specific oil and the uncertainty regarding previous servicing. However, dealing with modern vehicle designs, such as the Duster's undertray, can present unexpected challenges. This guide aims to demystify the oil selection process for your 1.5 dCi and provide a detailed approach to tackling that notoriously awkward oil change, ensuring a clean and effective service every time.

Understanding Your Dacia 1.5 dCi's Oil Requirements

The 1.5 dCi engine, widely known as the Renault K9K, is a robust and efficient diesel unit. However, like all modern diesel engines, especially those fitted with a Diesel Particulate Filter (DPF) – which your 2016 Duster 1.5 dCi 4WD almost certainly has to meet Euro 5/6 emissions standards – it has very specific oil requirements. Using the wrong oil can lead to premature DPF clogging, increased emissions, and potential engine damage.

The critical specification for DPF-equipped 1.5 dCi engines is Renault's RN0720 approval. This is a low-SAPS (Sulphated Ash, Phosphorus, Sulphur) oil specification, typically associated with ACEA C4, designed to protect the DPF from harmful ash deposits. While your chosen Castrol Edge 5W-40 C3 is a high-quality oil, it's crucial to verify if it explicitly carries the RN0720 approval. Many C3 oils are designed for VW/Mercedes group vehicles and might not meet the specific Renault requirements for DPF longevity. Always check the oil bottle's label for the RN0720 approval. If it doesn't have it, it's not the ideal oil for your Duster's DPF.

Commonly recommended viscosities for the 1.5 dCi engine that meet RN0720 are typically 5W-30 or 5W-40, though 5W-30 C4 is more prevalent for RN0720. The '5W' indicates good cold-start performance, crucial for the UK climate, while the second number (30 or 40) relates to the oil's viscosity at operating temperature. For your vehicle, ensuring the RN0720 standard is met is far more important than the specific 5W-30 vs 5W-40 debate, as long as both meet the necessary approval.

Popular Engine Oil Choices for 1.5 dCi (RN0720 Approved)

When selecting oil, look for brands that explicitly state RN0720 compliance on their packaging. Some common options include:

• Total Quartz Ineo MC3 5W-30: Often a factory fill or recommended oil for Renault/Dacia.
• Motul Specific 0720 5W-30: Designed specifically for this Renault specification.
• Castrol Edge: While you use a C3 variant, Castrol does offer oils that meet RN0720, but you must select the correct product (e.g., Castrol Edge C4 5W-30, if available with RN0720).
• Shell Helix Ultra Professional AR-L 5W-30: Another strong contender meeting the RN0720 spec.

Always consult your Duster's owner's manual for the definitive factory-recommended oil specification. It is the ultimate authority on what your engine requires.

Optimising Oil Change Intervals for Short Trips

Your strategy of performing 6-month oil changes, especially given your wife's short-trip town driving, is an excellent one. Short journeys prevent the engine from reaching optimal operating temperature consistently, leading to condensation build-up in the oil. This moisture, combined with fuel dilution and combustion by-products, degrades the oil faster than typical long-distance driving. More frequent changes mitigate this degradation, ensuring the engine is always protected by fresh, effective lubricant.

While Dacia's recommended service intervals might be 12,000 miles or annually, your proactive approach of changing the oil yourself between main dealer services is highly beneficial. It ensures that the engine receives fresh oil more frequently, which is particularly important for the health of the DPF and other critical components when subjected to predominantly short-distance use.

Conquering the Undertray Challenge

The Duster's undertray, designed for protection, can indeed be a nemesis during oil changes, as you've discovered. The small, off-centre window for the drain plug is a common complaint. Dealing with a messy spill is frustrating and potentially harmful to the environment.

Removing the Undertray

The easiest way to remove the undertray is typically to support the front of the vehicle safely on axle stands (never rely solely on a jack). Once adequately raised and secured, you'll usually find a series of bolts and sometimes plastic clips securing the undertray to the chassis and front bumper/subframe. These are often 10mm or 13mm bolts. Start by removing the bolts around the perimeter, paying attention to any that might be hidden or harder to access. It's often helpful to have a second person to support the tray as the last few fasteners are removed, as it can be surprisingly heavy and awkward.

Once removed, you can thoroughly clean the tray to eliminate residual oil drips. Use a degreaser and warm water, then allow it to dry completely before reinstallation.

Modifying the Undertray: To Cut or Not to Cut?

Your idea of cutting a larger hole for the drain plug is a common modification among Dacia owners who do their own maintenance. Here are the pros and cons:

• Pros: Much easier access for future oil changes, significantly reduces the risk of messy spills, saves time by avoiding full undertray removal.
• Cons: Permanently alters the undertray, could potentially compromise its structural integrity slightly (though unlikely for a small cut), might void a warranty if Dacia were to inspect it (highly unlikely for an undertray modification unless directly causing a fault), could allow more road grime/debris into the engine bay in theory (though the existing hole already does this to some extent).

If you decide to cut, use a sturdy cutting tool like a jigsaw or an angle grinder with appropriate safety gear (eye protection, gloves). Measure carefully to ensure the new opening is large enough to allow the oil stream to fall clear into your drain pan, but not excessively large. A rectangular cut, slightly larger than the expected spread of the oil stream, is usually effective. Smooth any sharp edges after cutting.

Step-by-Step Dacia 1.5 dCi Oil Change (with Undertray Removal)

Performing your own oil change is a rewarding task, saving money and giving you peace of mind. Here's a detailed guide:

Tools and Materials You'll Need:

• New engine oil (RN0720 approved, correct viscosity)
• New oil filter (ensure it's for your 1.5 dCi model, preferably a reputable brand or OEM)
• Oil filter wrench (cap type usually best for the 1.5 dCi)
• Drain pan (large enough capacity for all the old oil)
• Socket set (for undertray bolts and drain plug)
• Torque wrench (recommended for drain plug and filter)
• Funnel
• Clean rags or shop towels
• Gloves
• Safety glasses
• Jack and axle stands (essential for safety)
• Wheel chocks
• Degreaser and cleaning supplies (for the undertray)

Procedure:

1. Prepare the Vehicle: Drive the car for 5-10 minutes to warm the engine oil slightly. Warm oil flows more easily, ensuring a more complete drain. Park on a level surface, engage the handbrake, and chock the rear wheels.
2. Lift and Secure: Using your jack, lift the front of the vehicle and place it securely on axle stands. Give the car a gentle shake to ensure it's stable. Safety first!
3. Remove the Undertray: As discussed, identify and remove all the bolts and clips securing the undertray. Carefully lower it and set it aside for cleaning.

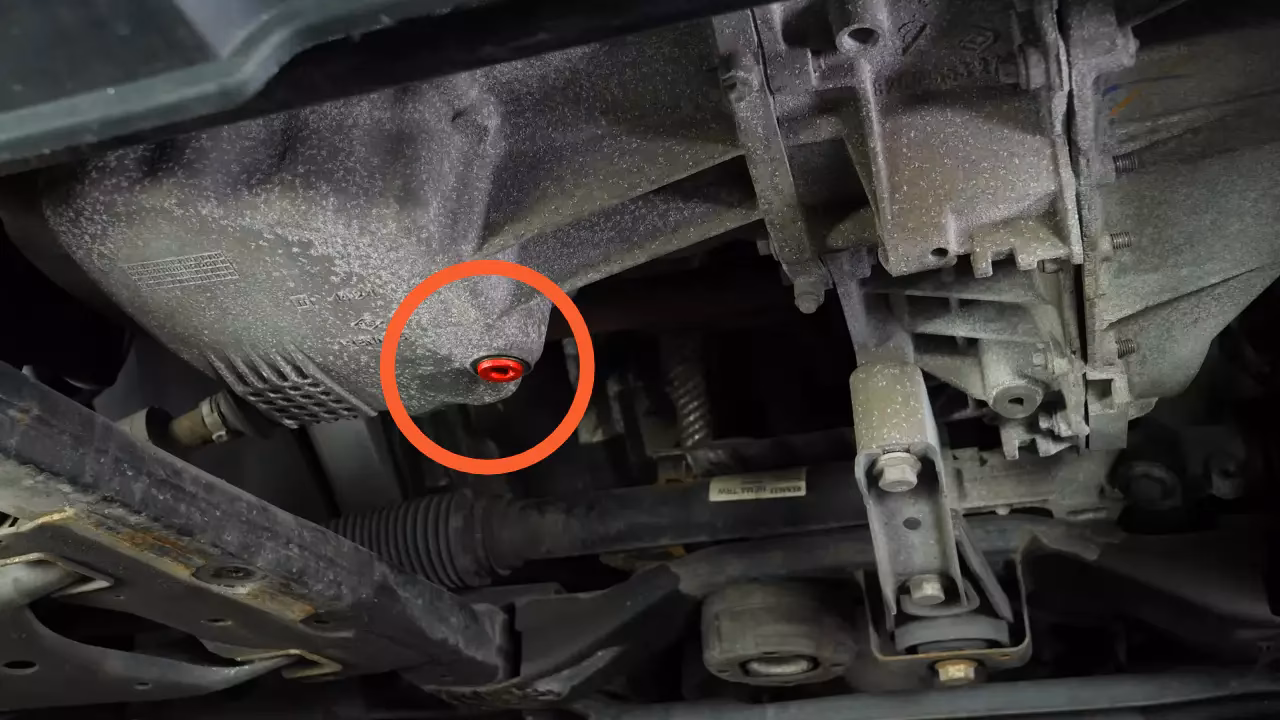

4. Locate Drain Plug: Position your drain pan directly beneath the oil drain plug, which is usually at the lowest point of the oil sump.
5. Drain the Oil: Using the correct size socket (often 13mm or 17mm), loosen and carefully remove the drain plug. Be prepared for the initial gush of hot oil. Allow the oil to drain completely. This can take 10-15 minutes.
6. Replace Drain Plug Washer: Most new oil filters come with a new crush washer for the drain plug. Always use a new washer to ensure a leak-free seal.
7. Reinstall Drain Plug: Once the oil has fully drained, clean the area around the drain hole and reinsert the drain plug with the new washer. Tighten it to the manufacturer's specified torque (consult your manual, typically around 20-30 Nm). Do not overtighten, as this can strip the sump threads.
8. Locate and Remove Oil Filter: The oil filter on the 1.5 dCi is typically a cartridge type, housed in a plastic or metal canister, often located on the front of the engine, sometimes near the exhaust manifold or behind the engine. Use your oil filter wrench to loosen the filter housing cap. Be prepared for some oil spillage.
9. Replace Oil Filter Element: Remove the old filter element from the housing. Clean the housing thoroughly. Replace the O-rings (usually supplied with the new filter element) on the housing cap. Insert the new filter element into the housing.
10. Reinstall Oil Filter: Screw the filter housing cap back on. Tighten it by hand until snug, then use the filter wrench to tighten to the manufacturer's specified torque (usually printed on the filter housing itself or in the manual, often around 25 Nm). Again, do not overtighten.
11. Refill with New Oil: Lower the vehicle. Locate the oil filler cap on top of the engine. Place a funnel into the filler neck. Pour in approximately 4.5 litres of the new, correct specification oil (the 1.5 dCi typically takes around 4.5-5 litres, but check your manual).
12. Check Oil Level: Replace the filler cap. Start the engine and let it run for a minute or two to circulate the new oil and fill the filter. Turn off the engine and wait 5-10 minutes for the oil to settle back into the sump. Then, pull out the dipstick, wipe it clean, reinsert it fully, pull it out again, and check the oil level. It should be between the 'min' and 'max' marks. Add small amounts of oil as needed until the level is correct.
13. Inspect for Leaks: With the engine running, carefully check around the drain plug and oil filter for any signs of leaks.
14. Reinstall Undertray: Once you are satisfied there are no leaks and the oil level is correct, reinstall the undertray, ensuring all bolts and clips are securely fastened.
15. Dispose of Old Oil: Never pour used engine oil down the drain. Collect it in a sealed container and take it to your local recycling centre or garage, where they will dispose of it responsibly.

Fuel Choice and Driving Habits for DPF Health

Your choice of BP Ultimate/Shell V-Power diesel fuels is beneficial. These premium fuels often contain additives that help keep the fuel system clean and can contribute to more efficient combustion, which is kinder to the DPF. While they won't miraculously fix DPF issues from purely short trips, they certainly don't hurt.

The "weekly blast up the motorway" is also an excellent strategy for a DPF-equipped diesel that primarily does short town trips. This allows the engine and exhaust system to reach and maintain the high temperatures necessary for the DPF to perform a 'regeneration' cycle. During regeneration, accumulated soot in the filter is burned off, converting it into harmless ash. Without these regular high-temperature runs, the DPF can become overloaded with soot, leading to warning lights, reduced engine power, and potentially costly repairs or replacement.

Table: Oil Viscosity & Specification Comparison (Illustrative)

Frequently Asked Questions (FAQs)

Q: Can I use 5W-40 C3 instead of 5W-30 C4 for my 1.5 dCi?
A: The key factor is the Renault RN0720 approval. If your 5W-40 C3 oil *also* carries the RN0720 approval, then it is generally acceptable. However, many C3 oils do not meet RN0720, which is crucial for DPF longevity. Always prioritise the RN0720 specification over just the ACEA C rating or viscosity.

Q: How often should I change the oil if I mostly do short trips?
A: Your current plan of every 6 months is excellent for short-trip town driving. This is more frequent than standard intervals but provides superior protection against oil degradation from fuel dilution and condensation, which are common in these driving conditions.

Q: What are the signs that my DPF needs attention?
A: Common signs include a DPF warning light on the dashboard, reduced engine power, increased fuel consumption, or unusual smells (like burning plastic) during regeneration attempts. Regular motorway blasts help prevent this, but if warnings persist, professional diagnosis is needed.

Q: Is it okay to modify the undertray?
A: Many DIY mechanics modify the undertray for easier access during oil changes. As long as the modification is done neatly and doesn't compromise the tray's ability to protect the engine, it's generally considered acceptable for a personal vehicle. Just be aware it's a permanent alteration.

Q: Why is RN0720 so important for my 1.5 dCi?
A: RN0720 specifies an ultra-low SAPS (Sulphated Ash, Phosphorus, Sulphur) content. Sulphated ash is a by-product of oil combustion that cannot be burned off during DPF regeneration and will permanently clog the filter over time. Using an RN0720-approved oil minimises this ash build-up, significantly extending your DPF's lifespan and preventing costly blockages.

Conclusion

Maintaining your Dacia Duster 1.5 dCi with the correct engine oil and diligent servicing practices is crucial for its long-term health, especially with town driving. By ensuring your oil meets the critical RN0720 specification, adopting more frequent oil changes, and strategically performing those motorway blasts, you're giving your Duster the best chance to run sweetly for years to come. While the undertray can be a minor annoyance, with the right approach and perhaps a thoughtful modification, your DIY oil changes will become a straightforward part of your vehicle's essential maintenance routine, saving you money and providing invaluable peace of mind.
