Unlocking Power: D16 Engine Tuning Guide

The Honda D16 engine, a true workhorse found in numerous Civic and Integra models over the years, has long been a favourite among enthusiasts looking for a solid foundation for their tuning projects. Renowned for its reliability and robust design, this engine offers considerable potential for performance enhancements, making it an excellent candidate for those seeking to extract more power and driving excitement. While some might perceive its tuning possibilities as limited due to a lack of simple bolt-on modifications, the D16 can indeed be significantly improved, often allowing for power increases of around 20% or more with the right approach.

This article aims to provide a comprehensive guide to tuning your D16, from the crucial aspect of remapping to essential hardware upgrades. We'll explore the various stages of modification, highlight key components that yield the best results, and discuss common pitfalls to avoid, ensuring your tuning journey is both rewarding and successful. Our goal is to equip you with the knowledge needed to transform your D16 into a truly potent performer on the road.

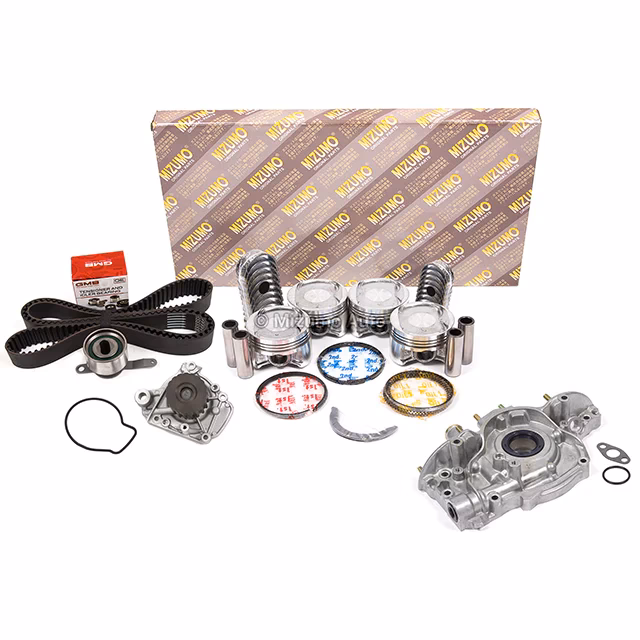

The Heart of the Matter: Can You Remap a D16 Engine?

Absolutely, remapping your D16 engine's ECU (Engine Control Unit) is one of the most effective ways to unlock its hidden potential. It involves altering the engine's software parameters, such as fuel delivery, ignition timing, and VTEC engagement points, to optimise performance for specific modifications or driving conditions. For a D16, especially when undertaking significant upgrades, remapping moves beyond simple bolt-on gains and delves into the core operational efficiency of the engine.

For those venturing into DIY remapping, a budget-friendly programmer like the TL866 is often indispensable, allowing you to access and modify the ECU's programming. Pairing this with complementary software, such as Honda Tuning Suite (HTS), provides a robust platform for making precise adjustments. Crucially, incorporating a wideband O2 sensor into your toolkit is vital. This device monitors the air/fuel ratio in real-time, providing critical feedback to ensure your engine operates safely and efficiently after modifications, preventing potentially damaging lean or rich conditions.

Remap Options and Brands for D16 Engines

When considering ECU upgrades or remapping solutions for your D16, particularly to complement other performance modifications, several reputable brands offer excellent options:

• Hondata: A long-standing favourite in the Honda tuning community. The Hondata S300 is ideal for OBD1 setups, enhancing the factory ECU to unlock significant power. For later OBD2 systems, Hondata's K-Pro or FlashPro systems offer extensive tuning capabilities, including detailed control over fuel maps, ignition timing, and VTEC engagement. Their suitability depends on your specific D16 variant and ECU version.
• Viper Performance: Known for their Viper 4x Stage 3 chip, which acts as a Chip Sprint Throttle booster and OBD programmer module. It’s effective for improving engine response and acceleration, offering a noticeable kick.
• AEM Infinity: A robust and highly flexible standalone ECU option. While it represents a more significant investment, the AEM Infinity provides comprehensive tuning capabilities across a wide range of engine setups, offering substantial performance benefits for serious builds.
• Haltech: Haltech ECUs, such as the E6k, are valued for their user-friendliness and adaptability. They offer plug-and-play convenience for many applications, including Honda engines, with a straightforward interface and extensive tuning features that appeal to performance enthusiasts.
• Accel DFI: Accel DFI systems provide another avenue for detailed engine management. They offer solutions ranging from simple adjustments to intricate fuel and ignition management, allowing for fine-tuning of your D16's operational parameters.

Choosing the right ECU or remapping solution hinges on your specific performance goals and the extent of your existing modifications. For highly modified D16 engines, moving beyond the OEM ECU to a standalone aftermarket unit is often necessary to fully realise the engine's potential. While aftermarket ECUs typically outperform factory units, ensure the chosen system offers knock protection and is set up correctly by a qualified tuner. On naturally aspirated D16s with a few other modifications, a good remap can yield around a 15% power increase, though results vary based on the engine's condition and specific upgrades.

D16 Tuning Stages: A Structured Approach to Power

Tuning the D16 engine can be approached in stages, allowing you to progressively increase power and performance while managing your budget and build complexity.

Typical Stage 1 Modifications:

• Panel air filters
• Sports exhaust header/manifold
• Fast road camshaft
• Intake manifolds
• Drilled & smoothed airbox
• Remaps/piggy back ECU

Typical Stage 2 Modifications:

• Induction kit
• Fast road cam
• Fuel pump upgrades
• High flow fuel injectors
• Ported and polished head
• Sports catalyst & performance exhaust

Typical Stage 3 Modifications:

• Competition cam
• Engine balancing & blueprinting
• Crank and Piston upgrades to alter compression
• Internal engine upgrades (head flowing porting/bigger valves)
• Adding or Upgrading forced induction (turbo/supercharger)
• Twin charging conversions

D16 Engine Variants: History, Power & Specs

Optimising Airflow: Intake and Head Upgrades

Optimising your D16 engine's performance critically depends on enhancing how effectively airflow and fuel are mixed and combusted. A fundamental step in this process involves upgrading the air intake system. An induction kit, such as the Pipercross Viper rally induction kit, is engineered to replace the restrictive factory air filter with a high-performance alternative. This significantly increases the volume and improves the quality of air entering the engine. Crucially, the cooler, denser air provided by an efficient induction kit contains more oxygen, which is vital for achieving a more potent and complete combustion cycle.

Beyond the air filter, the intake manifold plays a pivotal role in directing air from the induction kit into the engine's cylinders, where it combines with fuel for combustion. The design of the intake manifold significantly influences fuel atomisation, ensuring a more complete and efficient mix of fuel with air, which in turn facilitates cleaner, more powerful combustion. For the D16 engine, replacing the factory intake manifold with a high-performance model can dramatically improve these dynamics. While some stock intake manifolds perform adequately, many are not designed for the demands of high-level tuning, necessitating an upgrade to meet increased performance requirements.

In conjunction with air intake improvements, upgrading to larger intake and exhaust valves enhances the engine's ability to breathe, allowing a greater volume of air-fuel mixture into and exhaust gases out of the combustion chamber. Complementary port work and head flowing further refine this process by smoothing the airflow paths, reducing resistance, and maximising flow efficiency. These enhancements not only boost torque but also augment the performance gains from other tuning components, resulting in a synergistic increase in overall engine performance where the whole exceeds the sum of its parts.

Using proper headers is also vital, as they carry exhaust gases away from the engine. Many stock headers present a restriction, especially when targeting power increases of 20% or more. Upgrading to aftermarket headers designed for better flow can significantly reduce back pressure and improve exhaust scavenging. Furthermore, for older D16s with carburettors, upgrading to twin-throat carbs can yield good power gains. However, converting to fuel injection is often a more sensible long-term solution, offering superior power, easier tuning, and better fuel economy.

Unleashing Power: Camshaft Upgrades

Upgrading camshafts is one of the most effective ways to enhance your D16's power output, particularly at higher RPMs, which is ideal for petrol engines. Performance camshafts typically yield significant peak power increases. By altering the profile of the camshaft, you can change the intake and exhaust durations, which directly impacts the engine's breathing and power delivery.

You generally have two main options: fast road cams or competition cams. Fast road cams are designed to increase power across the entire RPM band, making them suitable for daily driven cars where a broader power delivery is desired. Competition cams, on the other hand, are engineered to boost high-end RPM power, making them ideal for track-only vehicles. A common side effect of aggressive competition cams is rough idling and a reduction in lower-end power, which can make daily driving challenging. For a car used for daily commutes, the smooth operation provided by a fast road cam or VTEC optimisation is often preferred.

For D16 engines equipped with VTEC, camshaft upgrades are less abundant because VTEC essentially provides two cam profiles: a mild one for low RPMs and a sportier one for high RPMs. A more common and often preferred option for VTEC-equipped D16s is to adjust the VTEC engagement point to come in at a lower RPM. This effectively gives you the sportier cam profile across a wider portion of the engine's power band, improving responsiveness and acceleration without the harshness of an aggressive aftermarket cam.

The overall power gains from camshaft upgrades are also heavily influenced by engine timing, fuel pump capacity, and injector upgrades. Extending exhaust or intake durations can significantly alter the power band, and while most cams and tuners use matched pairs, there can be advantages to extending either the intake or exhaust durations independently to fine-tune the engine's characteristics to your driving style.

Forced Induction: The Turbocharger Route

For those seeking substantial power gains, adding forced induction in the form of a turbocharger or supercharger is the most significant way to elevate the D16's performance. The principle is simple: the more air you can force into an engine, the more fuel it can burn, leading to massive power increases. However, turbocharging a naturally aspirated D16 is not a simple bolt-on modification; it's a complex project that requires careful planning and execution.

One major challenge when turbocharging a D16 is the risk of knocking, or premature ignition of fuel, which can severely damage the engine. To mitigate this, it's often necessary to reduce the engine's compression ratio, either by using lower compression pistons or by restricting the turbo to a lower boost threshold. Alternatively, using higher octane fuel or incorporating water injection can help suppress knocking. Remember, bigger turbochargers tend to suffer from turbo lag at low RPMs but provide significant peak power gains, while smaller turbos spool up quickly but may not deliver as much top-end power.

The world of turbos is constantly evolving. We now see advanced technologies like variable vane turbos, which adjust their vane profile according to engine speed to minimise lag and maximise top-end horsepower. Twin-scroll turbos are another innovation, diverting exhaust gases into two separate channels to flow them into differently designed vanes within the turbocharger, which also boosts the scavenging effect within the engine cylinders.

When significantly increasing the air drawn into the engine, you'll often find that the OEM air flow sensor (AFM/MAP sensor) becomes a restriction. Upgrading to a higher-capacity sensor, such as a 4-bar air sensor, is crucial to accurately measure the increased airflow and allow the ECU to manage fuel and ignition correctly. While adding a supercharger or an additional turbo (twin-charging) can yield even larger brake horsepower gains, these setups are typically more complex to implement and fine-tune effectively.

Fuelling Your Beast: Ensuring Adequate Supply

When you start pushing your D16 engine beyond a 20% power increase, ensuring that the engine is not starved of fuelling becomes absolutely critical. Adequate fuel delivery is fundamental to both performance and engine longevity. For the earlier carburettor-fed D16s, upgrading to twin carbs can provide a decent power gain, but a conversion to fuel injection is generally a more beneficial long-term modification. Fuel injection systems are significantly easier to tune and offer superior control for achieving larger power gains, along with better overall fuel economy.

For fuel-injected D16 models, upgrading the fuel pressure regulator is a good modification as it can improve throttle response and maintain consistent fuel pressure under varying loads. We strongly recommend being generous with your injector capacity. As your D16 produces more power, it will demand more fuel. Therefore, a fuelling modification is vital. In most cases, installing injectors with a 15% to 20% enhanced capacity compared to the stock ones is a recommended starting point to ensure your engine receives sufficient fuel under increased demands.

Exhaust System: Uncorking Performance

Improving your exhaust system is primarily necessary if the existing exhaust is causing a restriction in exhaust gas flow. Most factory exhausts are reasonably efficient for modest power gains, but once you start significantly increasing power levels, a better flowing exhaust becomes essential. Sports exhausts are designed to help exhaust gases flow more freely from the engine, reducing back pressure and improving efficiency. However, it's crucial to avoid an exhaust that is excessively large in diameter, as this can actually reduce exhaust gas velocity, negatively impacting flow rate and potentially making things worse. Generally speaking, keeping the exhaust pipe size between 1.5 to 2.5 inches in diameter yields the best results for a tuned D16.

A common point of restriction in most factory exhaust systems is the catalyst. Adding a freer-flowing sports catalyst is an excellent solution. This keeps your car road legal while significantly improving exhaust flow due to its higher internal surface area and optimised design. The alternative, a decat pipe (removing the catalyst entirely), should be considered an off-road only modification, as removing a catalyst is illegal for road-registered cars in most territories and regions. Always ensure your exhaust modifications comply with local regulations.

Common Weak Spots and Maintenance for D16 Engines

The D16 engines are generally reliable and robust units, provided they are regularly serviced according to the manufacturer's schedule and good quality oil is used. With proper maintenance, few major problems should arise, ensuring long-term longevity. However, like any engine, the D16 has a few areas that warrant attention:

• Carbon Build-up: Particularly around the valves, carbon deposits can sap power and create flat spots in the power delivery. While more prevalent in direct injection engines, it's a concern for all engines. Regular maintenance and specific cleaning procedures can help mitigate this.
• Distributors: These components can wear over time, often requiring replacement every 20,000 miles or so. Worn distributors can lead to tracking issues and misfires, affecting engine smoothness and power.
• Crankshaft Pulleys: The crankshaft pulley is prone to failure. Keep an eye out for cracks, unusual noises, or vibrations, as these can be early warning signs that replacement is needed.
• Engine Idle Issues: Common idle problems are often traced back to issues with the throttle body. Cleaning the throttle body typically resolves these issues. In some cases, a faulty Lambda (O2) sensor can also be the culprit, affecting the engine's ability to maintain a stable idle.
• Flat Spots After Tuning: Some owners report flat spots or glitches after applying modifications and tuning. This is not usually a design flaw of the D16 itself but rather a tuning anomaly. Consulting specific diagnostic guides for flat spots after tuning can help pinpoint and resolve these issues.

Regular oil changes are paramount for the D16, especially when the engine has been tuned. High-performance operation places additional stress on engine components, and fresh, clean oil is essential for lubrication and cooling, thereby extending the engine's life and reliability. Always use the manufacturer-recommended grade and specification of oil.

Frequently Asked Questions (FAQs) About D16 Tuning

Here are some common questions we receive about tuning the Honda D16 engine:

Is remapping safe for my D16 engine?

Yes, remapping can be safe if done correctly by a knowledgeable tuner using appropriate tools and software. However, a poor or aggressive tune can lead to engine damage. Always ensure your tuner understands the D16's limitations and incorporates safety features like knock protection.

What's the best first modification for a D16?

For naturally aspirated D16s, a fast road camshaft combined with a good remap often provides the most noticeable power increase for the money. For VTEC models, adjusting the VTEC engagement point through a remap can be a very effective first step.

How much power can I expect from a tuned D16?

With basic Stage 1 modifications and a remap, you can typically see a 15-20% power increase on a naturally aspirated D16. With more extensive modifications, including internal engine upgrades and forced induction, significantly higher power figures are achievable, though this involves greater cost and complexity.

Do I need to upgrade my fuel pump and injectors?

For modest power gains (up to 20%), the stock fuel pump and injectors might suffice. However, for anything beyond that, or when adding forced induction, upgrading your fuel pump and installing larger capacity injectors (e.g., 15-20% larger than stock) is crucial to prevent fuel starvation and ensure engine safety.

What is VTEC and how does it affect D16 tuning?

VTEC (Variable Valve Timing and Lift Electronic Control) is Honda's system that optimises valve lift and duration for different engine speeds, essentially providing two cam profiles. For tuning, VTEC allows for a broader power band. By remapping the ECU, you can adjust the VTEC engagement point to activate the sportier cam profile earlier, giving you more power throughout the rev range without needing to install an aftermarket camshaft.

Thanks for reading our Honda D16 Tuning tips. We trust this guide has provided valuable insights into enhancing your D16 engine's performance. Remember, a well-planned approach, combined with quality parts and careful tuning, will lead to a truly rewarding driving experience.
