Stripped Spark Plug Threads: Repairing Damaged Cylinder Heads

When Spark Plugs and Cylinder Heads Become One

It's a scenario many car owners dread: a sudden loss of power, an unusual noise, or worse, a completely dead engine. Often, the culprit can be traced back to something as seemingly small as a spark plug. Over time, especially with infrequent maintenance, spark plugs can become so firmly lodged in the cylinder head that they essentially 'marry' the metal. This can be a significant problem, as the removal process can strip the delicate threads within the aluminium cylinder head, leaving you with a potentially catastrophic issue. Fortunately, this isn't always a death sentence for the cylinder head itself. With the right knowledge and tools, damaged threads can often be repaired, saving you a substantial amount of money compared to a full cylinder head replacement.

Understanding the Problem: Why Do Threads Strip?

The spark plug hole is a precisely machined threaded opening in the engine's cylinder head. Its job is to securely hold the spark plug in place, allowing it to deliver the crucial spark that ignites the fuel-air mixture. Cylinder heads are typically made from aluminium alloy for its lightweight and heat-dissipating properties. However, aluminium threads are softer than steel, making them more susceptible to damage. Several factors can contribute to stripped spark plug threads:

• Infrequent Maintenance: Spark plugs are designed to be replaced periodically. Neglecting regular tune-ups means spark plugs can remain in place for extended periods, increasing the likelihood of them corroding or seizing into the aluminium threads.
• Overtightening: Applying too much force when installing a spark plug can easily damage the threads in the cylinder head. This is especially true if the threads are not properly aligned or if a thread-chasing tool isn't used.
• Cross-threading: This occurs when a spark plug is screwed in at an angle, causing the threads to misalign and grind against each other. This is a common mistake, often made when trying to rush the installation process.
• Corrosion: Over time, exposure to combustion byproducts and moisture can lead to corrosion between the spark plug's steel threads and the aluminium cylinder head.
• Contamination: Small debris or metal filings entering the spark plug hole during installation can also damage the threads.

Identifying Stripped Spark Plug Threads

How do you know if your spark plug hole has a problem? Here are some tell-tale signs:

• Difficulty Tightening: If a new spark plug spins in easily without resistance or doesn't feel like it's engaging the threads properly, this is a strong indicator of stripped threads.
• Loose Spark Plug: If a spark plug feels loose or has backed itself out of the cylinder head, the threads are likely damaged. This is the scenario described in the initial query, where a spark plug blew out of the head.
• Engine Misfires or Power Loss: A compromised seal around the spark plug can lead to a loss of compression, resulting in rough idling, misfires, and a noticeable decrease in engine power.
• Visible Damage: In some cases, you might be able to visually inspect the threads on the removed spark plug or, with careful probing, in the spark plug hole itself. Look for signs of metal shavings, deformed threads, or excessive wear.

Repair Options: Saving Your Cylinder Head

If you find yourself with stripped spark plug threads, don't despair. While a complete cylinder head replacement is the most expensive solution, several effective repair methods can restore the integrity of the spark plug hole.

1. Spark Plug Thread Chasers

For minor damage, such as deformed or slightly damaged threads, a spark plug thread chaser can be a lifesaver. This is essentially a specialised tap designed specifically for spark plug threads. When to use: If the spark plug still starts to thread into the hole but feels rough or requires excessive force, the threads might just be deformed. How it works:

1. Select the correct chaser: Ensure you have a chaser that matches the specific thread size of your spark plugs.
2. Lubricate: Apply a generous amount of engine oil or a suitable cutting fluid to the chaser's threads. This reduces friction and helps clear out any debris.
3. Align carefully: It is absolutely critical to keep the chaser perfectly aligned with the existing threads. Misalignment can cause further damage.
4. Slow and steady: Gently thread the chaser into the spark plug hole. Turn it slowly, backing it out periodically to clear any metal shavings or debris.
5. Clean thoroughly: Once you've chased the threads, use compressed air to blow out any remaining metal fragments. It's a good idea to coat the chaser with grease to help capture these chips.

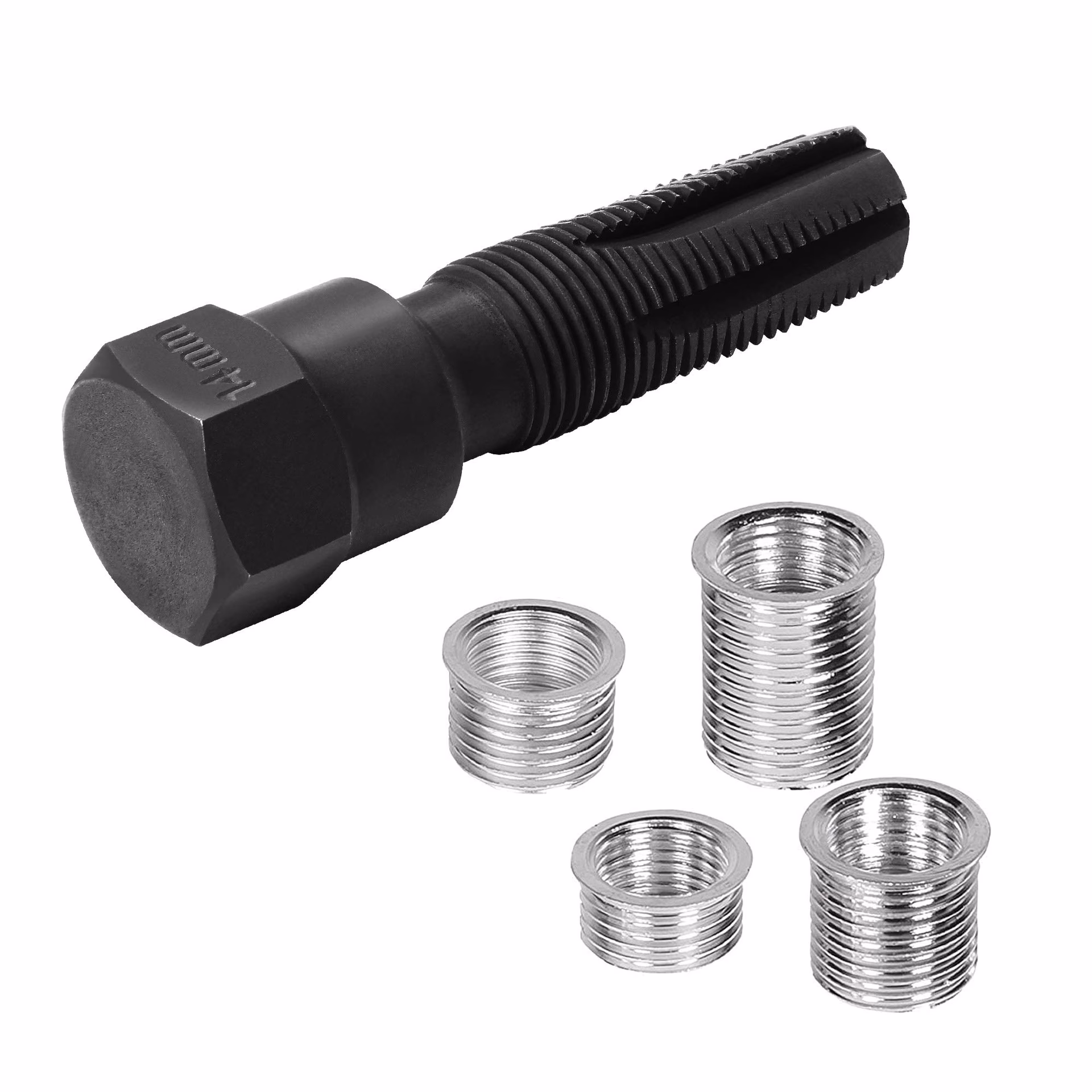

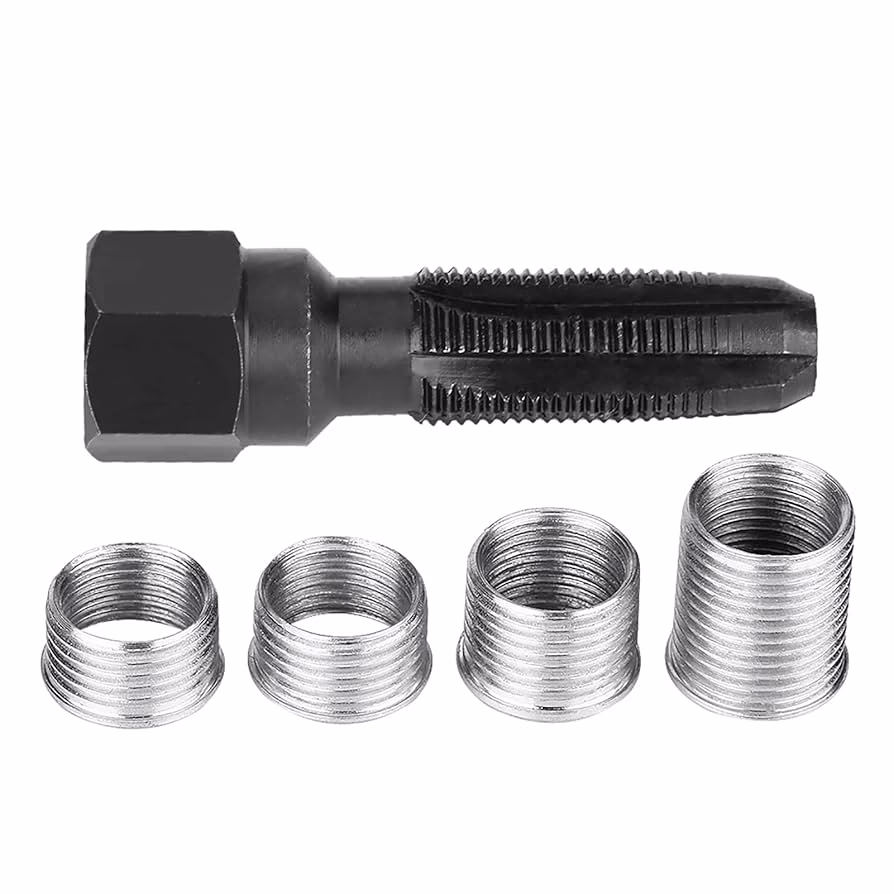

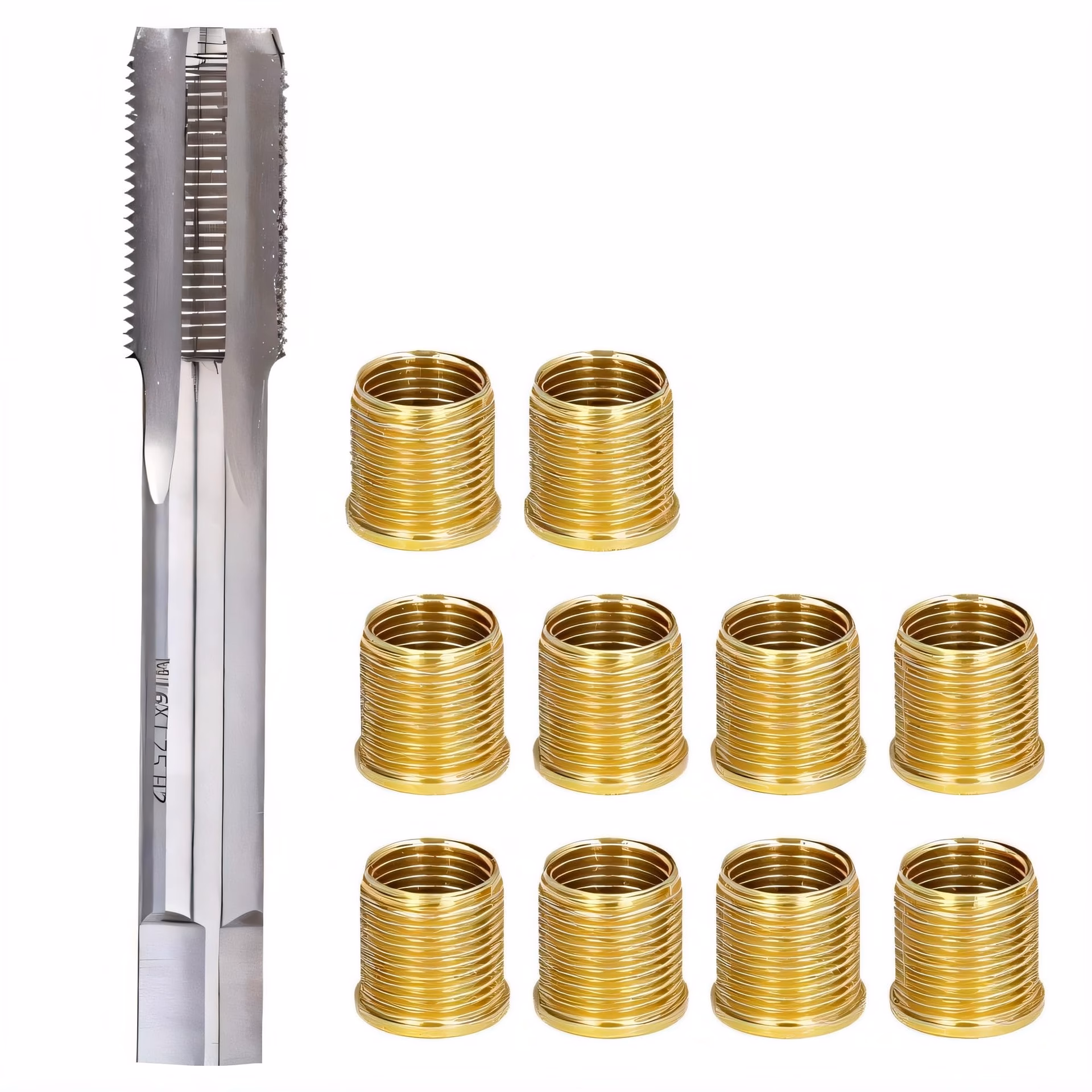

2. Thread Repair Inserts (Helicoil and Similar)

For more significant thread damage, where the original threads are completely stripped or missing, thread repair inserts are the go-to solution. The most well-known brand is Helicoil, but many other manufacturers offer similar products. It's important to note that a standard wire-coil Helicoil might not be sufficient for the high pressures of a spark plug hole; a solid bushing-style insert is generally preferred. When to use: When the spark plug spins freely, the threads are visibly damaged, or a thread chaser doesn't resolve the issue. Tools and Materials Required:

Step-by-Step Installation of a Thread Insert:Important Precaution: Before you begin drilling or tapping, it is crucial to prevent metal chips from entering the combustion chamber. Rotate the engine manually until the piston in the affected cylinder is close to Top Dead Centre (TDC). Then, pack the cylinder through the spark plug hole with oiled cotton rope or clean shop towels. This will catch any stray chips. Alternatively, you can fill the cylinder with a small amount of engine oil-soaked rags.

1. Prepare the hole: If your kit requires it, use the provided drill bit to carefully enlarge the stripped spark plug hole to the specified diameter. Ensure the drill is perfectly perpendicular to the cylinder head surface.
2. Tap the hole: Apply grease liberally to the special tap provided in the kit. This grease will trap the metal shavings as you cut the new threads. Carefully thread the tap into the hole, ensuring it remains perfectly straight and concentric with the original hole. Slowly cut the new threads, backing the tap out periodically to clear chips.
3. Clean the hole: Remove the tap. Use compressed air to blow out any remaining metal chips from the spark plug hole. It's vital to ensure the hole is completely clean.
4. Install the insert: The repair kit usually comes with a special tool for installing the insert. Some kits may also include a seat cutter to create a flush surface for the insert. Follow the kit's specific instructions. Typically, you'll thread the insert onto the installation tool and then carefully screw it into the newly tapped hole.
5. Secure the insert: The installation tool will often have a mechanism to 'roll' the bottom of the insert, creating a mechanical lock that prevents it from backing out. For inserts designed for tapered seat spark plugs, ensure you apply any provided sealant to the insert before installation.
6. Remove the installation tool: Once the insert is properly seated, remove the installation tool. If the insert has a small tang or lug, use needle-nose pliers to carefully break it off. Crucially, do not let this tang fall into the cylinder!
7. Final clean-up: Remove the oiled rope or towels from the cylinder. Use a vacuum cleaner with a small nozzle to meticulously remove any remaining metal particles or debris from the spark plug hole and the cylinder.
8. Install the spark plug: Apply a small amount of anti-seize compound to the threads of the new spark plug. This will prevent future seizing. Carefully thread the spark plug into the repaired hole, ensuring it's aligned correctly. Tighten it to the manufacturer's specified torque using a torque wrench.

3. Welding and Re-tapping

In cases of extremely severe damage, where even thread inserts might not provide a reliable repair, a skilled mechanic may resort to welding. This involves carefully welding up the damaged hole and then re-tapping it to the original or a slightly larger size. This is a more complex procedure that requires specialised equipment and expertise. When to use: For heavily damaged or cracked cylinder heads where other methods are not viable.

Prevention is Key

While repairs are possible, the best approach is to prevent spark plug thread damage in the first place. Follow these tips:

• Regular Spark Plug Replacement: Adhere to your vehicle manufacturer's recommended service intervals for spark plug replacement.
• Use Anti-Seize Compound: Apply a small amount of anti-seize compound to the spark plug threads before installation. This lubrication prevents corrosion and seizing.
• Proper Installation Technique: Always start threading the spark plug by hand to ensure it's properly aligned. Never force a spark plug; if it feels tight, back it out and try again.
• Use a Torque Wrench: Overtightening is a major cause of thread damage. Always tighten spark plugs to the manufacturer's specified torque setting.
• Keep the Hole Clean: Before installing new spark plugs, ensure the spark plug hole is free of dirt, debris, or corrosion.

Frequently Asked Questions (FAQ)

Q: Can I drive my car with a stripped spark plug hole?A: It is not recommended. A loose or improperly sealed spark plug can lead to poor engine performance, misfires, reduced fuel efficiency, and potentially severe engine damage due to loss of compression or the spark plug ejecting at high speed. Q: How much does it typically cost to fix stripped spark plug threads?A: The cost can vary significantly. A simple thread chase might only cost the price of the tool. A thread insert repair kit can range from £20 to £60, and if you have a professional mechanic perform the repair, labour costs could add another £50 to £200, depending on the complexity and your location. Welding repairs will be considerably more expensive. Q: How do I know if my spark plug hole is stripped?A: Signs include difficulty tightening the spark plug, the spark plug feeling loose, engine misfires, power loss, and sometimes visible damage to the threads. Q: Is a Helicoil a proper repair for a spark plug hole?A: While a standard wire-coil Helicoil can be used for some thread repairs, a solid bushing-style insert is generally considered a more robust and suitable repair for the high-pressure environment of a spark plug hole. Always use a repair kit specifically designed for spark plug threads if possible. By understanding the causes and employing the correct repair techniques, you can successfully address stripped spark plug threads and ensure your engine continues to run smoothly and reliably.
