Cylinder Head Repair & Reconditioning Explained

The cylinder head is arguably one of the most vital components of any internal combustion engine, often referred to as the 'brain' that orchestrates the engine's breathing and combustion process. Situated atop the engine block, it houses the combustion chambers, valves, camshafts, and provides passages for coolant and oil. Due to the extreme environment it operates in – enduring the highest temperatures and pressures within the entire engine – the cylinder head is highly susceptible to wear and damage. Consequently, the repair and reconditioning of cylinder heads represent the most frequent engine repair operation of any engine component, making it a cornerstone of engine maintenance and longevity.

Understanding what cylinder head repair and reconditioning entails, why it's so crucial, and the meticulous processes involved, is essential for anyone looking to maintain their vehicle's performance and extend its lifespan. It's not merely about fixing a broken part; it's about restoring a precision-engineered component to its optimal working condition, often to 'as new' or even improved specifications.

What is Cylinder Head Repair & Reconditioning?

Cylinder head repair involves addressing specific issues like cracks, warpage, or damaged valve seats. Reconditioning, however, is a more comprehensive process. It’s about restoring the cylinder head to its original factory specifications or even enhancing its performance beyond that. This involves a series of precise operations designed to counteract the wear and tear caused by the extreme forces at play within the combustion chamber.

The cylinder head’s valves must open and close thousands of times per minute during engine operation, enduring immense mechanical stress and thermal cycling. This constant movement, coupled with the intense heat and pressure of combustion, leads to eventual wear on valve seats, valve guides, and the head surface itself. Over time, this can lead to loss of compression, oil consumption, coolant leaks, and a significant drop in engine performance.

Reconditioning aims to address all these potential failure points. It’s a cost-effective alternative to replacing an entire cylinder head, offering a restored component that performs reliably for many more miles. It's a testament to the engineering prowess that these complex components can be brought back to life with the right tools and expertise.

The Critical Role of the Cylinder Head in Your Engine

To appreciate the importance of cylinder head reconditioning, one must first understand its multifaceted role. The cylinder head is more than just a cover for the engine block; it's an intricate casting that performs several critical functions:

• Combustion Chamber Formation: Along with the pistons, the cylinder head forms the combustion chamber where the air-fuel mixture ignites. Its design directly impacts combustion efficiency.
• Valve Operation: It houses the intake and exhaust valves, which control the flow of air into and exhaust gases out of the combustion chamber. The precise timing and sealing of these valves are paramount for engine performance.
• Camshaft and Valvetrain: For overhead cam engines, the cylinder head also contains the camshafts, lifters, rocker arms, and other components that operate the valves.
• Coolant and Oil Passages: Intricate passages within the head allow coolant to circulate and dissipate heat, preventing overheating. Similarly, oil passages lubricate the valvetrain components.
• Sealing Surface: The flat mating surface of the cylinder head forms a crucial seal with the engine block via the head gasket, containing the high pressures of combustion and preventing fluid leaks.

Any compromise to these functions, whether due to warpage, cracks, or worn valve components, directly impacts the engine's ability to run efficiently, reliably, or even at all.

Common Signs Your Cylinder Head Needs Attention

Recognising the symptoms of a failing cylinder head can save you from more extensive and costly engine damage. Look out for these common indicators:

• Overheating: This is perhaps the most common sign. A warped or cracked cylinder head can compromise the cooling system's integrity, leading to persistent overheating.
• White Smoke from Exhaust: This usually indicates that coolant is entering the combustion chamber and being burned, often due to a cracked head or a blown head gasket.
• Blue Smoke from Exhaust: Can signify worn valve stem seals, allowing oil to leak past the valves into the combustion chamber and burn.
• Loss of Engine Power or Misfires: Poor valve sealing or compromised compression due to head issues will lead to reduced power and an uneven running engine.
• Oil or Coolant Leaks: External leaks from the mating surface of the cylinder head can indicate warpage or a failing head gasket.
• Sweet Smell from Exhaust: Another sign of burning coolant.
• Coolant Mixing with Oil (Milky Oil): A severe crack in the head or a compromised head gasket can allow coolant and oil to mix, creating a milky sludge in the oil.

If you notice any of these symptoms, it's crucial to have your engine inspected by a qualified professional promptly.

The Cylinder Head Reconditioning Process: A Specialist's Touch

The reconditioning of a cylinder head is a highly specialised process that demands precision engineering and expert knowledge. It’s not a job for the DIY mechanic; it requires dedicated machinery and a deep understanding of engine dynamics. Here’s a general overview of the steps involved:

1. Initial Inspection and Disassembly

The process begins with a thorough visual inspection of the cylinder head, followed by complete disassembly. All valves, springs, retainers, and camshafts (if applicable) are removed. The head is then meticulously cleaned to remove all carbon deposits, oil, and grime, allowing for a clear view of its condition.

2. Pressure Testing and Crack Detection

This is a critical step. The cylinder head is subjected to a pressure test where coolant passages are sealed, and air pressure is applied while the head is submerged in hot water. Bubbles indicate cracks, even hairline fractures invisible to the naked eye. Further crack detection methods, such as magnafluxing for ferrous metals, may also be employed to identify microscopic flaws.

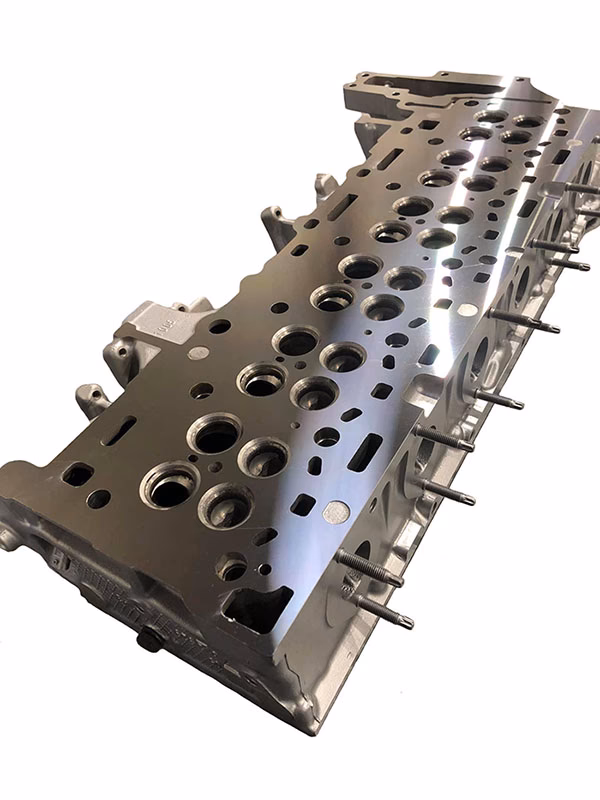

3. Surface Grinding (Skimming)

Many cylinder heads warp over time due to repeated heating and cooling cycles. A precision surface grinder (often called a 'skimmer') is used to machine the mating surface of the head perfectly flat. This ensures an absolutely airtight and watertight seal with the engine block when the new head gasket is installed, which is vital for maintaining compression and preventing fluid leaks.

4. Valve and Valve Seat Refurbishment

The valves and their seats are central to engine compression and efficiency. Worn valve seats or pitted valves lead to compression loss. During reconditioning, valve seats are recut or replaced, and valves are refaced or replaced entirely. The goal is to create a perfect seal between the valve face and the seat, ensuring maximum compression and efficient airflow. This often involves grinding the valve to a specific angle and then cutting the valve seat to match, followed by lapping to ensure a perfect fit.

5. Valve Guide Inspection and Replacement

Valve guides support the valve stems and ensure accurate valve movement. Worn valve guides can lead to excessive oil consumption and poor valve sealing. Specialists inspect these guides for wear and replace them if necessary, ensuring the valves operate smoothly and precisely.

6. Porting and Polishing (Specialist Enhancement)

This is where a true cylinder head specialist excels. While not always part of a standard recondition, porting involves shaping the intake and exhaust ports to optimise airflow. The aim is to maintain maximum intake and exhaust air speed with the minimal amount of enlargement. This delicate balance ensures that the air-fuel mixture enters the combustion chamber efficiently and exhaust gases exit quickly, without creating turbulence that could hinder performance. Specialists strive for equal flow through each port, ensuring each cylinder experiences similar air speed. This can significantly improve engine breathing, leading to better power and fuel efficiency.

7. Final Assembly and Inspection

Once all machining and refurbishment work is complete, the cylinder head is meticulously reassembled with new valve stem seals, and often new valve springs and retainers. All components are cleaned, inspected, and lubricated. A final quality check ensures that all specifications are met, and the head is ready for installation back into the engine.

Why Choose a Specialist for Cylinder Head Work?

Given the complexity and precision involved, choosing a reputable specialist for cylinder head reconditioning is paramount. These engineers possess the:

• Expertise: Deep knowledge of engine mechanics and the specific requirements of various engine types (petrol, diesel, light vehicle, commercial).
• Specialised Equipment: Access to a full range of machine tools for precision engineering, such as surface grinders, valve seat cutters, and pressure testing rigs, which are far beyond what a general garage might possess.
• Precision Engineering: The ability to work to extremely tight tolerances, ensuring that components are machined to perfection, vital for engine reliability and performance.
• Quality Assurance: Reputable specialists often adhere to industry standards, such as those set by organisations like the Federation of Engine Remanufacturers (FER), ensuring high-quality workmanship.
• Comprehensive Service: Many specialists offer a range of services beyond just cylinder heads, including crankshaft grinding and reboring, allowing for a complete engine reconditioning solution if needed.

Entrusting your cylinder head to a specialist guarantees that the work is done correctly, using the right methods and equipment, leading to a reliable and long-lasting repair.

Recondition vs. Replace vs. Repair: What's Best for Your Engine?

While a new cylinder head offers immediate certainty, reconditioning provides a highly cost-effective and environmentally friendly alternative that often meets or exceeds the performance of a new component. Minor repairs are typically only suitable for very specific, isolated issues and are rarely a long-term solution for significant cylinder head problems.

Benefits of Professional Cylinder Head Reconditioning

Investing in professional cylinder head reconditioning offers several significant advantages:

• Cost-Effectiveness: Often substantially cheaper than purchasing a brand-new cylinder head, especially for older or rare engines where new parts might be difficult to source.
• Restored Performance: A reconditioned head ensures optimal compression, valve sealing, and airflow, leading to restored engine power, smoother running, and improved fuel efficiency.
• Extended Engine Lifespan: By addressing the root causes of wear and potential failure, reconditioning can significantly extend the overall life of your engine.
• Environmental Benefit: Reusing and restoring existing components reduces waste and the energy required to manufacture new parts, making it a more sustainable choice.
• Reliability: When performed by experienced specialists, a reconditioned cylinder head can be as reliable, if not more so, than a new one, as it has been meticulously inspected and machined.

Frequently Asked Questions (FAQs)

How long does a reconditioned cylinder head last?

When properly reconditioned by a specialist and installed correctly, a reconditioned cylinder head can last as long as, or even longer than, a new one. Its lifespan largely depends on the quality of the reconditioning work and subsequent engine maintenance.

Is it always better to recondition than to buy a new cylinder head?

Not always. The decision depends on the extent of the damage, the cost of a new head versus reconditioning, and the availability of new parts. For many common engines, reconditioning is often the most economical and practical solution, especially for more complex or older heads.

What causes cylinder head damage?

The most common causes include overheating (leading to warping or cracking), lack of lubrication (damaging valvetrain components), insufficient cooling (leading to hot spots and cracking), and simply extensive mileage and wear over time.

Can I drive with a damaged cylinder head?

Driving with a damaged cylinder head is highly inadvisable. It can lead to severe engine damage, including piston damage, connecting rod failure, or even complete engine seizure. Continuing to drive will only escalate repair costs.

What's the typical cost of cylinder head reconditioning?

The cost varies significantly depending on the engine type, the extent of the damage, and the specific services required (e.g., just skimming vs. full recondition with porting). It's always best to get a detailed quote from a specialist.

In conclusion, the cylinder head is a cornerstone of your engine's health and performance. While it endures immense stress, professional reconditioning offers a highly effective and often more economical solution than outright replacement. By understanding the intricate processes involved and entrusting this critical work to experienced specialists, you can ensure your engine continues to run efficiently, reliably, and powerfully for many years to come, safeguarding your investment in your vehicle and contributing to its longevity.
