Cylinder Head Cleaning & Reassembly

When embarking on the task of replacing a cylinder head gasket, a common scenario involves discovering imperfections on the mating surfaces. The question of how to properly clean a cylinder head, particularly in light of potential pitting and the use of tools like wire wheels, is a crucial one for ensuring a successful and leak-free repair. This guide aims to demystify the process, offering practical advice and addressing common concerns to help you decide whether to proceed with reassembly or opt for professional machining.

Understanding Cylinder Head Mating Surfaces

The cylinder head gasket is the vital seal between the cylinder head and the engine block. Its integrity is paramount for preventing combustion gases from entering the coolant system and coolant from entering the combustion chambers or oil passages. The mating surfaces on both the cylinder head and the block must be exceptionally clean and flat to achieve a proper seal. Any debris, old gasket material, or imperfections can compromise this seal, leading to premature failure. The goal is a smooth, uniform surface that allows the gasket to compress evenly under the clamping force of the head bolts or studs.

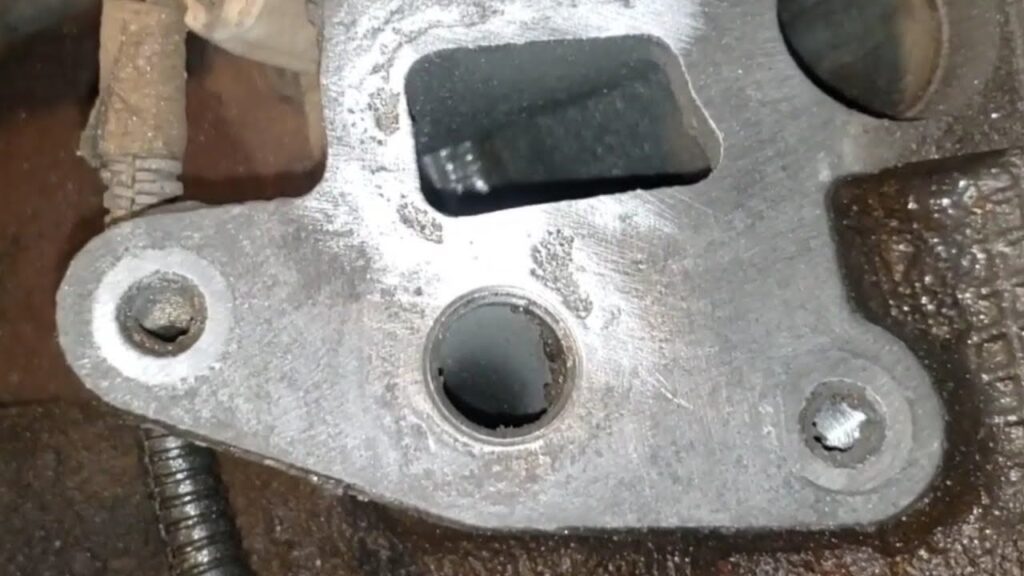

Assessing Pitting on the Mating Surface

The user mentions finding small pits on the cylinder head gasket mating surface around a cylinder bore, noting they are not deep enough to catch a fingernail. This is a common concern. While minor pitting, especially if shallow and isolated, might not always cause immediate failure, it represents a potential weak point. The ideal scenario is a perfectly smooth surface. However, the feasibility of reassembly without professional machining depends on the extent and depth of the pitting.

Key considerations for pitting:

• Depth: If you cannot feel the pit with a fingernail, it is likely superficial. Deeper pits, however, can prevent the gasket from sealing effectively.
• Location: Pitting directly over a cylinder bore or coolant passage is more problematic than pitting in an area between these critical passages.
• Number: A few isolated pits are less concerning than widespread pitting across the entire mating surface.

In many cases, very minor imperfections can be managed by using a high-quality gasket and ensuring meticulous cleaning. However, if the pitting is more significant or you are aiming for a long-term, reliable repair, having the cylinder head decked (a process where a thin layer of material is removed to create a fresh, flat surface) is the most prudent course of action.

The Use of Wire Wheels and Cleaning Methods

The user’s experience of using a fine wire wheel on a drill to clean carbon and gasket material raises a critical point. While effective at removing stubborn deposits, wire wheels, especially those with coarser bristles or used with excessive force, can inadvertently score or scratch the delicate mating surface of the cylinder head. These scratches can act as leak paths, similar to pitting, and compromise the gasket seal.

Recommended Cleaning Practices:

• Scrapers: A gasket scraper or a new, sharp razor blade held at a very low angle can be used to carefully lift off old gasket material. The key is to avoid digging into the metal.
• Chemical Gasket Removers: These solvents can help soften hardened gasket material, making it easier to scrape away.
• Non-Abrasive Pads: For lighter cleaning and polishing, specialized non-abrasive pads designed for cylinder head cleaning are available.
• Solvents: After physical removal of debris, cleaning the surface with a suitable solvent (like brake cleaner or a dedicated gasket surface cleaner) ensures no residual oil or contaminants remain.

If a wire wheel was used, it's essential to carefully inspect the mating surface under good lighting. Any noticeable scratches or gouges will need to be assessed. If the scratches are deep enough to catch a fingernail or appear to create channels, they can be as detrimental as pitting.

Block Mating Surface Cleanliness

The user mentions using a razor on the block and still seeing stains, but no gasket material. The goal for the block surface is similar: clean and free of old gasket material. Stains, unless they represent corrosion or significant damage, are often less critical than residual gasket material or deep scratches. However, a completely clean surface is always preferred. The presence of stains might indicate slight corrosion or discoloration, but if the surface is smooth to the touch and free of raised material, it might be acceptable.

How clean does it have to be?

The mating surfaces must be:

• Free of all gasket material: Even the slightest residue can prevent a proper seal.
• Free of oil and grease: These contaminants will prevent the gasket from adhering and sealing correctly.
• Smooth and flat: Any significant imperfections like deep scratches, gouges, or warping can lead to leaks.

The Decision: Reassembly vs. Machining

The desire to avoid the downtime and expense of having the head decked is understandable, especially with ARP head studs installed, which suggest a commitment to a robust repair. The question boils down to risk assessment.

Factors favouring reassembly without machining:

• The pitting is extremely shallow and not catchable by a fingernail.
• The wire wheel use did not create significant, deep scratches.
• The block surface is smooth and free of gasket residue.
• You are prepared for the possibility of having to remove the head again if leaks develop.

Factors favouring machining (decking):

• The pitting is noticeable or located over critical areas.
• The wire wheel has left visible scratches or gouges.
• There is any suspicion of head warpage (though this usually requires a straight edge measurement).
• You want the highest degree of certainty for a long-lasting repair.

Given that the goal is to avoid machining, and the imperfections are described as minor, proceeding with careful reassembly is a viable option. However, it’s crucial to manage expectations. If the repair fails, the cost of re-disassembly and subsequent machining will be incurred anyway, plus the cost of new gaskets and potentially other components.

Table: Cleaning & Machining Considerations

Reassembly Process & Torque Sequence

If you decide to proceed with reassembly, meticulous attention to detail is paramount. Ensure both the cylinder head and block mating surfaces are thoroughly cleaned and then wiped down with a clean, lint-free cloth dampened with a suitable solvent (e.g., brake cleaner). Install the new head gasket according to the manufacturer's instructions – orientation is critical.

When installing the ARP head studs, follow their specific lubrication and torque-down procedures. The cylinder head bolts (or studs) must be tightened in the correct sequence and to the specified torque values, often in multiple stages, to ensure even clamping pressure across the gasket. Referencing the vehicle's service manual for the exact torque sequence and values is absolutely essential.

Frequently Asked Questions (FAQs)

Q1: Is it really stupid to put this back together without decking the head?
It’s not inherently "stupid," but it carries a higher risk of premature gasket failure compared to having the head resurfaced. If the imperfections are very minor and you’re prepared for the possibility of a repeat repair, it’s a gamble you can take.

Q2: How critical is the flatness of the cylinder head surface?
Extremely critical. Even microscopic imperfections can lead to leaks, especially with modern, multi-layer steel (MLS) head gaskets which require a very precise surface to seal properly.

Q3: Can I use a different type of gasket to compensate for minor pitting?
While some thicker or composite gaskets might offer a marginal tolerance for minor surface imperfections, they are not a substitute for a properly prepared mating surface. Relying on the gasket to overcome significant defects is generally not recommended.

Q4: What if I still see stains on the block after cleaning?
If the stains are superficial and the surface is smooth to the touch, it’s often acceptable. However, if the stains are associated with corrosion (pitting) or indicate unevenness, further attention may be needed.

Q5: How do I check for head warpage?
You typically need a precision straight edge and a feeler gauge. Place the straight edge across the surface in various directions (lengthwise, widthwise, diagonally) and check for gaps between the straight edge and the head surface using the feeler gauge. Consult your vehicle's manual for the maximum allowable deviation.

Conclusion

The decision to reassemble without machining hinges on your tolerance for risk and the actual condition of the mating surfaces. While the user's goal to save time and money is valid, ensuring a reliable repair should be the priority. If the pitting and scratches are truly minimal and you’ve cleaned meticulously, you might get lucky. However, for peace of mind and the best chance of a long-lasting fix, professional machining of the cylinder head is the gold standard. Always follow the correct torque procedures and use quality components for the best results.
