Superior Thread Repair: Beyond Helicoils

Encountering stripped or damaged threads during a vehicle repair can be a frustrating experience. Fortunately, there are effective solutions available to restore these vital connections. While traditional methods like Helicoils have been used for years, modern advancements offer superior alternatives. This article delves into the world of thread repair, comparing the effectiveness of Helicoils with more robust systems and providing a comprehensive guide to their application.

The Challenge of Damaged Threads

Threads are the unsung heroes of mechanical assembly, providing the secure connections that hold everything together. When these threads become damaged, whether through overtightening, cross-threading, or general wear and tear, the integrity of the component is compromised. This can lead to leaks, vibrations, and ultimately, component failure. Fortunately, with the right tools and techniques, most damaged threads can be successfully repaired, saving costly replacements and ensuring a reliable fix.

Traditional Thread Repair: The Helicoil Method

Helicoils, also known as thread repair inserts, recoils, or thread inserts, have long been a go-to solution for repairing damaged or worn threads. They are essentially free-running, stainless steel wire coils that are inserted into a pre-tapped hole. The process involves drilling out the damaged thread, tapping a new, larger thread to accept the Helicoil, and then screwing the coil into place using a special tool. The Helicoil then creates a standard-sized internal screw thread within the existing hole.

How Helicoils Work:

• Drilling: The damaged thread area is drilled out to a specific size, depending on the Helicoil kit being used.
• Tapping: A special tap, provided in the Helicoil kit, is used to cut new threads into the drilled hole. These threads are designed to accept the Helicoil.
• Installation: The Helicoil is screwed onto an insertion tool and then wound into the newly tapped hole. The tool coils the insert into the threads, ensuring it sits flush with the original thread surface.
• Tang Break-off: After installation, a small lug or 'tang' on the Helicoil needs to be broken off using a dedicated tool to ensure a smooth internal thread.

Pros and Cons of Helicoils:

While Helicoils can effectively repair threads, they do have certain limitations:

Advantages:

• Widely available and relatively inexpensive.
• Can restore threads to their original size.
• Suitable for a wide range of thread sizes and materials.

Disadvantages:

• The repair relies on the strength of the tapped threads in the base material, which can be weaker than the original.
• The thin wire coil can be susceptible to stress and vibration, potentially leading to loosening over time.
• Installation can be finicky, and improper tapping can lead to cross-threading.
• The tang break-off step can sometimes be missed, leaving a potential snag point.

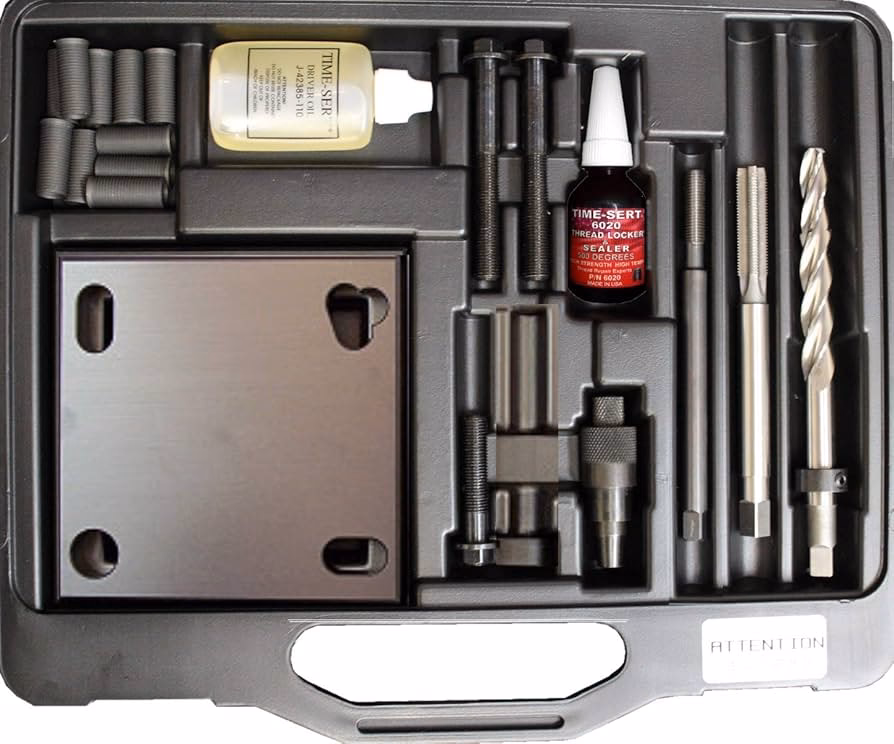

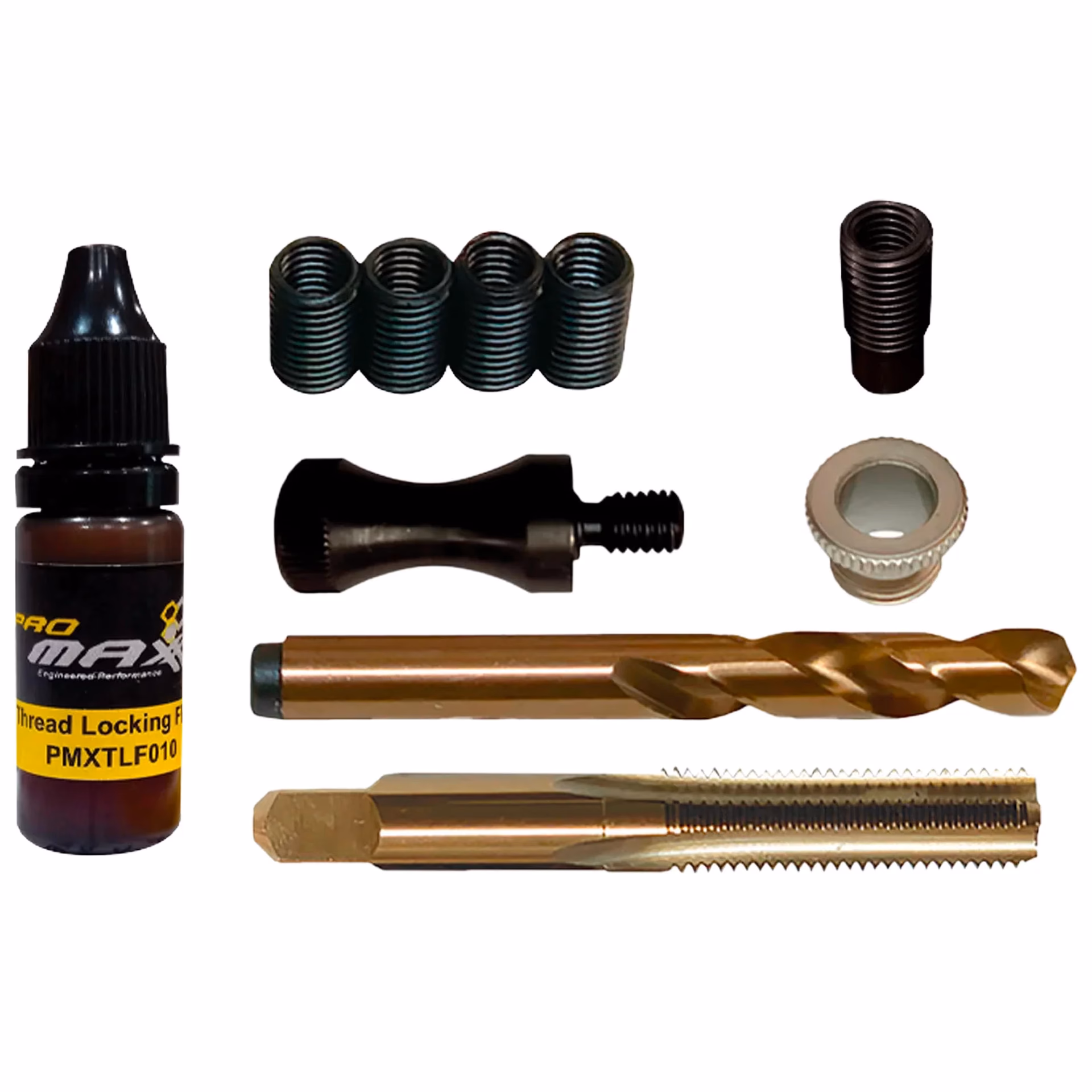

A Superior Alternative: Solid Bushing Inserts (e.g., Time-Sert)

For a more robust and permanent thread repair, solid bushing inserts, such as those offered by Time-Sert, represent a significant upgrade. These systems utilise a precisely machined, solid metal bushing that is installed into a prepared hole. Unlike the wire coil of a Helicoil, a solid bushing offers greater strength and durability.

How Solid Bushing Inserts Work:

The installation process for solid bushing inserts is meticulous, ensuring a strong, reliable repair:

1. Preparation: The damaged thread area is first drilled out to a specific size using a drill bit or reamer provided in the kit. Some kits may include a seat cutter or a combined drill/reamer with a counterbore feature.
2. Counterboring: A crucial step is counterboring the hole. This creates a recess at the top of the hole, specifically designed to accept a flange on the insert. This counterbore has a depth-stop feature to ensure precise installation.
3. Tapping: A special tap, also included in the kit, is used to cut threads into the prepared hole that will accept the solid insert. It's vital to keep the tap aligned and perpendicular to ensure the new threads are straight. Lubrication is essential to prevent galling.
4. Installation: The solid bushing insert is threaded onto a special installation tool. This tool is then used to thread the insert into the prepared hole. The unique aspect of systems like Time-Sert is that the installation tool cold-rolls the external threads of the insert, expanding them into the base material. This creates a positive locking mechanism at the bottom of the insert, effectively anchoring it in place.
5. Finishing: Once installed, the installation tool is unscrewed, leaving the solid bushing securely in place, ready for use.

The Advantages of Solid Bushing Inserts:

Solid bushing inserts offer several key advantages over traditional Helicoils:

• Superior Strength: The solid metal construction and the cold-rolling installation process create a repair that is as strong, if not stronger, than the original threads. They are resistant to stress and vibration.
• Positive Locking: The expansion of the insert's threads into the base material provides a secure lock, preventing the insert from backing out or loosening.
• Ease of Installation (with proper tools): While the process is precise, the kits are designed for straightforward installation when following the instructions. The depth-stop on the counterbore tool prevents over-installation.
• Thin-Walled Design: Many solid inserts are thin-walled, allowing them to be installed in areas with limited space and clearance.
• Flanged Design: The flange on some inserts ensures positive placement and prevents them from winding down into the newly repaired hole.
• Manufacturer Recommended: Many major car manufacturers, including GM, Honda, and Toyota, recommend and use systems like Time-Sert for their thread repairs.

When to Use Which Method?

While solid bushing inserts are generally considered superior, Helicoils can still be a viable option in certain situations:

Repairing Specific Components

Oil Pan Threads:

Oil pans are particularly susceptible to damage from overtightening or impact. A stripped drain plug thread in an oil pan can lead to significant oil leaks. Solid bushing inserts like Time-Sert are highly recommended for oil pan thread repairs. The process involves carefully drilling out the damaged threads, tapping the hole, and installing the insert. It's crucial to manage debris during this process. For oil pan repairs, flushing the pan with a bit of oil after the repair is advised to ensure no metal shavings remain. Using a tap guide for oil pan thread repairs is also beneficial to ensure the drain plug is installed straight, preventing gasket sealing issues.

Spark Plug Threads:

Damaged spark plug threads in cylinder heads can be a costly problem. Repairing these requires precision. Solid bushing inserts are an excellent solution. When working on spark plug threads, it's vital to ensure the valves are closed so that any debris can be blown out of the cylinder after the repair. Lubrication is essential throughout the process, but for spark plug threads, it's generally advised not to use thread locker on the spark plug itself, as it can affect torque specifications.

Tips for Successful Thread Repair

• Use the Correct Kit: Always ensure you have the specific thread repair kit for the thread size and type you are working with.
• Lubrication is Key: Never attempt to cut or tap threads without adequate lubrication. Cutting fluid or tapping compound is essential to prevent galling and ensure a clean thread. For installing solid bushing inserts, use driver oil as recommended by the manufacturer.
• Maintain Alignment: Proper alignment of drill bits, taps, and installation tools is paramount to avoid cross-threading and ensure a strong repair. Use tap guides where provided or necessary.
• Manage Debris: Be mindful of where debris can go, especially when working on internal engine components. Use compressed air, rags, or vacuum cleaners to keep the work area clean.
• Follow Instructions: Each thread repair kit has specific instructions. Always read and follow them carefully, as variations exist between different manufacturers and product lines.
• Consider the Application: For high-stress or critical applications, a solid bushing insert is generally the preferred choice for its superior strength and durability.

Frequently Asked Questions

Q: Can any damaged thread be repaired?
A: Most damaged threads can be repaired, but the success depends on the extent of the damage and the chosen repair method. Severely damaged or corroded areas might require more extensive work or component replacement.

Q: Do I need special tools for thread repair?
A: Yes, thread repair kits typically come with specialised tools, including specific drill bits, taps, and installation drivers. Standard tools like spanners and ratchets are also needed.

Q: Is a Helicoil repair as strong as the original thread?
A: A Helicoil repair can be effective, but its strength is dependent on the integrity of the threads tapped into the base material. Solid bushing inserts often provide a stronger, more durable repair.

Q: What is the advantage of a solid bushing insert over a Helicoil?
A: Solid bushing inserts offer greater strength, better resistance to stress and vibration, and a more secure locking mechanism due to their construction and installation method.

Q: Can I repair threads on an aluminium component?
A: Yes, thread repair systems are designed for various materials, including aluminium. Proper technique and the right kit are essential for successful repairs on softer metals.

Q: How do I know which thread repair kit to buy?
A: You need to identify the exact thread size and pitch of the damaged thread. Most kits are clearly labelled with the thread they are designed to repair (e.g., M10x1.5).

Conclusion

While Helicoils have served their purpose in thread repair, the evolution of automotive mechanics demands more robust solutions. Solid bushing inserts, exemplified by systems like Time-Sert, offer a superior method for repairing stripped and damaged threads, providing enhanced strength, durability, and reliability. By understanding the differences and following the correct procedures, you can ensure a lasting repair for your vehicle's critical threaded connections.
